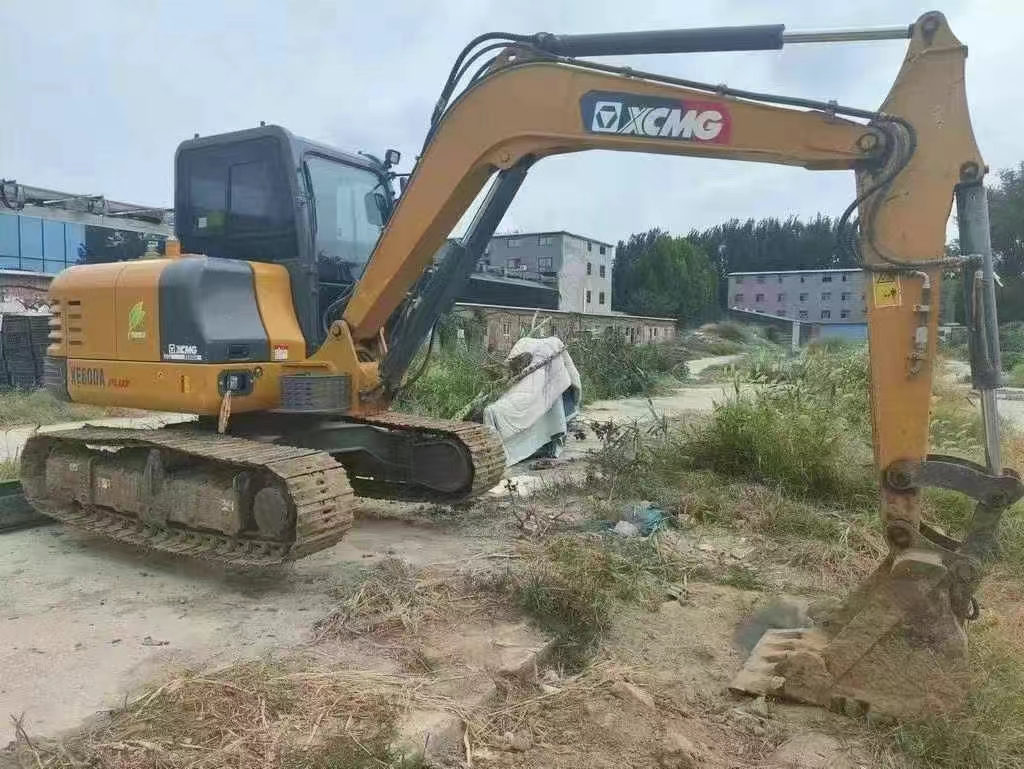

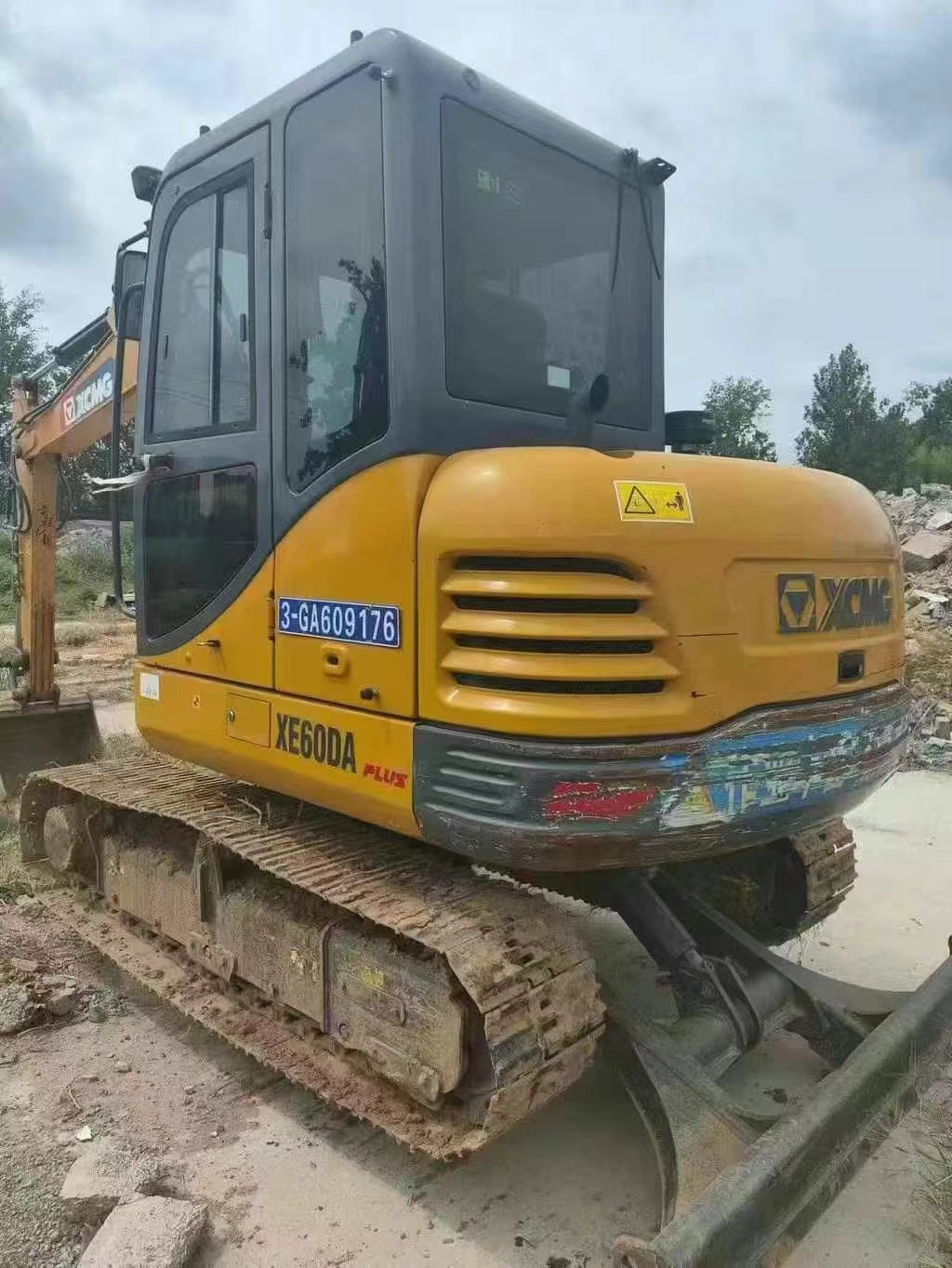

XCMG60

Tonnage (tons) 6
Machine operating weight (kg) 5960
Bucket capacity (m³) 0.09-0.23
Boom length (mm) 3000
Arm length (mm) 1600
Origin: Xuzhou
Performance
Slewing speed (rpm) 9.5
Travel speed (km/h) 4.2/2.2
Gradability (%) 35°
Ground pressure (Kpa) 32.1
Bucket digging force (kN) 42.5
Arm digging force (kN) 28.5

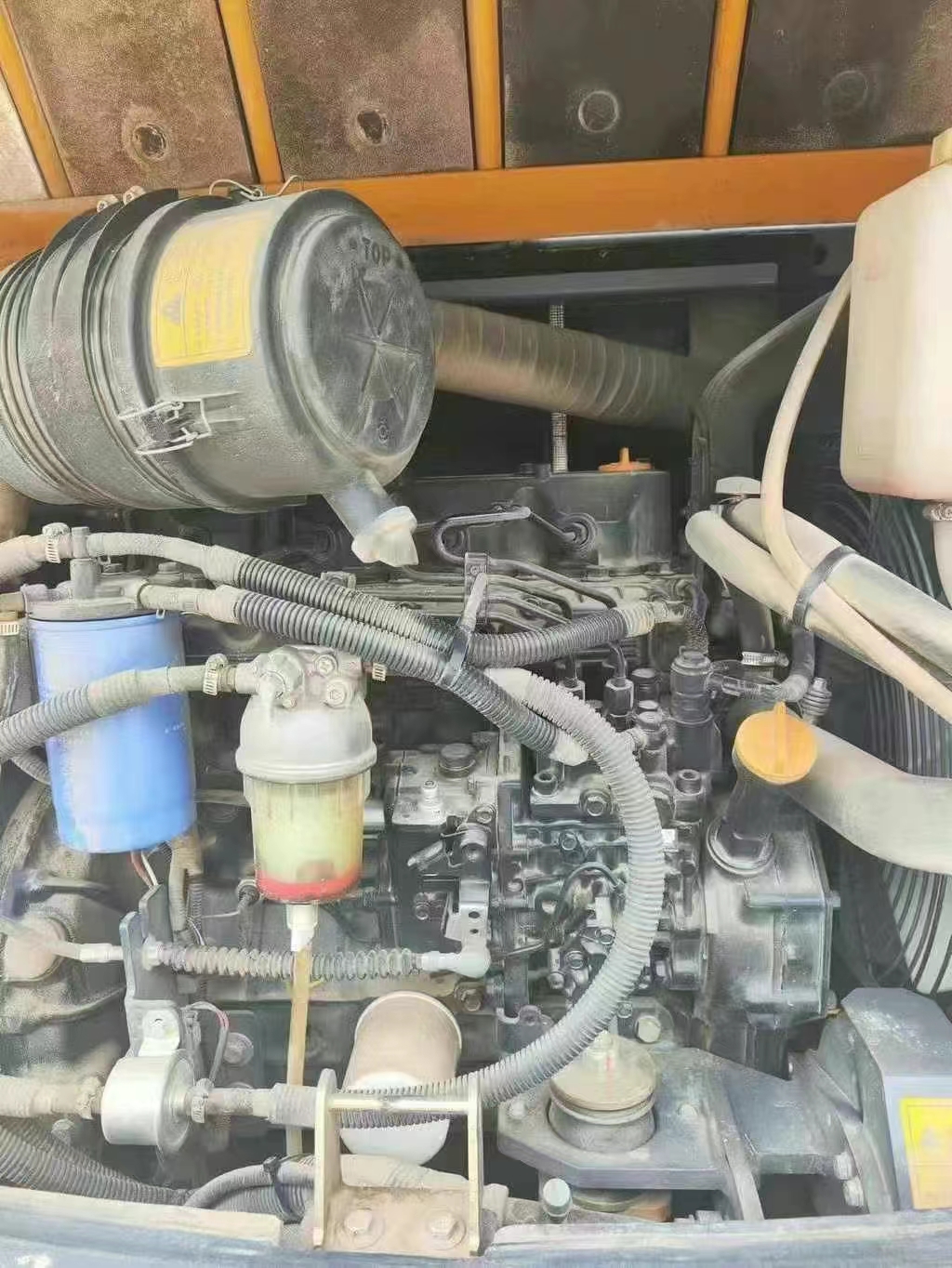

Power system

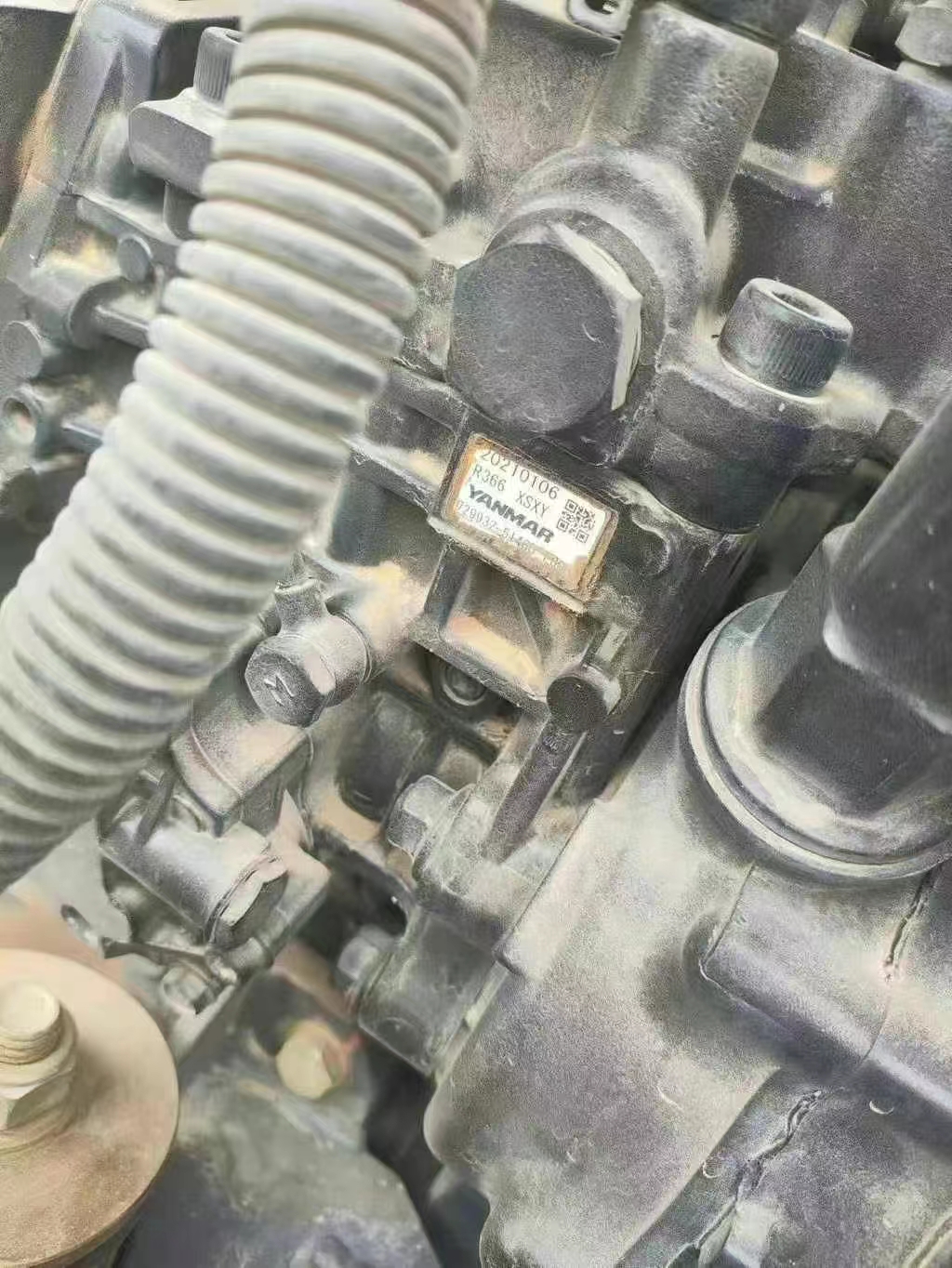

Engine model: Yanmar 4TNV94L
Rated power (kw/rpm) 39.8/2200
Displacement (L) 3.054
Number of cylinders (pcs) 4
Cooling method Water cooling

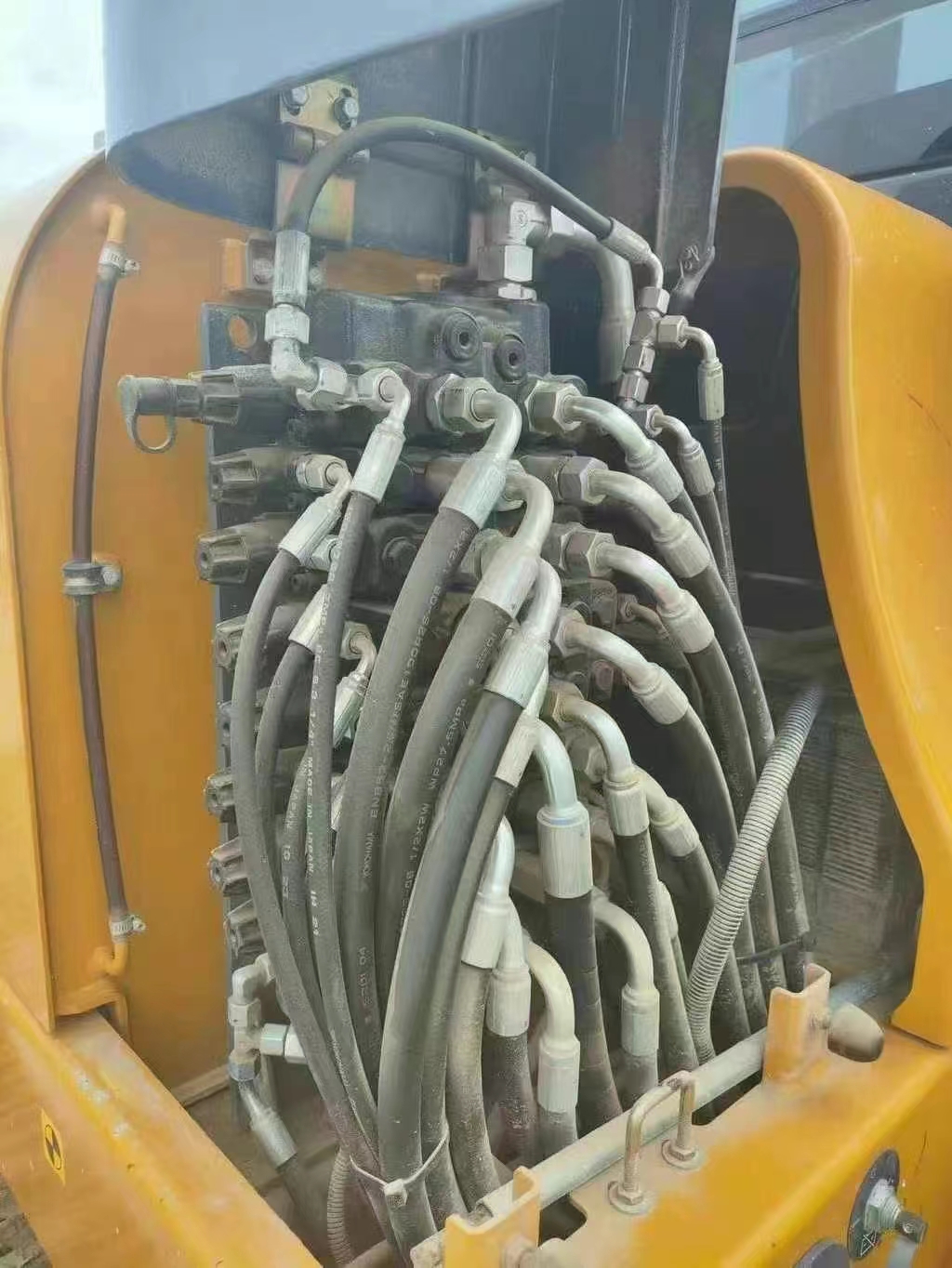

Hydraulic system
Main pump type Japan Rexroth
Main pump maximum flow (l/min) 2*60.5+40.3+9.9
Pilot oil circuit (MPa) 2.9
Travel hydraulic circuit (Mpa) 22
Slewing hydraulic circuit (Mpa )23
Main overflow set pressure (Mpa) 22
Is the hydraulic crushing pipeline standard? Yes
Oil capacity
Fuel tank (L) 110
Hydraulic oil tank (L) 85
Engine oil replacement volume (L) 5.3
Main body size
Total length for transportation (mm) 5850
Total width for transportation (mm) 1880/1920
Total height for transportation (mm) 2585

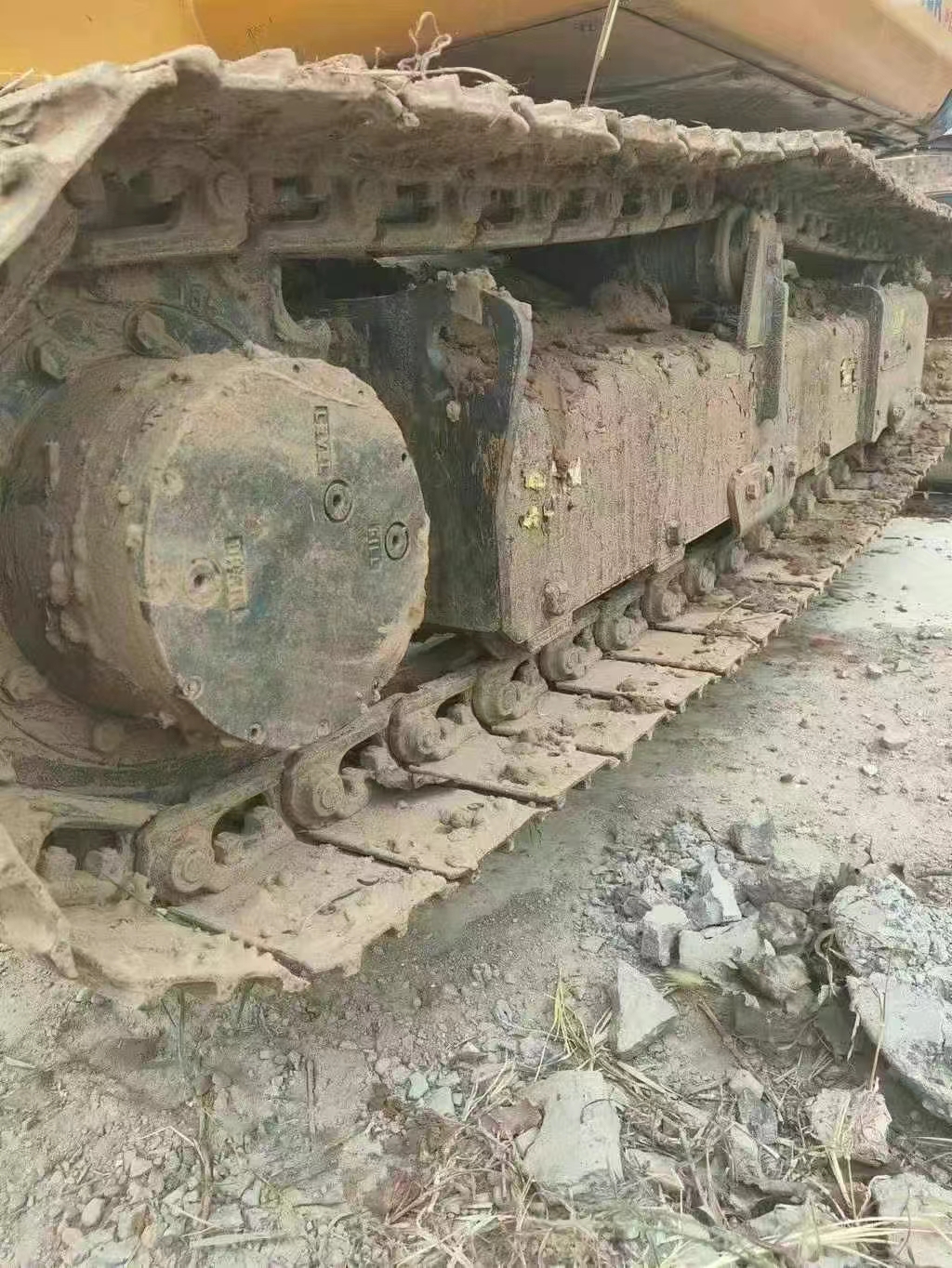

Track ground length (mm) 1985/1990
Track shoe width (mm) 400
Track gauge (mm) 1480/1500
Counterweight ground clearance (mm) 694
Minimum ground clearance (mm ) 369
Minimum turning radius of front working device (mm) 2450
Rear end turning radius (mm )1650
Operating range
Maximum digging radius (mm) 6130
Maximum digging depth (mm) 3830
Maximum digging height (mm) 5630
Maximum unloading height (mm) 3945
Maximum vertical digging depth (mm) 2680
Bulldozer blade width × height (mm) 1880*365/1920*340
