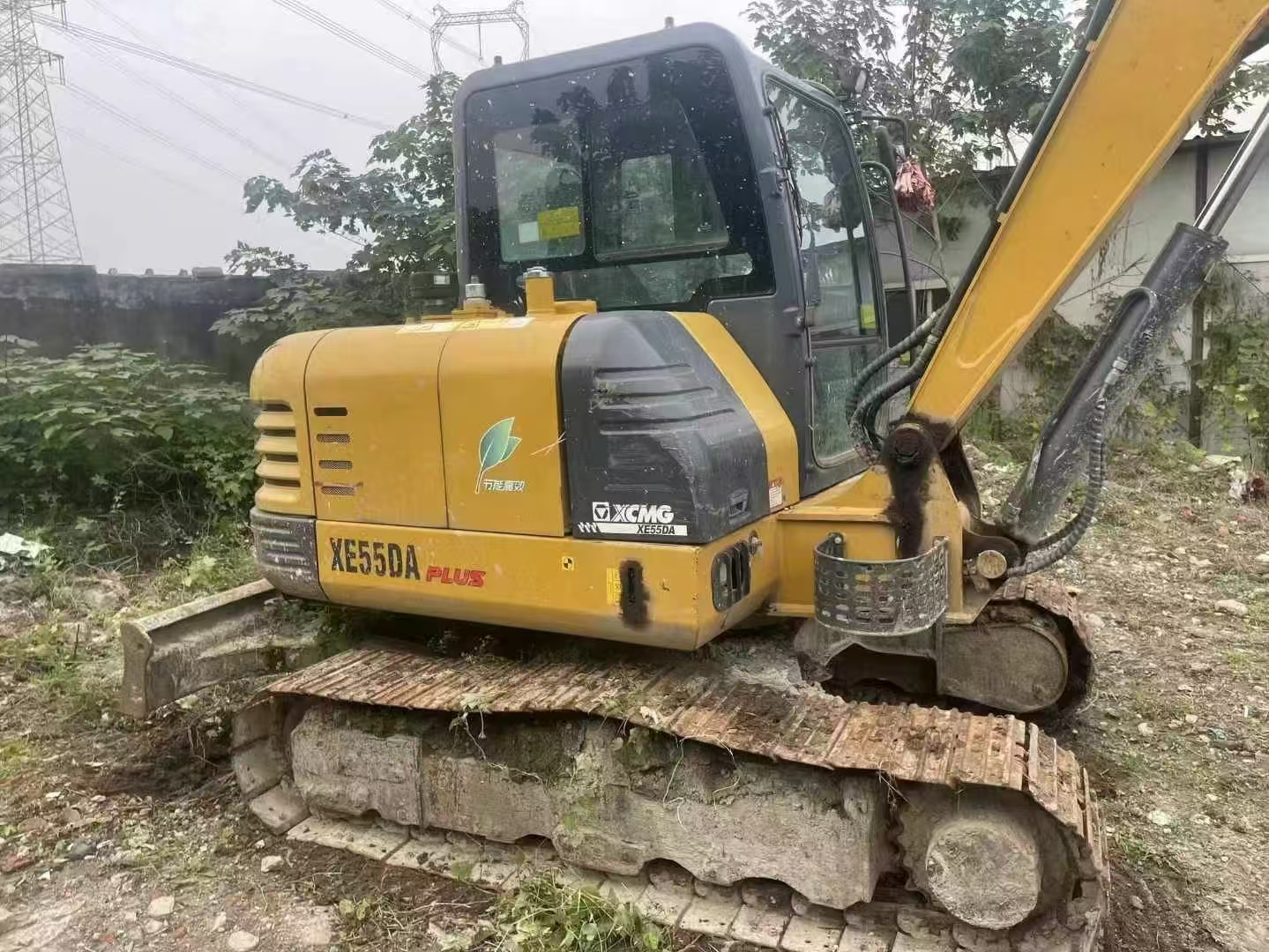

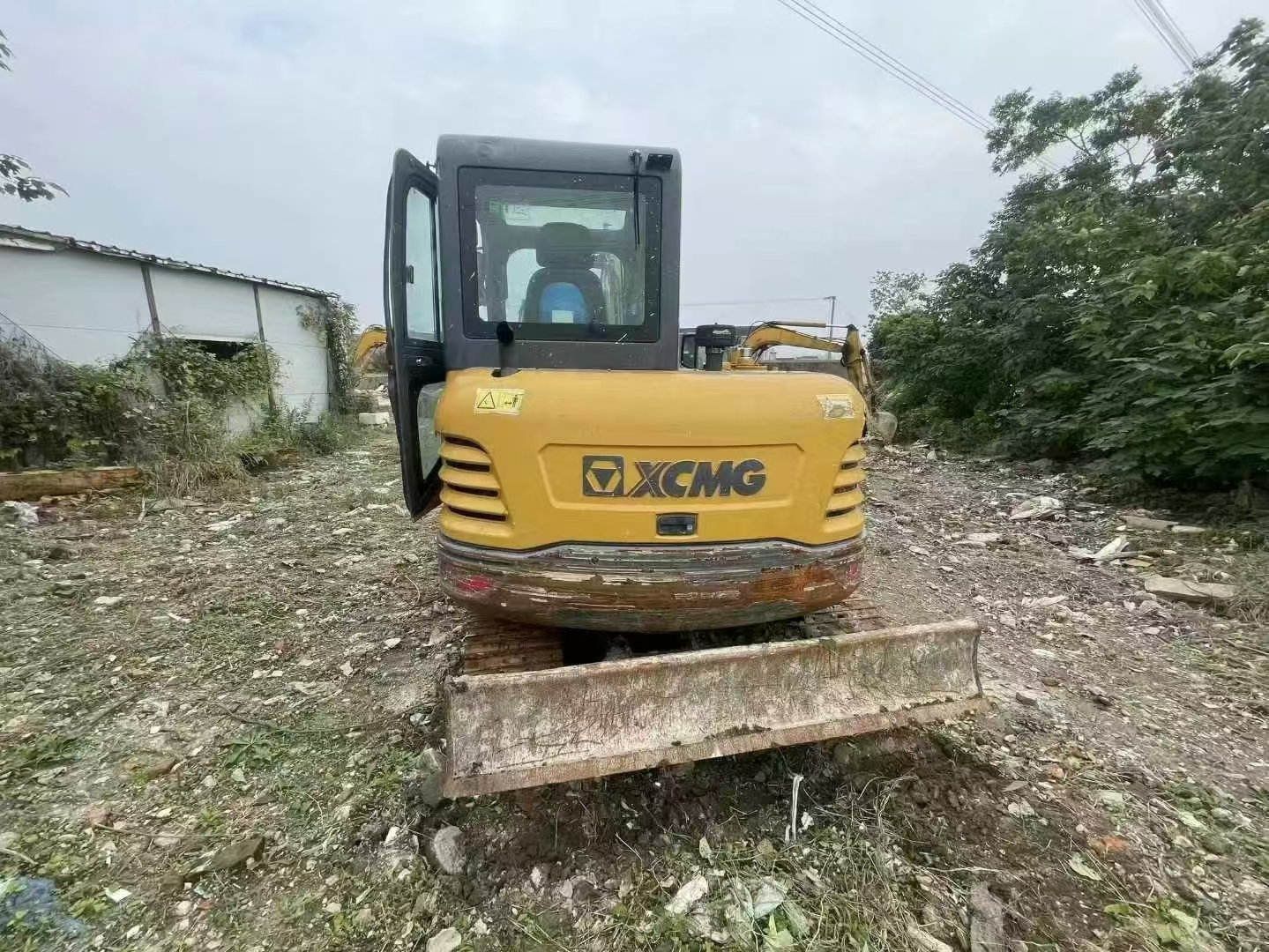

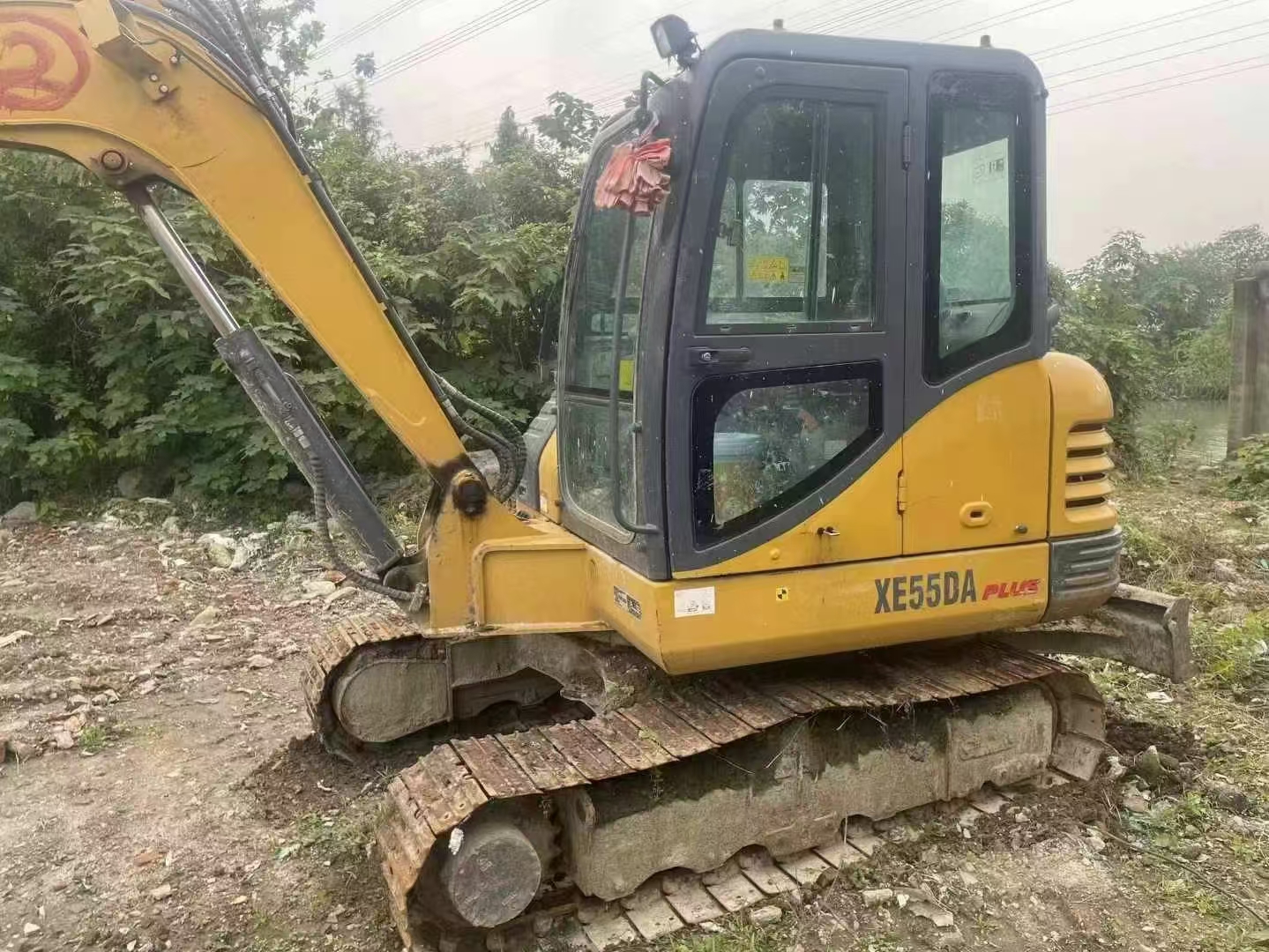

XCMG55

Tonnage (tons) 5
Machine operating weight (kg) 5750
Bucket capacity (m³) 0.21
Performance
Slewing speed (rpm) 10
Traveling speed (km/h) 4.2/2.2
Gradability (%) 35
Ground pressure (Kpa) 31
Bucket digging force (kN) 48.3
Arm digging force (kN) 32.5
Maximum traction force (kN) 50.5
Power system
Engine model V2607
Rated power (kw/rpm) 35/2200
Displacement (L) 2.615
Cooling method Water cooling
Working mode Direct injection, 4-stroke

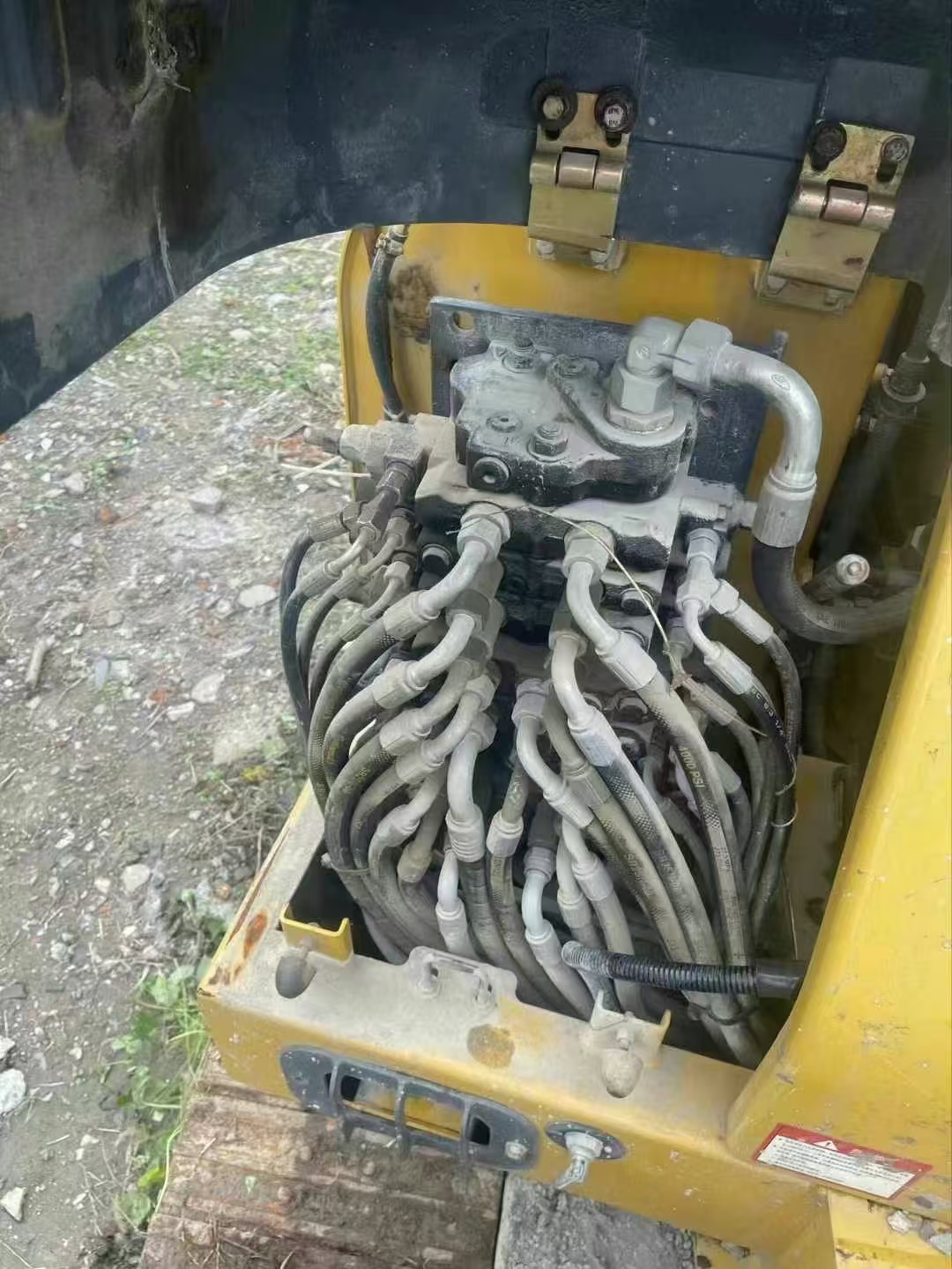

Hydraulic system
Main pump maximum flow (l/min) 150
Pilot oil circuit (MPa) 3.5
Traveling hydraulic circuit (Mpa) 24.5
Slewing hydraulic circuit (Mpa )24
Oil capacity
Fuel tank (L) 110
Hydraulic oil tank (L) 77
Engine oil change volume (L) 10
Main body dimensions
Total length for transportation (mm) 5860
Total width for transportation (mm) 1920
Total height for transportation (mm) 2585
Track shoe width (mm) 400
Track gauge (mm) 1500
Minimum ground clearance (mm) 385
Counterweight ground clearance (mm) 700
Minimum turning radius of front working device (mm) 2460
Center distance of supporting wheels (mm) 1990
Rear end turning radius (mm) 1670
Operating range
Maximum digging radius (mm) 6130
Maximum digging depth (mm) 3830
Maximum digging height (mm) 5630
Maximum unloading height (mm) 3945
Maximum vertical digging depth (mm) 2680
