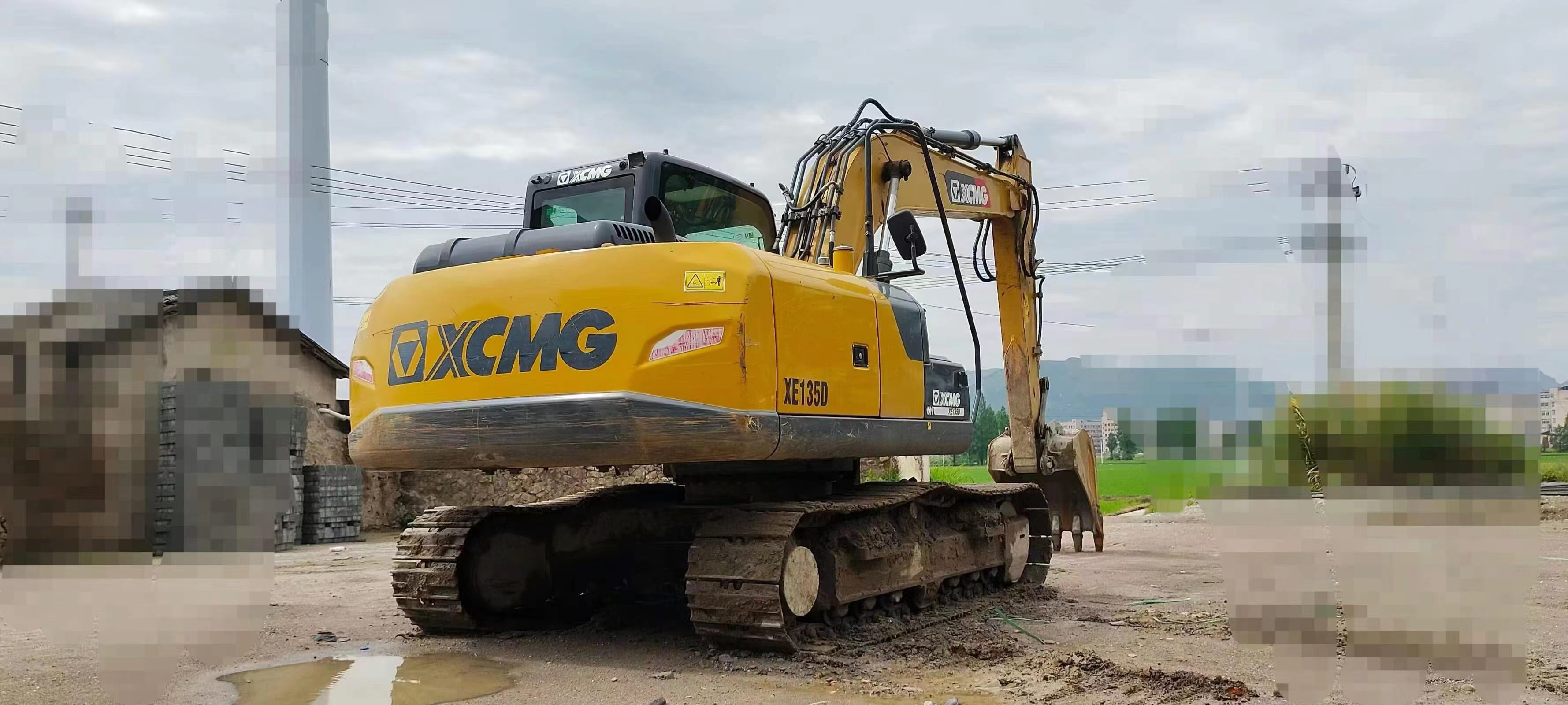

XCMG135

Tonnage (tons) 13
Machine operating weight (kg) 13200
Bucket capacity (m³) 0.32-0.61 (0.52)
Boom length (mm) 4600
Arm length (mm) 2520
Performance
Slewing speed (rpm) 11
Travel speed (km/h) 5.2/2.9
Gradability (%) 35
Ground pressure (Kpa) 40.4
Bucket digging force (kN) 99.1
Arm digging force (kN) 68
Maximum traction force (kN) 134
Power system

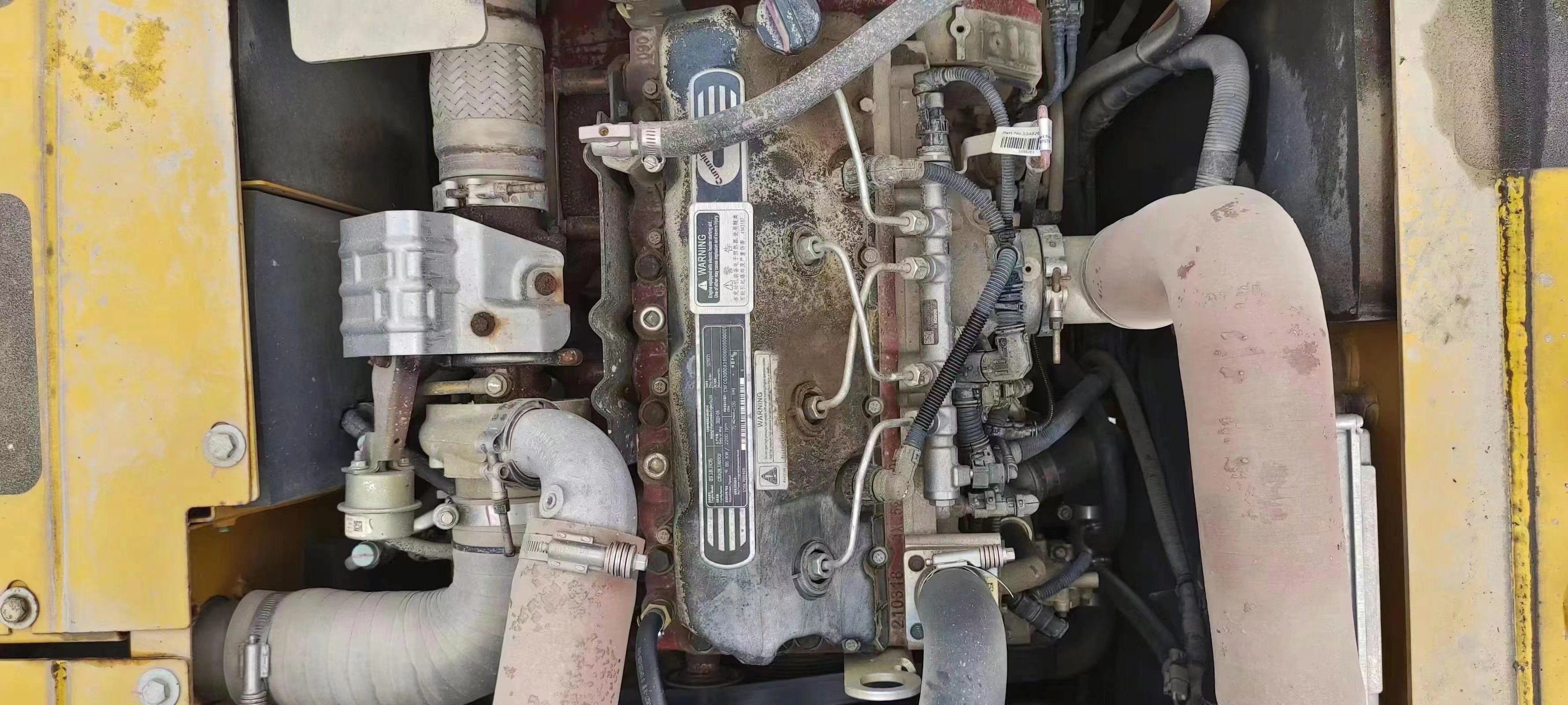

Engine model QSF3.8
Rated power (kw/rpm) 86/2200
Maximum torque (N.m) 470/1300
Displacement (L) 3.8
Number of cylinders (pieces) 4
Cooling method Water cooling
Working mode EFI, direct injection, 4-stroke, turbocharged

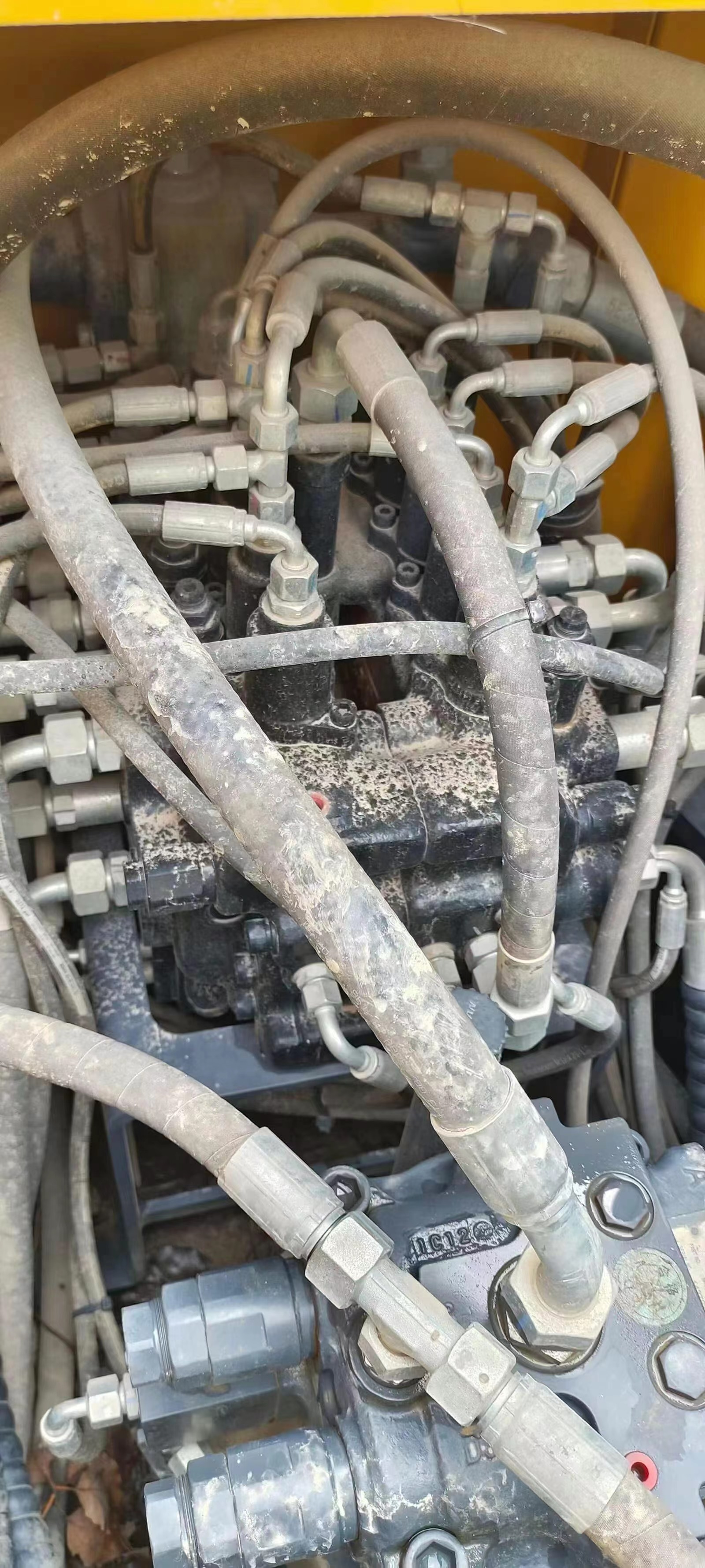

Hydraulic system

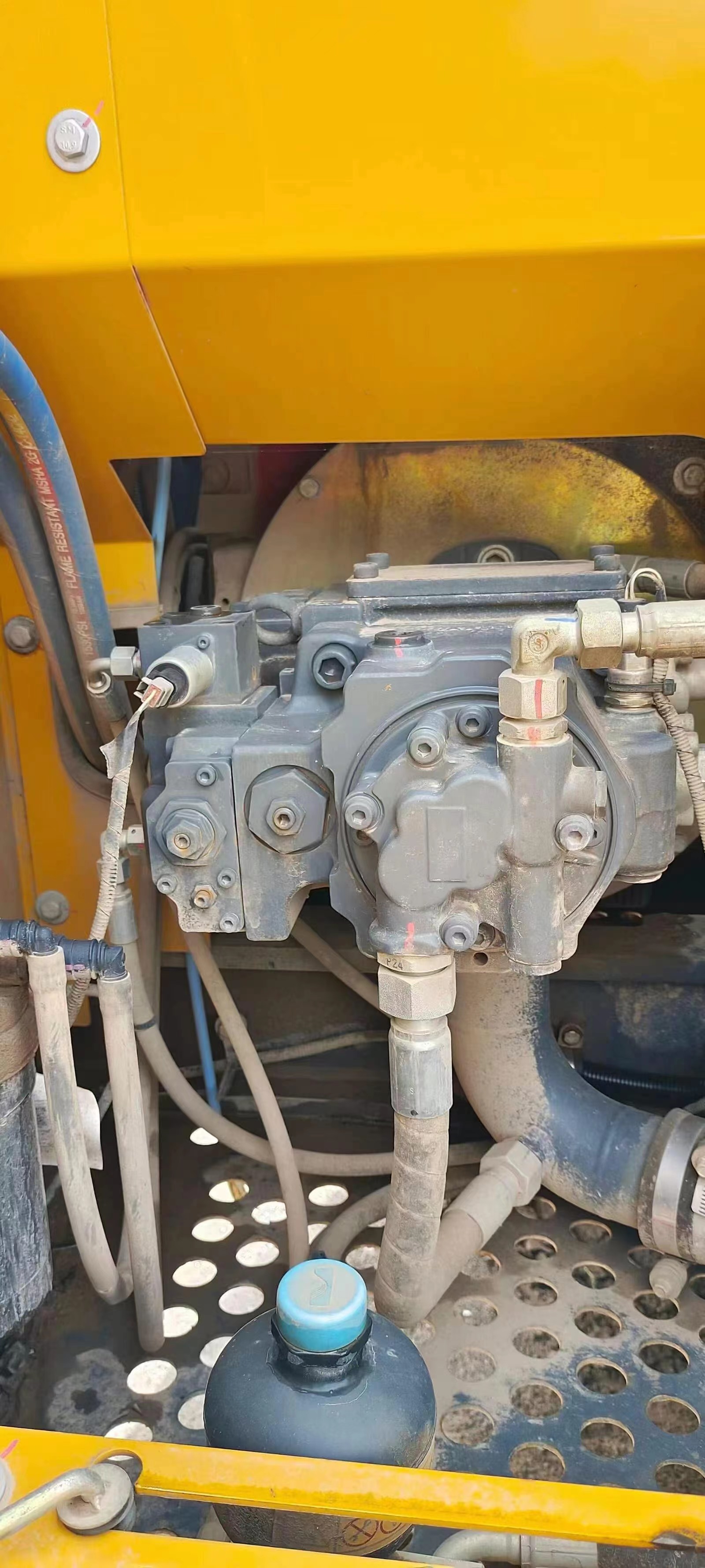

Maximum flow of main pump (l/min) 125.4*2
Working hydraulic oil circuit (Mpa) 31.4/34.3
Travel hydraulic circuit (Mpa) 34.4
Slewing hydraulic circuit (Mpa )25
Oil capacity
Fuel tank (L)260
Hydraulic oil tank (L)105
Engine oil change amount (L)11
Main body size
Total length for transportation (mm)7795
Total width for transportation (mm)2525
Total height for transportation (mm)2880
Total length of crawler tracks (mm)3648
Total width of crawler tracks (mm)500
Track gauge (mm)1990
Minimum ground clearance (mm)466
Counterweight ground clearance (mm)931
Minimum turning radius of front working device (mm)2445
Rear end turning radius (mm)2325
Operating range
Maximum digging radius (mm)8304
Maximum digging depth (mm)5546
Maximum digging height (mm)8638
Maximum unloading height (mm)6174
Maximum vertical digging depth (mm)4698
Maximum effective digging depth (mm)5335
