Tonnage (tons) 48
Machine operating weight (kg) 47,900-50,500
Bucket capacity (m³) 1.77-3.80
Boom length (mm) 7
Arm length (mm) 4.8
Performance
Slewing speed (rpm) 8.8
Travel speed (km/h) 3.1-5.2
Gradability (%) 35
Ground pressure (Kpa) 73.7 (700mm)
Bucket digging force (kN) 285/310.6
Arm digging force (kN) 251
Power system

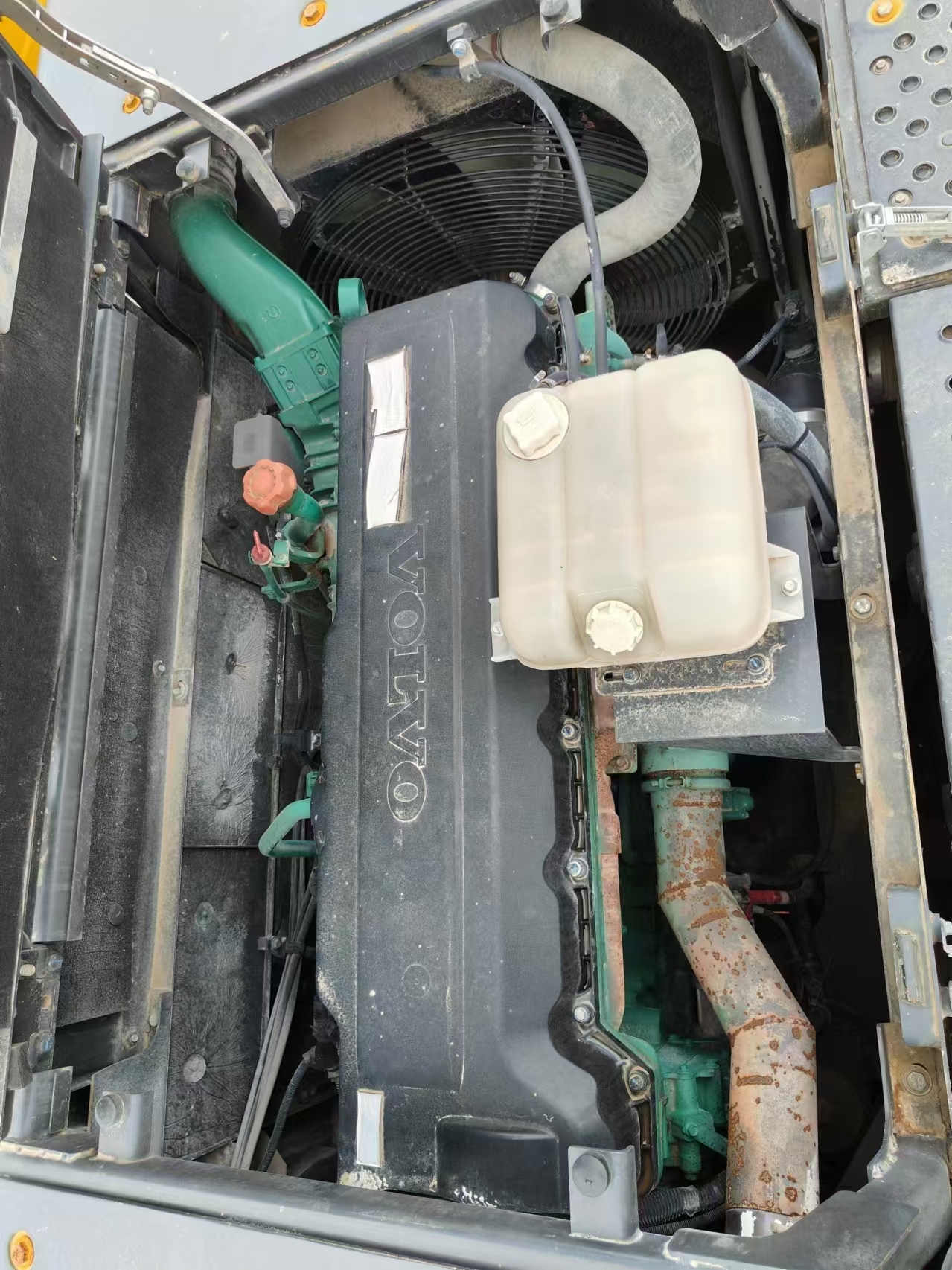

Engine model Volvo VOLVO_D13-T4 (A)
Rated power (kw/rpm) 245
Displacement (L) 12.8
Number of cylinders (pieces) 6
Cylinder diameter × stroke (mm) 131*158
Cooling method Water cooling
Working mode can meet European Stage IIIB emission requirements

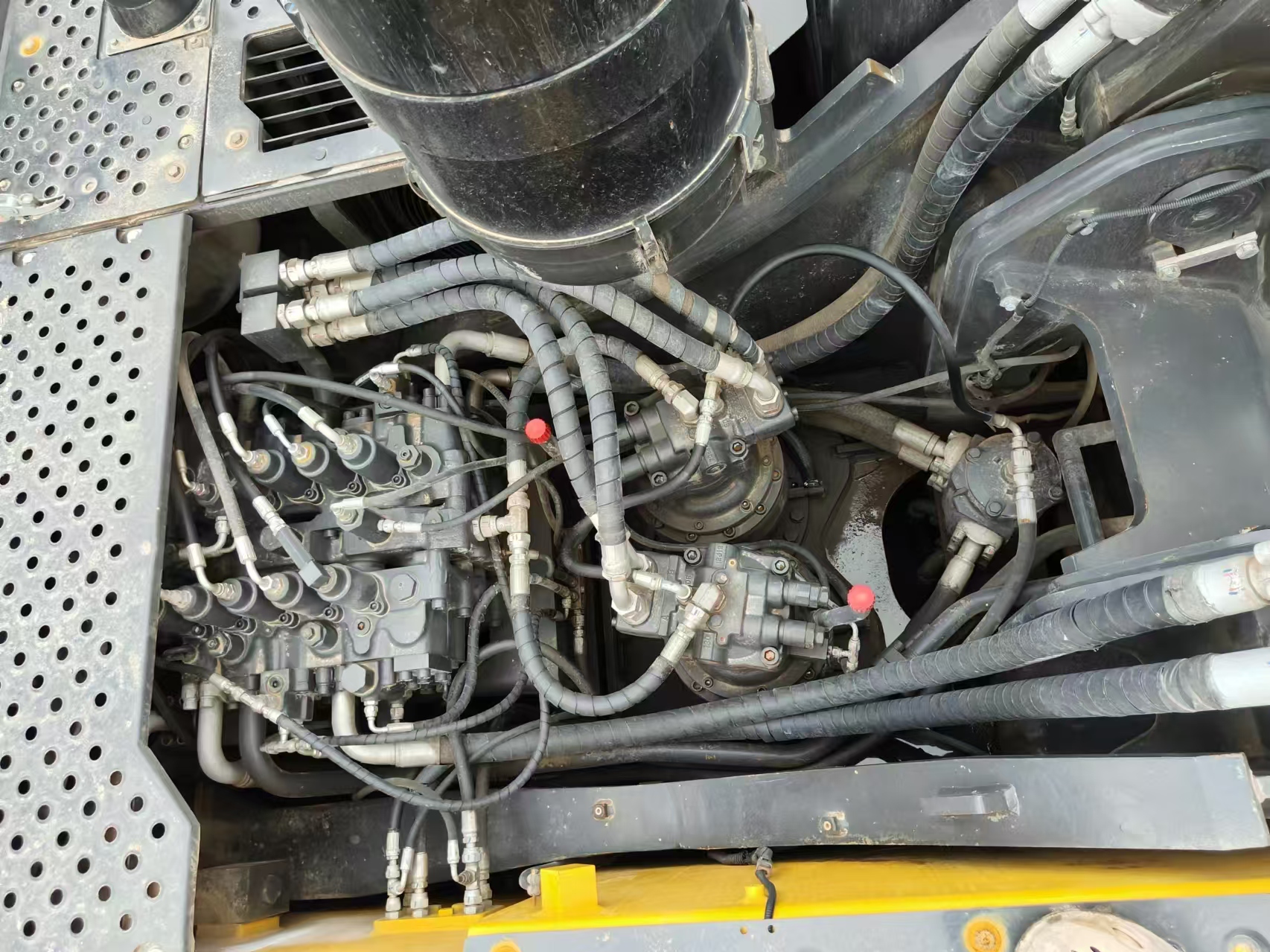

Hydraulic system

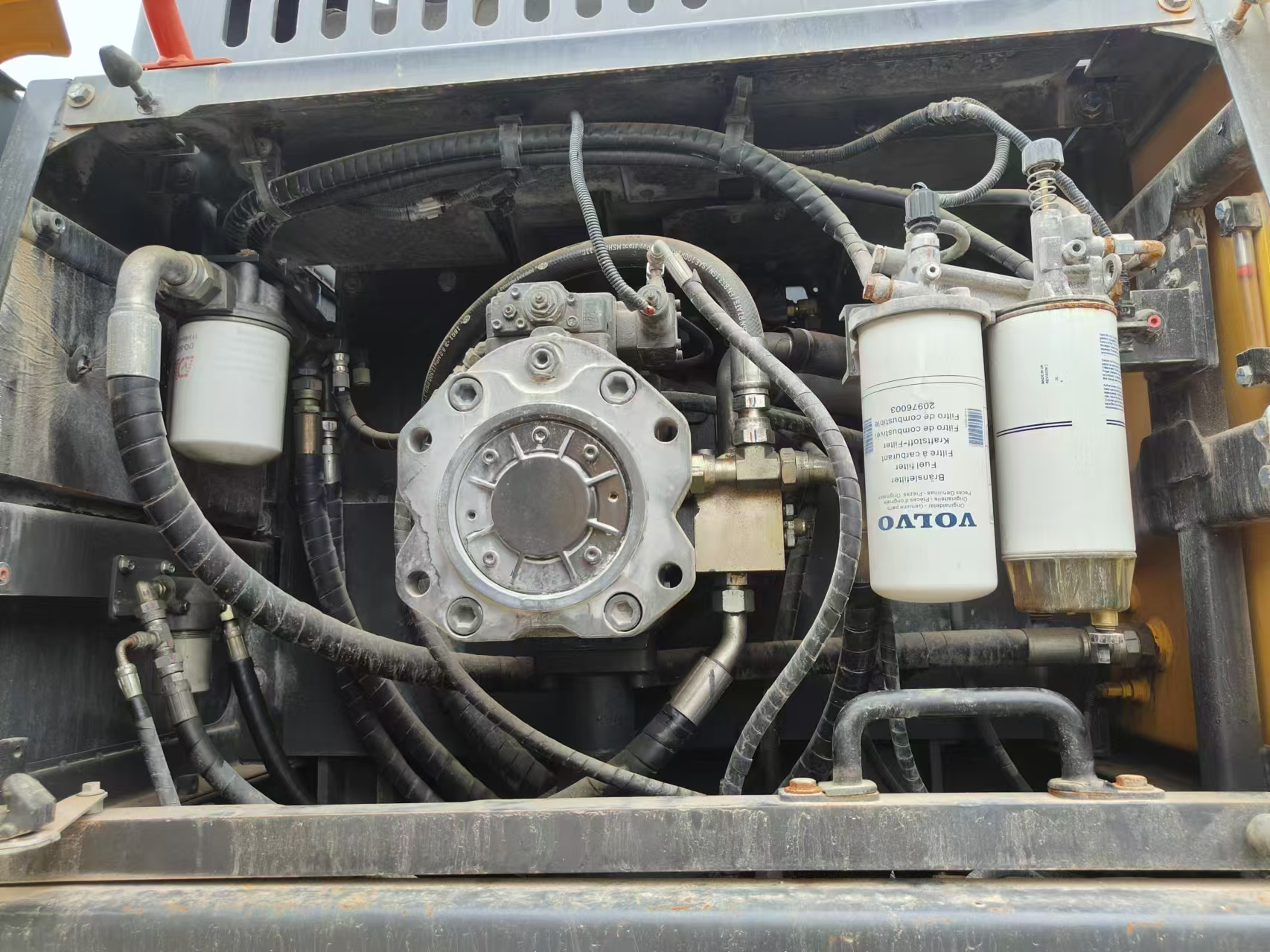

Main pump type piston type
Travel hydraulic motor type piston type
Swing hydraulic motor type piston type
Main pump maximum flow (l/min) 2*358
Pilot oil circuit (MPa) 3.9
Working hydraulic oil circuit (Mpa) 32.4/35.3
Travel hydraulic circuit (Mpa) 32.4
Swing hydraulic circuit (Mpa) 25.8
Boom cylinder – number × cylinder diameter × stroke (mm) 2*165*1590
Arm cylinder – number × cylinder diameter × stroke (mm) 1*190*1850
Bucket cylinder – number × cylinder diameter × stroke (mm) 1*165*1330
Oil capacity
Fuel tank (L) 685
Hydraulic oil tank (L) 270
Hydraulic system (L) 525
Engine oil replacement amount (L) 42
Coolant (L )60
Main dimensions
Total length for transport (mm) 12140
Total width for transport (mm) 3367
Total height for transport (mm) 3790
Total height of cab (mm) 3090
Track ground length (mm) 4370
Total length of track (mm) 5370
Track shoe width (mm) 700
Total track width (mm) 3590 (extended)
Track gauge (mm) 2890 (extended)
Minimum ground clearance (mm) 746
Counterweight ground clearance (mm) 1385
Rear end turning radius (mm )3800
Operating range
Maximum digging radius (mm) 12040
Maximum digging radius of parking surface (mm) 11810
Maximum digging depth (mm) 7720
Maximum digging height (mm) 11010
Maximum unloading height (mm) 7640
Maximum vertical digging depth (mm) 7110
Maximum effective digging depth (mm) 7570
Boom rotation angle (left/right degrees) 183
