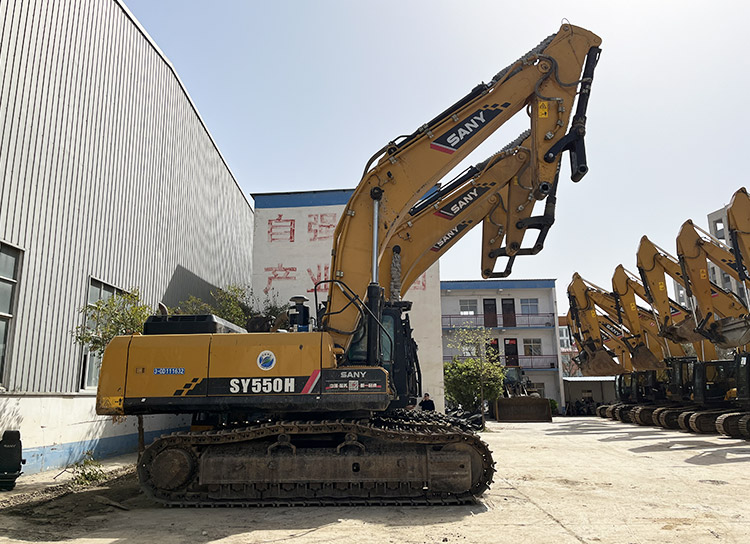

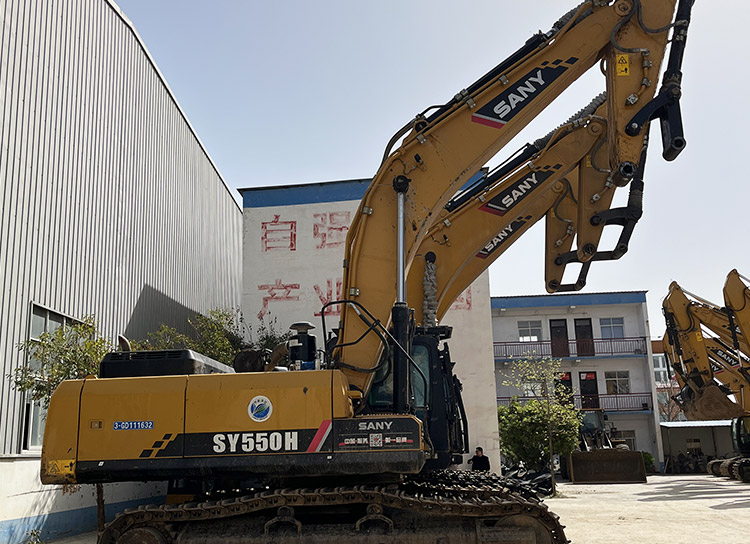

Sany SY550 large excavator is equipped with an Isuzu diesel engine, which is environmentally friendly and has low energy consumption. For use in earthworks, factory construction, mining
Sany SY550 large excavator is equipped with an Isuzu diesel engine with a power of 310KW, strong power and high torque. Suitable for various working conditions and fast response.
Equipped with Kawasaki intelligent hydraulic system to improve work efficiency and controllability and reduce fuel consumption.
SY550 is equipped with 4 types of buckets, which are suitable for various working conditions and improve excavation efficiency.

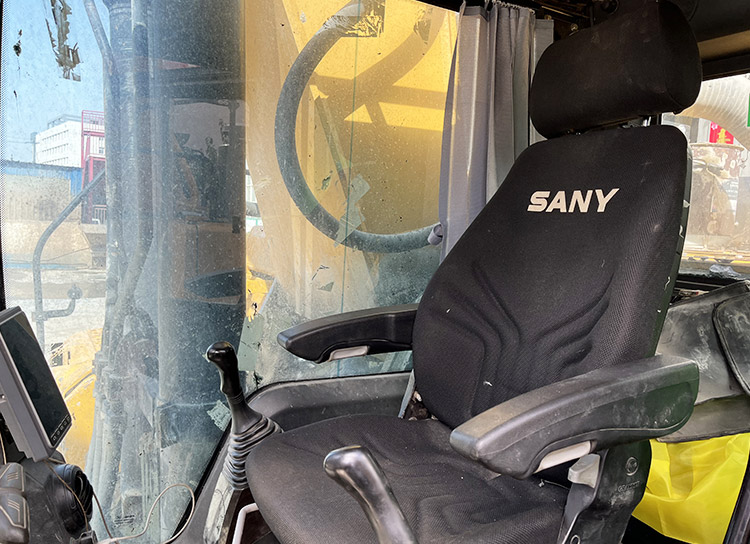

The luxurious smart cab is equipped with air conditioning and a 10-inch smart display.
SY550 is suitable for various engineering operations such as earthworks, trenching, factory foundation excavation, and mining.
| main parameters | Total Weight | bucket capacity |
| 54000kg | 3.2m³ | |
| power | ||
| 310kw | ||
| Specification | Total Weight | bucket capacity |
| 54000kg | 3.2m³ | |
| engine | Isuzu 6WG1 | rated power |
| 310kw | ||
| Maximum torque | engine displacement | |
| 2050N·m/rpm | 15.6L | |
| performance | Gradeability | Swing speed |
| 70%(35°) | 8rpm | |
| Ground pressure | Bucket digging force | |
| 80.42kPa | 280kN | |
| Arm crowa force | Walking speed | |
| 245kN | 5.3/3.1km/h | |
| Oil and coolant capacity | Final Drive | Diesel tank |
| 2×15L | 750L | |
| water tank | oil tank | |
| 50L | 50L |
