Used excavators equipped with Mitsubishi diesel engines are used for earthmoving operations, trench digging and other purposes.

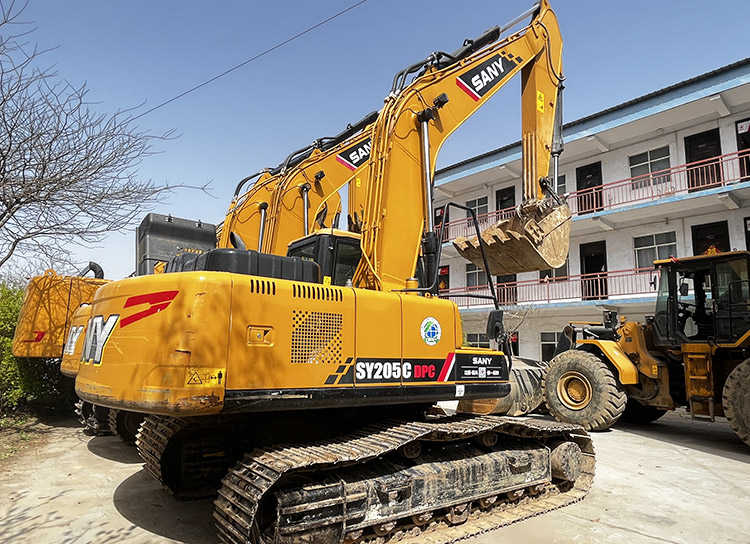

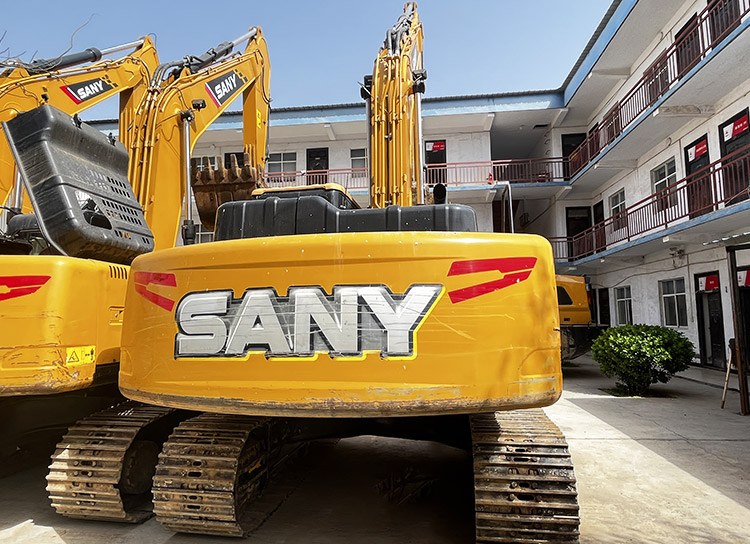

Sany SY205 medium-sized excavator is equipped with a Mitsubishi diesel engine with a power of 118KW and high torque. It is suitable for various working conditions and has fast response.
Equipped with an intelligent hydraulic system to improve work efficiency and reduce fuel consumption.
SY205 has an earthmoving bucket and a rock bucket to improve excavation efficiency.
Smart cab with air conditioning and 10-inch intelligent display screen.
SY205 is suitable for various engineering operations such as earthworks, trenching, and land leveling.
| main parameters | Total Weight | bucket capacity |
| 21500kg | 1.0m³ | |
| rated power | ||
| 118kw | ||
| Specification | Total Weight | bucket capacity |
| 21500kg | 1.0m³ | |
| Overall size | Total length ( transportation) | total width |
| 9680mm | 2800mm | |
| total height ( transported) | ||
| 3440mm | ||
| performance | Gradeability | Swing speed |
| 70%(35°) | 11rpm | |
| Ground pressure | Bucket digging force | |
| 47.4kPa | 126kN | |
| Arm crowa force | Walking speed | |
| 103kN | 5.3/3.2km/h | |
| Work | Max digging height | Max unloading height |
| 9600mm | 6730mm | |
| Max digging depth | Max digging radius | |
| 6600mm | 10280mm | |
| 2×0.9L | 125L | |
| Hydraulic tank | oil tank | |
| 85L | 9.6L | |
| water tank | ||
| 6.5L |
