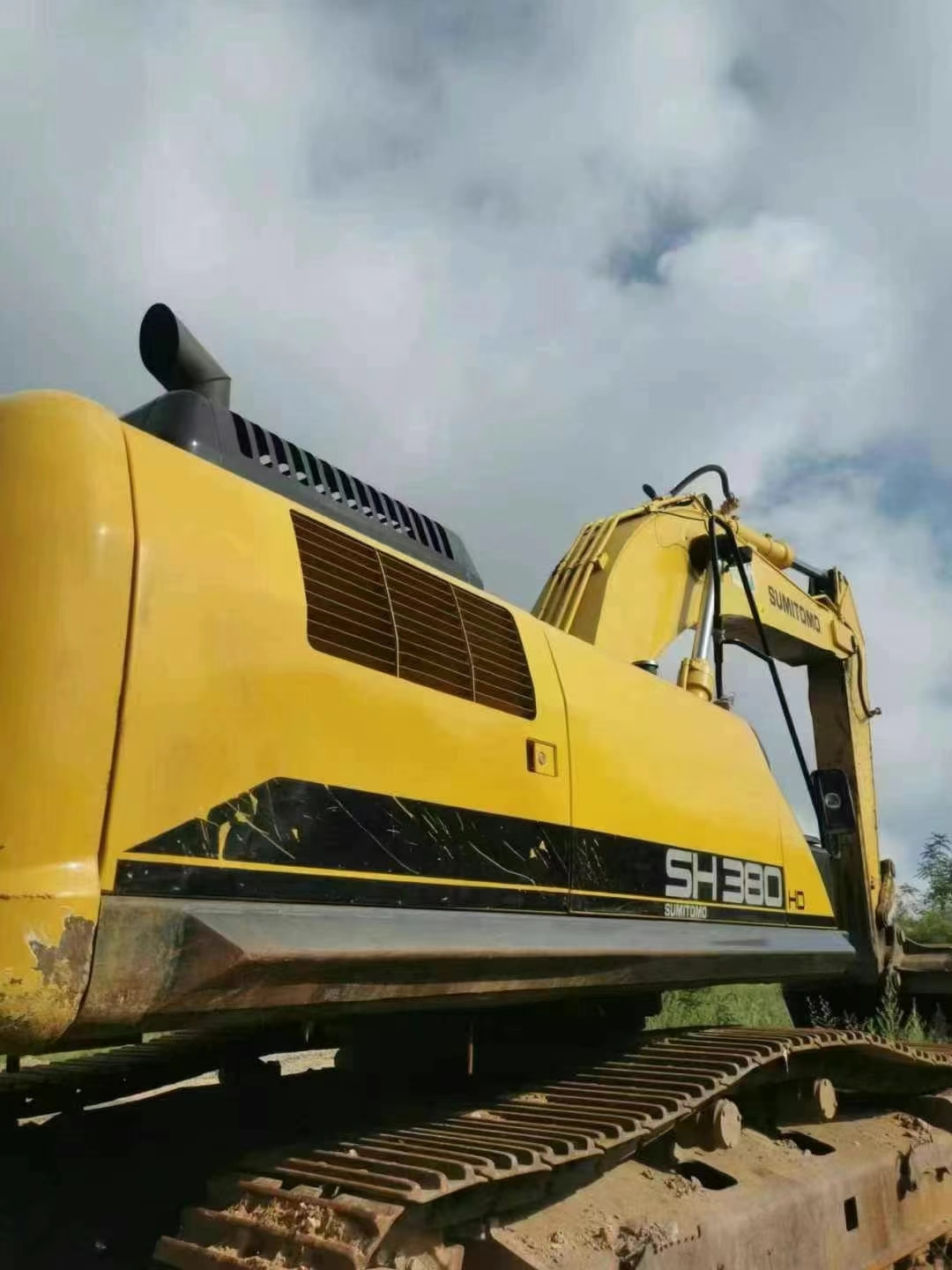

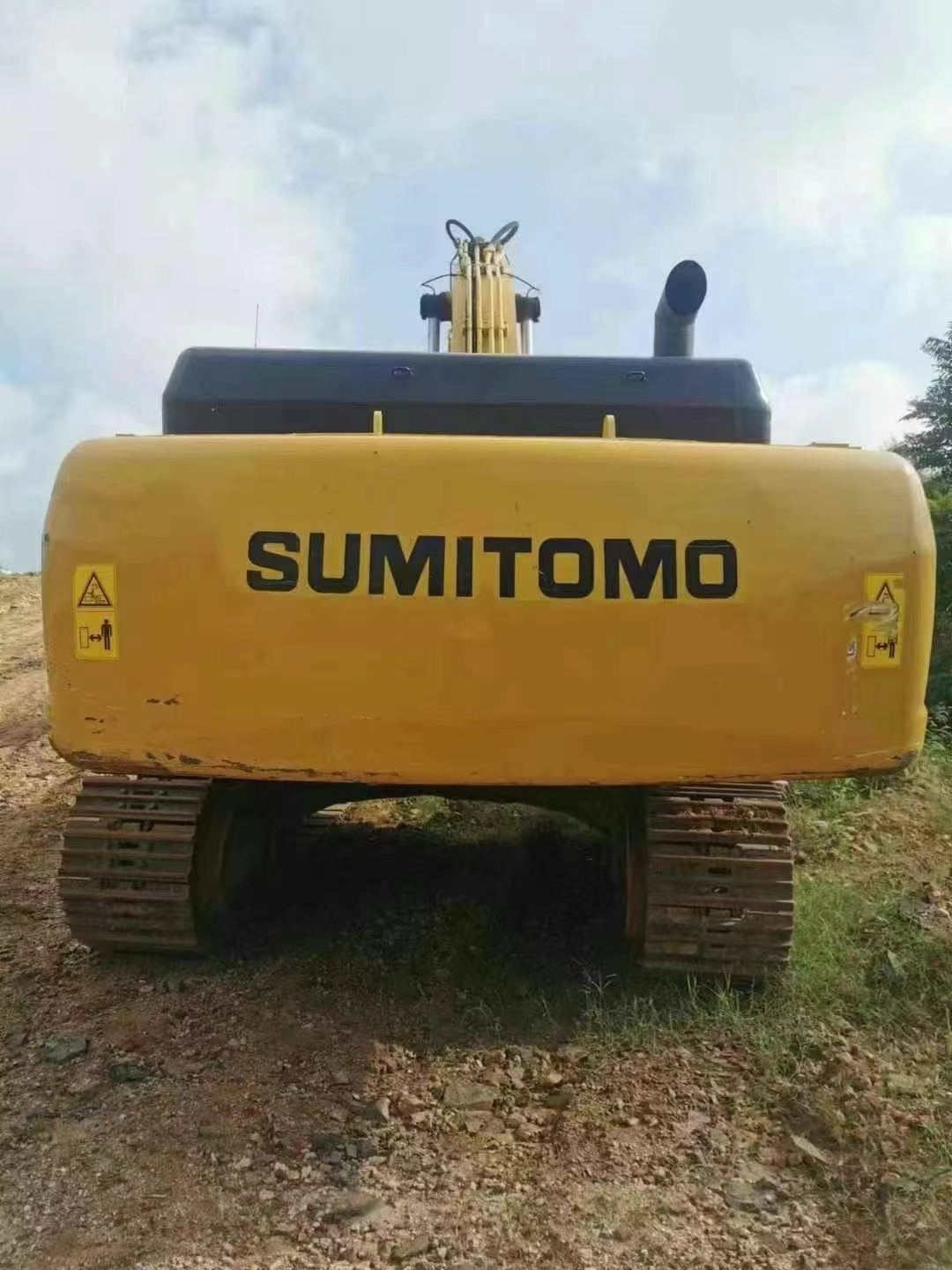

SUMITOMO360

Tonnage (tons) 36
Machine operating weight (kg) 36400
Bucket capacity (m³) 1.6-1.8
Boom length (mm) 6400
Arm length (mm) 3200
Performance
Slewing speed (rpm) 10.2
Travel speed (km/h) 5.4/3.4
Gradability (%) 70
Bucket digging force (kN) 232
Arm digging force (kN) 164
Power system

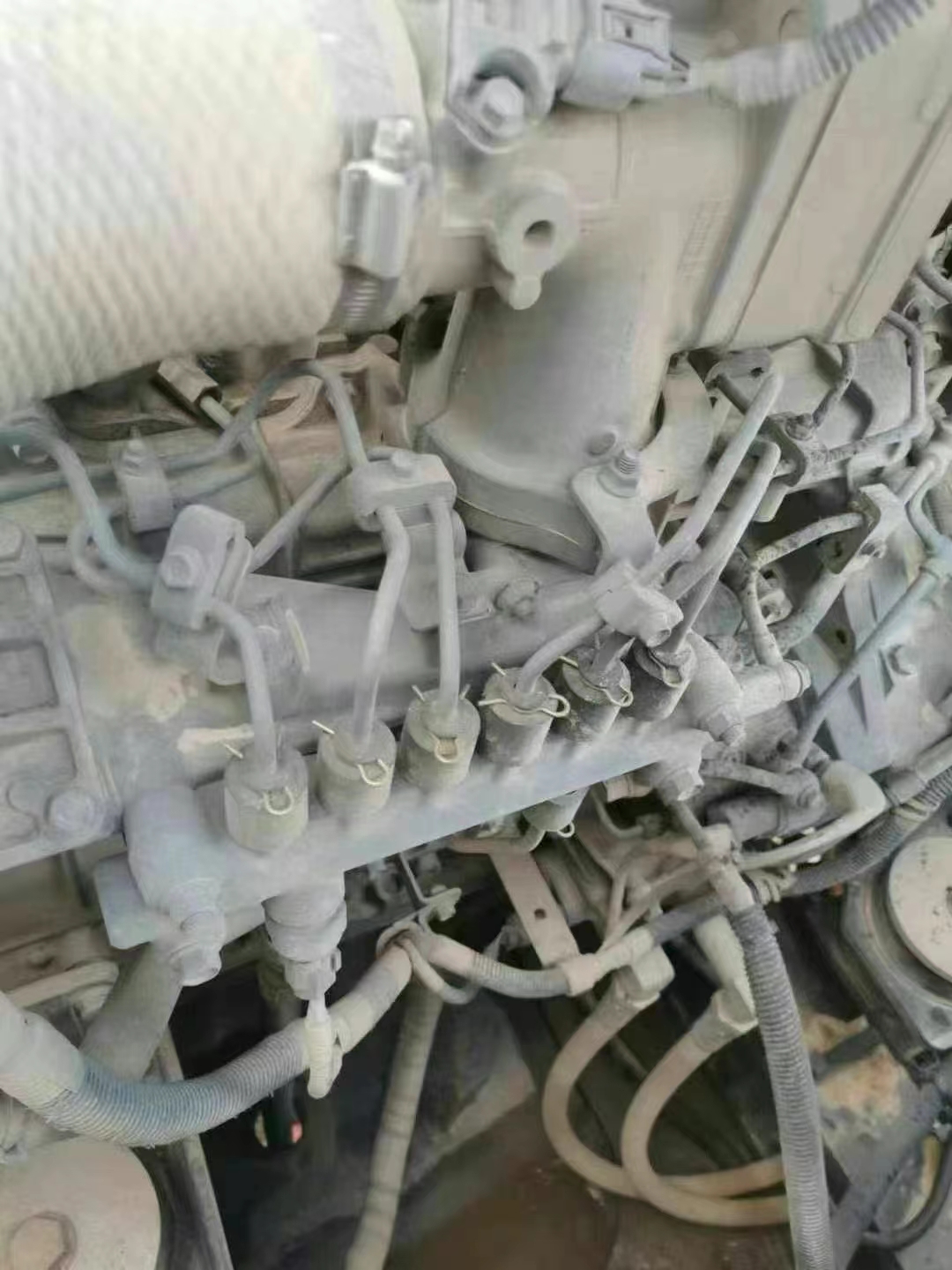

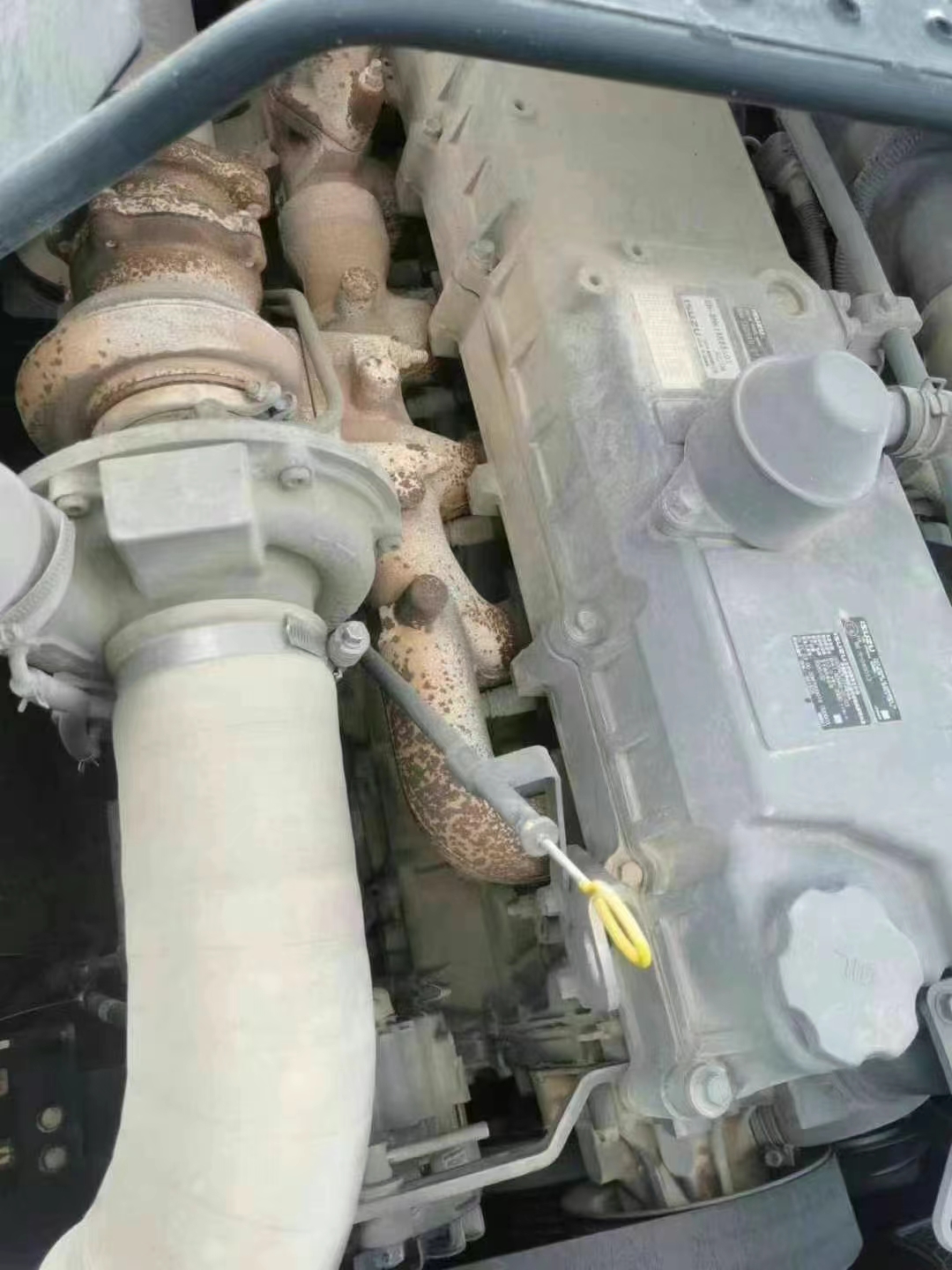

Engine model Isuzu GH-6HK1X
Rated power (kw/rpm) 200/2000
Displacement (L) 7.79
Hydraulic system

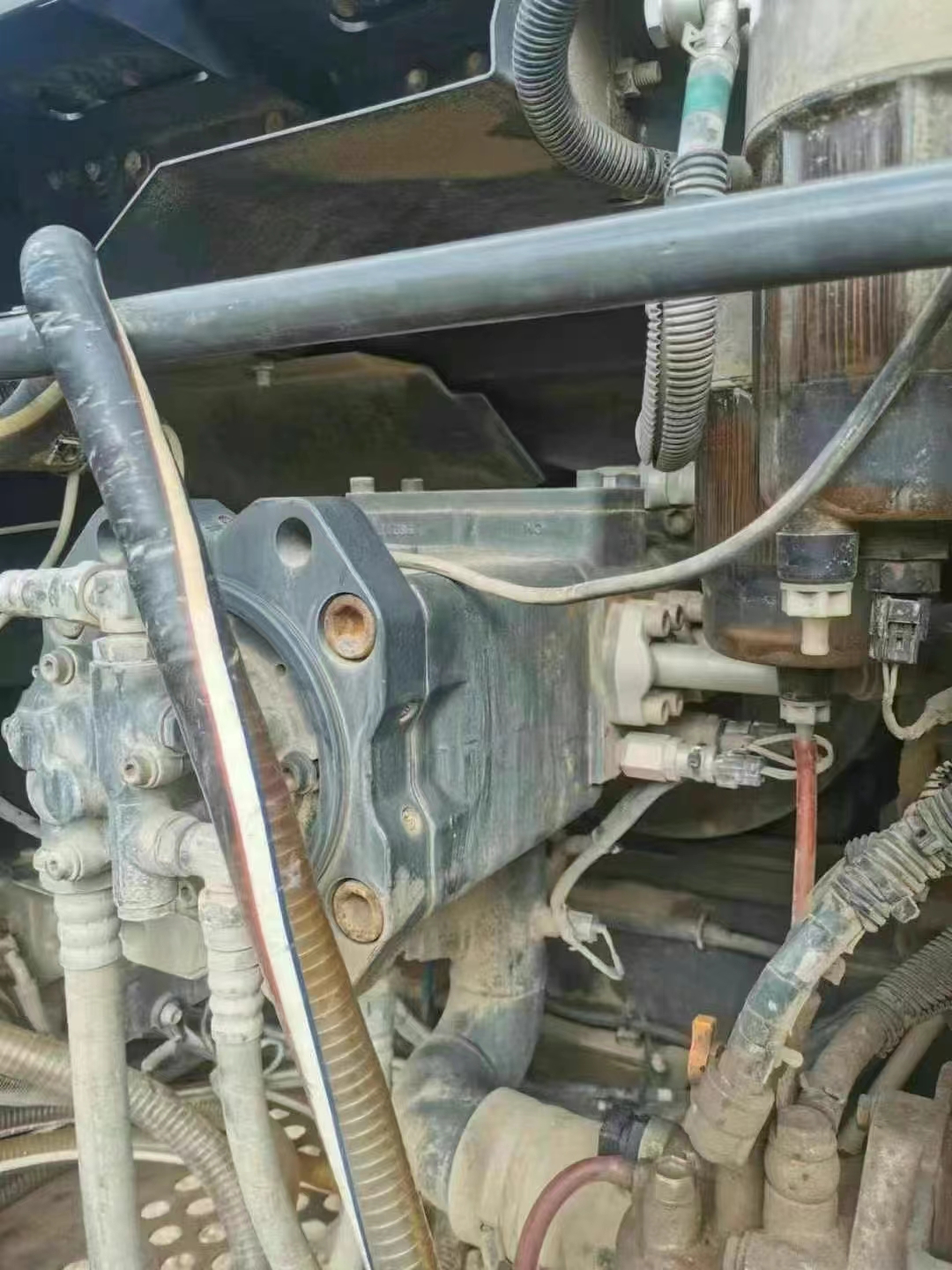

Main pump type Two-link variable capacity plunger pump

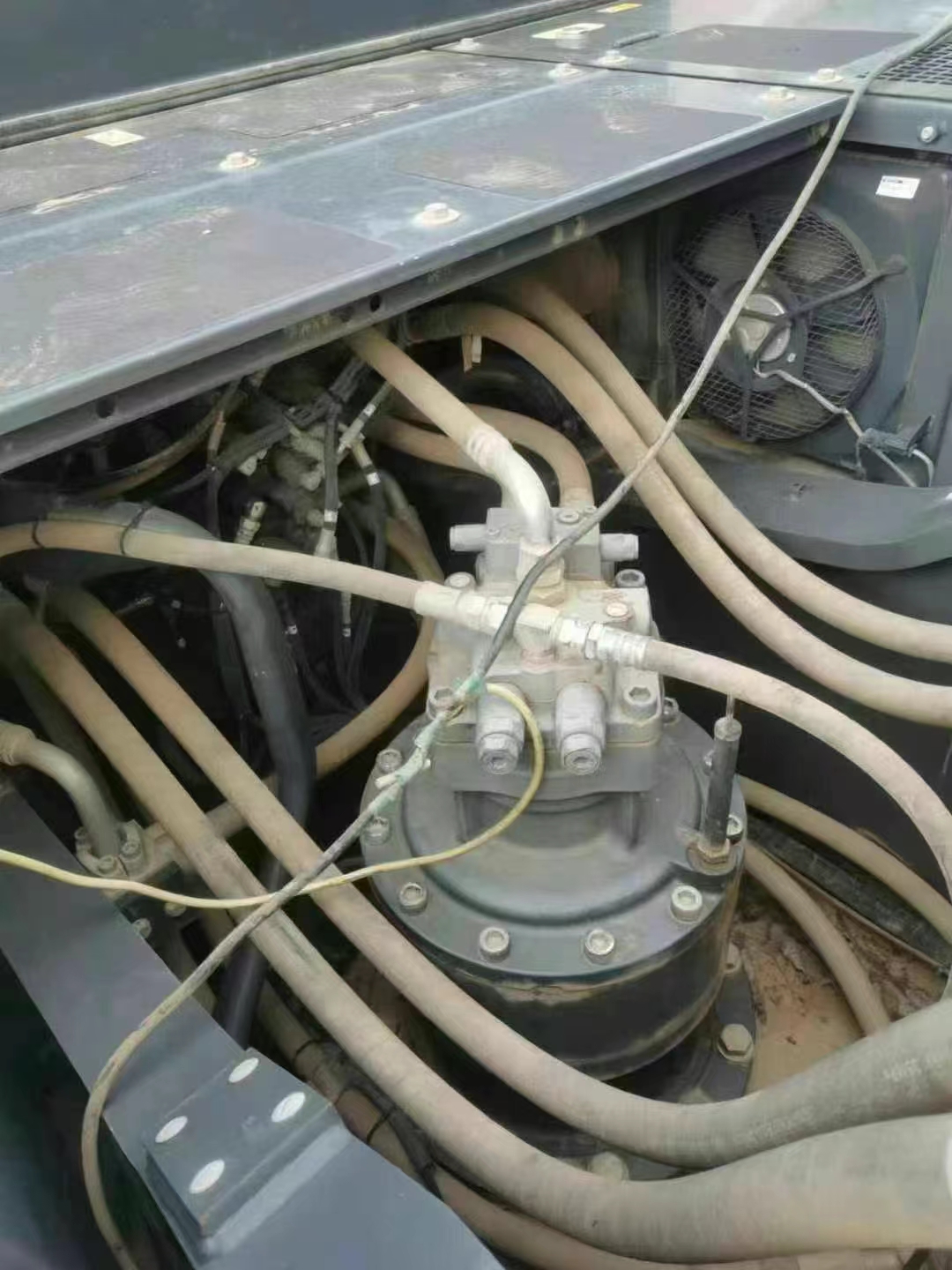

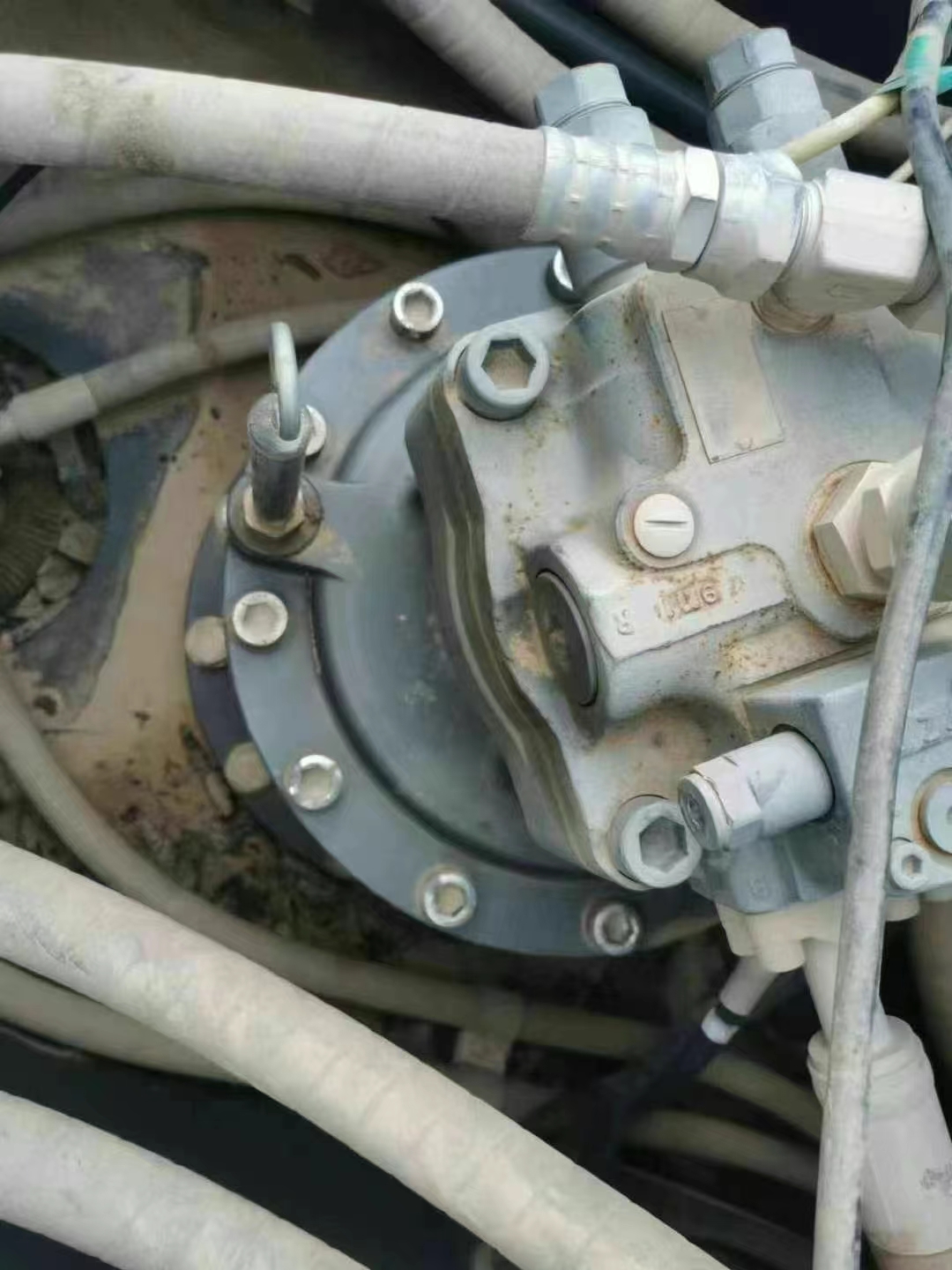

Swing hydraulic motor type Fixed capacity plunger pump
Travel hydraulic motor type Variable capacity plunger pump
Working hydraulic oil circuit (Mpa) 34.3/37.3
Oil capacity
Fuel tank (L) 580
Hydraulic oil tank (L) 175
Hydraulic system (L) 350
Main body dimensions
Total transport length (mm) 11140
Total transport width (mm) 3200
Total transport height (mm) 3420

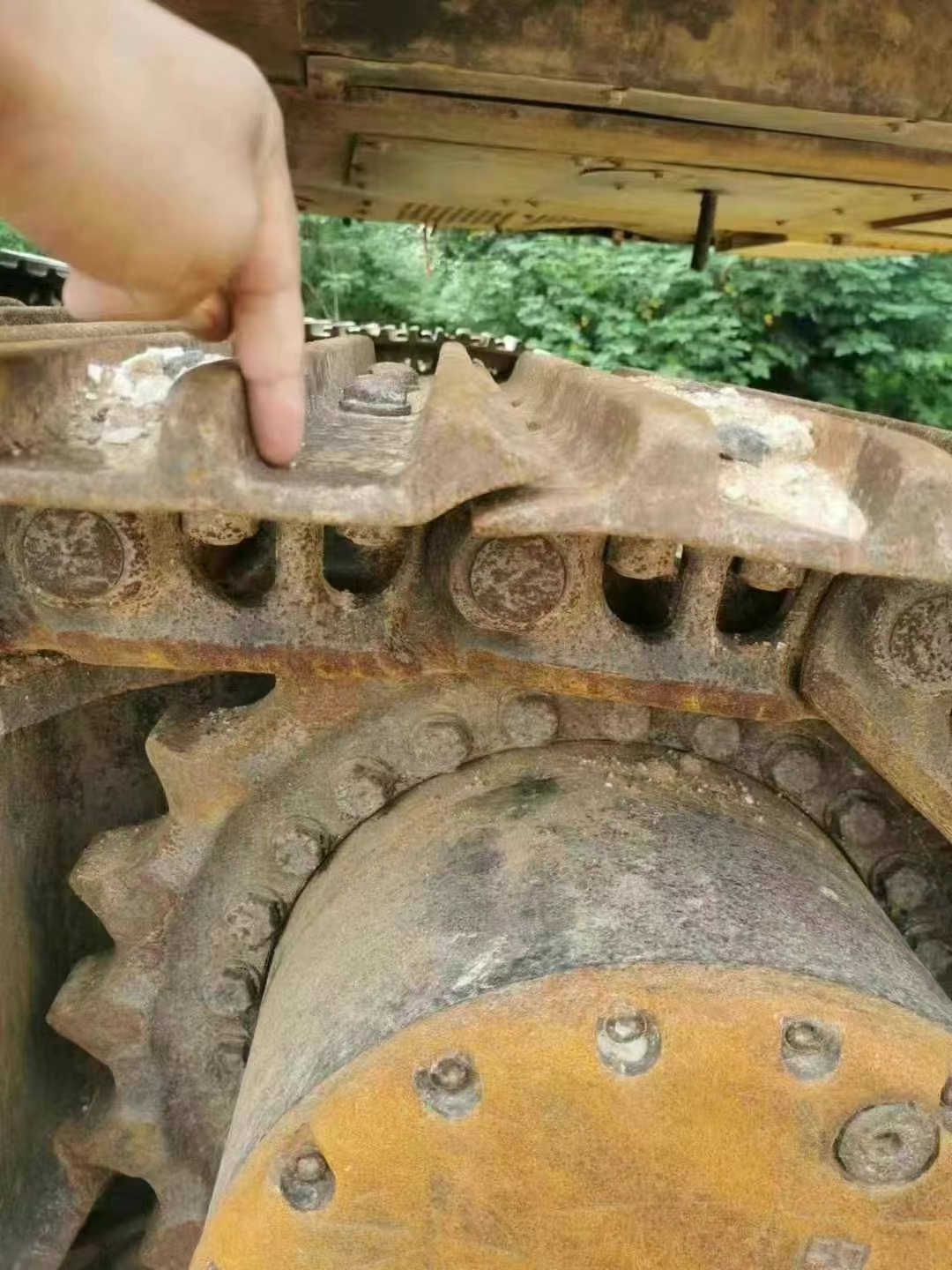

Total track length (mm) 4650
Track shoe width (mm) 600
Total track width (mm) 3200
Minimum ground clearance (mm ) 480
Counterweight ground clearance (mm) 1200
Minimum turning radius of front working device (mm) 4500
Rear end turning radius (mm )3550
Operating range
Maximum digging radius (mm) 11170
Maximum digging depth (mm) 7340
Maximum digging height (mm) 10370
Maximum unloading height (mm) 7230
Maximum vertical digging depth (mm) 6350
