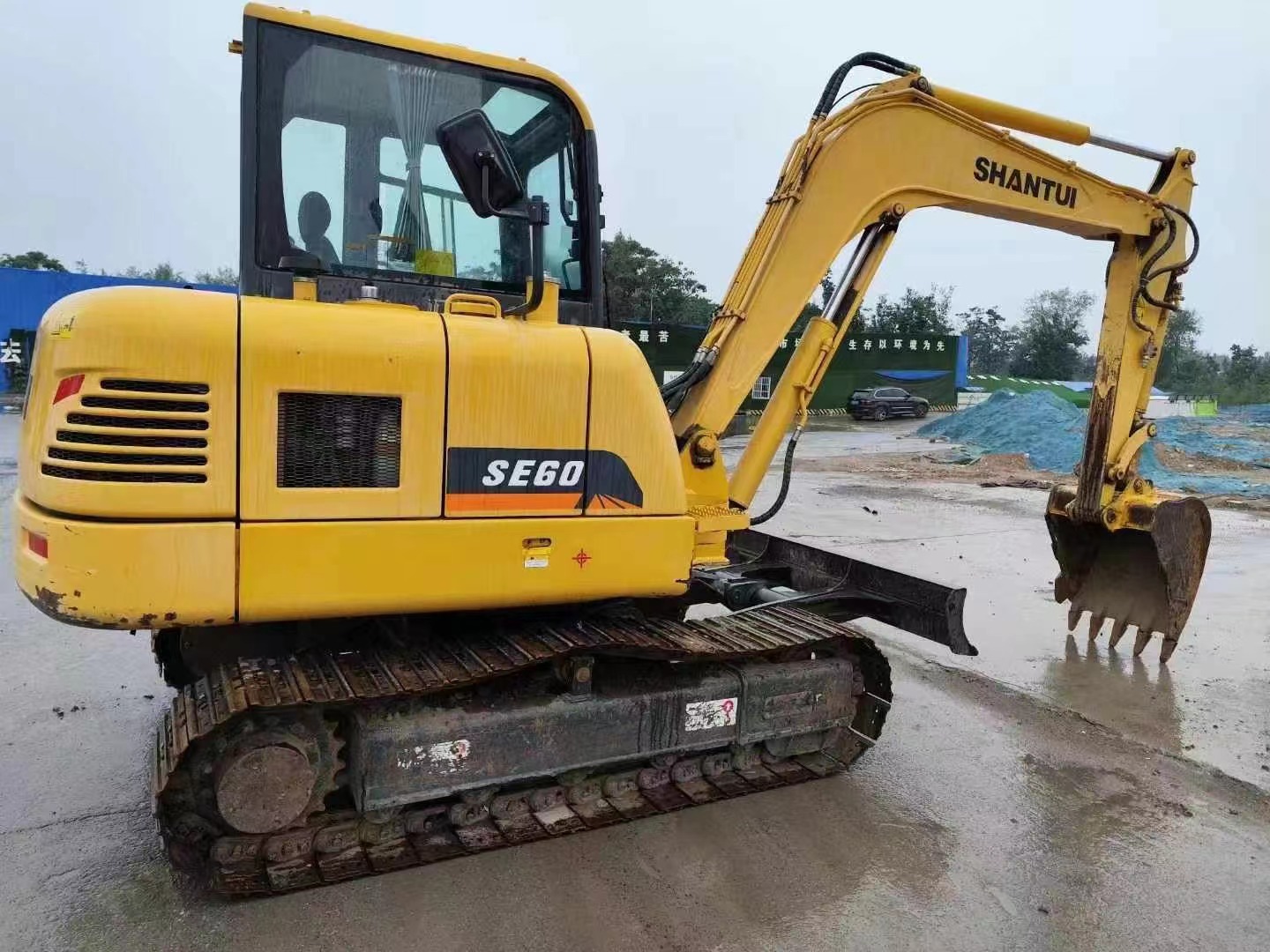

SHANTUI 60

Tonnage (tons) 6
Working weight of the whole machine (kg) 5960
Bucket width (mm) 810
Bucket capacity (m³) 0.11~0.22 (0.22)
Performance
Slewing speed (rpm) 11
Travel speed (km/h) 2.3/4
Gradability (%) 70
Ground pressure (Kpa) 33
Bucket digging force (kN) 48
Arm digging force (kN) 29

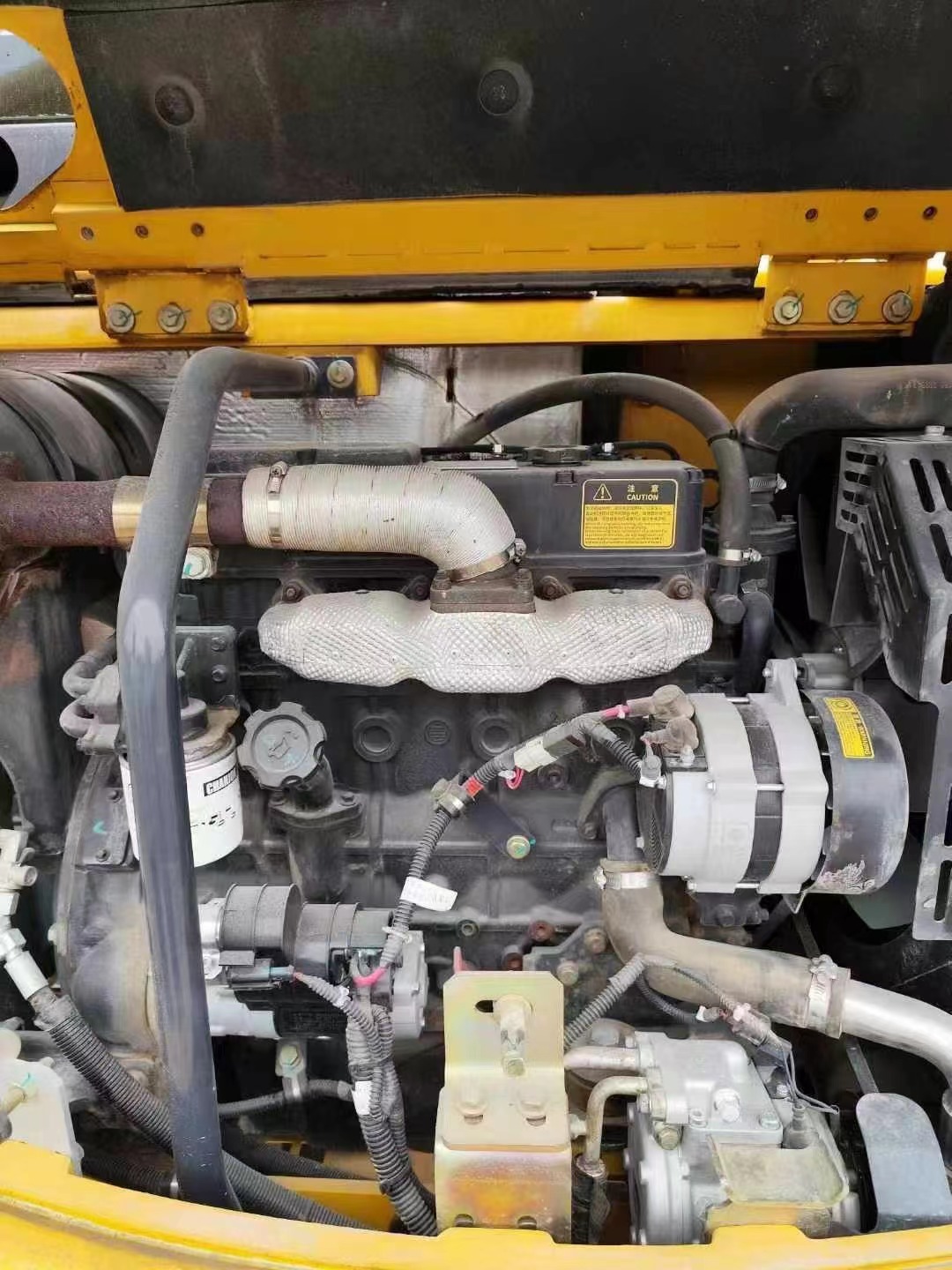

Power system
Engine model WP3.2 (National III)
Rated power (kw/rpm) 36.8/2200
Displacement (L) 3.17
Number of cylinders (pieces) 4
Cooling method Water cooling
Hydraulic system

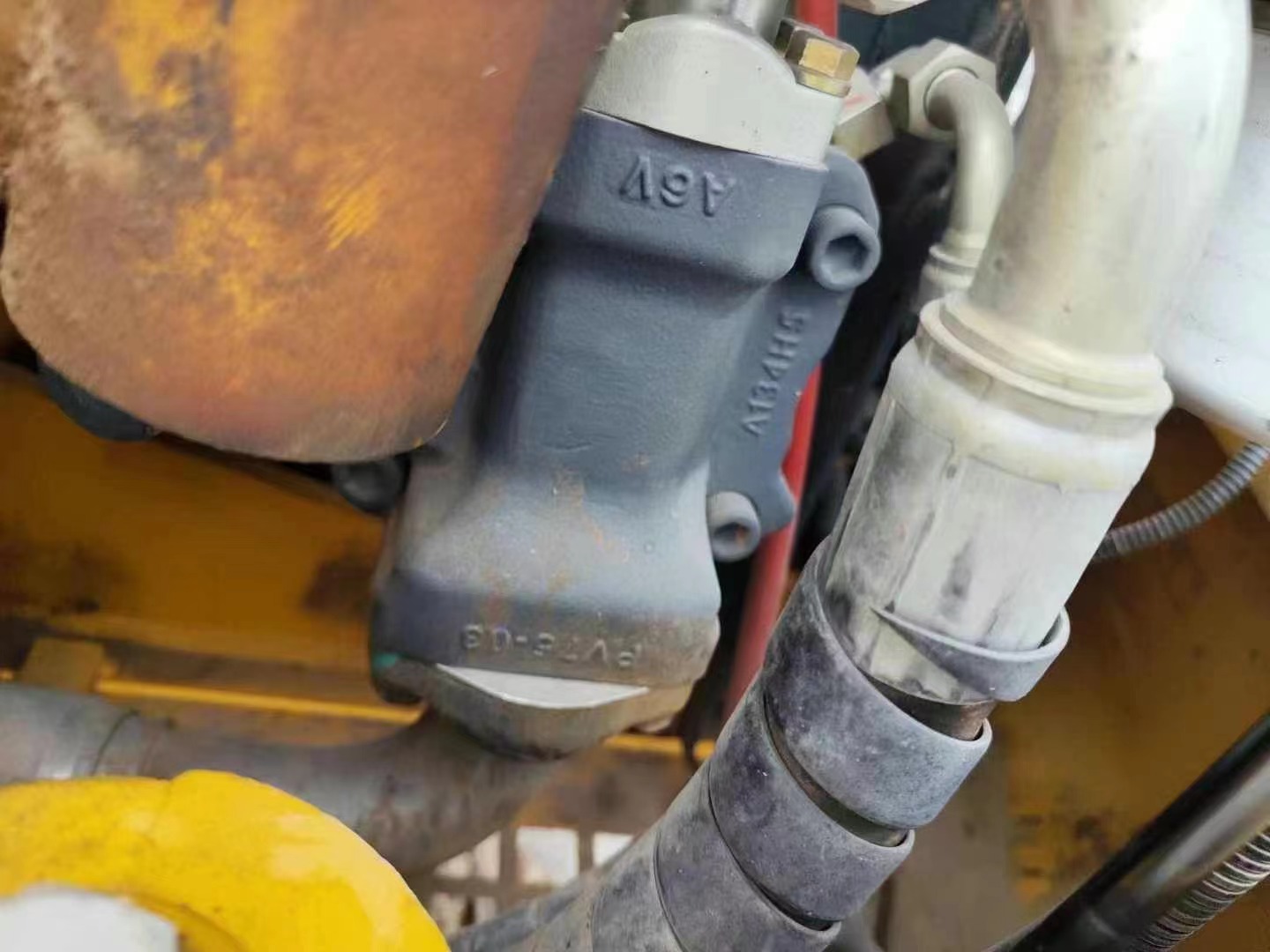

Main pump type Axial variable piston pump
Main pump maximum flow (l/min) 152
Oil capacity
Fuel tank (L) 105
Hydraulic oil tank (L) 74
Hydraulic system (L) 110
Engine oil replacement amount (L) 9.5
Coolant (L )8
Main dimensions
Total length for transport (mm) 5855
Total width for transport (mm) 1880
Total height for transport (mm) 2610

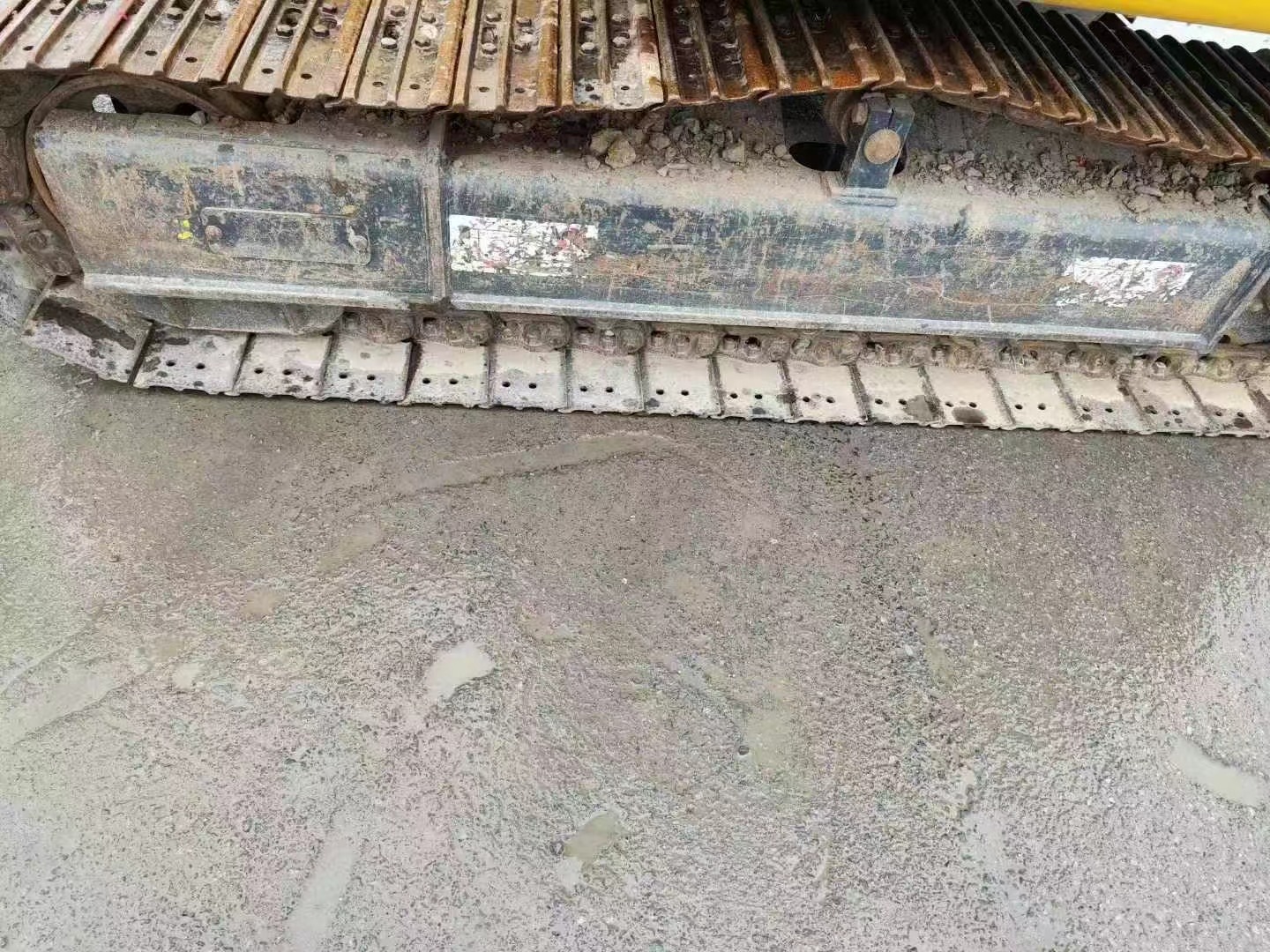

Total length of crawler tracks (mm) 2560
Wide track shoe (mm) 400
Total width of crawler tracks (mm) 1880
Minimum ground clearance (mm) 360
Ground clearance of counterweight (mm) 710
Minimum turning radius of front working device (mm) 2395
Rear turning radius (mm) 1655
Operating range
Maximum digging radius (mm) 6200
Maximum digging radius of parking surface (mm) 6060
Maximum digging depth (mm) 3850
Maximum digging height (mm) 5785
Maximum unloading height (mm) 4075
Maximum vertical digging depth (mm) 3000
