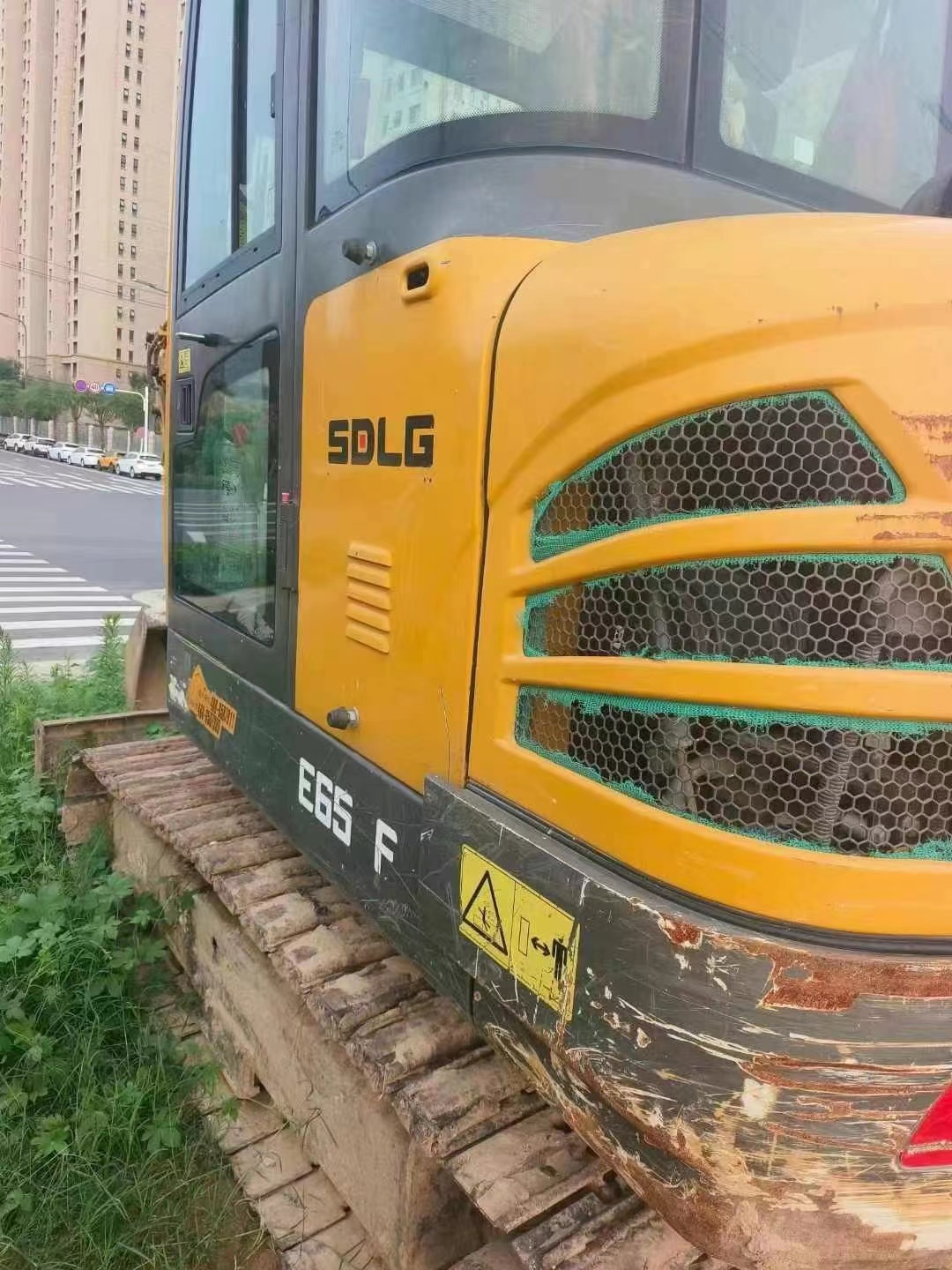

SDLG655

Tonnage (tons) 5
Machine operating weight (kg) 6050
Bucket capacity (m³) 0.2 (0.1-0.3)
Performance
Slewing speed (rpm) 11.5
Travel speed (km/h) 2.4/4.8
Ground pressure (Kpa) 32
Bucket digging force (kN) 40
Power system

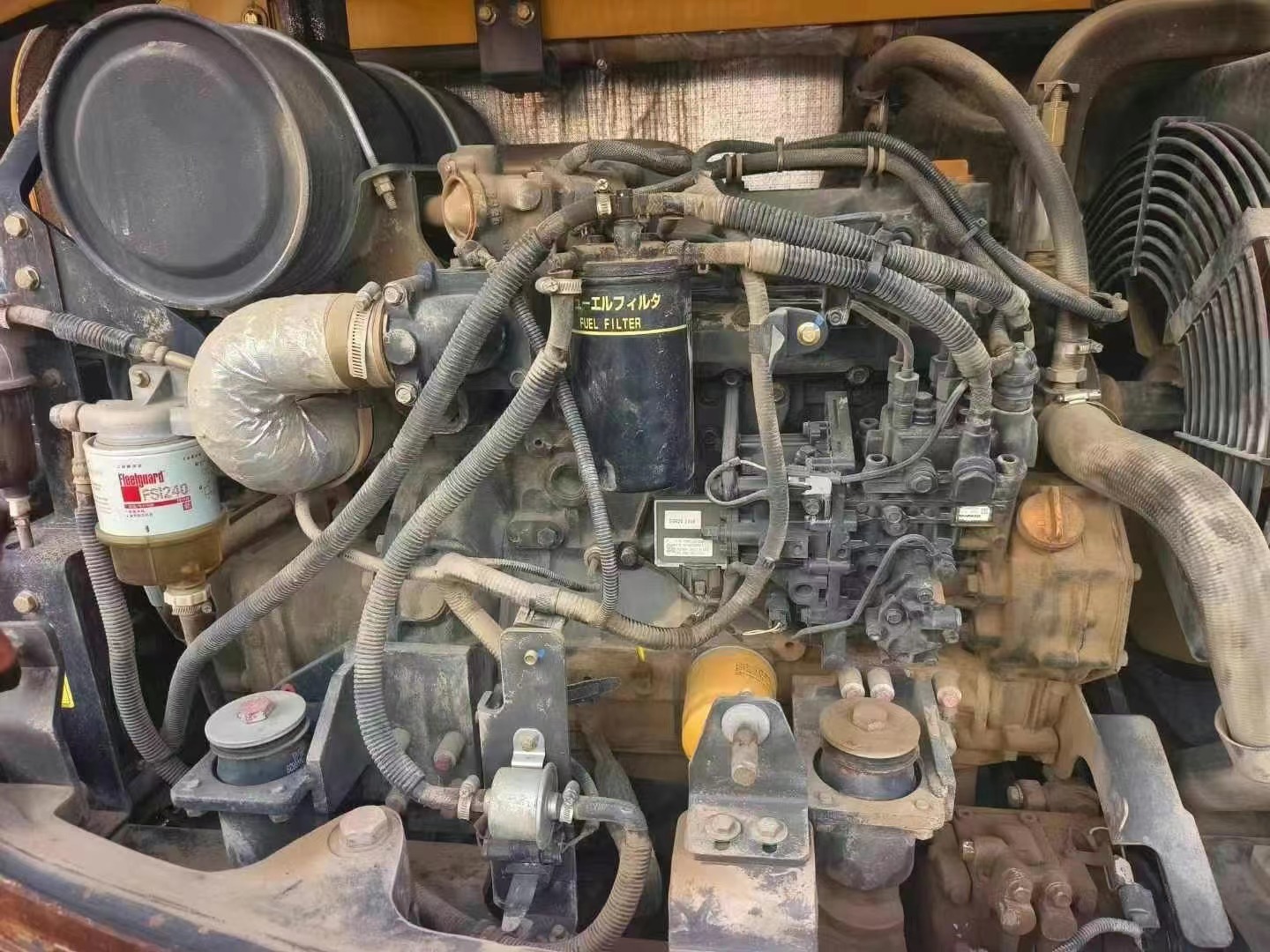

Engine model Kubota V2607
Rated power (kw/rpm) 39/2200
Displacement (L) 3.319
Number of cylinders (pcs) 4
Bore × stroke (mm) 98*110
Cooling method Water cooling

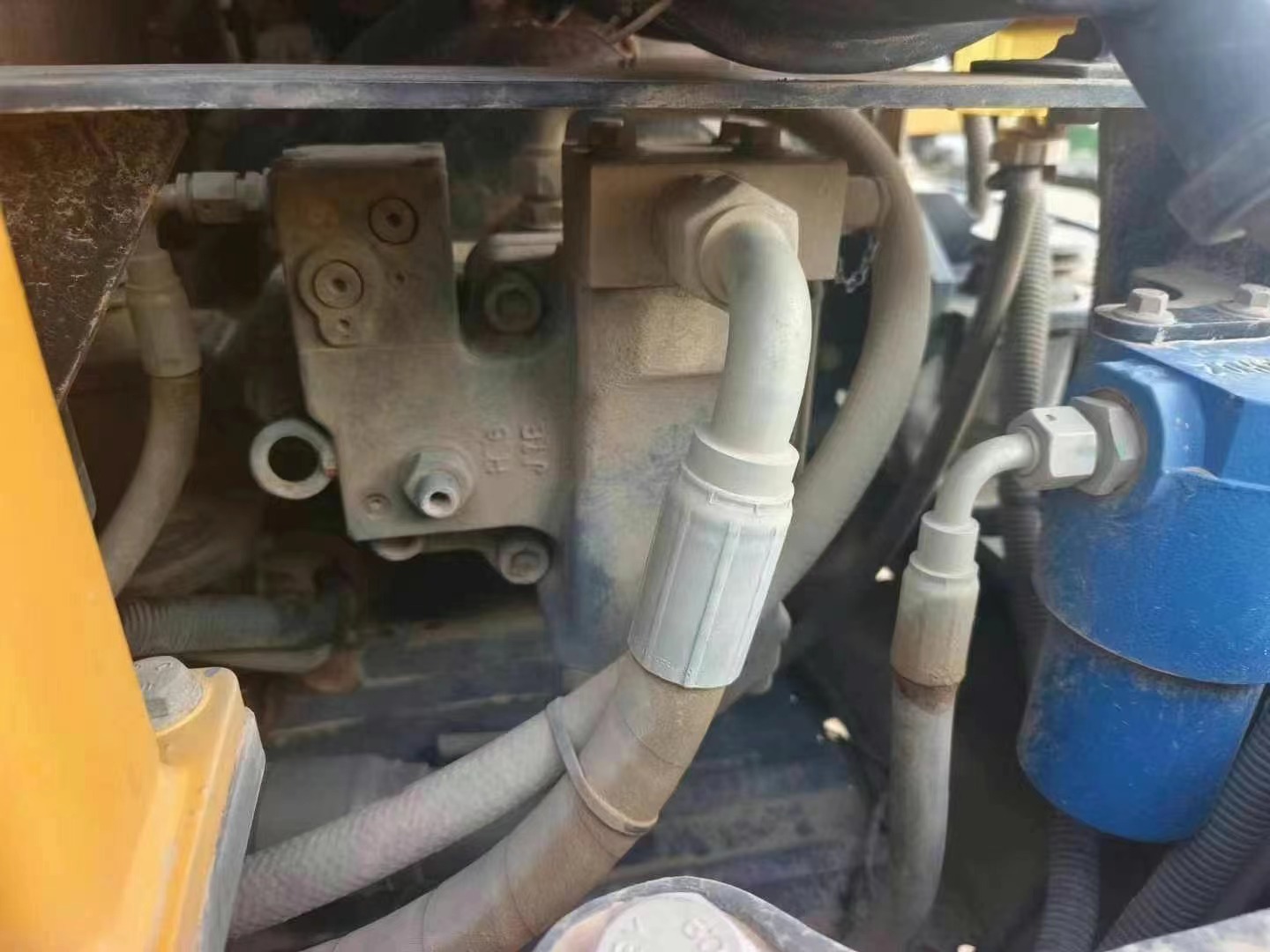

Hydraulic system
Maximum flow of main pump (l/min) 138
Oil capacity
Fuel tank (L) 135
Hydraulic oil tank (L) 157
Engine oil replacement volume (L) 12
Main body size
Total length of transport (mm) 5970
Total width of transport (mm) 1960
Total height of transport (mm) 2610
Total length of crawler track (mm) 2490
Wide track shoe (mm) 380
Track gauge (mm) 1520
Minimum ground clearance (mm) 375
Rear end turning radius (mm) 1670
Number of chain rollers (single side) (pcs) 1
Number of supporting rollers (single side) (pcs) 5
Operating range
Maximum digging radius (mm) 5990
Maximum digging depth (mm) 3846
Maximum digging height (mm) 5870
Maximum unloading height (mm) 4163
