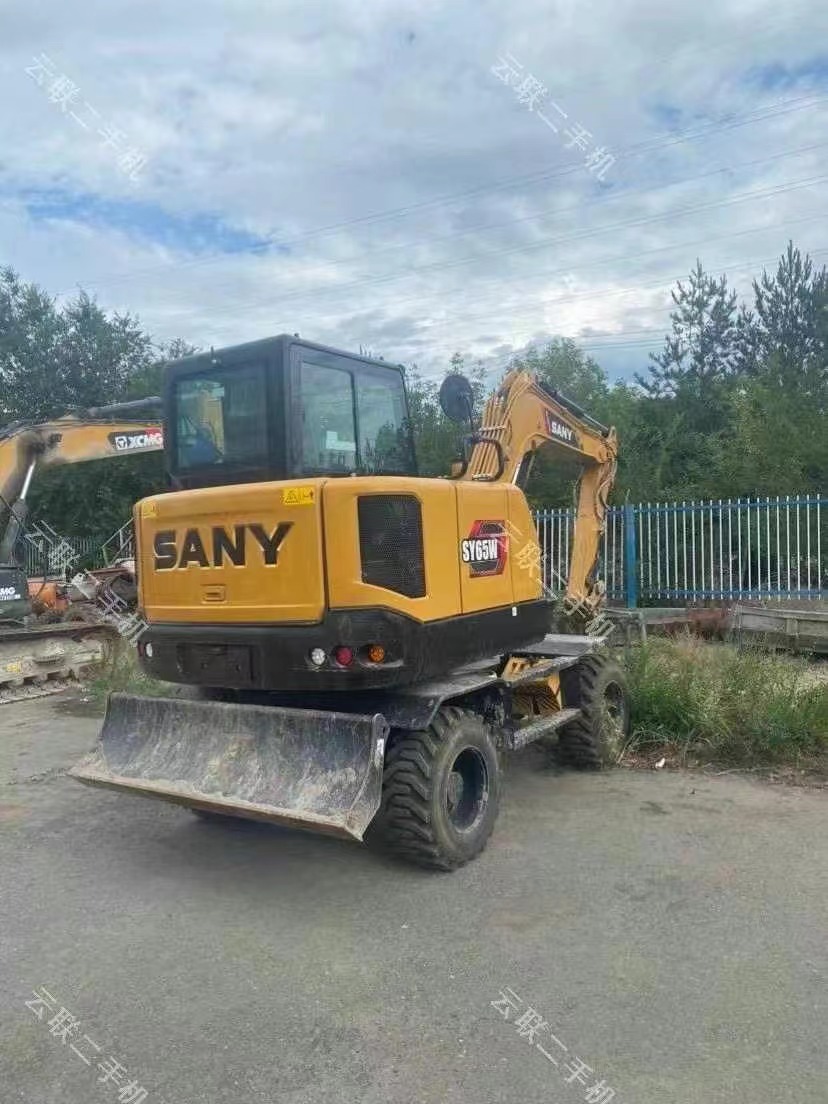

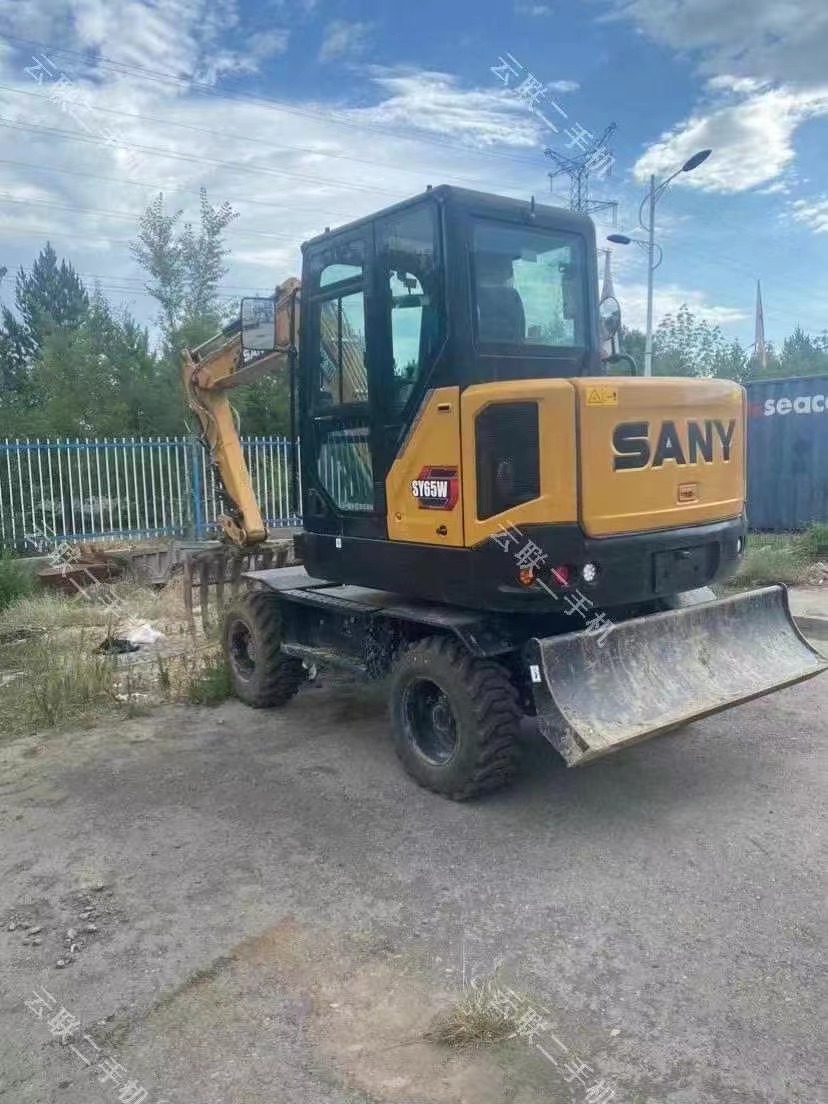

Wheel Excavator

Machine weight 5920kg
Bucket capacity 0.23m³
Power 53.7/2100kW/rpm
Specifications
Machine weight 5920kg
Bucket capacity 0.23m³

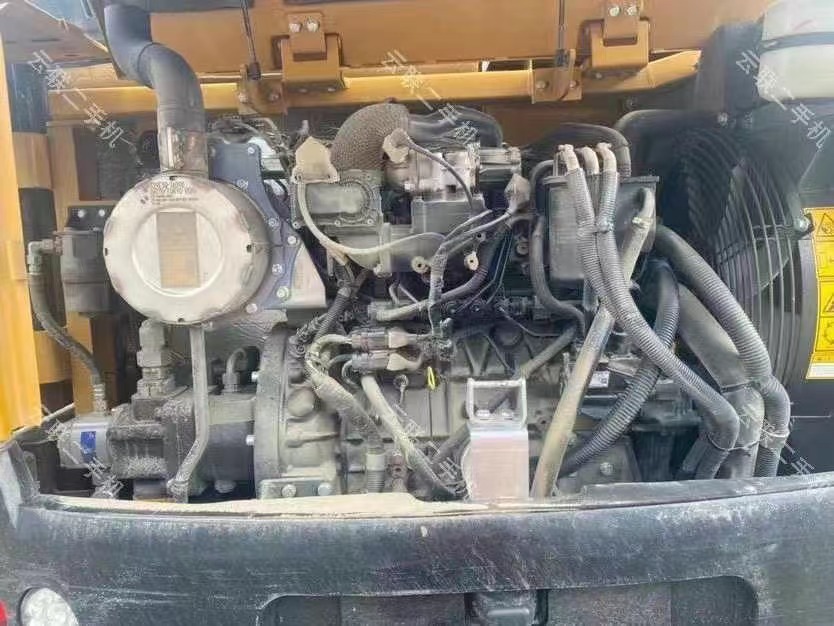

Engine
Model Yanmar 4TNV98CT-CVCTY
Rated power 53.7/2100kW/rpm
Maximum torque 295.5/1365N·m/rpm
Displacement 3.319L
Performance
Gradability 58% (35°)
Slewing speed 9.6rpm
Ground pressure 296kPa
Bucket digging force 45kN
Arm digging force 33kN
Travel speed 30/10km/h

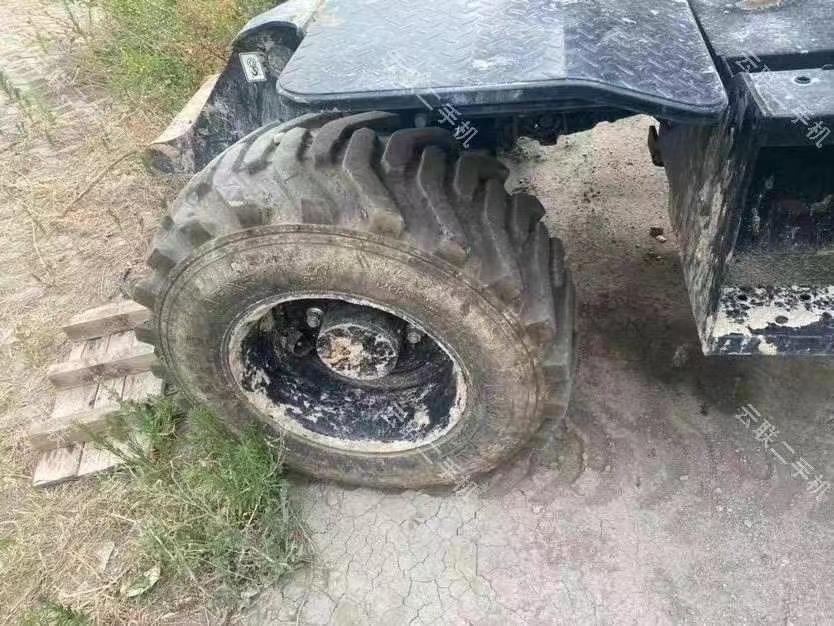

Travel part
Number of tires 4
Model 12-16.5-12PR
Width 307mm
Oil and coolant capacity
Final drive 1.7L
Fuel tank 125L
Hydraulic oil tank 85L
Engine oil 9.2L
Radiator 6.2L
