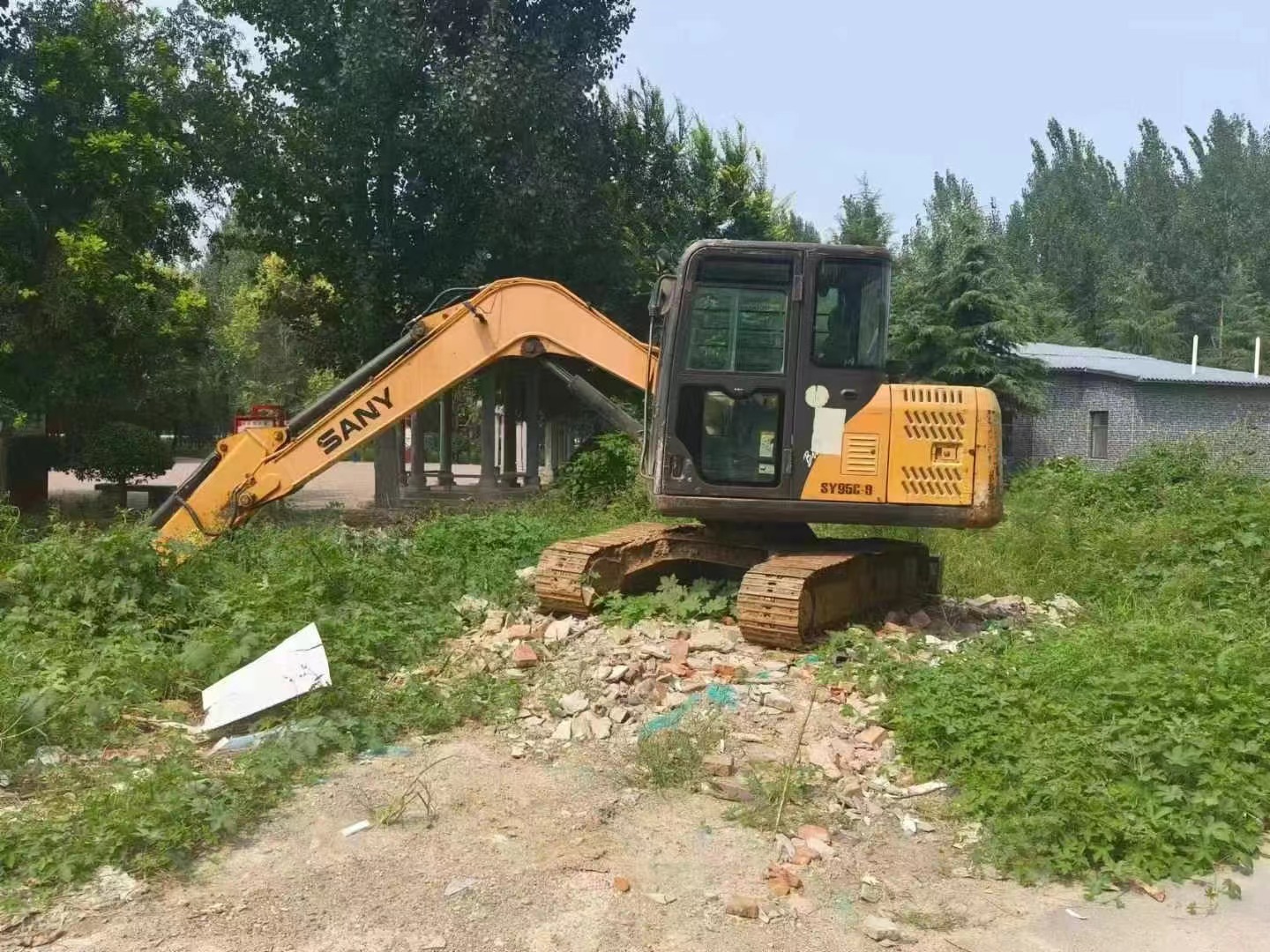

SANY65

Tonnage (tons) 6
Working weight of the whole machine (kg) 6700
Bucket capacity (m³) 0.12-0.32
Performance
Slewing speed (rpm) 11.5
Traveling speed (km/h) 2.4/4.8
Gradability (%) 70/35°
Ground pressure (Kpa) 33
Bucket digging force (kN) 56
Arm digging force (kN) 35.6
Power system

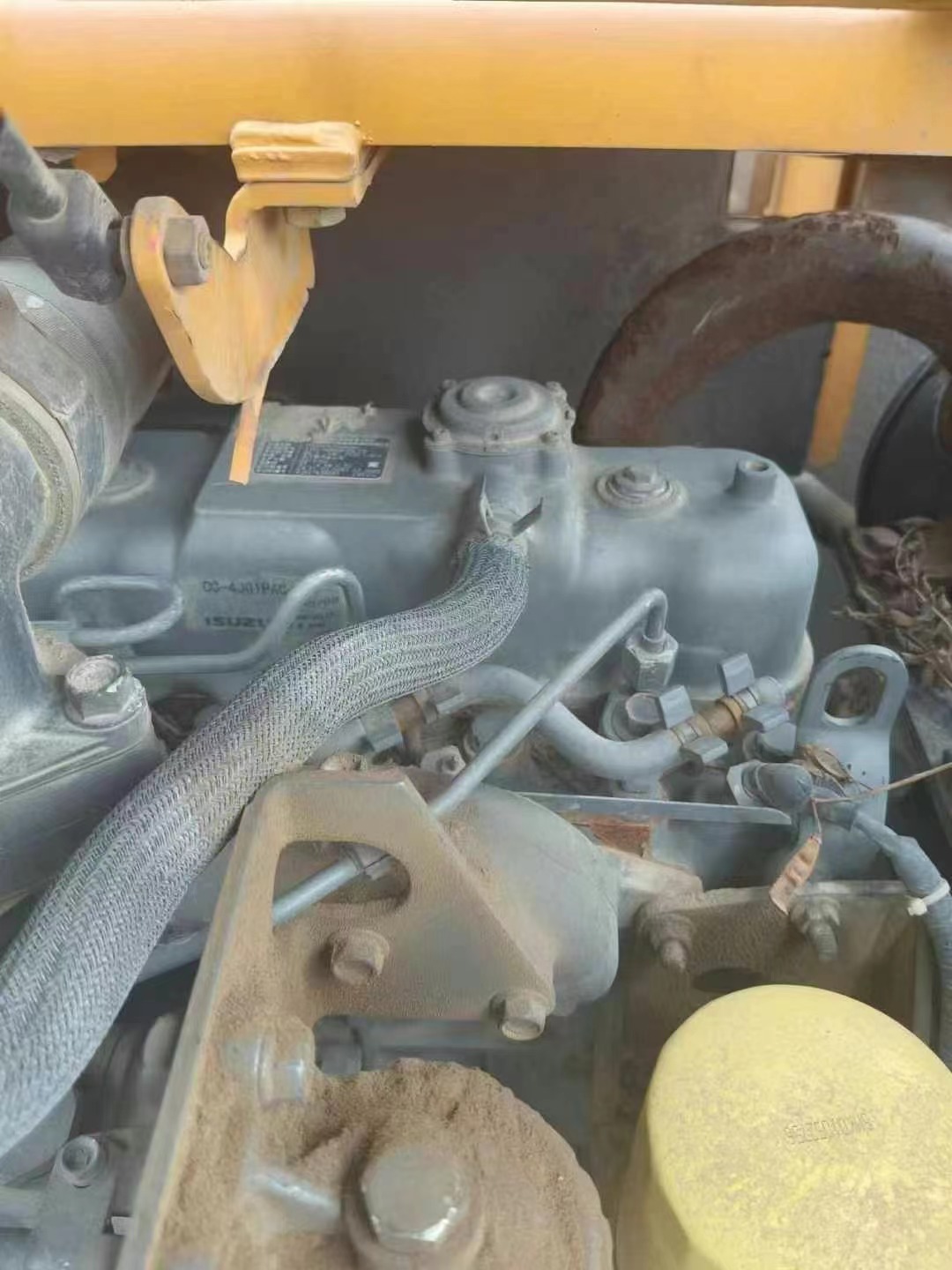

Engine model SANY D03S3
Rated power (kw/rpm) 42/2100
Maximum torque (N.m) 1900/1600~2000
Displacement (L) 2.77
Number of cylinders (pieces) 4
Cooling method Water cooling
Hydraulic system
Main pump type Variable swash plate piston pump
Main pump maximum flow (l/min) 149
Traveling hydraulic circuit (Mpa) 26
Slewing hydraulic circuit (Mpa) 21.6
Control hydraulic circuit (Mpa )3.6
Main overflow setting pressure (Mpa) 26
Boom cylinder – number × cylinder diameter × stroke (mm) 110 × 885
Arm cylinder – number × cylinder diameter × stroke (mm) 90 × 900
Bucket cylinder – number × cylinder diameter × stroke (mm) 80 × 730
Is the hydraulic crushing pipeline standard?
Oil capacity
Fuel tank (L) 145
Hydraulic oil tank (L) 120
Engine oil replacement amount (L) 9
Coolant (L )12
Main dimensions
Total length for transport (mm) 6000
Total width for transport (mm) 2160
Total height for transport (mm) 2560
Total height of cab (mm) 2560
Track ground length (mm) 2180
Total length of crawler (mm) 2710
Track shoe width (mm) 400
Total width of crawler (mm) 2160
Track gauge (mm) 1680
Minimum ground clearance (mm) 375
Rear end turning radius (mm )1720
Number of sprocket wheels (single side) (pcs)1
Number of track shoes (single side) (pcs)42
Number of supporting wheels (single side) (pcs)5
Operating range
Maximum digging radius (mm)6160
Maximum digging depth (mm)3985
Maximum digging height (mm)6930
Maximum unloading height (mm)5145
Maximum vertical digging depth (mm)3470
Bulldozer blade width × height (mm)460 (bulldozer blade height)
Bulldozer blade lifting or pushing depth (mm)200/480
