SANY60pro

Tonnage (tons) 6
Machine operating weight (kg) 6000
Bucket capacity (m³) 0.10-0.28 (0.25)
Performance
Slewing speed (rpm) 9.6
Travel speed (km/h) 4.2/2.4
Gradability (%) 70
Ground pressure (Kpa) 30.7
Bucket digging force (kN) 45
Arm digging force (kN) 33
Power system

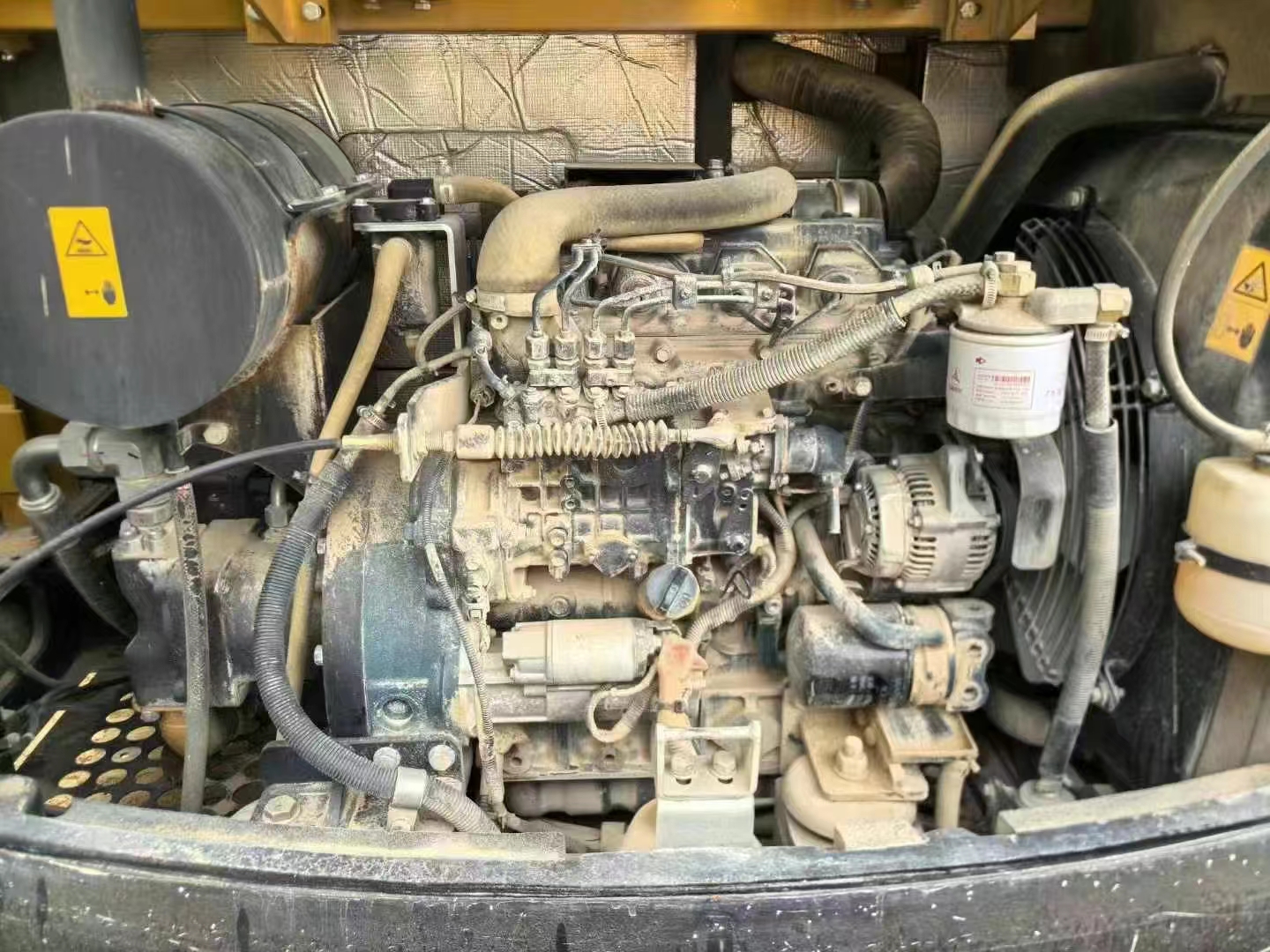

Engine model Kubota V2607
Rated power Rate (kw/rpm) 36/2000
Maximum torque (N.m) 206.9/1100~1500
Displacement (L) 2.615
Oil capacity
Fuel tank (L) 130
Hydraulic oil tank (L) 85
Engine oil change amount (L) 9.6
Main body dimensions
Track shoe width (mm) 400
Number of sprocket wheels (single side) (pcs) 1
Number of track shoes (single side) (pcs) 42
Number of supporting wheels (single side) (pcs) 5
