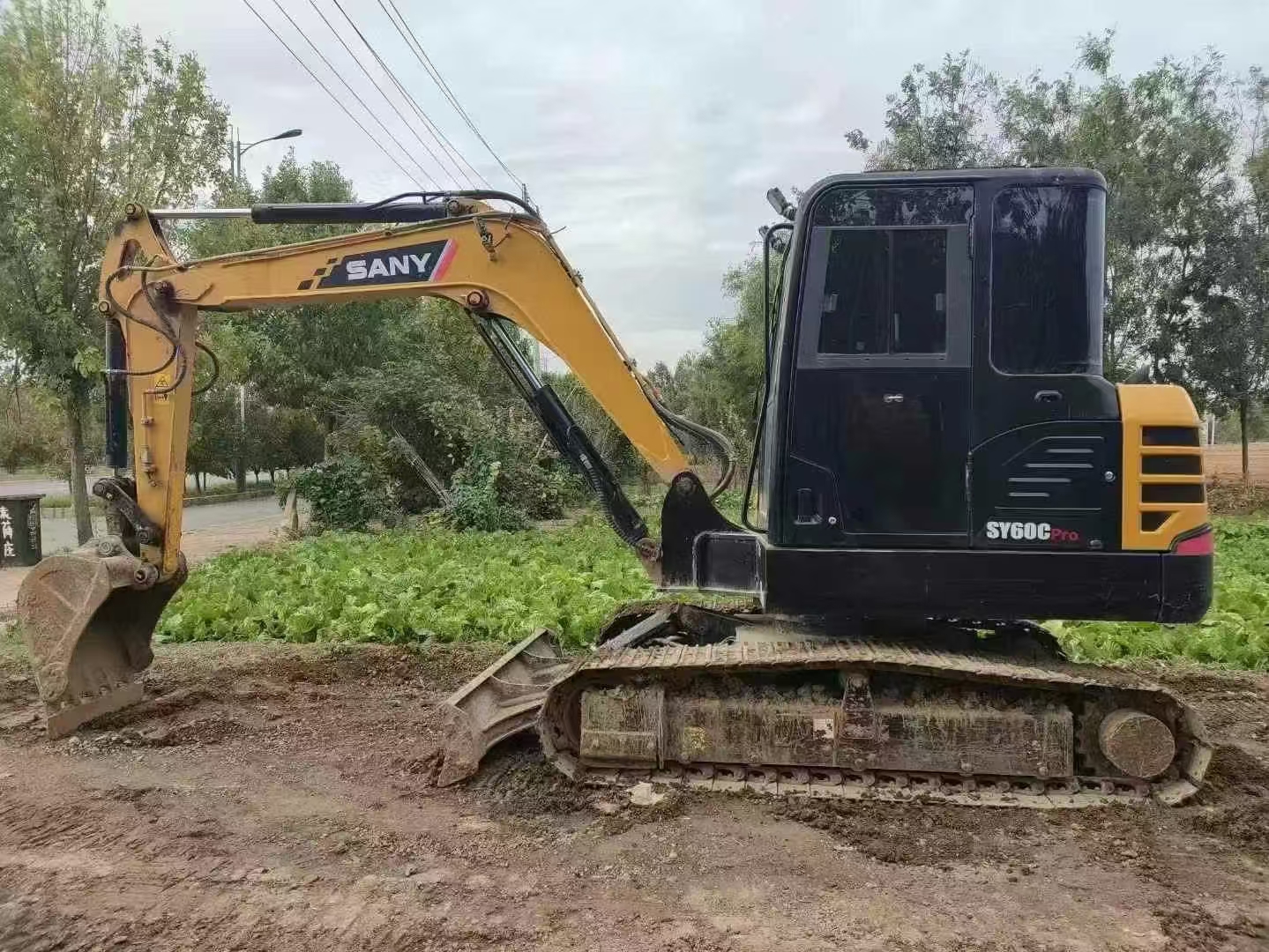

SANY60

Tonnage (tons) 6
Machine operating weight (kg) 6000
Bucket capacity (m³) 0.10-0.28 (0.23)
Performance
Slewing speed (rpm) 9.6
Travel speed (km/h) 4.22/2.25
Gradability (%) 70% (35°)
Ground pressure (Kpa) 30.7
Bucket digging force (kN) 45
Arm digging force (kN) 33
Power system

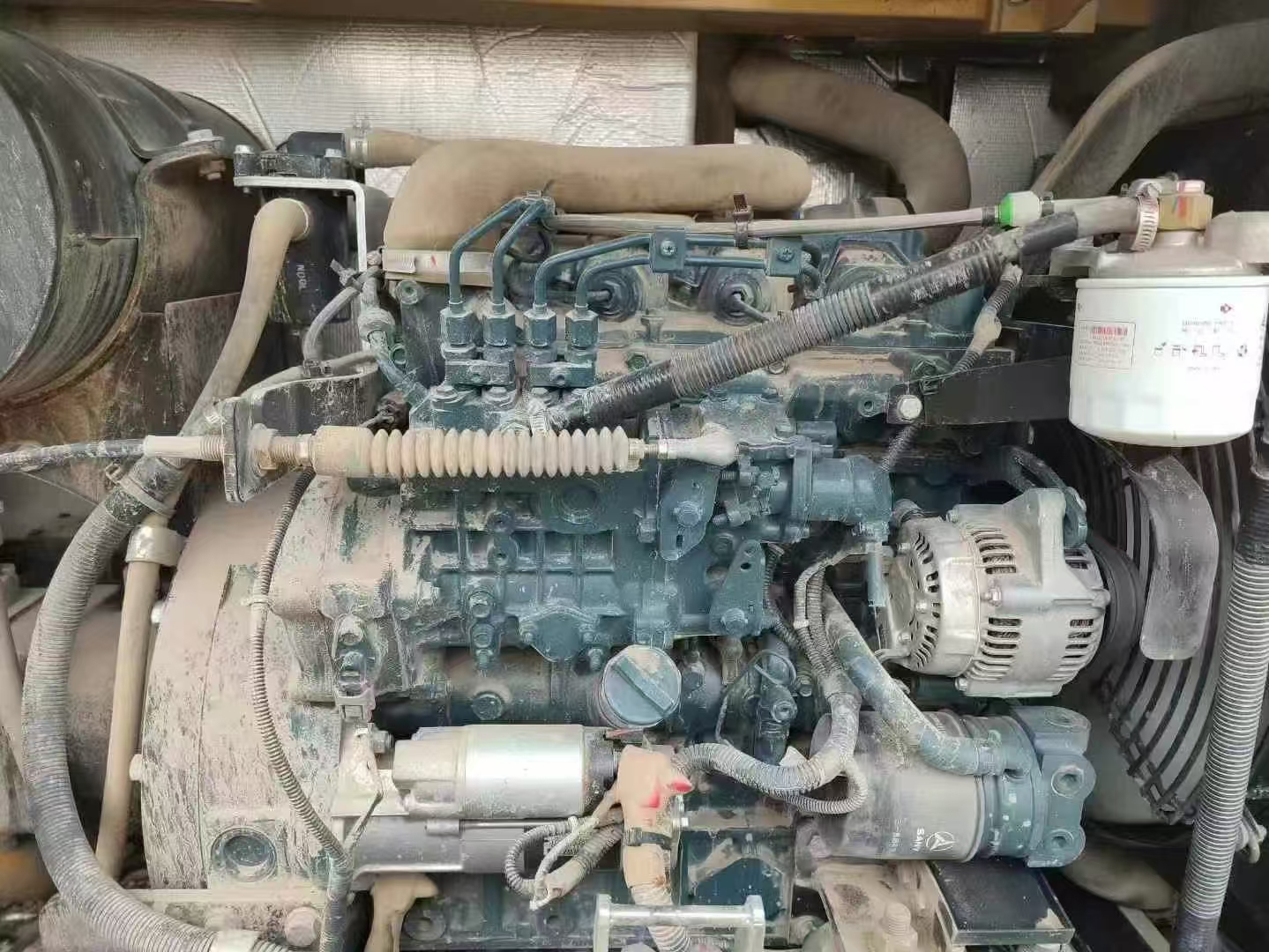

Engine model V2607
Rated power (kw/rpm) 36/2100
Maximum torque (N. m)206.9/1100~1500
Displacement (L)2.615
Number of cylinders (pieces)4
Cooling method: water cooling
Oil capacity
Fuel tank (L)130
Hydraulic oil tank (L)85
Engine oil change amount (L)9.6
Main body dimensions
Total transport length (mm)5925
Total transport width (mm)2005
Total transport height (mm)2630
Total track length (mm)2700
Track shoe width (mm)400
Track gauge (mm)1600
Minimum ground clearance (mm )370
Rear end swing radius (mm) 1640
Number of supporting wheels (single side) (pcs) 5
Number of chain wheels (single side) (pcs) 1
Number of track shoes (single side) (pcs) 42
Operating range
Maximum digging radius (mm) 6090
Maximum digging depth (mm) 3770
Maximum digging height (mm) 5735
Maximum unloading height (mm) 3975
Maximum vertical digging depth (mm) 3025
Bulldozer lifting or pushing depth (mm) 300/405
