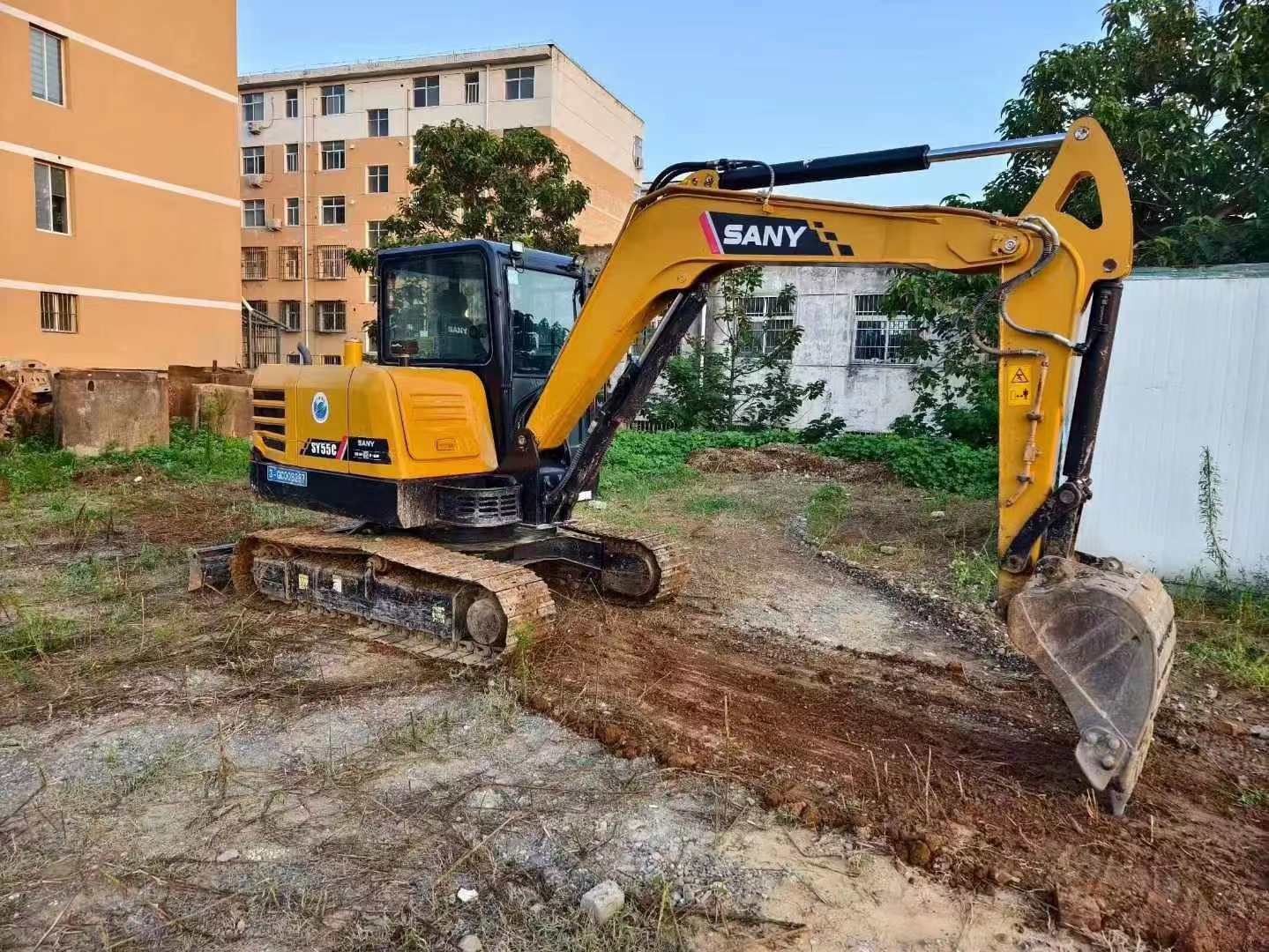

SANY55

Machine weight 5780kg
Bucket capacity 0.23m³

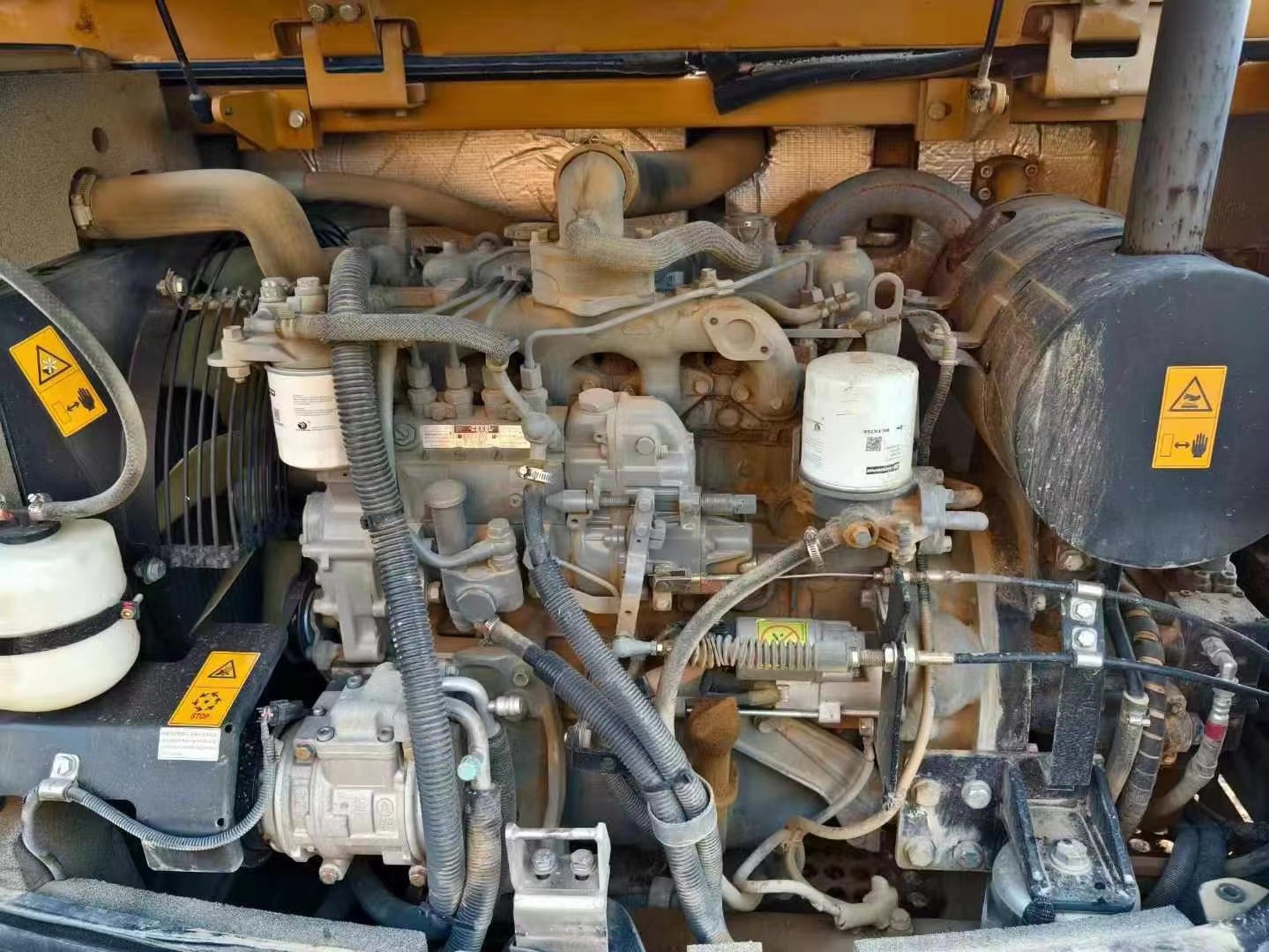

Engine model Kubota V2607
Rated power 36/2000kW/rpm
Maximum torque 206.9/1100-1500N·m/rpm
Displacement 2.615L
Gradability 70%/35°
Slewing speed 10.3rpm
Ground pressure 33kPa
Bucket digging force 45kN
Arm digging force 33kN
Travel speed 4.0/2.5km/h
Standard track 400mm
Sprocket wheel 1 on each side
Number of track shoes 40 (single side)
Supporting wheels 5 on each side
Final drive 2×0.9L
Fuel tank 125L
Hydraulic oil tank 85L
Engine oil 9.2L
Radiator 6.2L
