SANY485

Tonnage (tons) 48
Machine operating weight (kg) 49500

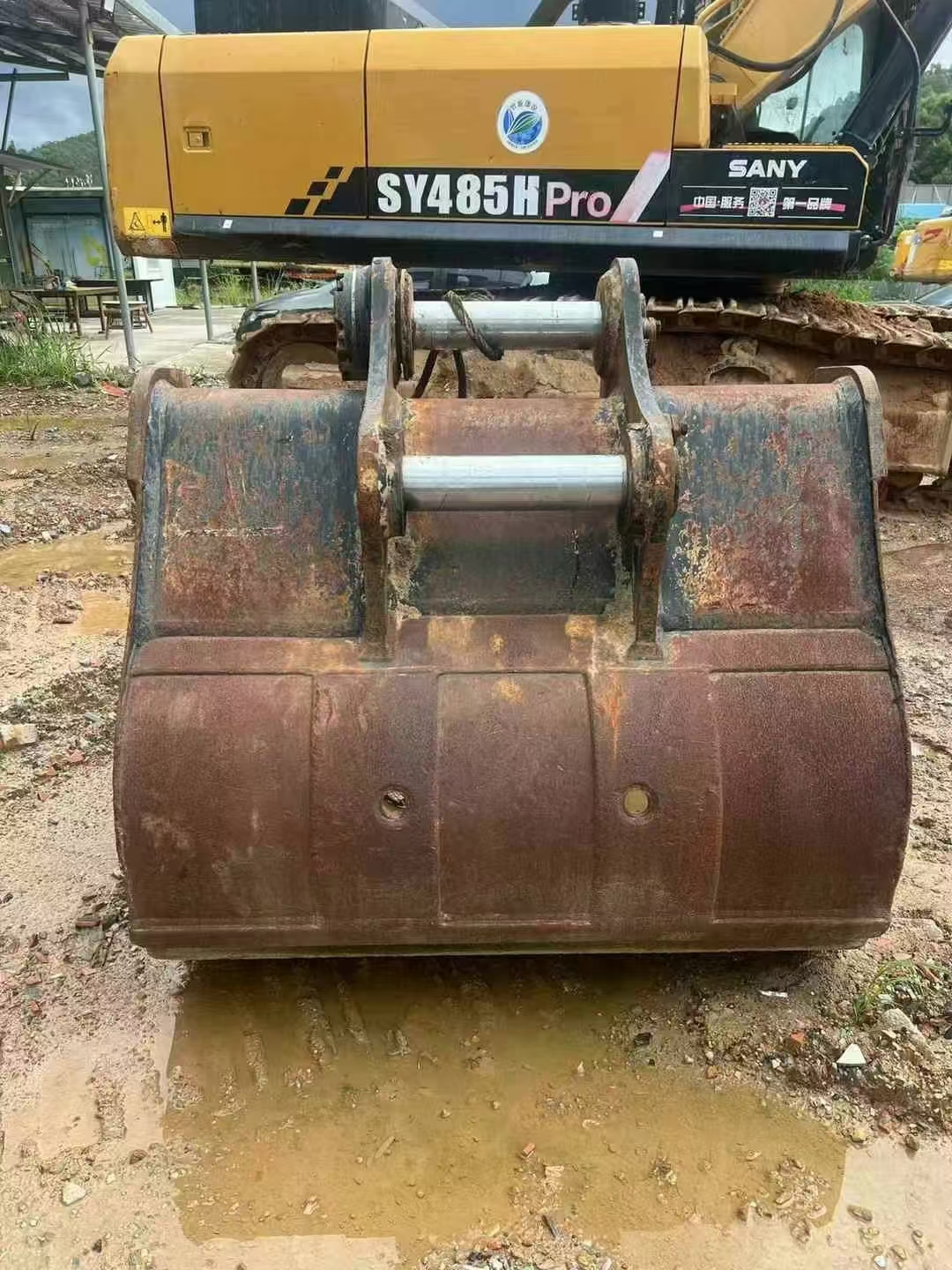

Bucket capacity (m³) 2.2-3.1
Performance
Slewing speed (rpm) 8
Travel speed (km/h) 5.4/3.1
Gradability (%) 70
Ground pressure (Kpa) 87.1
Bucket digging force (kN) 287
Arm digging force (kN) 245
Power system
Engine model 6WG1X
Rated power (kw/rpm) 300/1800
Maximum torque (N.m) 1950/1400
Displacement (L) 15.681
Gas Number of cylinders (pieces) 6
Cooling method Water cooling
Oil capacity
Fuel tank (L) 680
Hydraulic oil tank (L) 480
Engine oil replacement volume (L) 50
Main body dimensions
Total length for transportation (mm) 12095
Total width for transportation (mm) 3360
Total height for transportation (mm) 3790
Total height of cab (mm) 3470
Onboard width (mm) 3290
Track ground length (mm) 4415
Total length of track (mm) 5440
Track shoe width (mm) 600
Track gauge (mm) 2740
Minimum ground clearance (mm) )560
Counterweight ground clearance (mm)1355
Minimum turning radius of front working device (mm)5240
Maximum height at minimum turning radius (mm)9100
Rear end turning radius (mm)3765
Number of supporting wheels (single side) (pcs)9
Number of chain wheels (single side) (pcs)2
Number of track shoes (single side) (pcs)50
Operating range
Maximum digging radius (mm)11860
Maximum digging depth (mm)7490
Maximum digging height (mm)10950
Maximum unloading height (mm)7450
Maximum vertical digging depth (mm)5660
