SANY375

Machine weight 37800kg
Bucket capacity 1.9m³
Power 210/1900KW/rpm

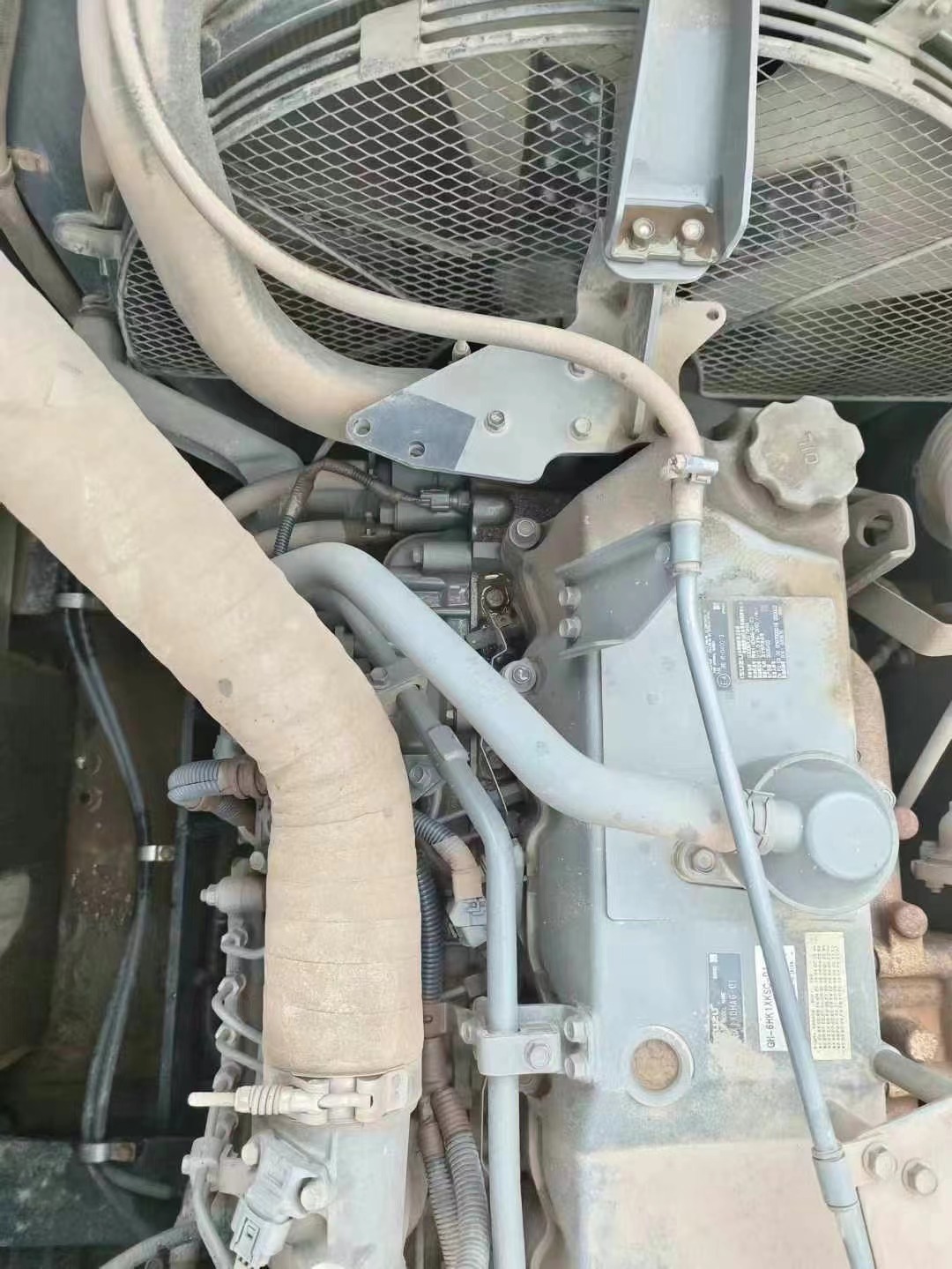

Engine model Isuzu 6HK1
Engine type direct injection, 6-cylinder 4-stroke, turbocharged intercooled, water-cooled
Displacement 7.79L
Maximum torque 1080/1500N·m/rpm
Rated power 210/1900KW/rpm
Travel speed 5/3.0km/h
Gradability 35°
Slewing speed 9.2rpm
Ground pressure 68.8kPa
Bucket digging force 235kN
Arm digging force 210kN
Fuel tank 620L
Engine oil 41L
Radiator 28L
Final drive 2×8.5L

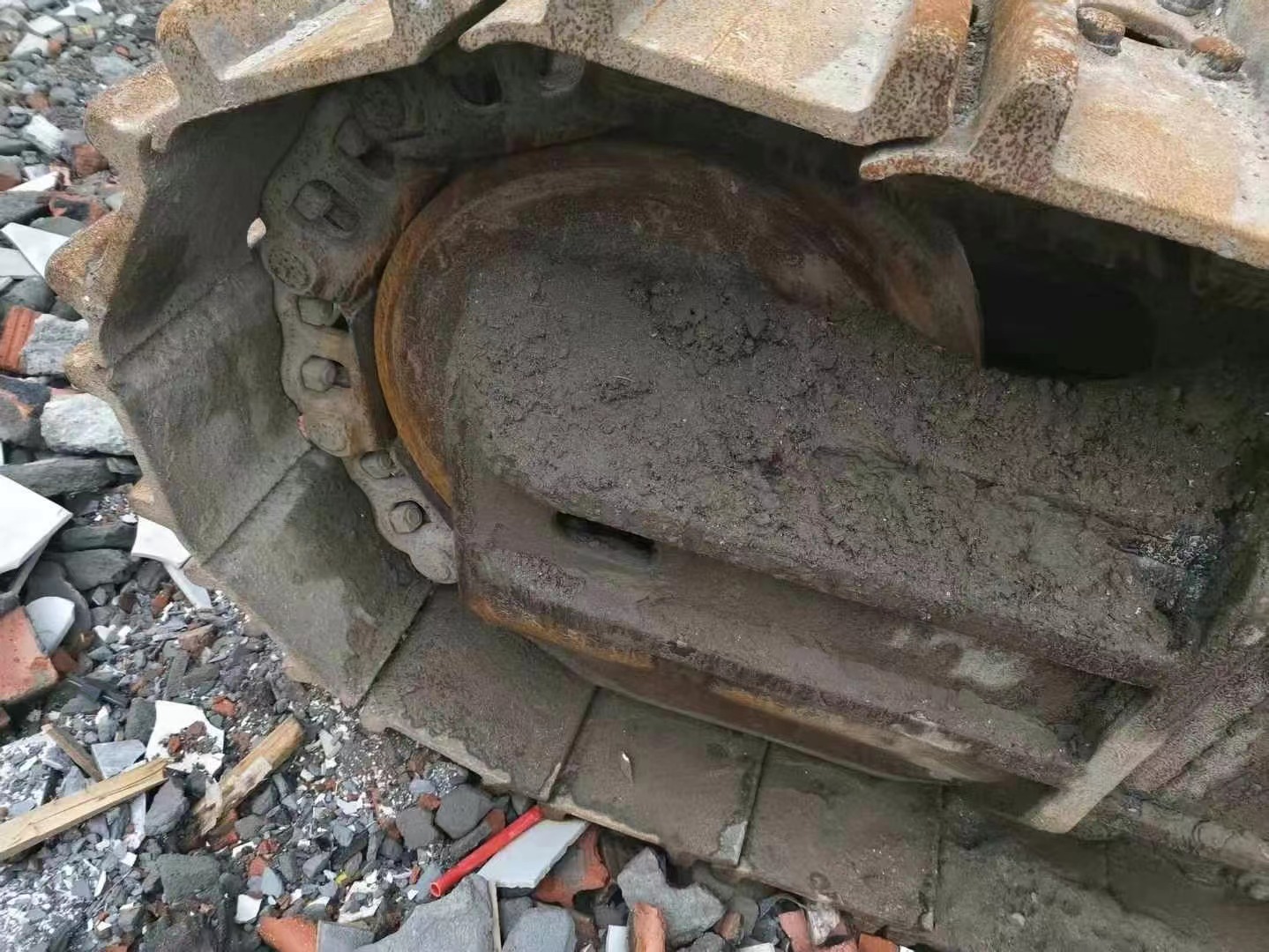

Number of track shoes 49 (single side)
9 track rollers per side
2 sprocket rollers per side
Standard track 600mm
