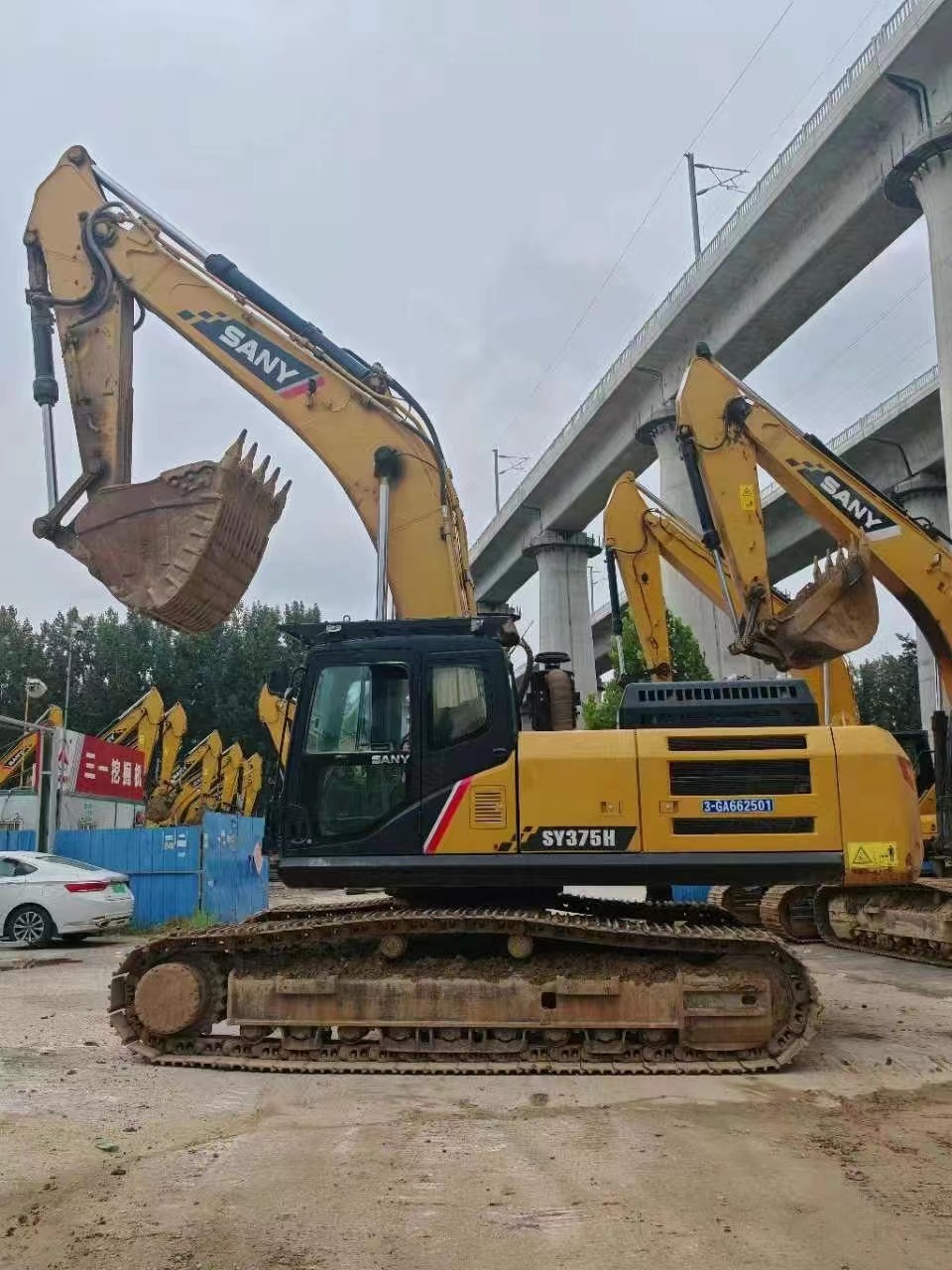

SANY365

Tonnage (tons) 36
Machine operating weight (kg) 36000
Bucket capacity (m³) 1.6~2.32
Performance
Slewing speed (rpm) 9.5
Travel speed (km/h) 5.5/3.5
Gradability (%) 70% (35°)
Ground pressure (Kpa) 65
Bucket digging force (kN) 235
Arm digging force (kN) 180
Power system
Engine model GH-6HK1XKSC
Rated power (kw/rpm) 212/2000
Maximum torque (N.m) 1080/1500
Displacement (L)7.79
Cooling method Water cooling
Oil capacity
Fuel tank (L)690
Hydraulic oil tank (L)380
Engine oil change volume (L)36
Main body dimensions
Total length for transportation (mm)11530
Total width for transportation (mm)3190
Total height for transportation (mm)3545
Total height of cab (mm)3320
Onboard width (mm)3150
Track ground length (mm)4140
Total length of crawler (mm)5065
Track shoe width (mm)600
Track gauge (mm)2590
Minimum ground clearance (mm) )550
Minimum turning radius of front working device (mm)4495
Rear end turning radius (mm)3560
Maximum height at minimum turning radius (mm)8600
Number of chain rollers (single side) (pcs)2
Number of track shoes (single side) (pcs)49
Number of supporting rollers (single side) (pcs)9
Operating range
Maximum digging radius (mm)10780
Maximum digging depth (mm)7050
Maximum digging height (mm)9890
Maximum unloading height (mm)6920
Maximum vertical digging depth (mm)3970
