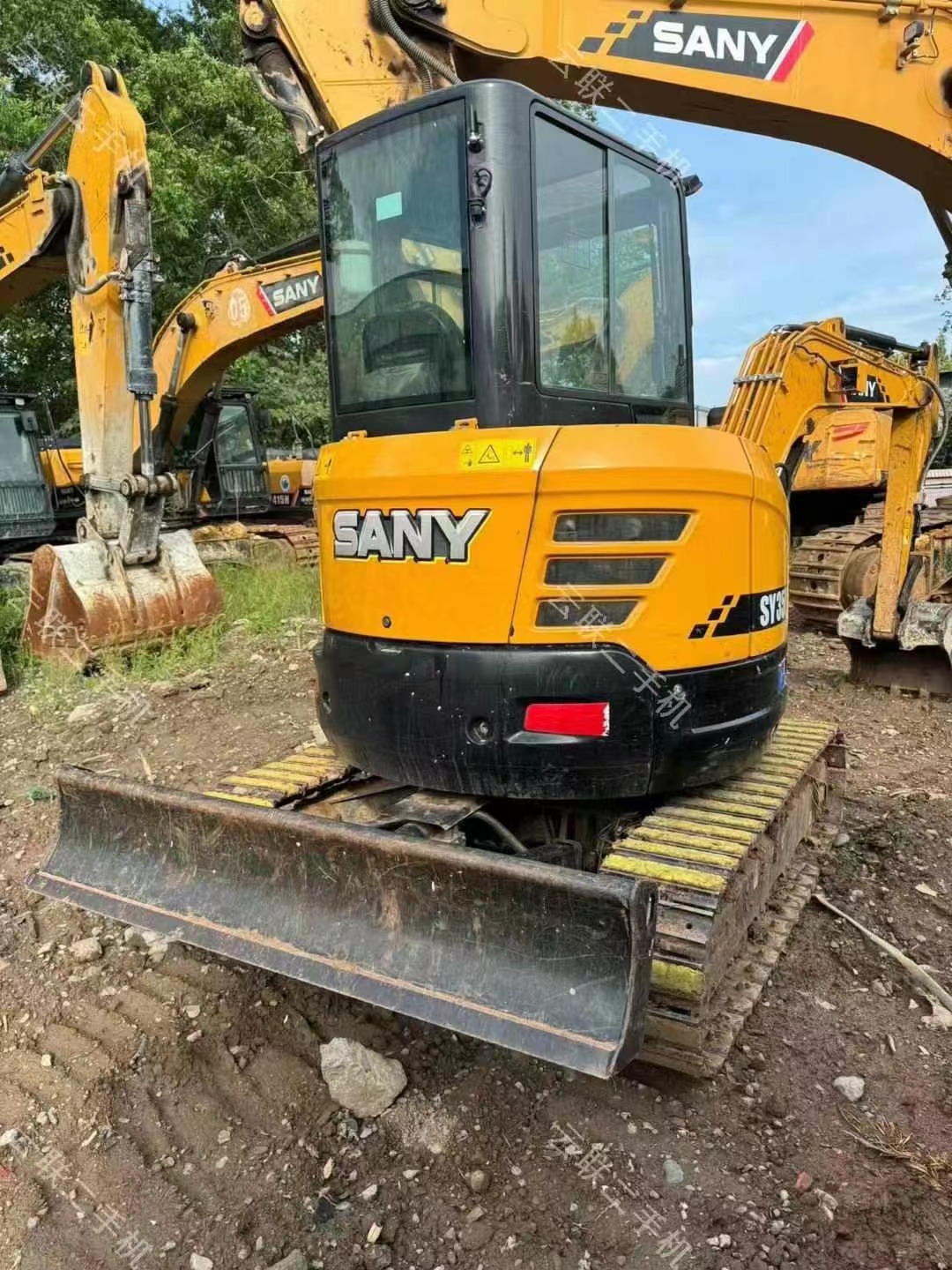

SANY35

Tonnage (tons) 3
Machine operating weight (kg) 3780
Bucket capacity (m³) 0.06-0.15 (0.12)
Performance
Slewing speed (rpm) 9
Travel speed (km/h) 4.4/2.4
Gradability (%) 58
Ground pressure (Kpa) 32
Bucket digging force (kN) 30.4
Arm digging force (kN) 18.2
Power system

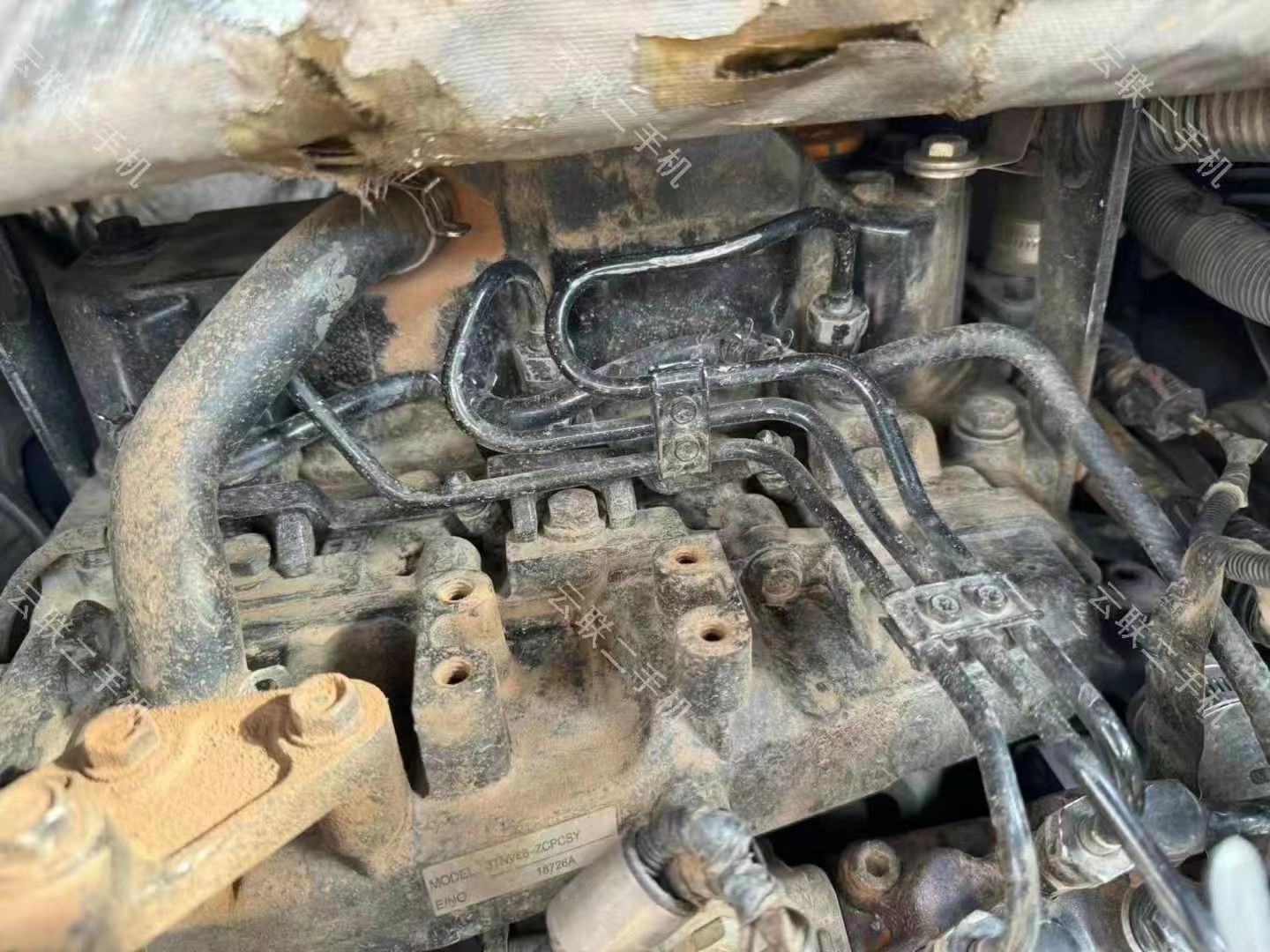

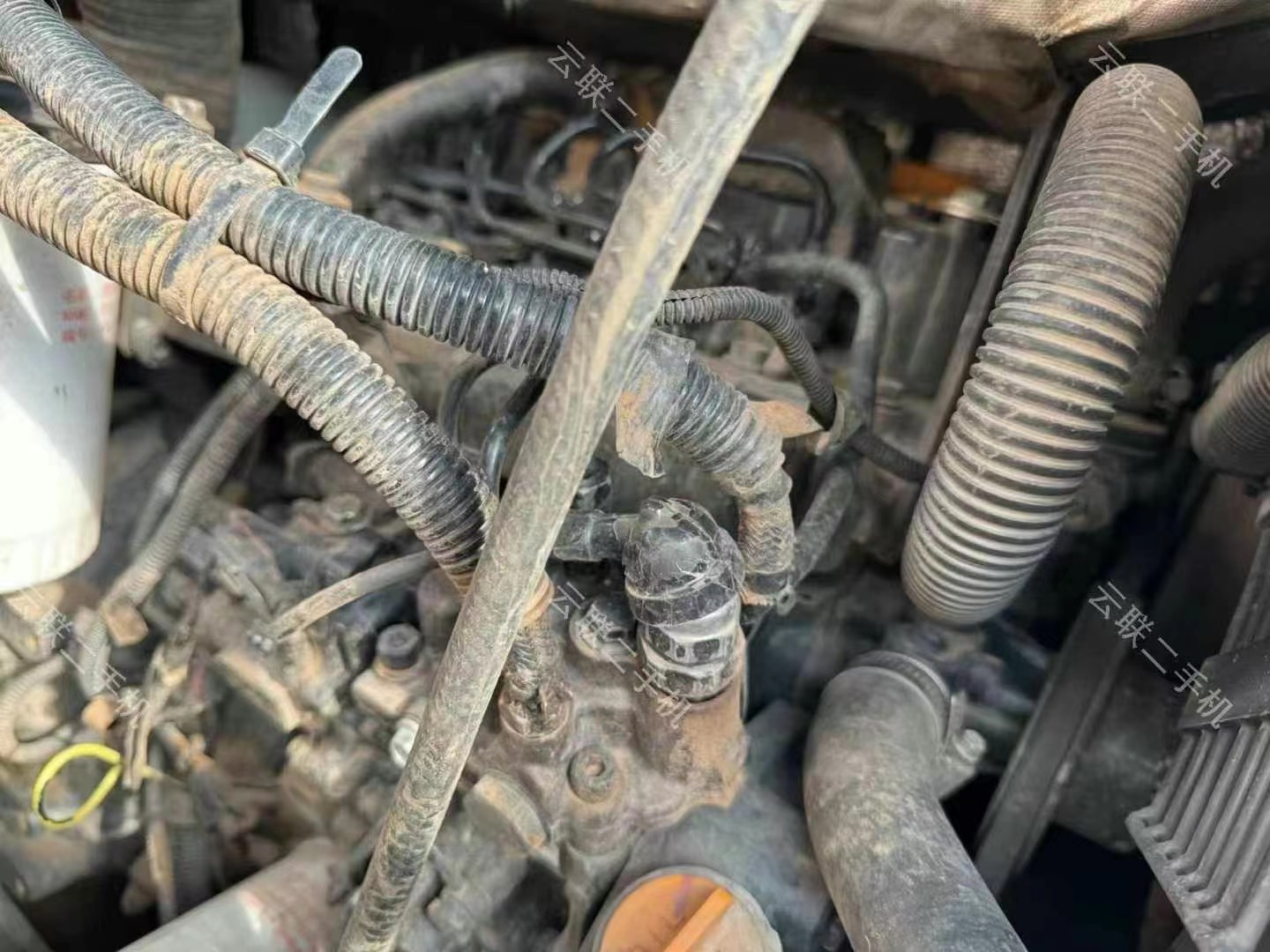

Engine model Yanmar 3TNV88 Stages3A EPA int4
Rated power (kw/rpm) 20.4/2200
Maximum torque (N.m) 107/1300
Displacement (L) 1.642
Cooling method Water cooling
Oil capacity
Fuel tank (L) 40
Hydraulic oil tank (L) 40
Engine oil change volume (L) 6
Main body dimensions
Total length for transportation (mm) 4915
Total width for transportation (mm) 1720
Total height for transportation (mm) 2515

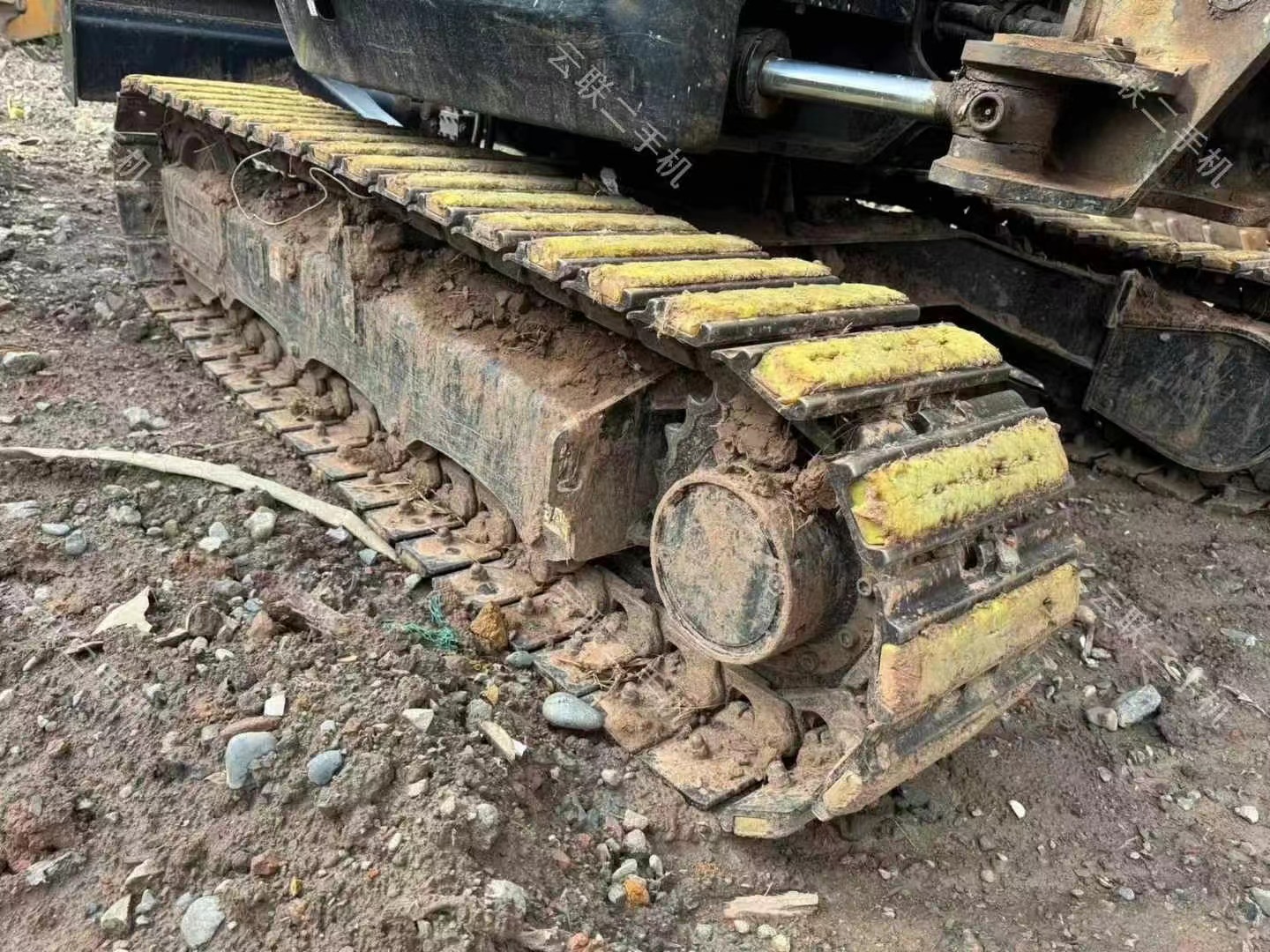

Track ground length (mm) 1670
Total length of crawler (mm) 2155
Track shoe width (mm) 300
Track gauge (mm) 1420
Minimum ground clearance (mm) 295
Rear end turning radius (mm )860
Number of sprocket wheels (single side) (pcs) 1
Number of supporting wheels (single side) (pcs) 4
Operating range
Maximum digging radius (mm) 5465
Maximum digging depth (mm) 3105
Maximum digging height (mm) 4855
Maximum unloading height (mm) 3460
Maximum vertical digging depth (mm) 2700
Bulldozer lifting or pushing depth (mm) 375/370
