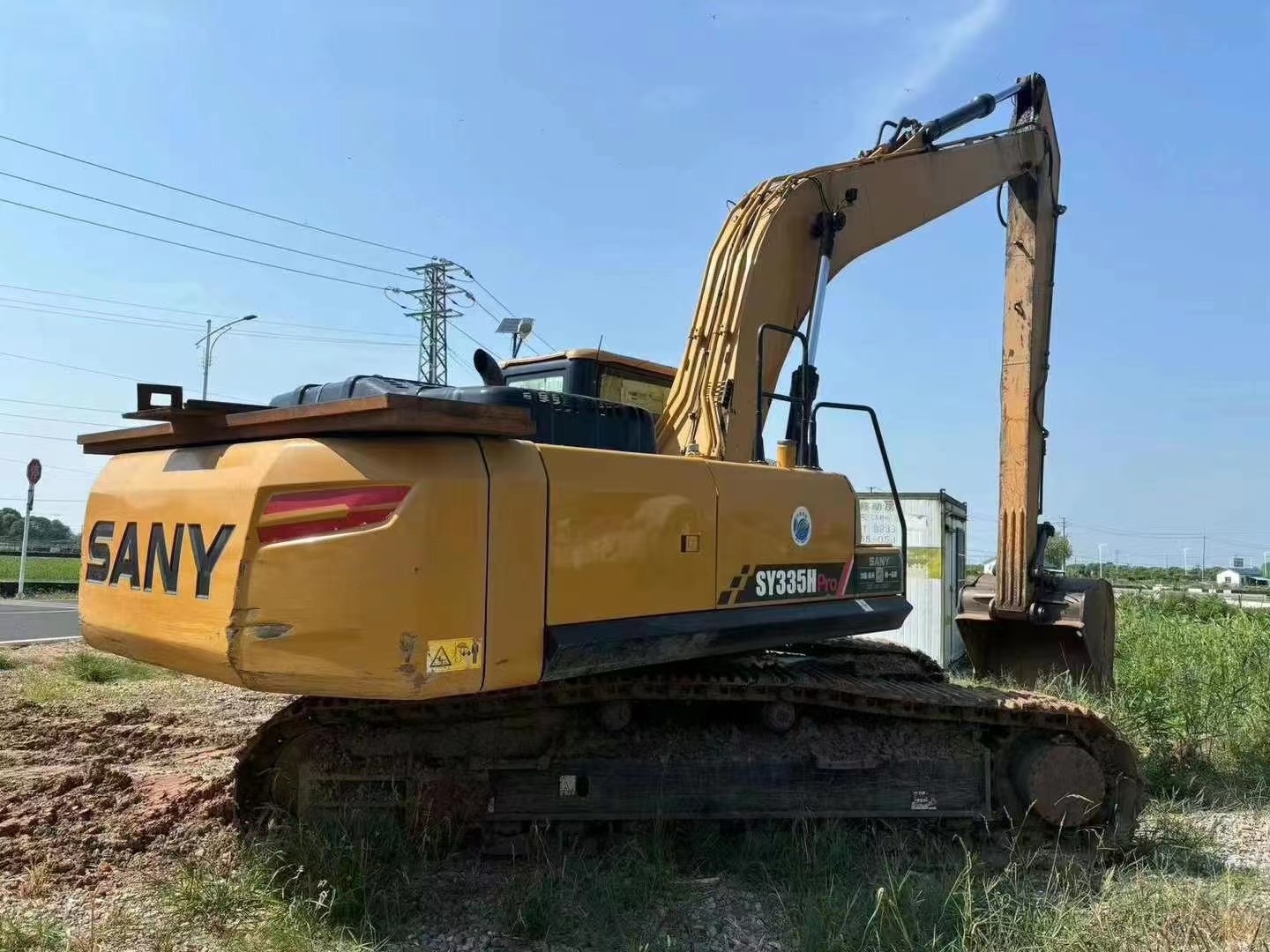

SANY335

Tonnage (tons) 33
Machine operating weight (kg) 32500
Bucket capacity (m³) 1.85
Performance
Slewing speed (rpm) 9.0
Travel speed (km/h) 5.4/3.2
Gradability (%) 70% (35°)
Ground pressure (Kpa) 60.3
Bucket digging force (kN) 204
Arm digging force (kN) 153
Power system
Engine model Isuzu GH-6HK1
Rated power (kw/rpm) 212/2000
Maximum torque (N.m) 1080/1500
Displacement (L) 7.79
Number of cylinders (pieces) 6
Cooling method Water cooling
Oil capacity
Fuel tank (L) 540
Hydraulic oil tank (L) 380
Engine oil replacement amount (L) 2×4.0
Coolant (L )35
Main dimensions
Total length for transport (mm) 10667
Total width for transport (mm) 3190
Total height for transport (mm) 3470
Total height of cab (mm) 3280
Onboard width (mm) 3175
Track ground length (mm) 4134
Total length of track (mm) 5040
Track shoe width (mm) 600
Track gauge (mm) 2590
Minimum ground clearance (mm) 550
Minimum turning radius of front working device (mm) 4000
Maximum height at minimum turning radius (mm) 8405
Rear end turning radius (mm )3315
Number of sprocket wheels (single side) (pcs)2
Number of track shoes (single side) (pcs)49
Number of supporting wheels (single side) (pcs)9
Operating range
Maximum digging radius (mm)10870
Maximum digging depth (mm)6815
Maximum digging height (mm)10497
Maximum unloading height (mm)7359
Maximum vertical digging depth (mm)6170
