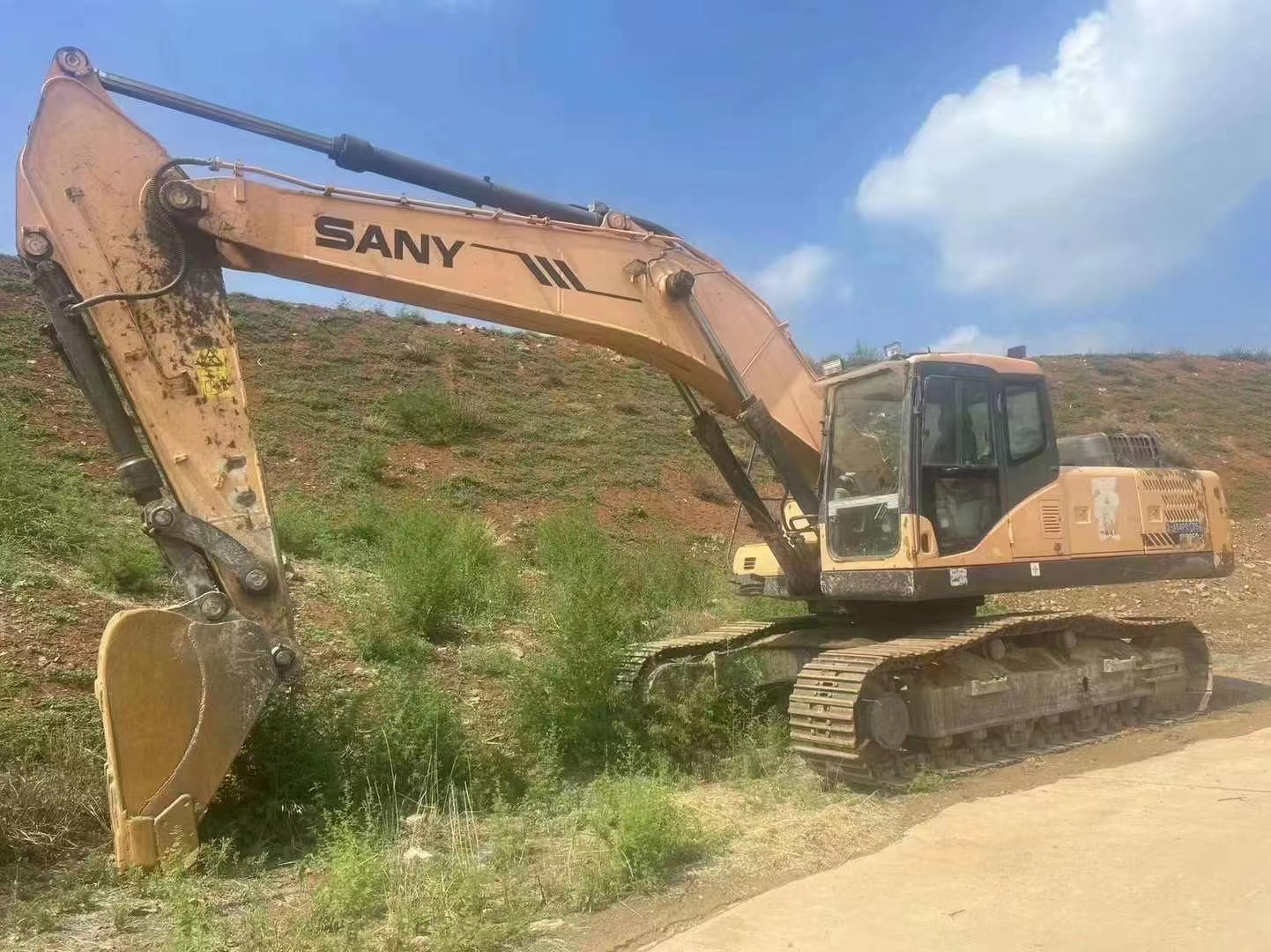

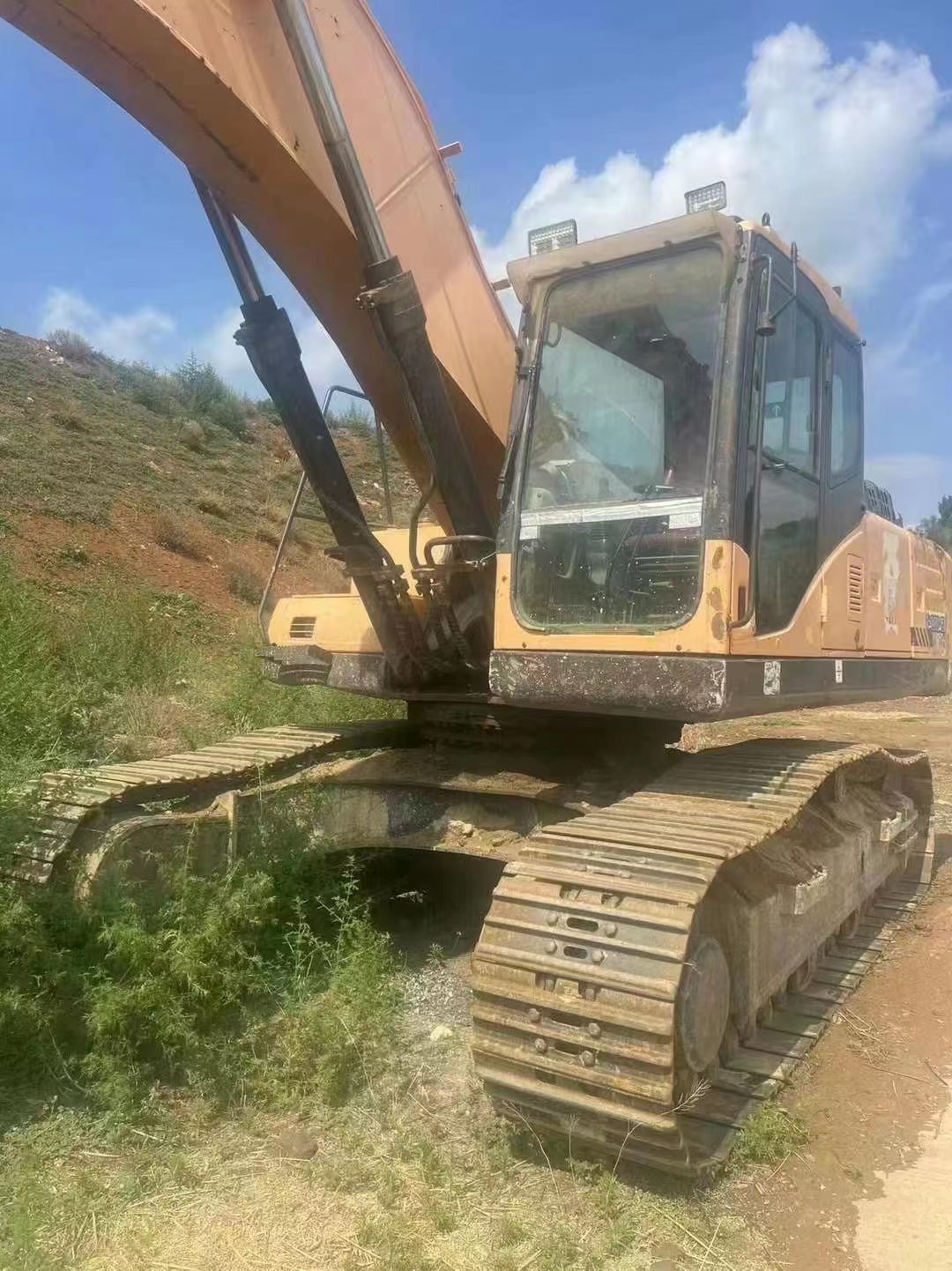

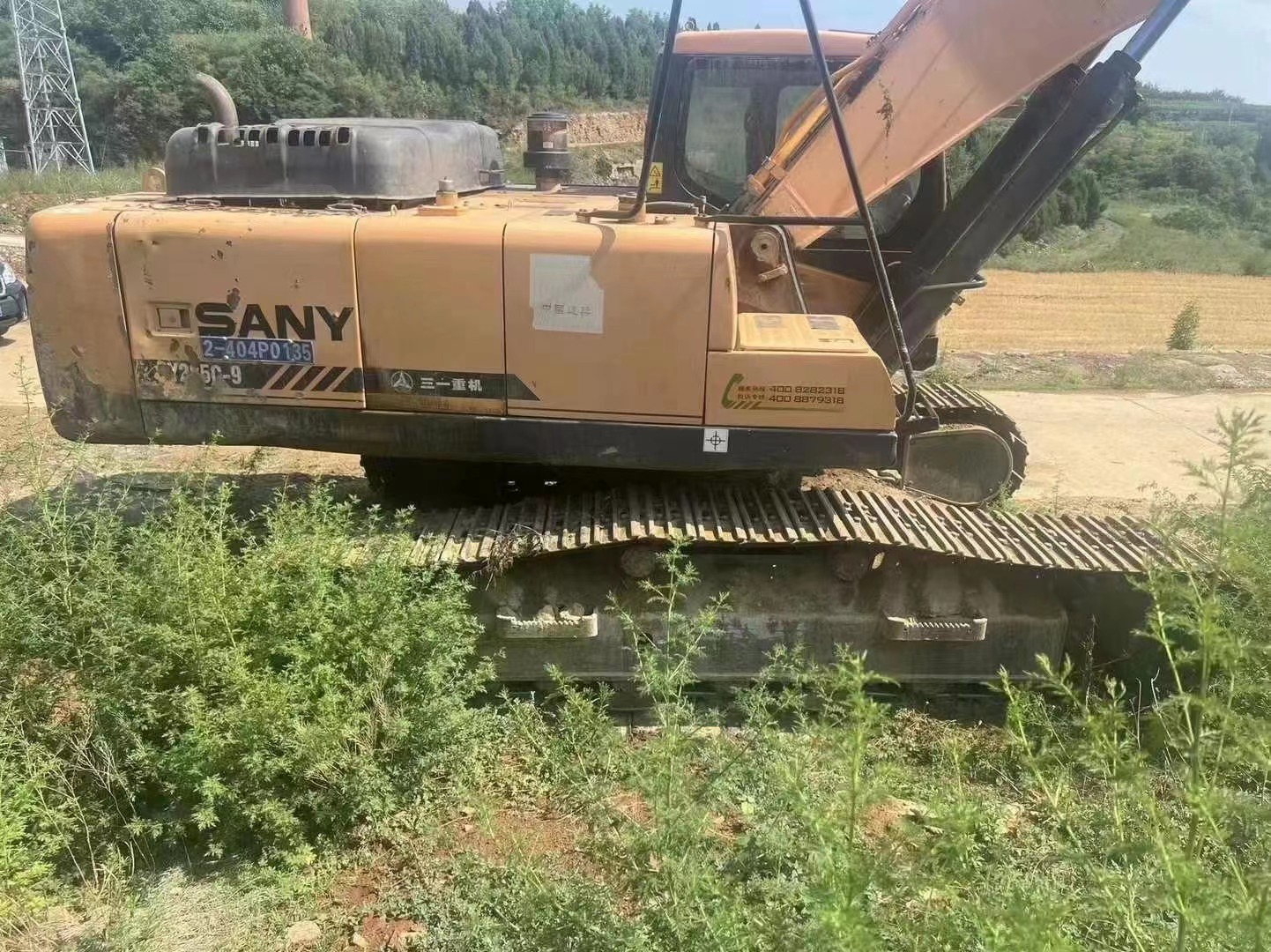

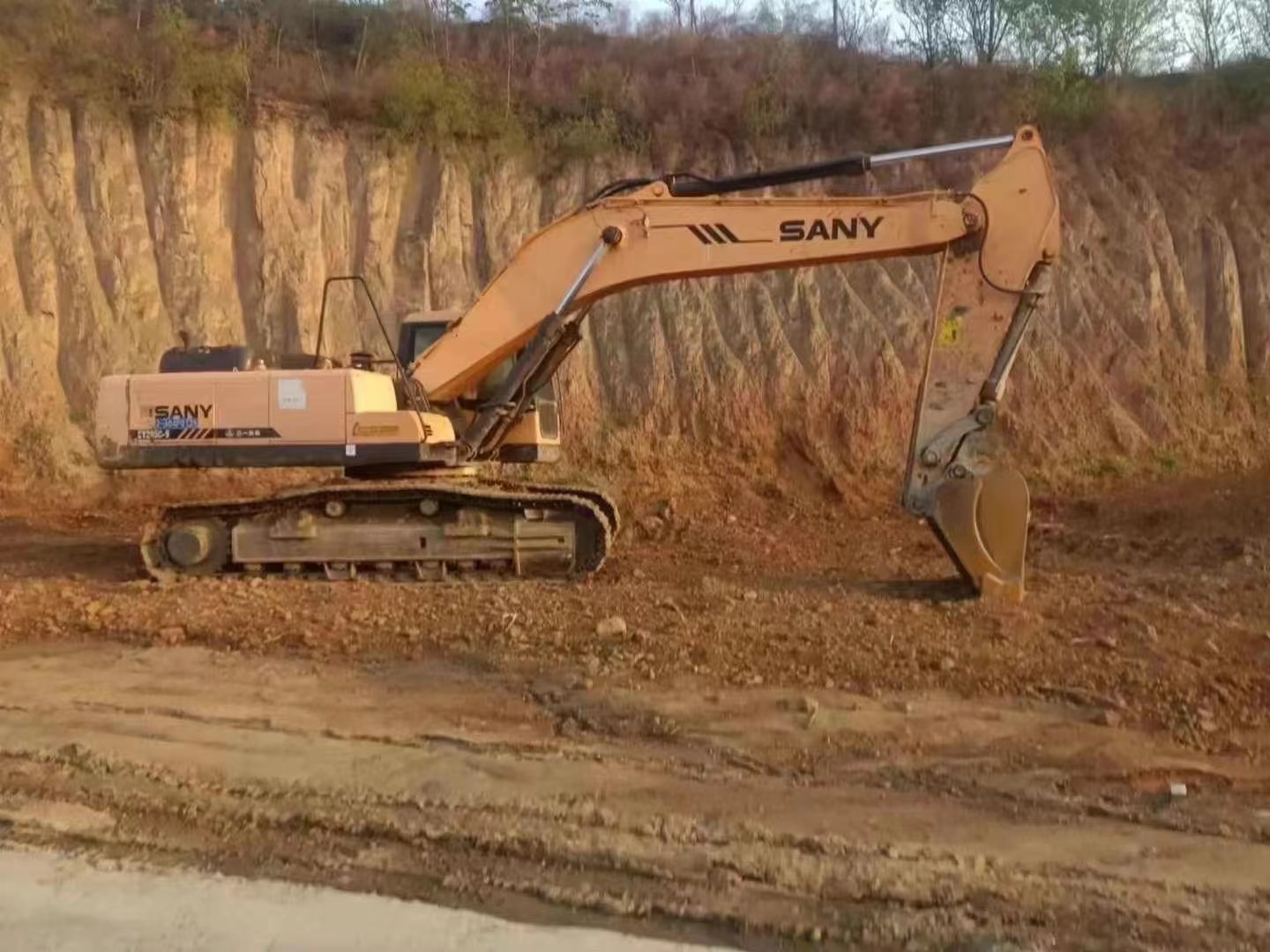

SANY285

Bucket backhoe
Machine operating weight (kg) 29120
Bucket capacity (m³) 1.35
Tonnage (tons) 28
Performance
Slewing speed (rpm) 9.5
Travel speed (km/h) 5.1/3.2
Gradability (%) 70% (35°)
Ground pressure (Kpa) 58
Bucket digging force (kN) 185
Arm digging force (kN) 143
Power system
Engine model GH-6HK1XKSC -01
Rated power (kw/rpm) 212/2000
Maximum torque (N.m) 1080/1500
Displacement (L) 7.79
Oil capacity
Fuel tank (L) 540
Hydraulic tank (L) 380
Engine oil change (L) 35
Main body dimensions
Total track length (mm) 600
Number of sprocket wheels (single side) (pcs) 2
Number of track shoes (single side) (pcs) 45
Number of supporting wheels (single side) (pcs) 7
