Tonnage (tons) 26
Machine operating weight (kg) 26500
Bucket capacity (m³) 1.3
Performance
Slewing speed (rpm) 10.6
Travel speed (km/h) 5.8/3.7
Gradability (%) 70% (35°)
Ground pressure (Kpa) 52.5
Bucket digging force (kN) 175
Arm digging force (kN) 120
Power system

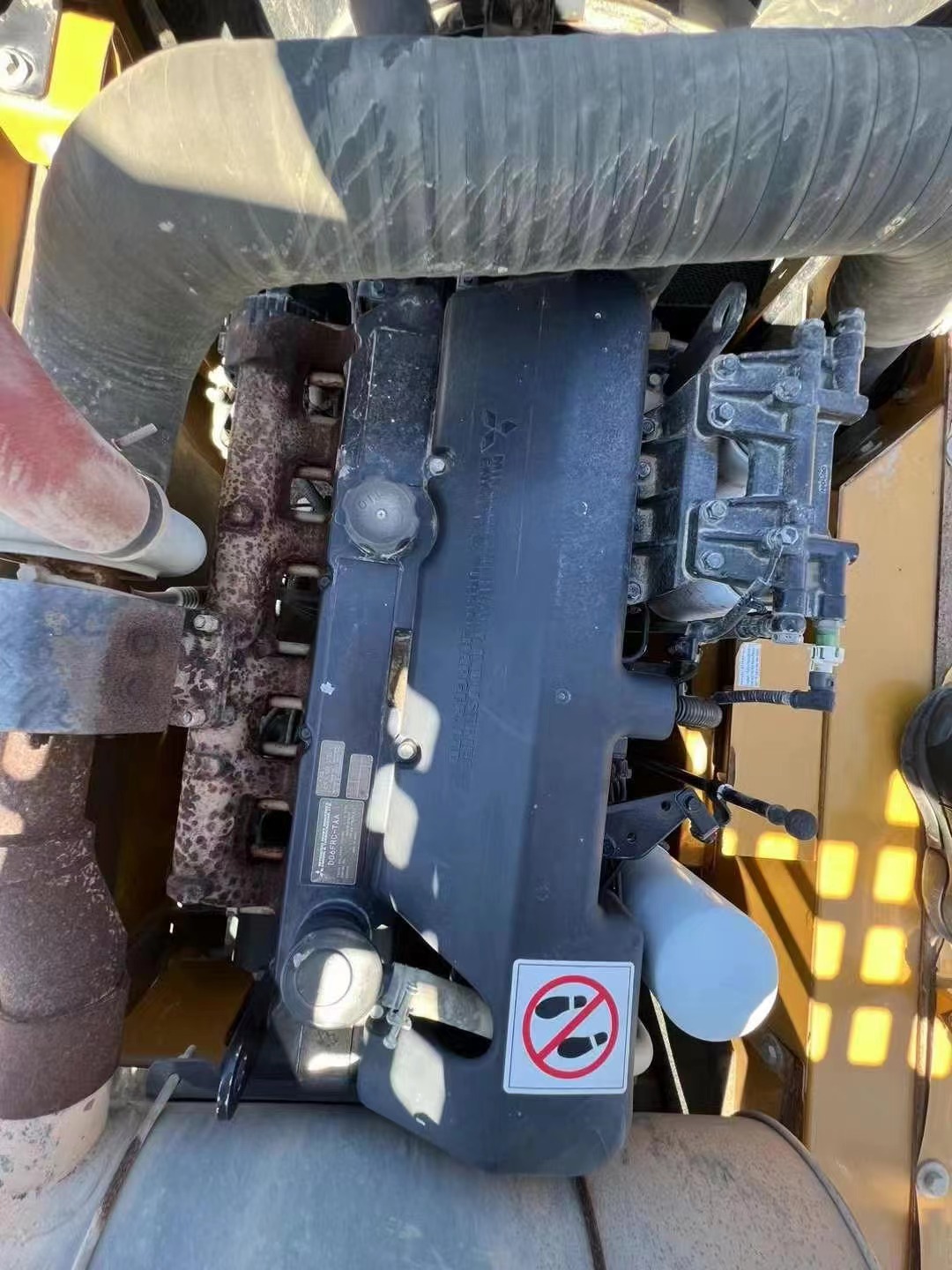

Engine model Mitsubishi D06FRC
Rated power (kw/rpm) 147/2100
Maximum torque (N.m) 750/1 350
Displacement (L) 6.373
Number of cylinders (pieces) 6
Cooling method Water cooling
Oil capacity
Fuel tank (L) 475
Hydraulic oil tank (L) 277
Engine oil change volume (L) 29
Main body dimensions
Total length for transportation (mm) 10290
Total width for transportation (mm) 3190
Total height for transportation (mm) 3255
Track ground length (mm) 3830
Total length of crawler (mm) 4635
Track shoe width (mm) 600
Track gauge (mm) 2590
Minimum ground clearance (mm) )470
Rear end swing radius (mm) 3105
Number of supporting wheels (single side) (pcs) 9
Number of chain wheels (single side) (pcs) 2
Number of track shoes (single side) (pcs) 51
Operating range
Maximum digging radius (mm) 10225
Maximum digging depth (mm) 6705
Maximum digging height (mm) 9745
Maximum unloading height (mm) 6715
