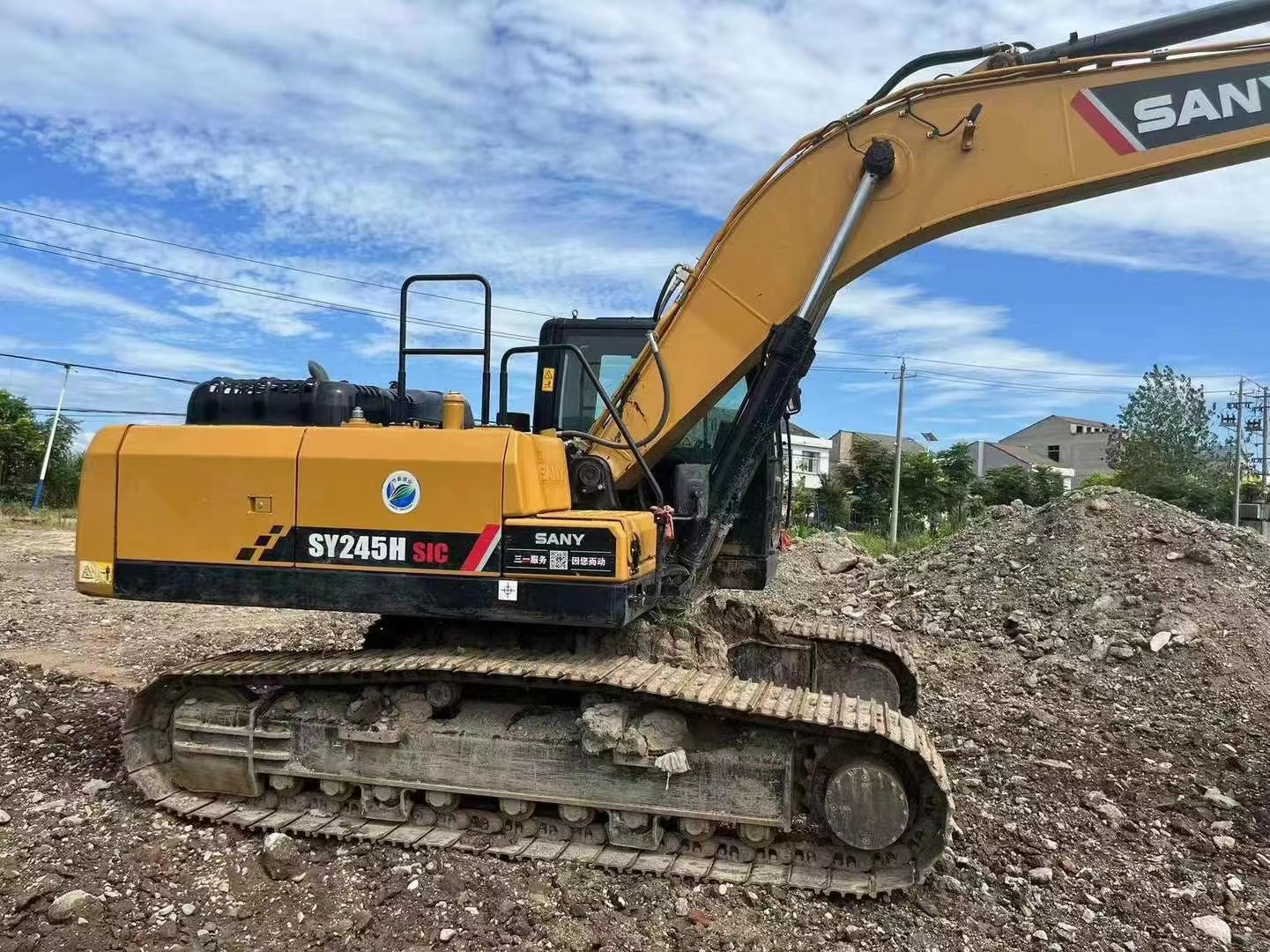

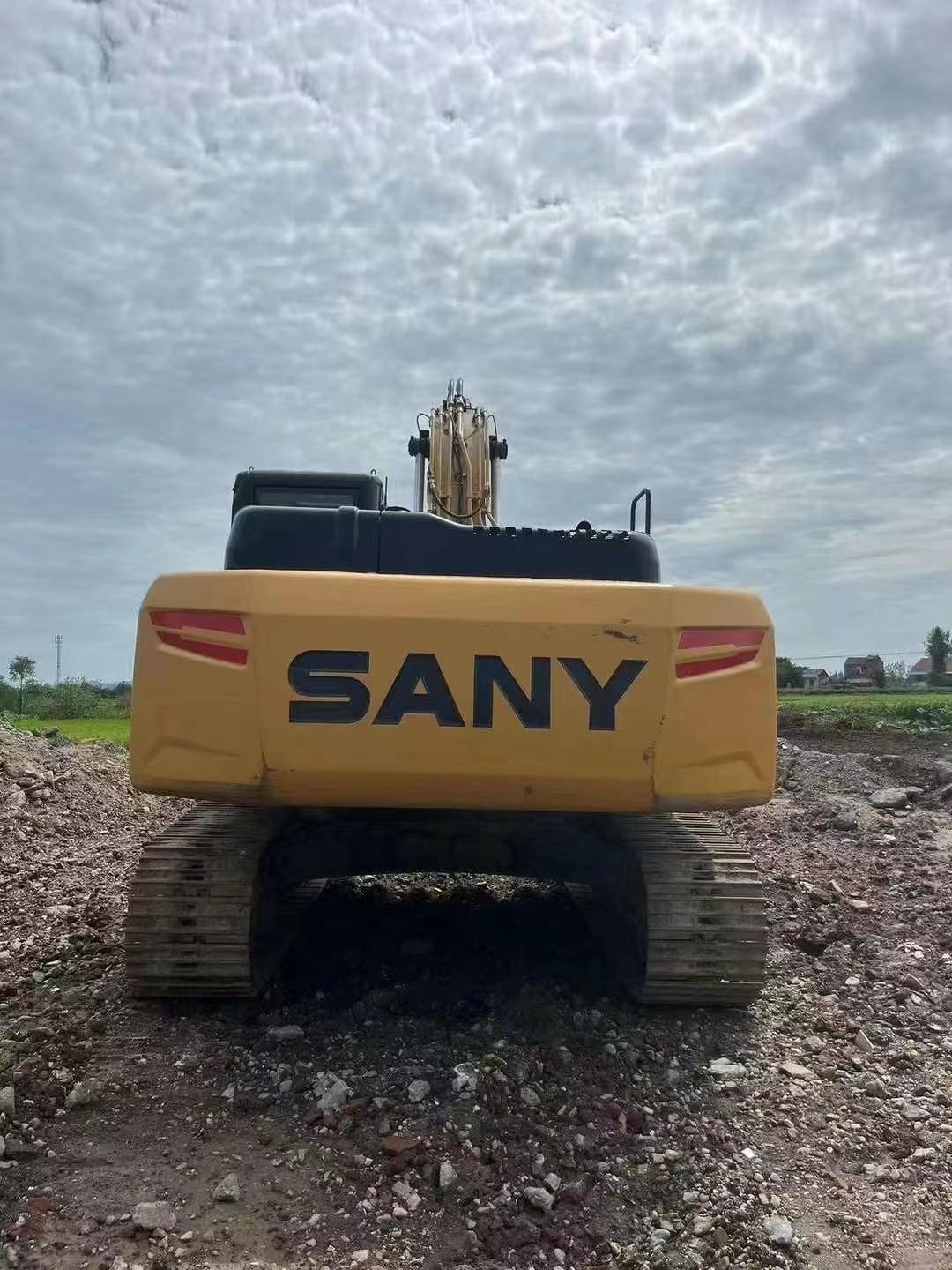

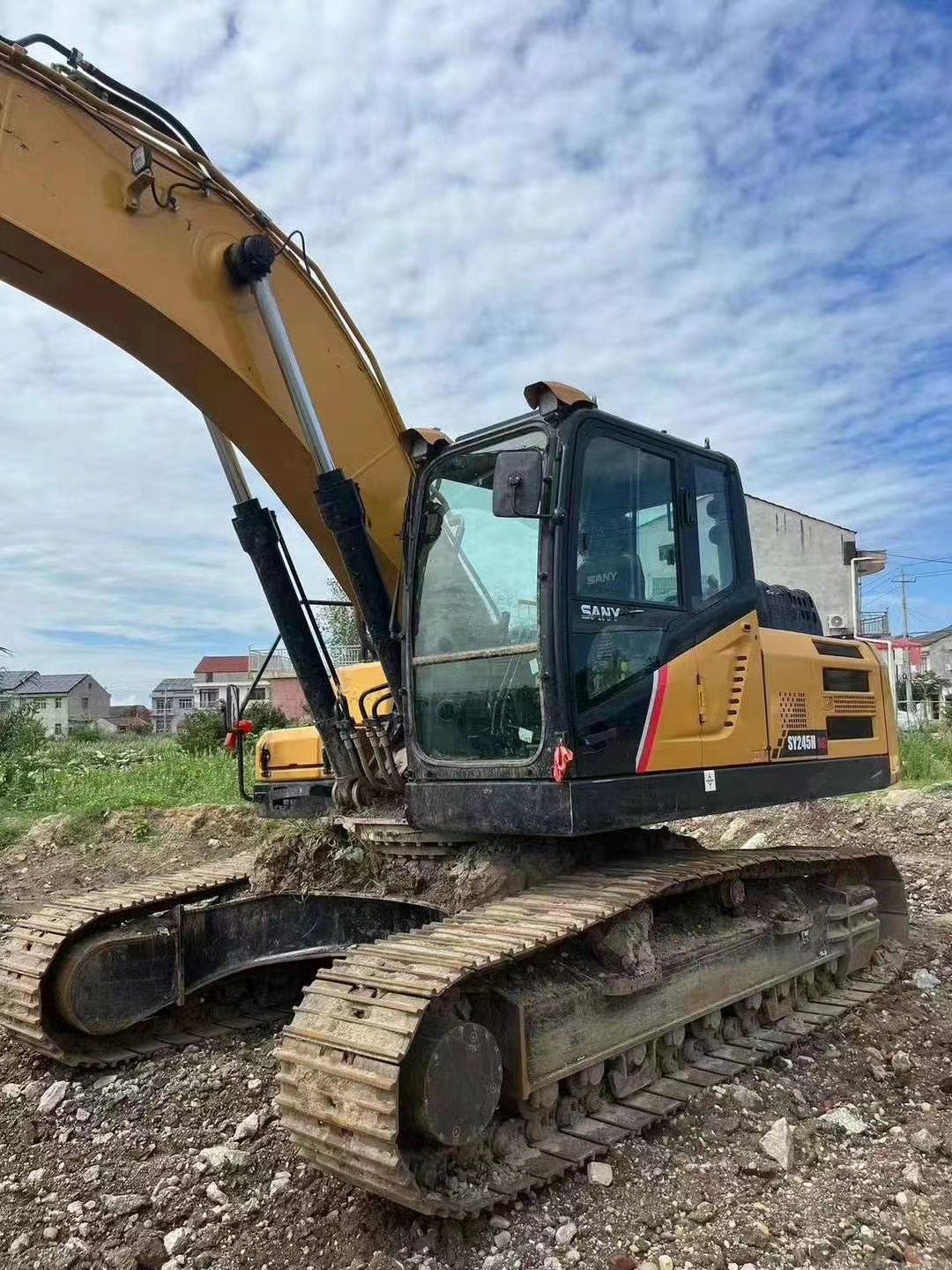

SANY245

Machine weight 25500kg
Bucket capacity 1.4m³
Power 150/2000kW/rpm
Total length (during transportation) 10290mm
Total width 3190mm
Total height (during transportation) 3255mm
Upper width 3045mm
Total height (top of cab) 3255mm
Standard track shoe width 600mm
Track gauge 2590mm
Minimum ground clearance 470mm
Tail turning radius 3105mm
Track ground length 3640mm
Track length 4445mm
Machine weight 25500kg
Bucket capacity 1.4m³
Rated power 150/2000kW/rpm
Travel speed (high/low) 5.8/3.7km/h
Slewing speed 10rpm
Gradability 70% (35°)
Ground pressure 52.5kPa
Bucket digging force 175 (187) kN
Arm digging force 120 (129) kN
Maximum digging height 9745mm
Maximum unloading height 6715mm
Maximum digging depth 6705mm
Maximum digging radius 10225mm
Maximum vertical arm digging depth 5675mm
Maximum height at minimum swing radius 8016mm
Minimum swing radius 3800mm
