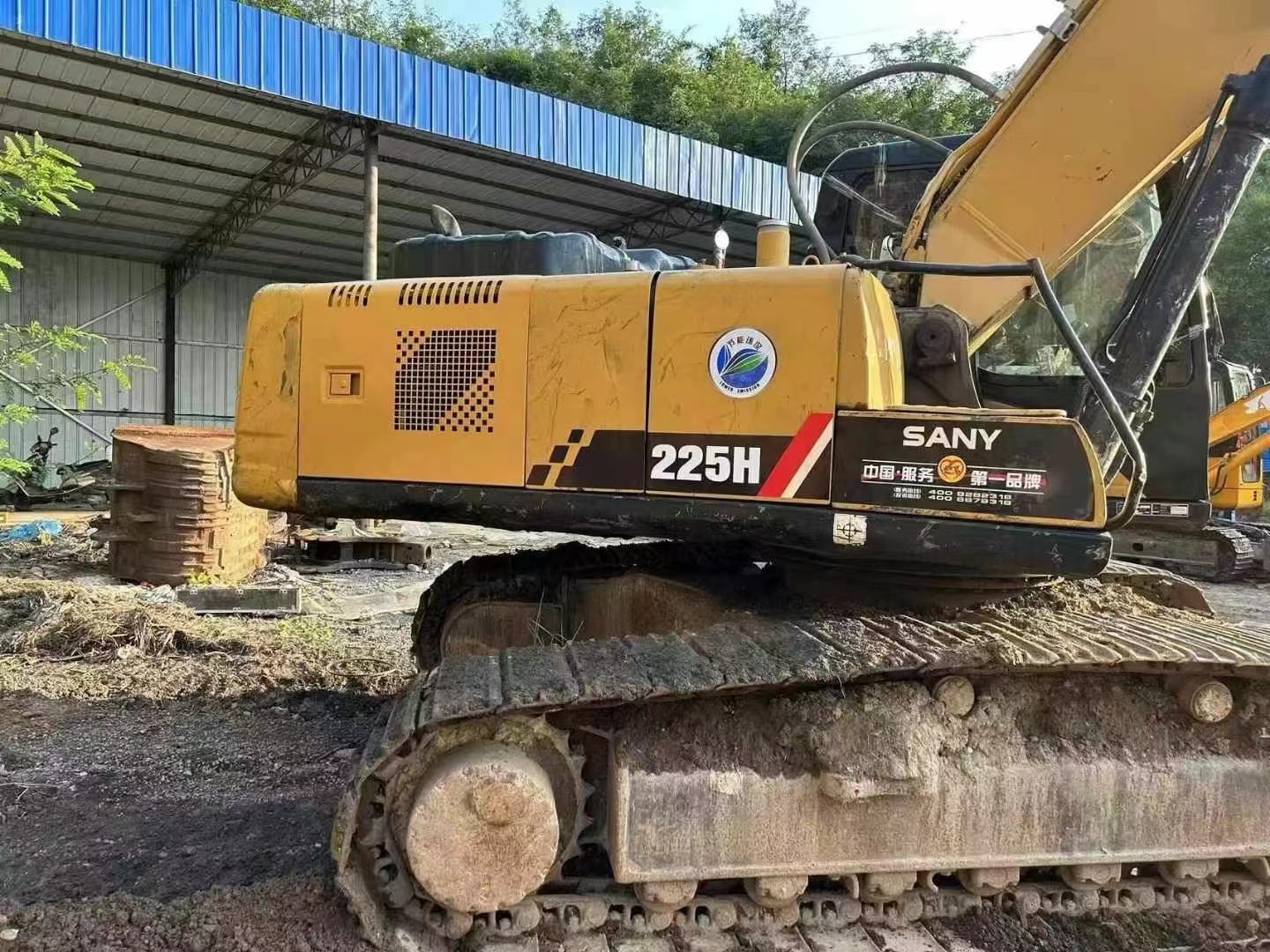

SANY225

Tonnage (tons) 23
Machine operating weight (kg) 22300
Bucket capacity (m³) 1.1~1.2 (1.2)
Performance
Slewing speed (rpm) 11
Travel speed (km/h) 5.4/3.3
Gradability (%) 70% (35°)
Ground pressure (Kpa) 47.4
Bucket digging force (kN) 138
Arm digging force (kN) 103
Power system

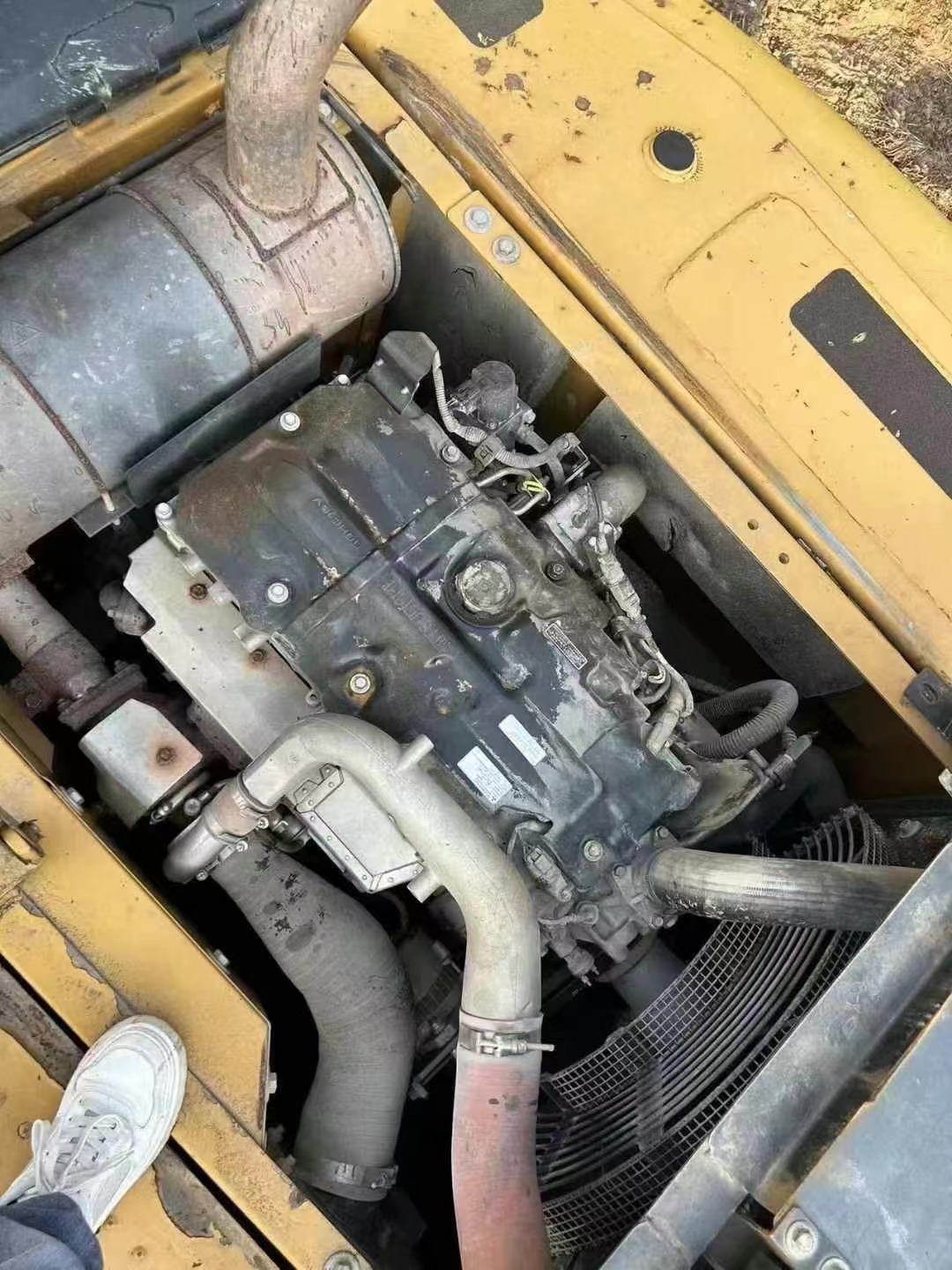

Engine model 4M50
Rated power (kw/rpm) 118/2000
Maximum torque (N.m) 580/1600
Displacement (L) 4.9
Oil capacity
Fuel tank (L) 340
Hydraulic oil tank (L) 239
Engine oil change amount (L) 2
Coolant (L )30.9
Main dimensions
Total length for transport (mm) 9680
Total width for transport (mm) 2980
Total height for transport (mm) 3440
Total height of cab (mm) 3075
Onboard width (mm) 2875
Track ground length (mm) 3640
Total length of track (mm) 4445
Track shoe width (mm) 600
Track gauge (mm) 2380
Counterweight ground clearance (mm) 440
Minimum turning radius of front working device (mm) 3730
Maximum height at minimum turning radius (mm) 7680
Rear end turning radius (mm )2900
Number of supporting wheels (single side) (pcs)8
Number of chain rollers (single side) (pcs)2
Number of track shoes (single side) (pcs)47
Operating range
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum digging height (mm)9600
Maximum unloading height (mm)6730
