SANY215-9

Machine working weight (kg) 21800
Bucket capacity (m³) 0.93 (0.8~1.2)
Tonnage (tons) 21
Manufacturer domestic
Power Traditional power
Bucket backhoe
Manufacturer domestic
Power Traditional power
Performance
Slewing speed (rpm) 11
Traveling speed (km/h) 5.4/3.3
Gradability (%) 70/35°
Ground pressure (Kpa) 46.5
Bucket digging force (kN) 138
Arm digging force (kN) 103
Power system
Rated power (kw/rpm) 114/2050
Cooling method Water cooling
Hydraulic system
Main overflow set pressure (Mpa) 34.3

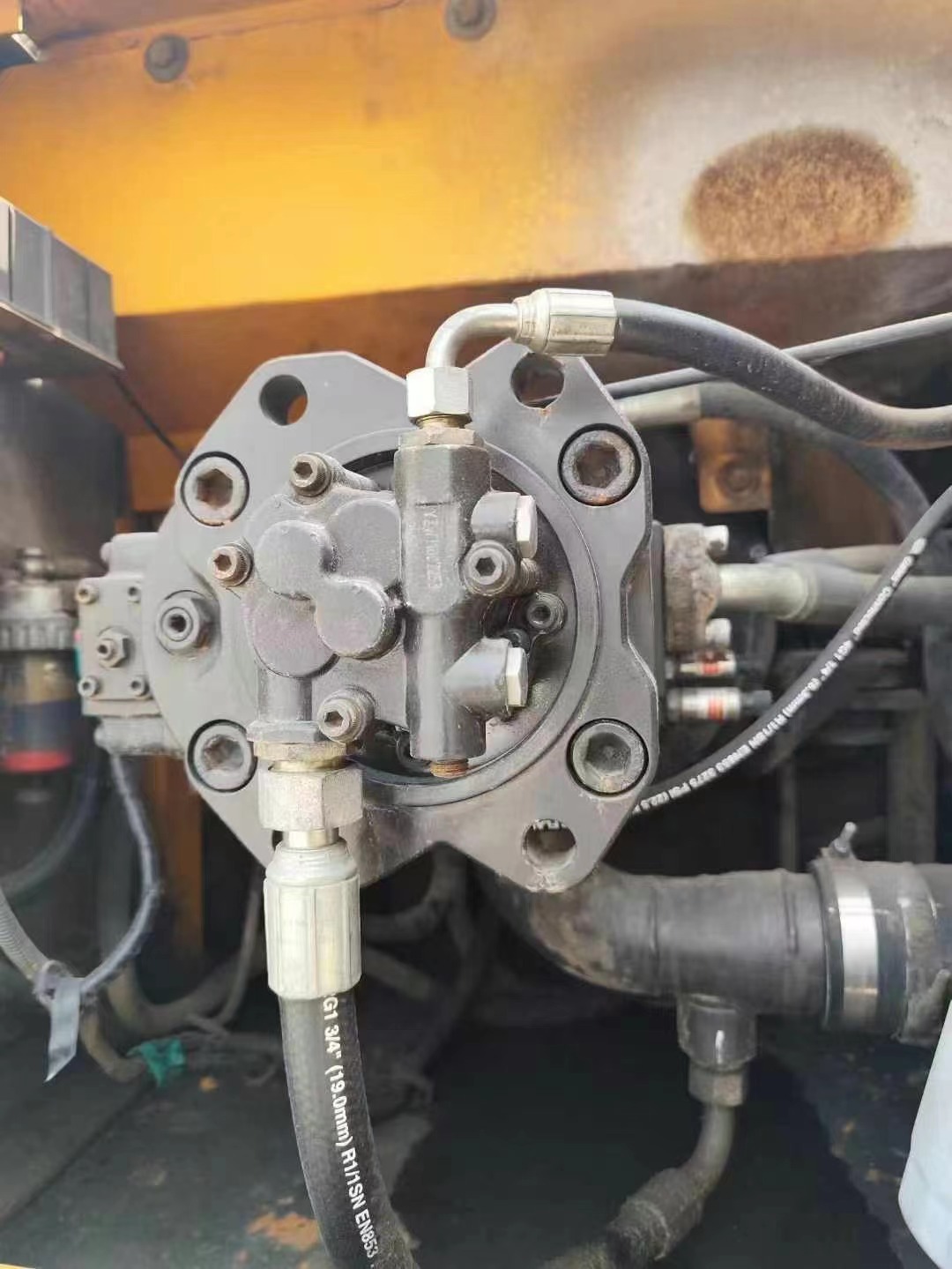

Main pump maximum flow (l/min) 2×210
Traveling hydraulic circuit (Mpa) 34.3

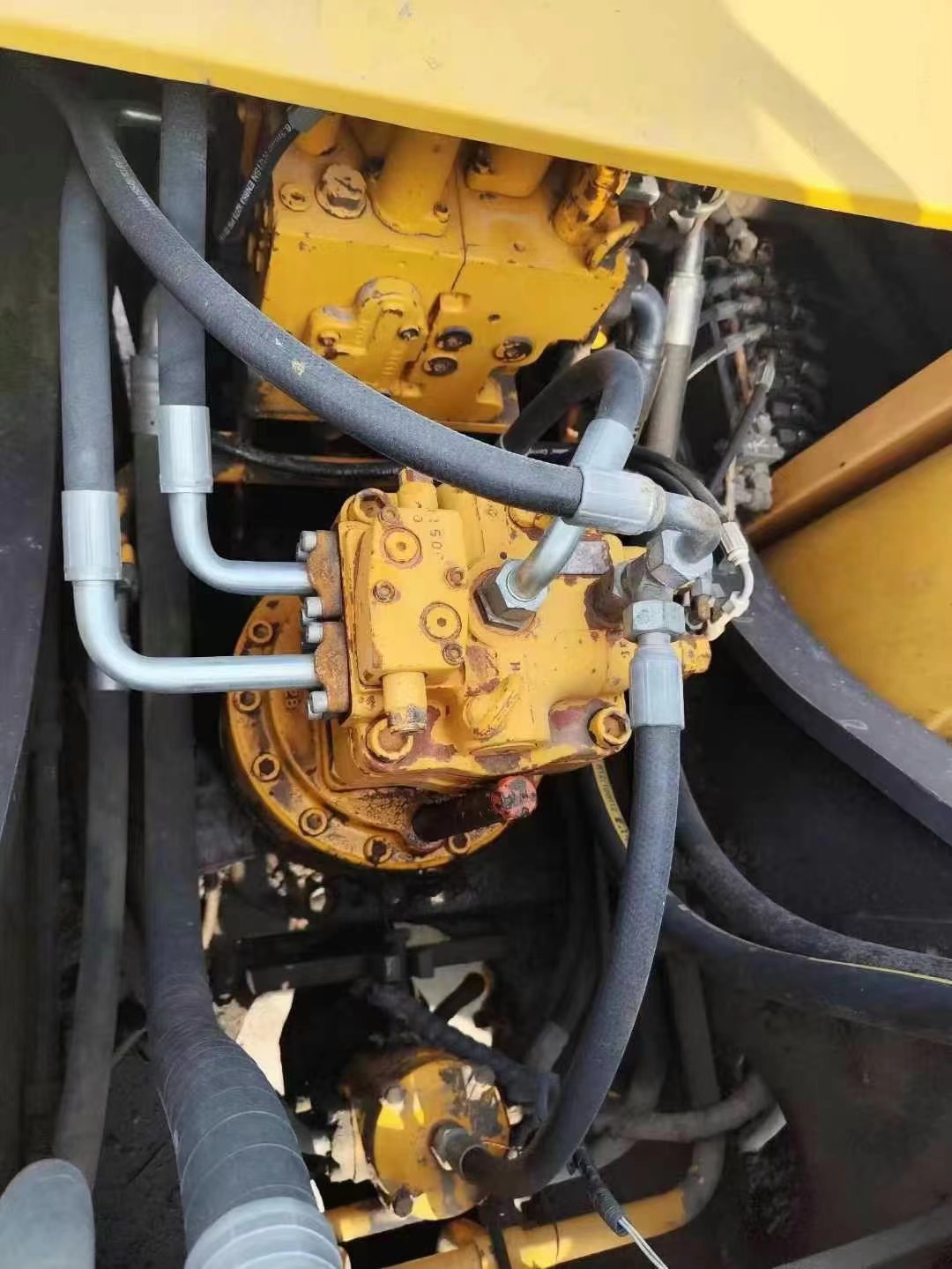

Slewing hydraulic circuit (Mpa) 25.5
Control hydraulic circuit (Mpa )3.9
Is the hydraulic crushing pipeline standard?
Main body dimensions
Total length for transportation (mm) 9680
Total width for transportation (mm) 2980
Total height for transportation (mm) 3440
Total height of cab (mm) 2990
Onboard width (mm) 2710

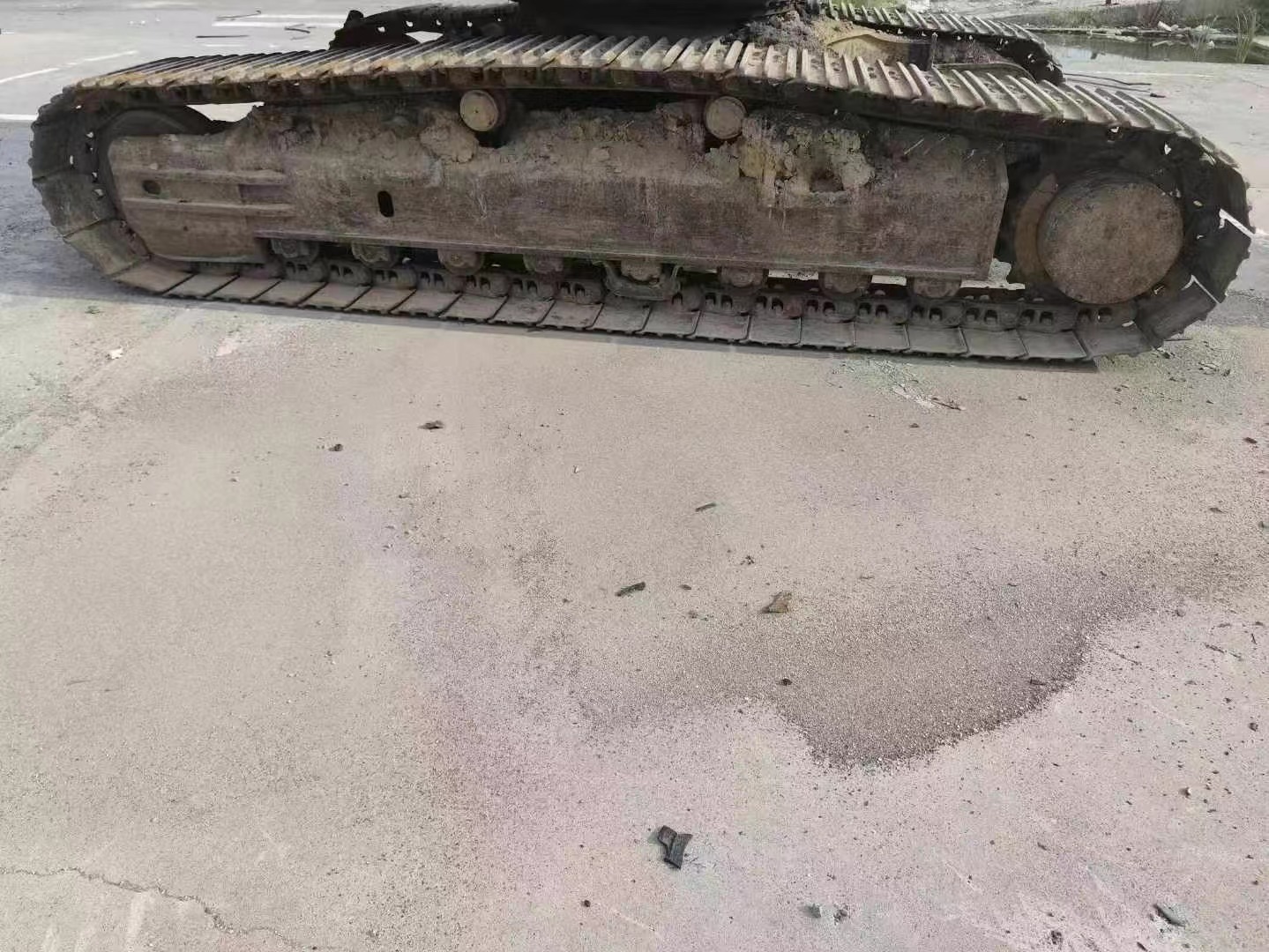

Track ground length (mm) 3445
Total length of crawler (mm) 4250
Track shoe width (mm) 600 (optional 800/700)
Total width of crawler (mm) 2980
Track gauge (mm) 2380
Minimum ground clearance (mm) 440
Minimum turning radius of front working device (mm) 3595
Rear end turning radius (mm )2890
Operating range
Maximum digging radius (mm) 9950
Maximum digging radius of parking surface (mm) 9885
Maximum digging depth (mm) 6600
Maximum digging height (mm) 9570
Maximum unloading height (mm) 6700
Maximum vertical digging depth (mm) 5800
