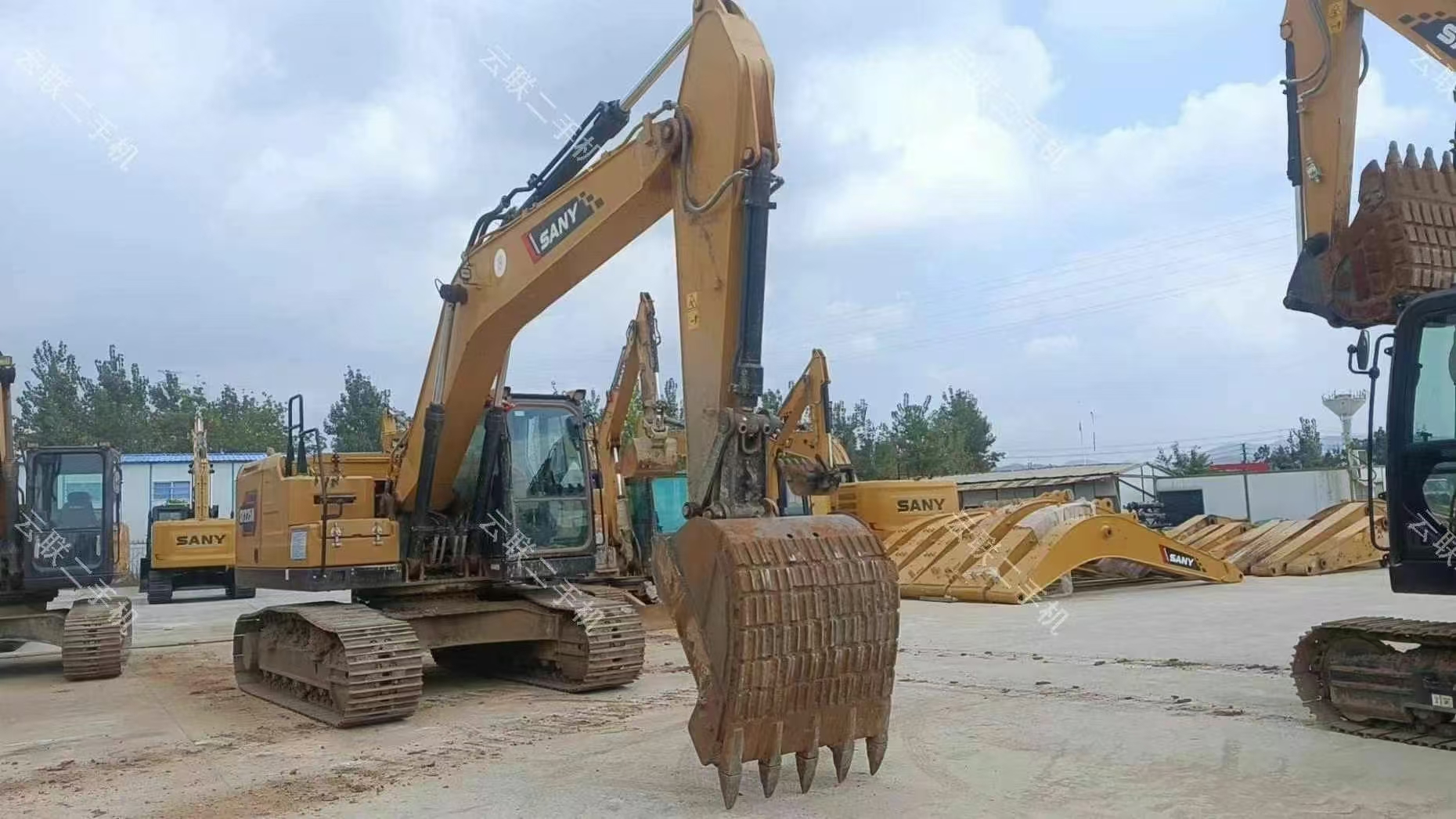

SANY200

Machine weight 21500kg
Bucket capacity 1.0m³
Power 118/2000kW/rpm
Machine dimensions
Total length (when transporting) 9680mm
Total width 2800mm
Total height (when transporting) 3440mm
Standard track shoe width 600mm
Wheel width 3360mm
Track gauge 2200mm
Minimum ground clearance 470mm
Tail turning radius 2870mm
Track length 4160mm
Performance parameters
Machine weight 21500kg
Bucket capacity 1.0m³
Rated power 118 /2000kW/rpm
Travel speed (high/low) 5.4/3.4km/h
Slewing speed 11.6rpm
Gradability 70% (35°)
Ground pressure 47.4kPa
Bucket digging force 128kN
Arm digging force 102kN
Operating range
Maximum digging height 9600mm
Maximum unloading height 6730mm
Maximum digging depth 6600mm
Maximum digging radius 10280mm
Maximum height at minimum slewing radius 7680mm
Minimum slewing radius 3730mm
