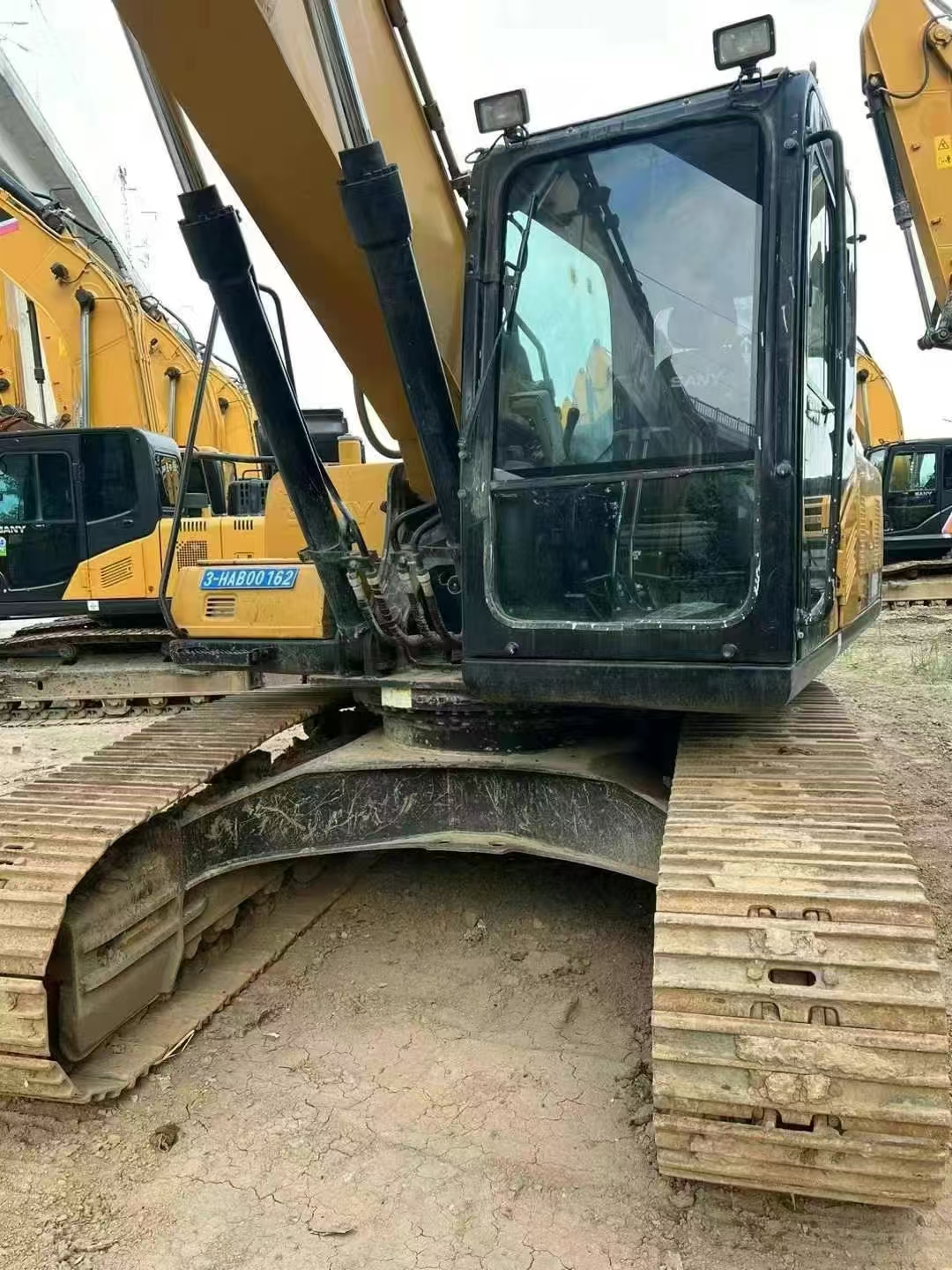

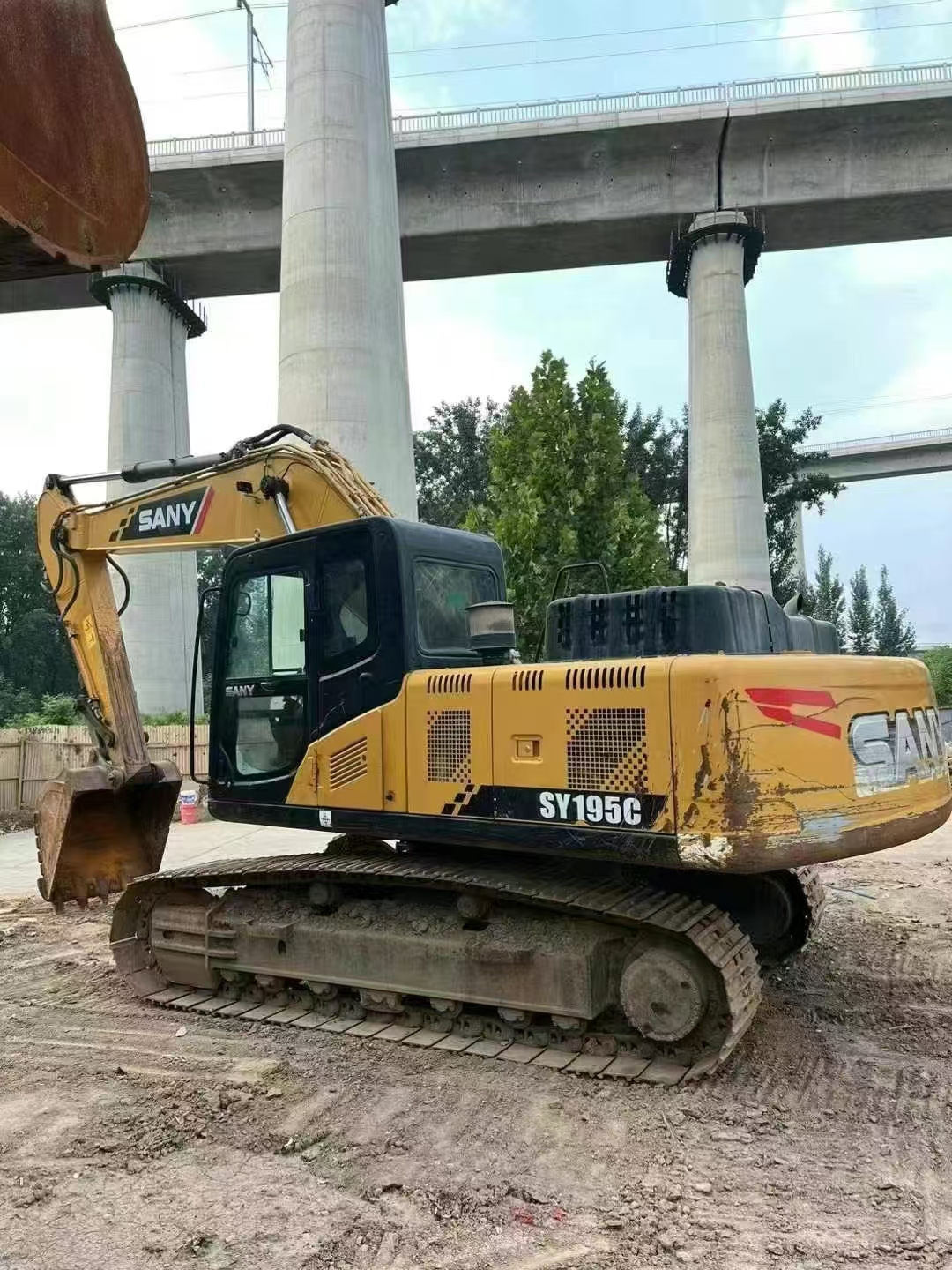

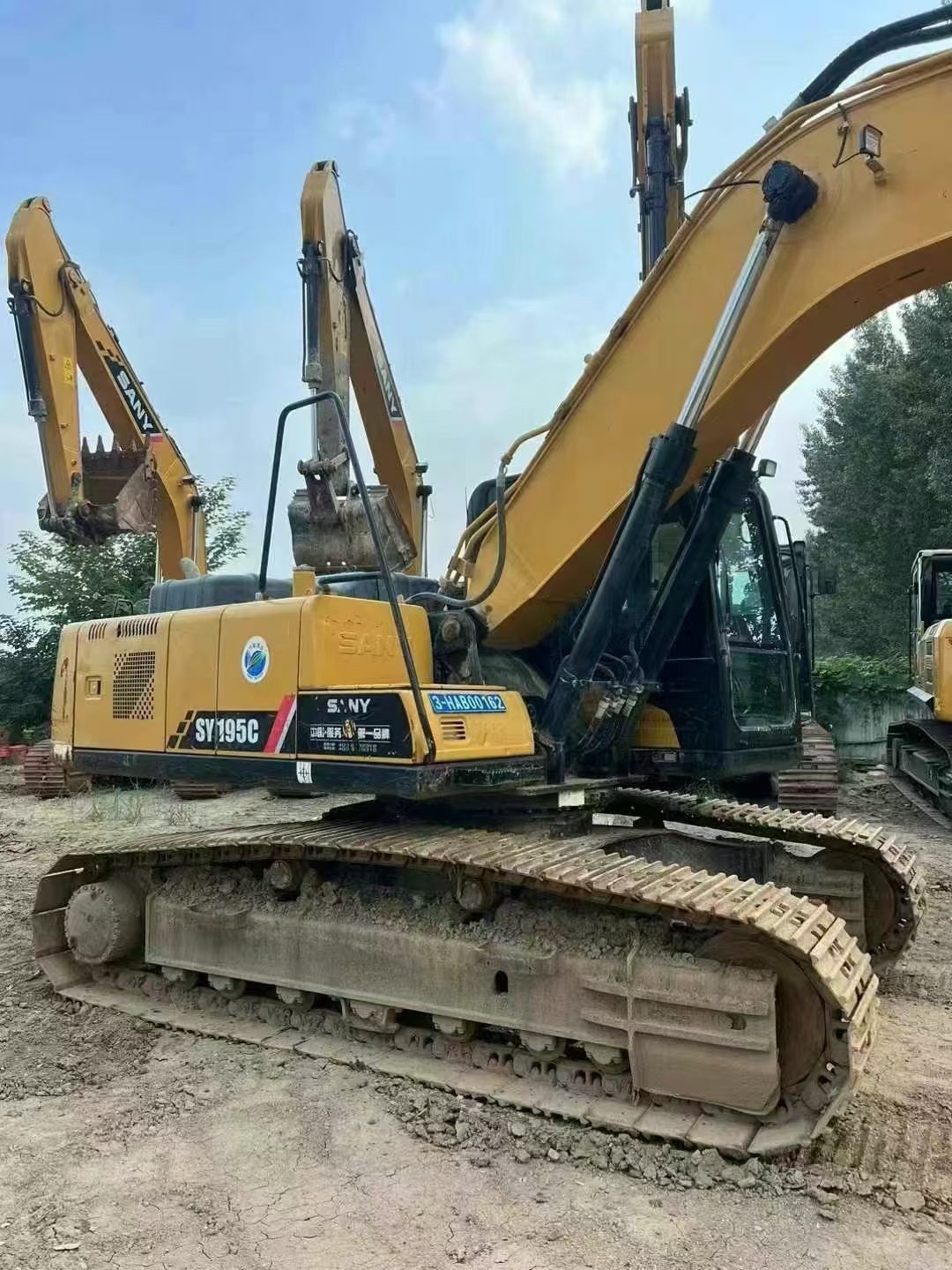

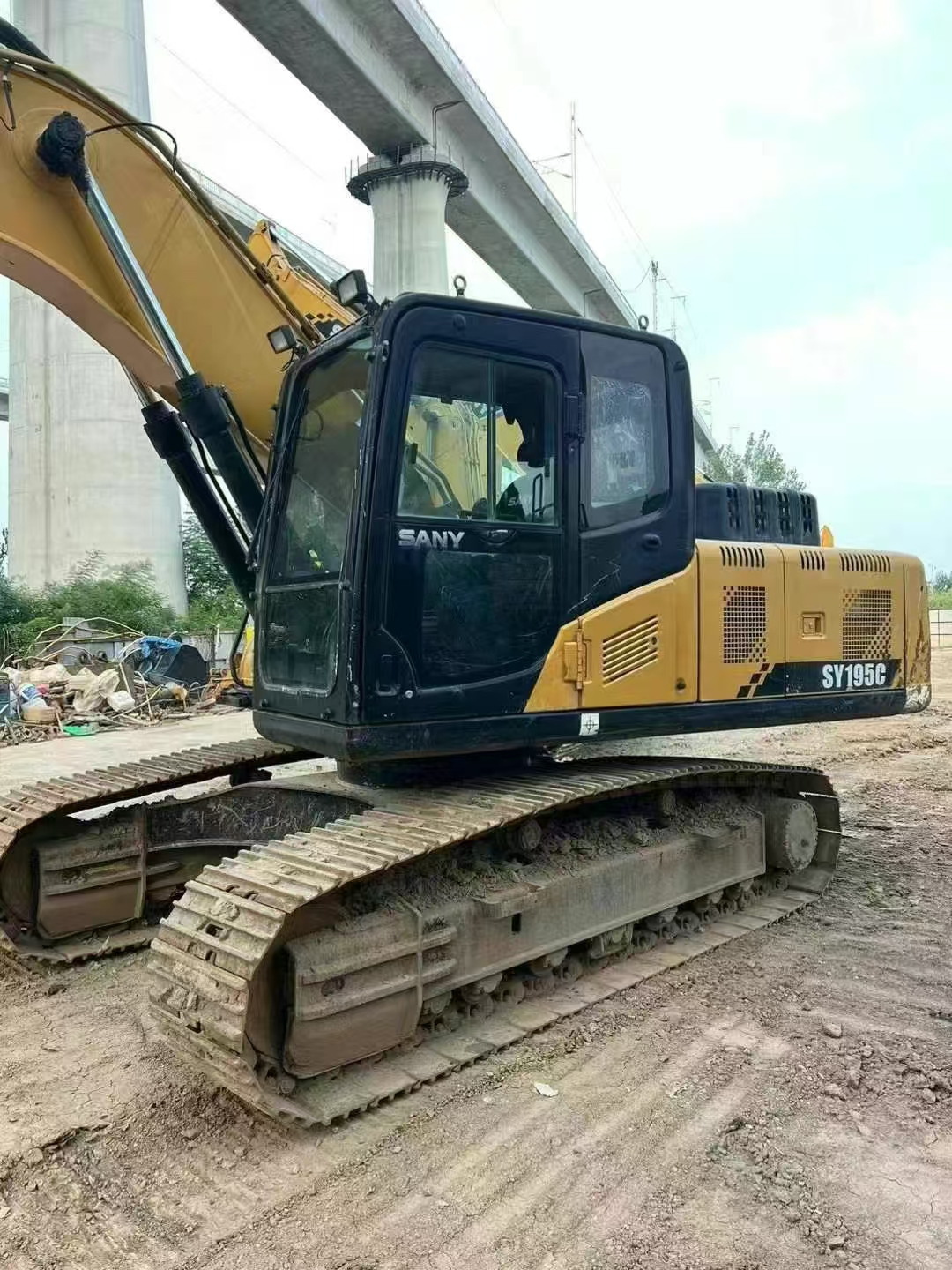

SANY195

Tonnage (tons) 19
Machine operating weight (kg) 20900
Bucket capacity (m³) 0.8~1.1 (0.95)
Performance
Slewing speed (rpm) 11
Travel speed (km/h) 5.4/3.3
Gradability (%) 70% (35°)
Ground pressure (Kpa) 47.3
Bucket digging force (kN) 138
Arm digging force (kN) 103
Power system
Engine model 4M50
Rated power (kw/rpm) 118/2000
Maximum torque (N.m) 580/160 0
Displacement (L) 4.9
Oil capacity
Fuel tank (L) 340
Hydraulic oil tank (L) 239
Engine oil change volume (L) 22
Main body dimensions
Total length for transportation (mm) 9680
Total width for transportation (mm) 2800
Total height for transportation (mm) 3440
Total height of cab (mm) 3075
Onboard width (mm) 2875
Track ground length (mm) 3260
Total length of crawler (mm) 4060
Track shoe width (mm) 600
Track gauge (mm) 2200
Minimum ground clearance (mm )440
Minimum turning radius of front working device (mm)3730
Rear end turning radius (mm)2900
Maximum height at minimum turning radius (mm)7680
Number of track shoes (single side) (pcs)45
Number of supporting wheels (single side) (pcs)7
Operating range
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum digging height (mm)9600
Maximum unloading height (mm)9600
Maximum vertical digging depth (mm)6255
