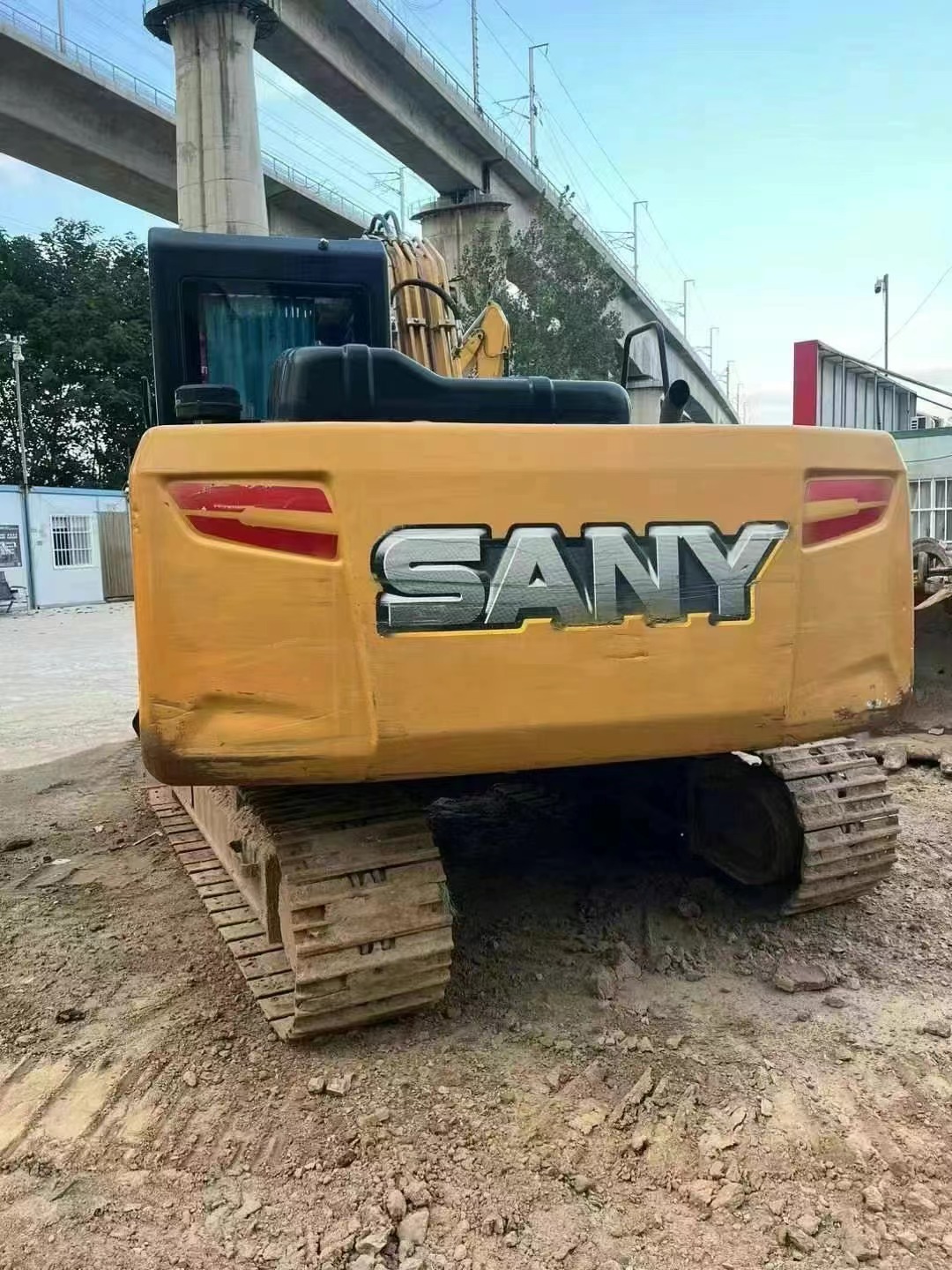

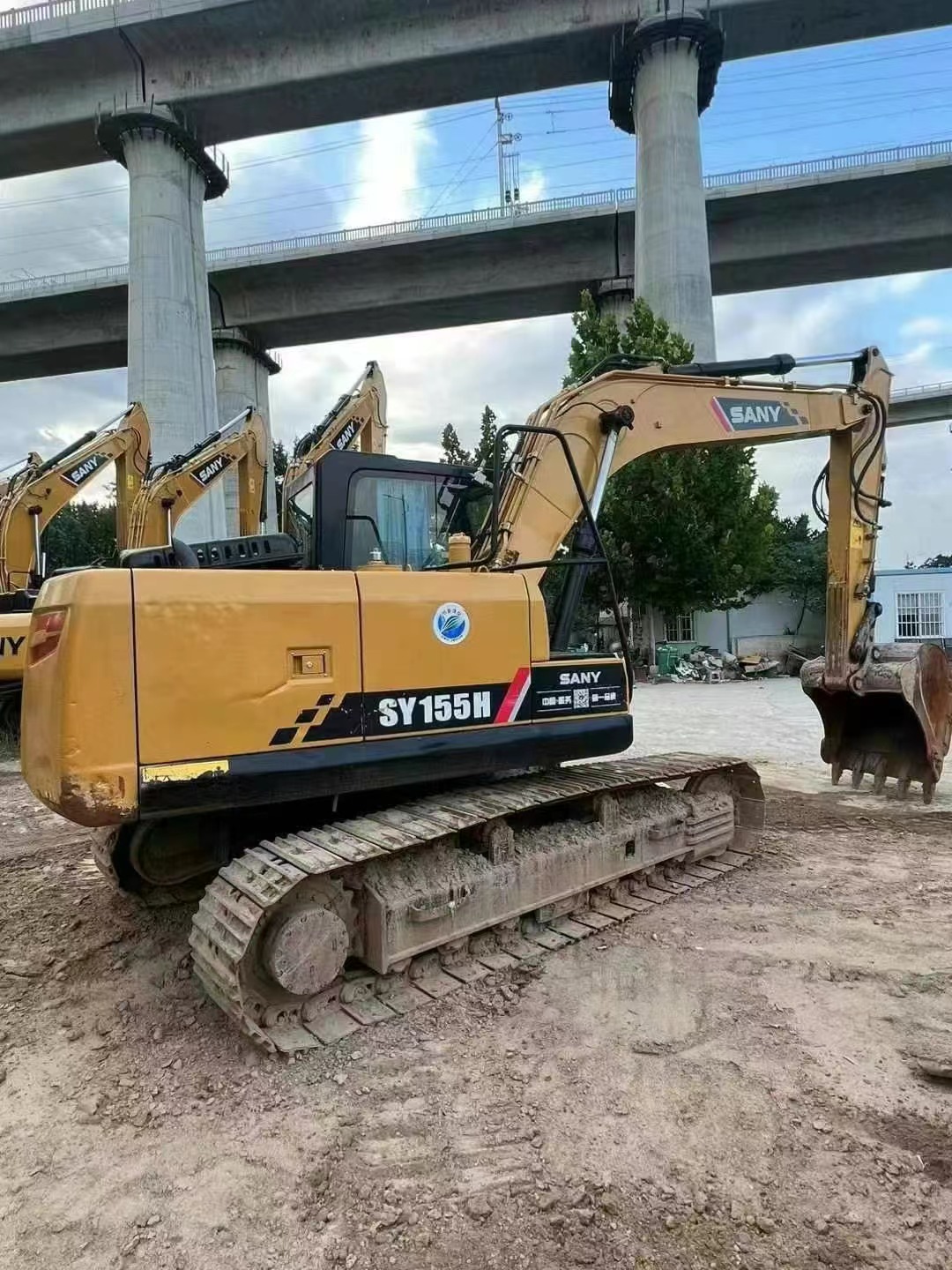

SANY155

Machine weight 14100kg
Bucket capacity 0.65m³

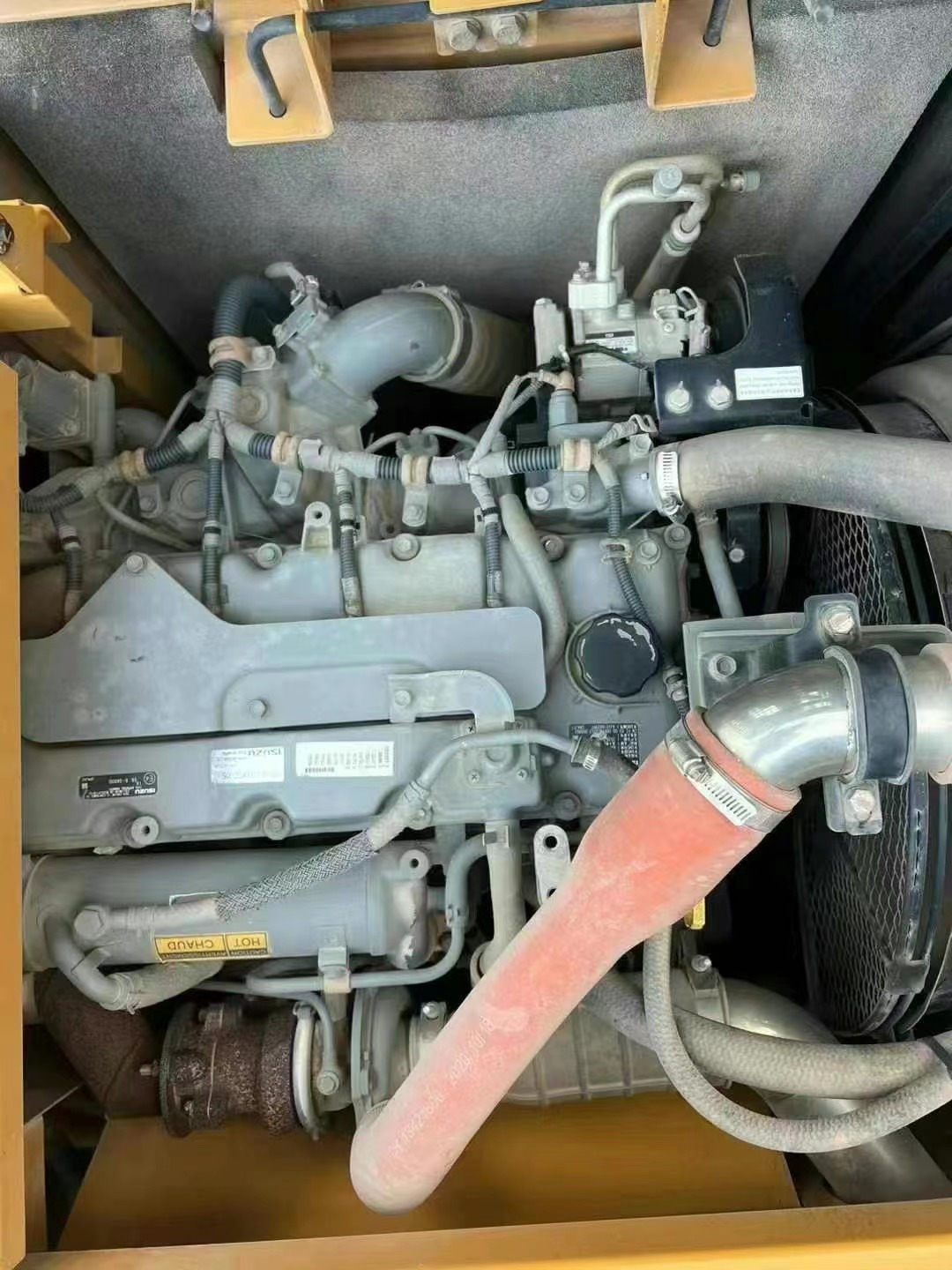

Engine model Isuzu 4JJ1
Rated power 86/2200kW/rpm
Maximum torque 375/1800N·m/rpm
Displacement 2.999L
Gradability 70% (35%)
Slewing speed 12rpm
Ground pressure 43kPa
Bucket digging force 103kN
Arm digging force 67kN
Travel speed 5.5/3.5km/h
Standard track 500mm
Sprocket wheels 2 on each side
Number of track shoes 45
Supporting wheels 7 on each side
Final drive 2×2.6L
Fuel tank 280L
Hydraulic oil tank 200L
Engine oil 15L
Radiator 30L
