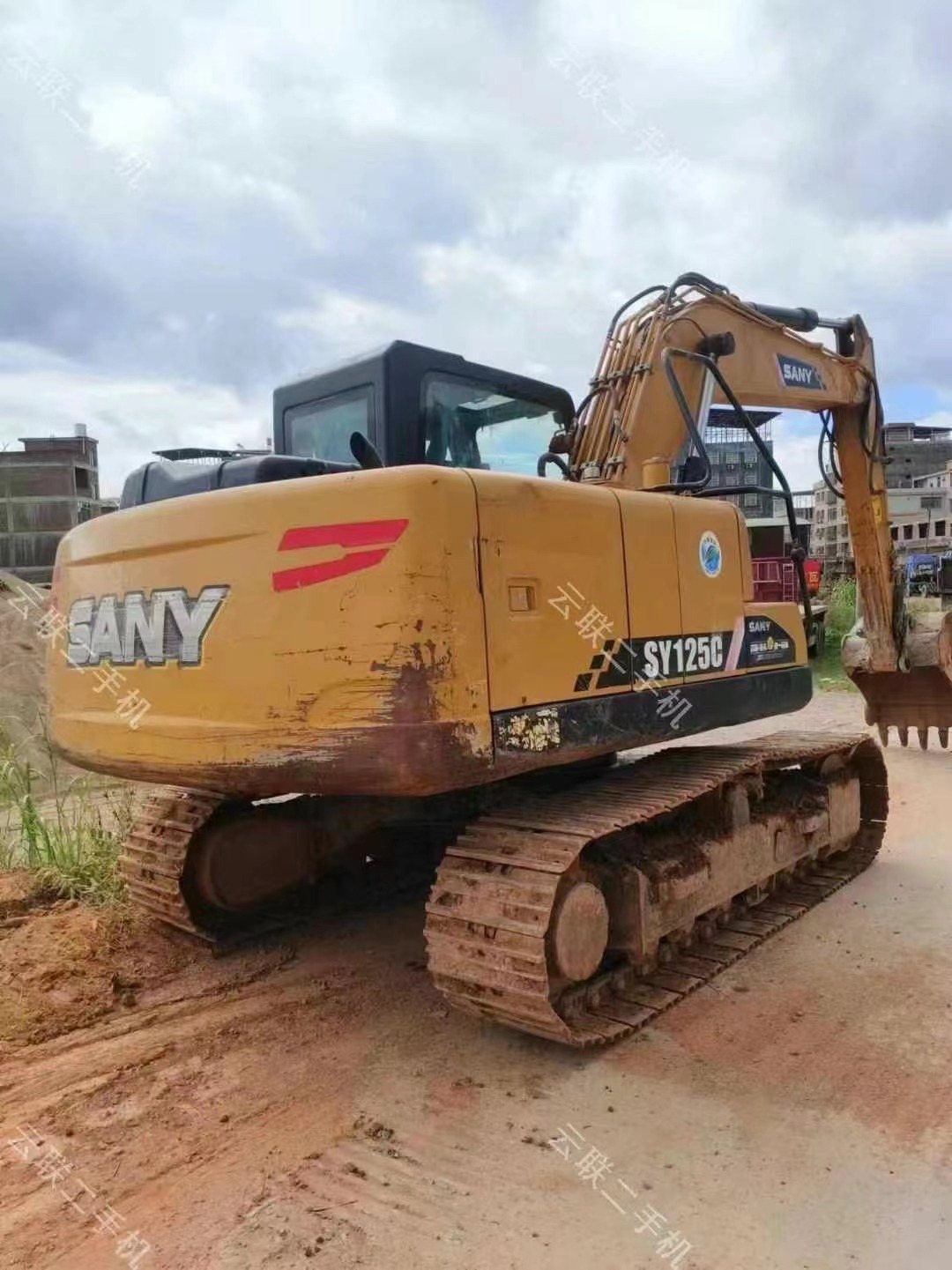

SANY125

Tonnage (tons) 12
Machine operating weight (kg) 12450
Bucket capacity (m³) 0.22-0.7 (0.55)
Performance
Slewing speed (rpm) 13.06
Travel speed (km/h) 5.5/3.5
Gradability (%) 70
Ground pressure (Kpa) 41.6
Bucket digging force (kN) 90.6
Arm digging force (kN) 57.2
Power system

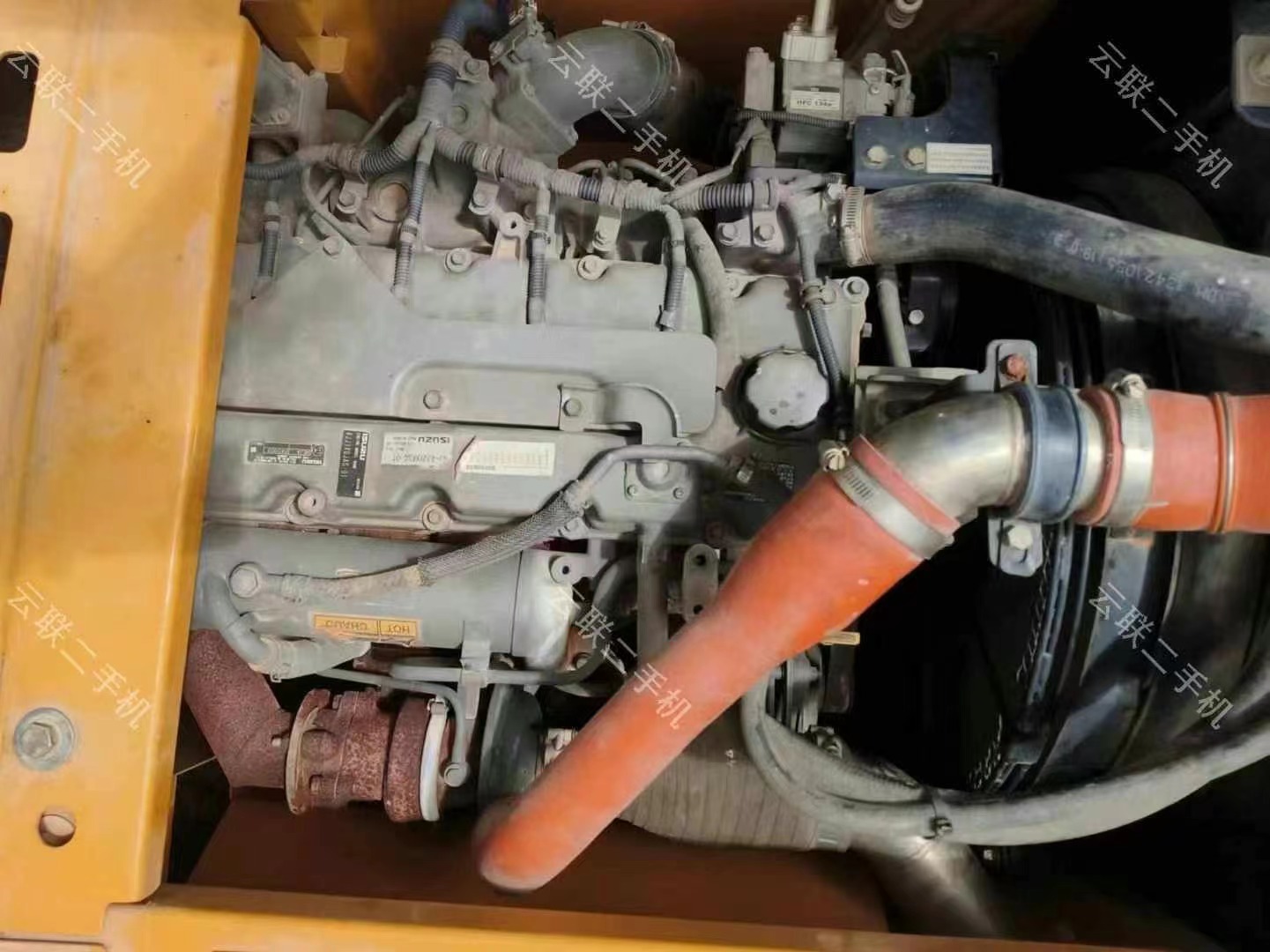

Engine model Isuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm) 73/2000
Maximum torque (N.m) 365/1 600
Displacement (L) 2.999
Cooling method Water cooling
Oil capacity
Fuel tank (L) 240
Hydraulic oil tank (L) 150
Engine oil change volume (L) 15
Main body dimensions
Total length for transportation (mm) 7280
Total width for transportation (mm) 2550
Total height for transportation (mm) 2890
Total height of cab (mm) 2740
Onboard width (mm) 2490

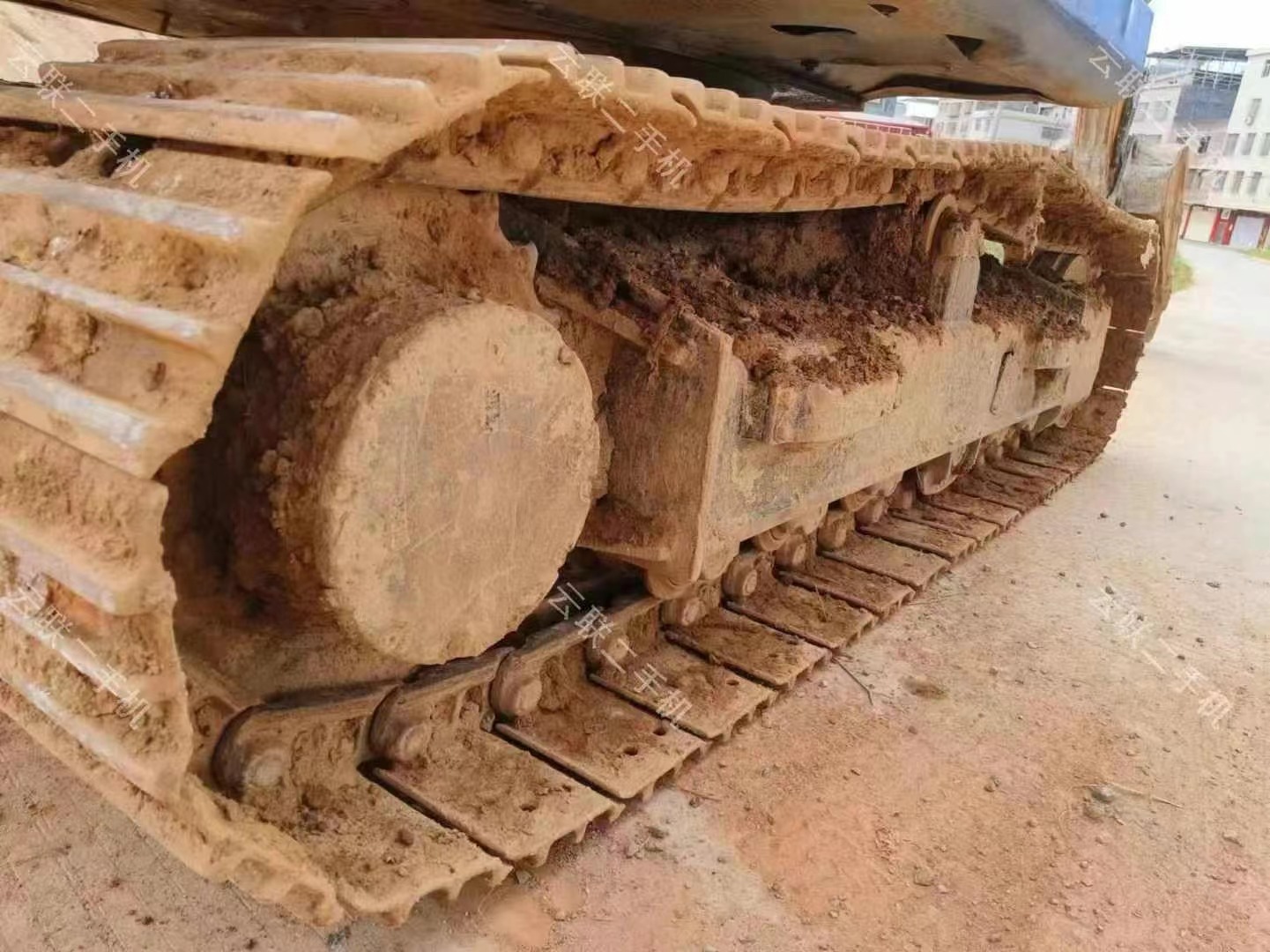

Track ground length (mm) 2680
Total length of track (mm) 3360
Track shoe width (mm) 500
Track gauge (mm) 1990
Minimum ground clearance (mm )425
Minimum turning radius of front working device (mm)2880
Maximum height at minimum turning radius (mm)5905
Rear end turning radius (mm)2205
Number of supporting wheels (single side) (pcs)6
Number of chain wheels (single side) (pcs)1
Number of track shoes (single side) (pcs)41
Operating range
Maximum digging radius (mm)7735
Maximum digging depth (mm)5190
Maximum digging height (mm)7695
Maximum unloading height (mm)5440
Maximum vertical digging depth (mm)4720
