SANY 245

Home > Products

SANY 245

Whatsapp:

+8613592496203

E-mail:

info@goodusedbus.com

Inquiry Now Send Message

SANY 245

SANY 245

SANY 245

SANY 245

SANY 245

SANY 245

SANY 245

SANY 245

SANY 245

Tonnage (tons) 24
Machine operating weight (kg) 25500
Bucket capacity (m³) 1.3~1.5 (1.5)
Performance
Slewing speed (rpm) 10.6
Travel speed (km/h) 5.4/3.4
Gradability (%) 70
Ground pressure (Kpa) 53.2
Bucket digging force (kN) 175
Arm digging force (kN) 120
Power system

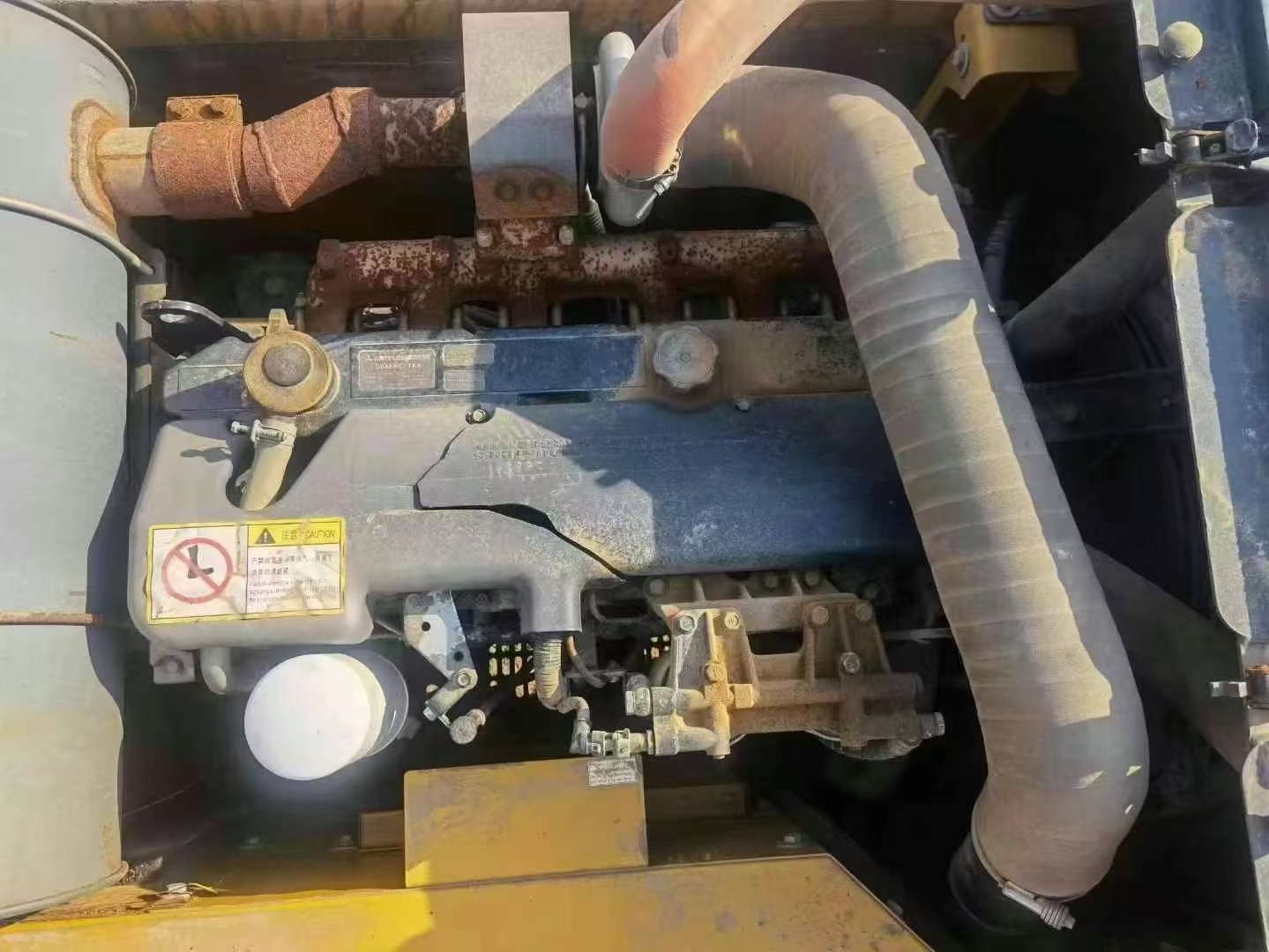

Engine model D06FRC
Rated power (kw/rpm) 147/2100
Maximum torque (N.m) 750/1350
Displacement (L) 6.37 3
Number of cylinders (pieces) 6
Cooling method Water cooling
Oil capacity
Fuel tank (L) 475
Hydraulic oil tank (L) 277
Engine oil replacement volume (L) 29
Main body dimensions
Total length for transportation (mm) 10290
Total width for transportation (mm) 3190
Total height for transportation (mm) 3190
Total height of cab (mm) 3255
Onboard width (mm) 3045
Track ground length (mm) 3640
Total length of track (mm) 4445
Track shoe width (mm) 600
Track gauge (mm) 2590
Minimum ground clearance (mm) )470
Minimum turning radius of front working device (mm)3800
Rear end turning radius (mm)3105
Maximum height at minimum turning radius (mm)8016
Number of chain rollers (single side) (pcs)2
Number of track shoes (single side) (pcs)49
Number of supporting rollers (single side) (pcs)9
Operating range
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum digging height (mm)9745
Maximum unloading height (mm)6715
