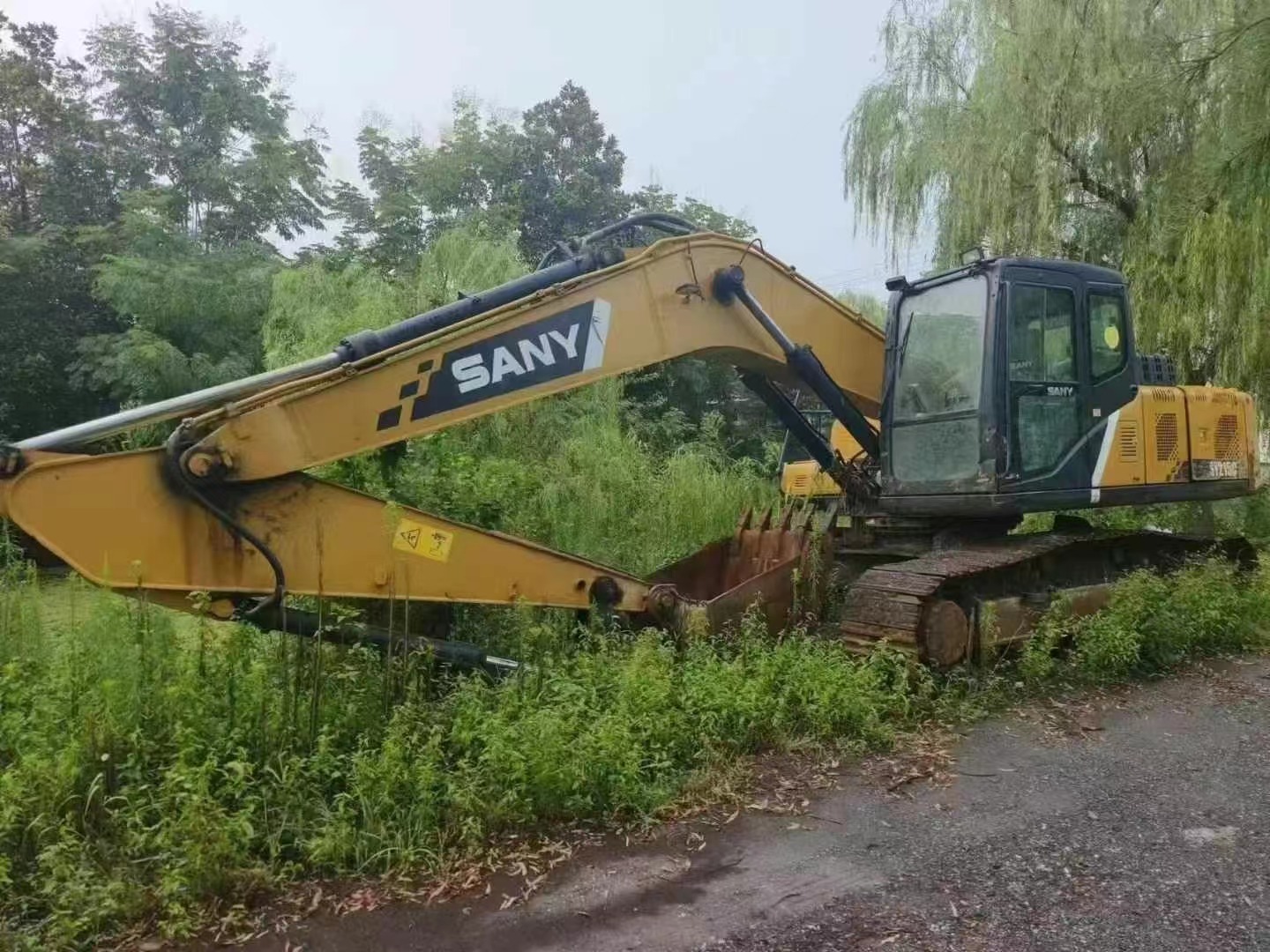

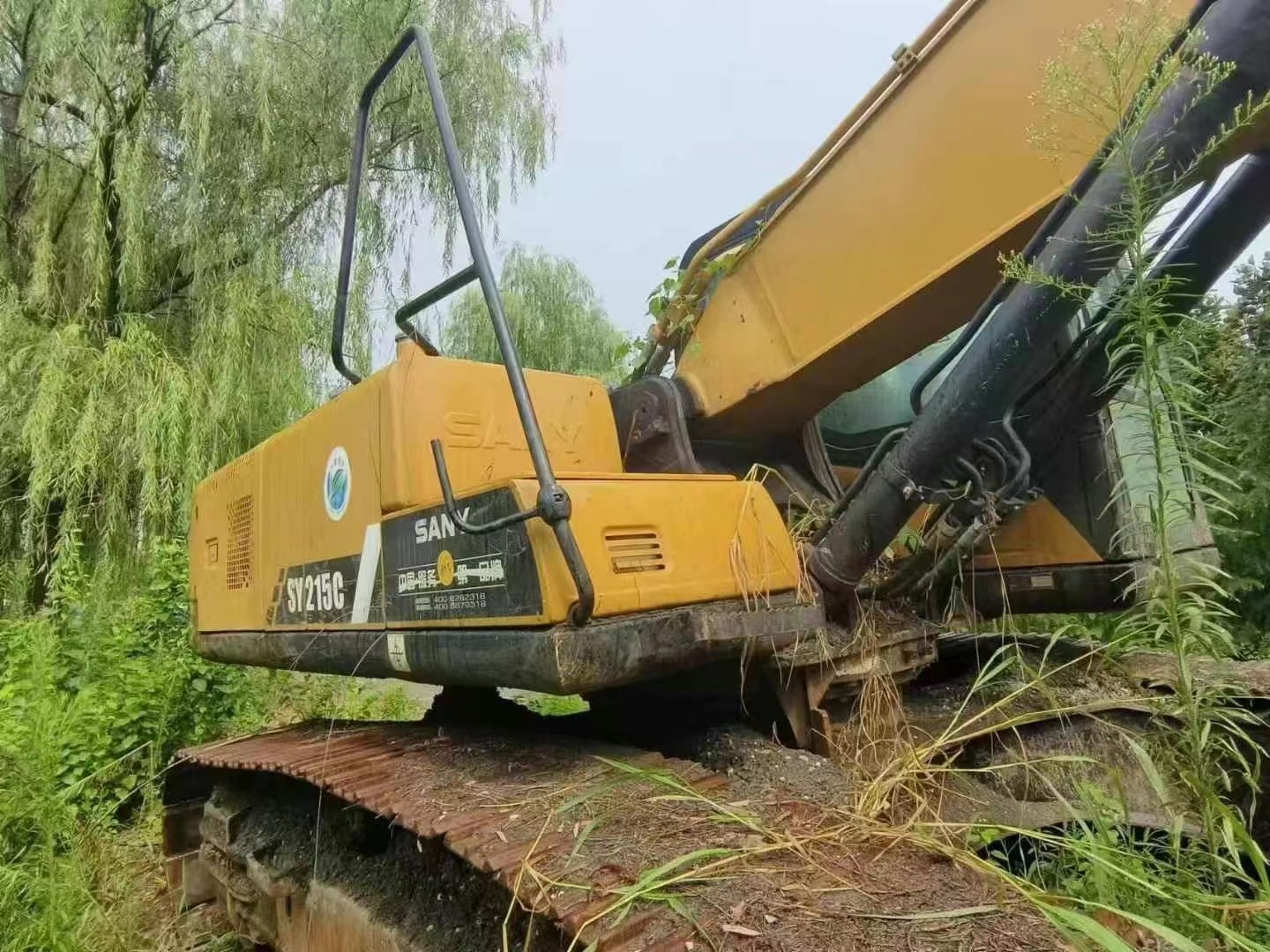

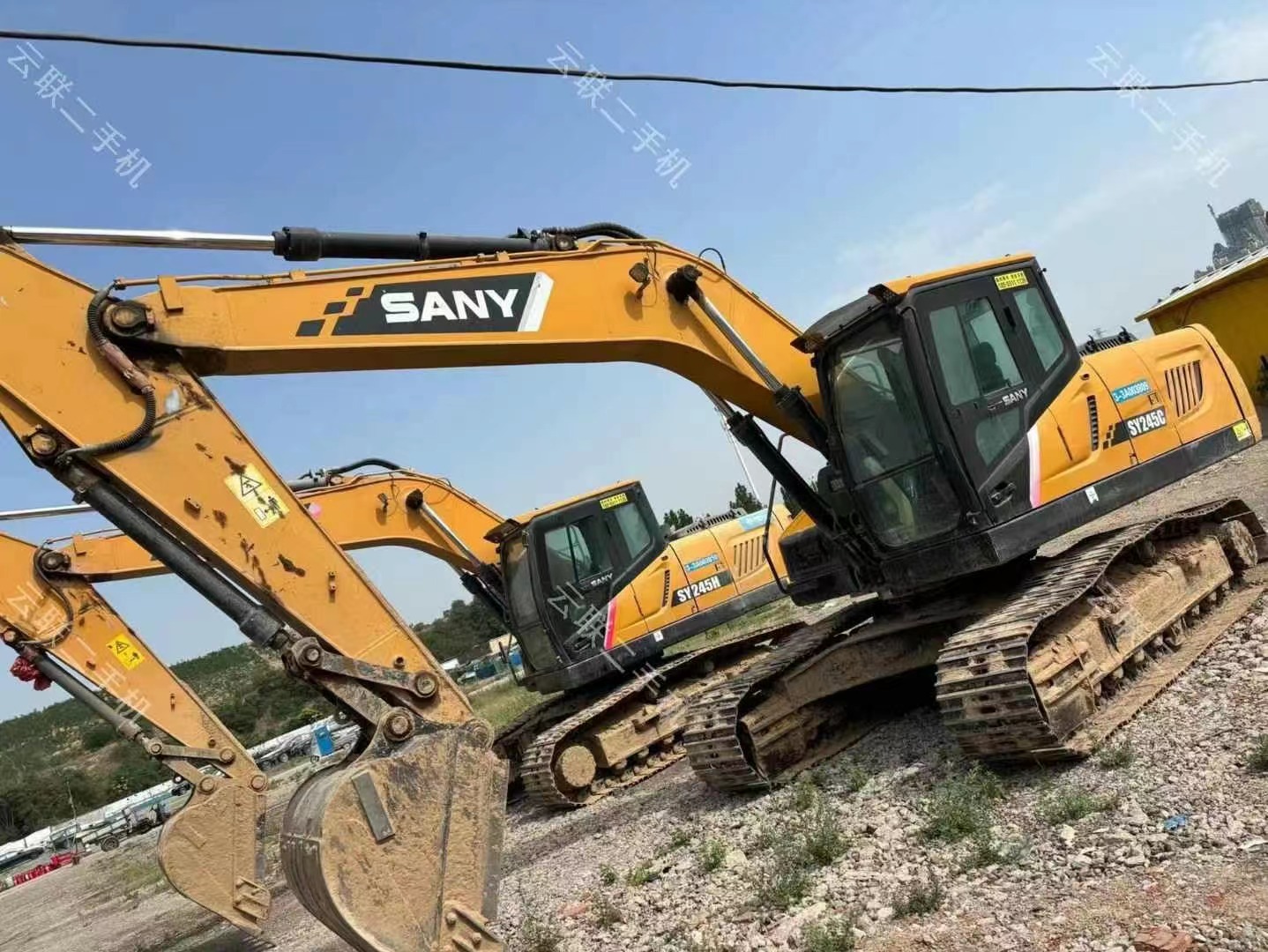

SANY 215

Tonnage (tons) 21
Machine operating weight (kg) 21900
Bucket capacity (m³) 1.1 (0.8~1.2)
Performance
Slewing speed (rpm) 11
Travel speed (km/h) 5.4/3.3
Gradability (%) 70% (35°)
Ground pressure (Kpa) 47.4
Bucket digging force (kN) 138
Arm digging force (kN) 103
Power system

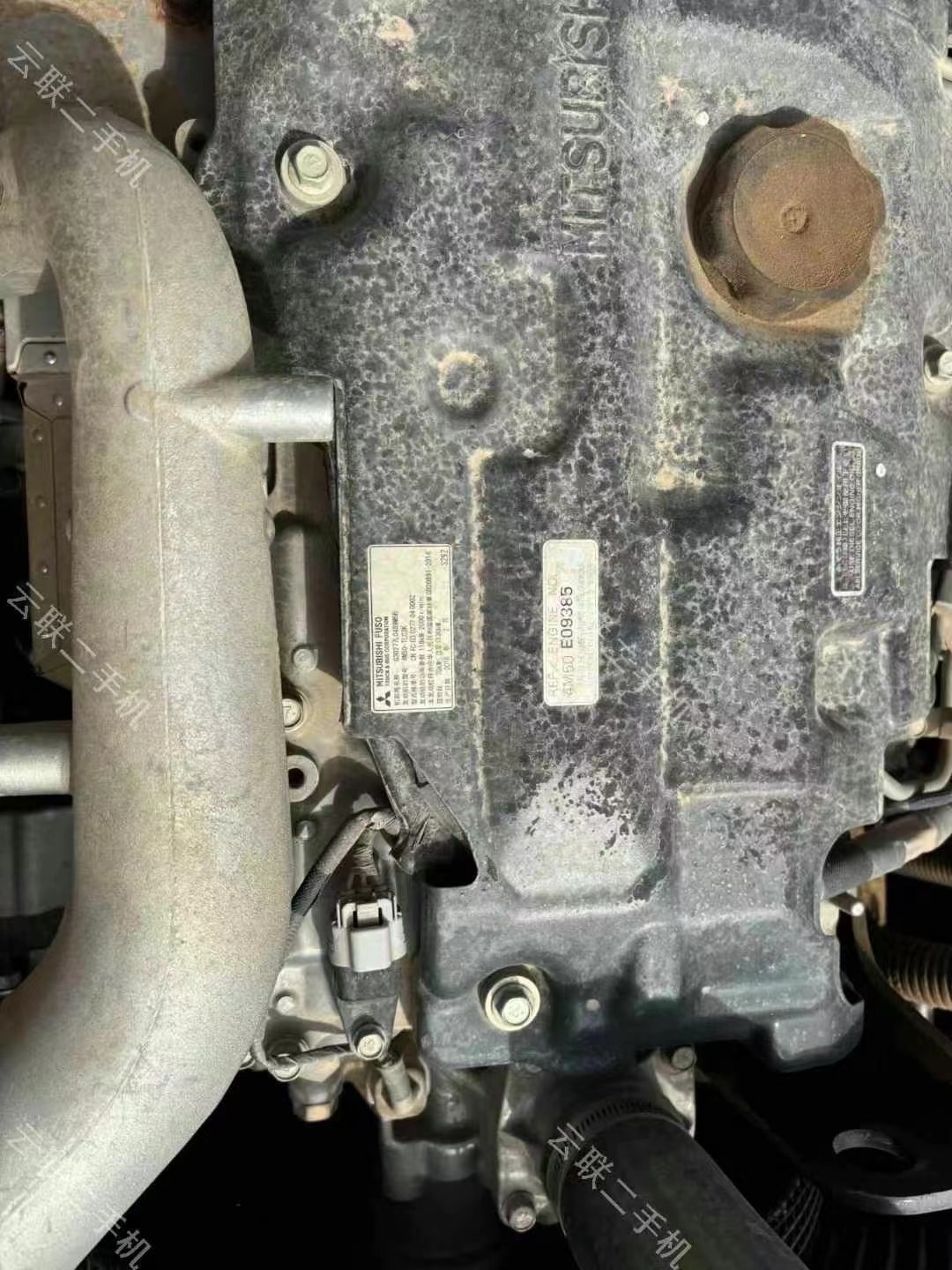

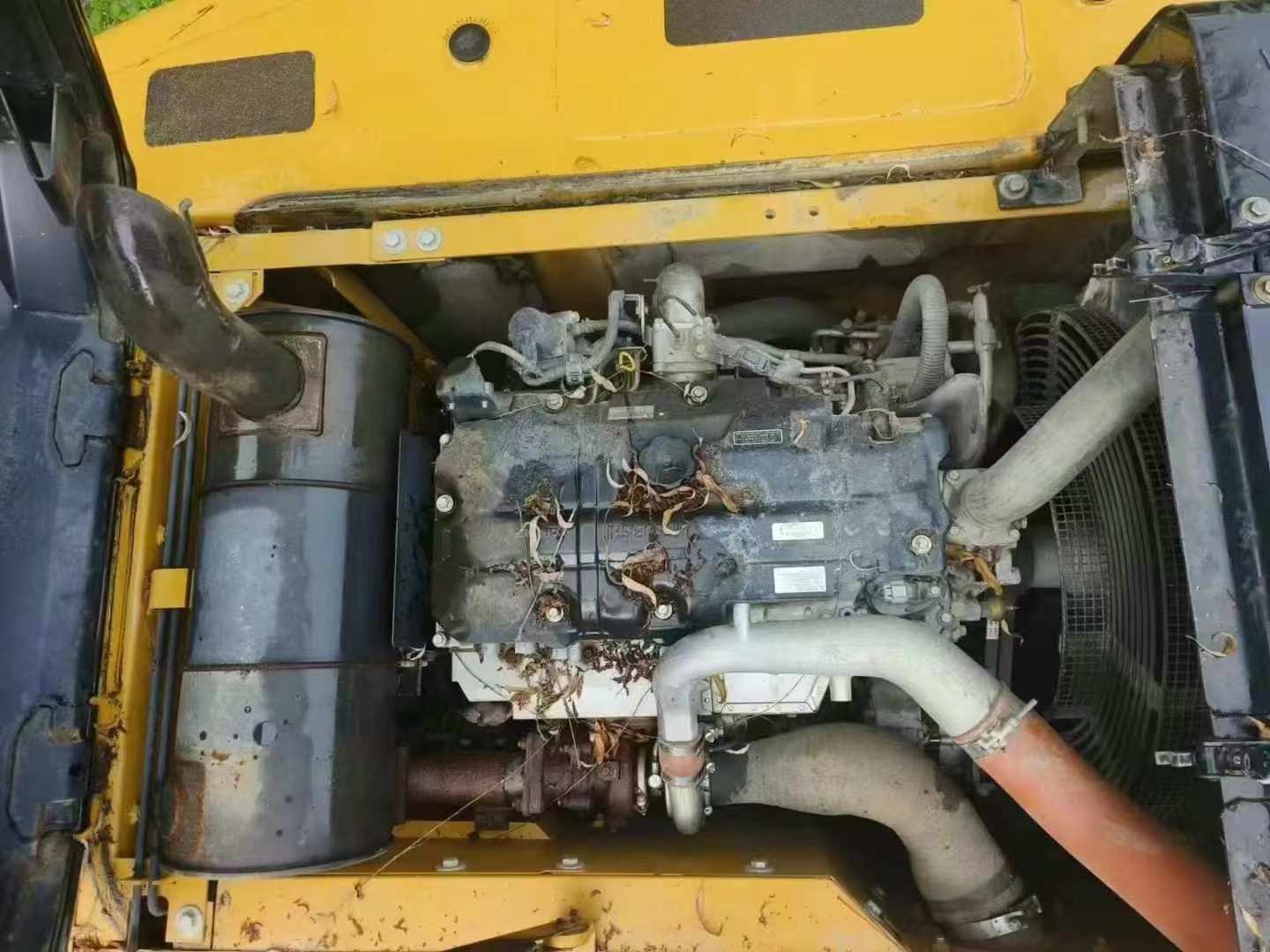

Engine model Mitsubishi 4M50
Rated power (kw/rpm) 118/2000
Maximum torque (N.m) 580/1600
Displacement (L) 4.9
Number of cylinders (pieces) 4
Cooling method Water cooling
Oil capacity
Fuel tank (L) 390
Hydraulic oil tank (L) 239
Engine oil replacement volume (L) 22
Main body dimensions
Total length for transportation (mm) 9680
Total width for transportation (mm) 2980
Total height for transportation (mm) 3440
Total height of cab (mm) 3075
Onboard width (mm) 2875
Track ground length (mm) 3445
Total length of crawler (mm) 4250
Track shoe width (mm) 600
Track gauge (mm) 2380
Minimum ground clearance (mm) )440
Minimum turning radius of front working device (mm)3730
Rear end turning radius (mm)2900
Maximum height at minimum turning radius (mm)7680
Number of chain rollers (single side) (pcs)2
Number of track shoes (single side) (pcs)47
Number of supporting rollers (single side) (pcs)8
Operating range
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum digging height (mm)9600
Maximum unloading height (mm)6730
