XCMG200
Tonnage (tons) 20 Machine operating weight (kg) 21200 Bucket capacity (m³) 0.93 Boom length (mm) 5680 Arm length (mm) 2710 Performance Slewing speed (rpm) 11.6 Travel speed (km/h) 5.3/2.9 Gradability (%) 35 Ground pressure (Kpa) 46.9 Bucket digging force (kN) 149 Arm digging force (kN) 121 Maximum traction force (kN) 184 Power System Engine model QSB7 Rated power (kw/rpm) 135/2050 Maximum torque (N.m) 740/1250 Displacement (L) 6.7 Number of cylinders (pieces) 6 Oil capacity Fuel tank (L) 400 Hydraulic oil tank (L) 220 Engine oil change volume (L) 24 Main body dimensions Total transport length (mm) 9625 Total transport width (mm) 2900 Total transport height (mm) 3100 Minimum ground clearance (mm) 486 Counterweight ground clearance (mm) 1050 Operating range Maximum digging radius (mm) 9790 Maximum digging depth (mm) 6460 Maximum digging height (mm) 9680 Maximum unloading height (mm) 6815 Maximum vertical digging depth (mm) 5590
Learn More
Caterpillar323
Bucket backhoe Tonnage (tons) 23 Machine operating weight (kg) 24500 Bucket capacity (m³) 1.4 Boom length (mm) 5700 Arm length (mm) 2900 Performance Swing speed (rpm) 11.25 Swing torque (Nm) 82k Bucket digging force (kN) 140 Arm digging force (kN) 107 Power system Engine model Cat® C7.1 Rated power (kw/rpm) 151/2000 Displacement (L) 7 Cylinder diameter × stroke (mm) 105 × 135 Emission standard National IV Hydraulic system Main pump maximum flow (l/min) 429 Working hydraulic oil circuit (Mpa) 35 Travel hydraulic circuit (Mpa) 34.3 Swing hydraulic circuit (Mpa) )27.5 Oil capacity Fuel tank (L)345 Hydraulic oil tank (L)115 Hydraulic system (L)234 Engine oil change volume (L)25 Coolant (L)25 Main body dimensions Total length for transportation (mm)9530 Total width for transportation (mm)2980 Total height for transportation (mm)2960 Track shoe width (mm)600 Track gauge (mm)2380 Minimum ground clearance (mm)470 Counterweight ground clearance (mm)1050 Spacing between center of supporting wheels (mm)3650 Rear end turning radius (mm)2830 Operating range Maximum digging radius (mm)9870 Maximum digging depth (mm)6730 Maximum digging height (mm)9450 Maximum unloading height (mm)6480 Maximum vertical digging depth (mm)5620
Learn More

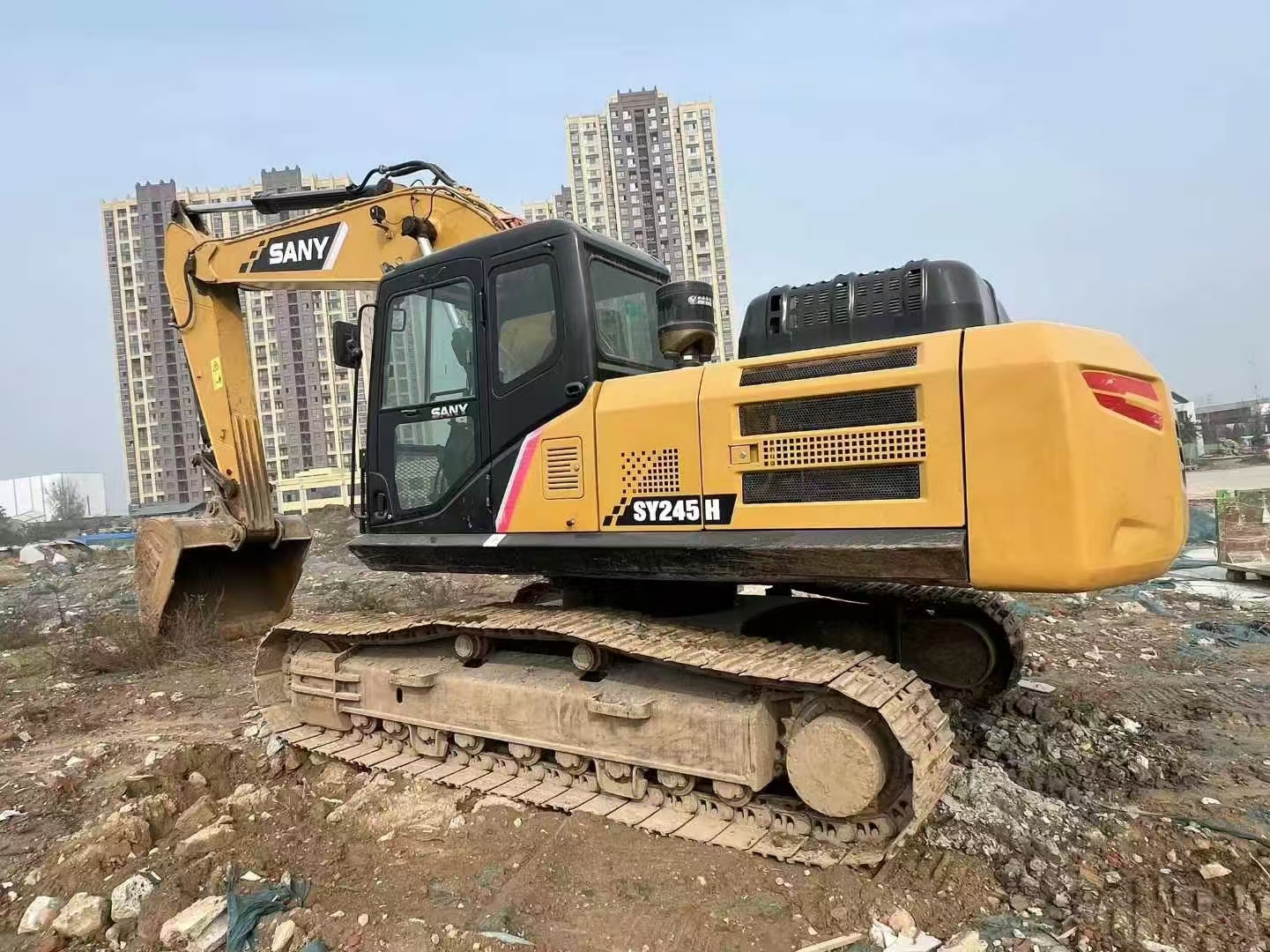

SANY 245
Tonnage (tons) 24 Machine operating weight (kg) 25500 Bucket capacity (m³) 1.3~1.5 (1.5) Performance Slewing speed (rpm) 10.6 Travel speed (km/h) 5.4/3.4 Gradability (%) 70 Ground pressure (Kpa) 53.2 Bucket digging force (kN) 175 Arm digging force (kN) 120 Power system Engine model D06FRC Rated power (kw/rpm) 147/2100 Maximum torque (N.m) 750/1350 Displacement (L) 6.37 3 Number of cylinders (pieces) 6 Cooling method Water cooling Oil capacity Fuel tank (L) 475 Hydraulic oil tank (L) 277 Engine oil replacement volume (L) 29 Main body dimensions Total length for transportation (mm) 10290 Total width for transportation (mm) 3190 Total height for transportation (mm) 3190 Total height of cab (mm) 3255 Onboard width (mm) 3045 Track ground length (mm) 3640 Total length of track (mm) 4445 Track shoe width (mm) 600 Track gauge (mm) 2590 Minimum ground clearance (mm) )470 Minimum turning radius of front working device (mm)3800 Rear end turning radius (mm)3105 Maximum height at minimum turning radius (mm)8016 Number of chain rollers (single side) (pcs)2 Number of track shoes (single side) (pcs)49 Number of supporting rollers (single side) (pcs)9 Operating range Maximum digging radius (mm)10225 Maximum digging depth (mm)6705 Maximum digging height (mm)9745 Maximum unloading height (mm)6715
Learn More
SANY550
Tonnage (tons) 55 Machine operating weight (kg) 51000 Bucket capacity (m³) 3.1-3.5 Performance Slewing speed (rpm) 8 Travel speed (km/h) 5.4/3.1 Gradability (%) 70 Ground pressure (Kpa) 87.1 Power system Rated power (kw/rpm) 300/1800 Main dimensions Total length for transport (mm) 12095 Total width for transport (mm) 3360 Total height for transport (mm) 3790 Total height of cab (mm) 3470 Onboard width (mm) 3290 Track ground length (mm) 4415 Total length of crawler (mm) 5440 Track shoe width (mm) 600 Track gauge (mm) 2740 Minimum ground clearance (mm) 560 Rear end turning radius (mm )3765 Operating range Maximum digging radius (mm) 12841 (crushing) Maximum digging radius of the stop surface (mm) 10655 (crushing) Maximum digging depth (mm) 8077 (crushing) Maximum digging height (mm) 12279 (crushing)
Learn More
SANY75
Tonnage (tons) 7 Machine operating weight (kg) 7280 Bucket capacity (m³) 0.12~0.32 Performance Slewing speed (rpm) 11.5 Travel speed (km/h) 4.4/2.4 Gradability (%) 70% (35°) Ground pressure (Kpa) 33 Bucket digging force (kN) 56 Arm digging force (kN) 38 Power system Engine model Isuzu AU-4LE2X Rated power (kw/rpm) 43/2200 Maximum torque (N.m) 200/ 1600 Displacement (L) 2.179 Number of cylinders (pieces) 4 Cooling method Water cooling Oil capacity Fuel tank (L) 150 Hydraulic oil tank (L) 120 Engine oil change volume (L) 9.5 Main body dimensions Total length for transportation (mm) 6120 Total width for transportation (mm) 2220 Total height for transportation (mm) 2720 Track ground length (mm) 2195 Total length of crawler (mm) 2820 Track shoe width (mm) 450 Track gauge (mm) 1750 Minimum ground clearance (mm )380 Rear end turning radius (mm) 1800 Number of sprocket wheels (single side) (pcs) 1 Number of track shoes (single side) (pcs) 39 Number of supporting wheels (single side) (pcs) 5 Operating range Maximum digging radius (mm) 6240 Maximum digging depth (mm) 4020 Maximum digging height (mm) 7060 Maximum unloading height (mm) 5155 Maximum vertical digging depth (mm) 3290 Bulldozer lifting or pushing depth (mm) 350/360
Learn More
SANY650
Tonnage (tons) 65 Machine operating weight (kg) 65000 Bucket capacity (m³) 3.8 Performance Slewing speed (rpm) 7.3 Travel speed (km/h) 4.6/3.1 Gradability (%) 35° Ground pressure (Kpa) 105 Bucket digging force (kN) 340 Arm digging force (kN) 293 Power system Engine model Isuzu 6WG1 Rated power (kw/rpm) 350/1800 Maximum torque (N.m) 2050/1300 Displacement (L) 15.681 Cooling method Water cooling Working form Direct injection, 6 cylinders 4 strokes, Turbocharger intercooler Oil capacity Fuel tank (L) 827 Engine oil change amount (L) 37-52 Main body size Number of supporting wheels (single side) (pcs) 9 Number of sprocket wheels (single side) (pcs) 3 Number of track shoes (single side) (pcs) 52
Learn More
