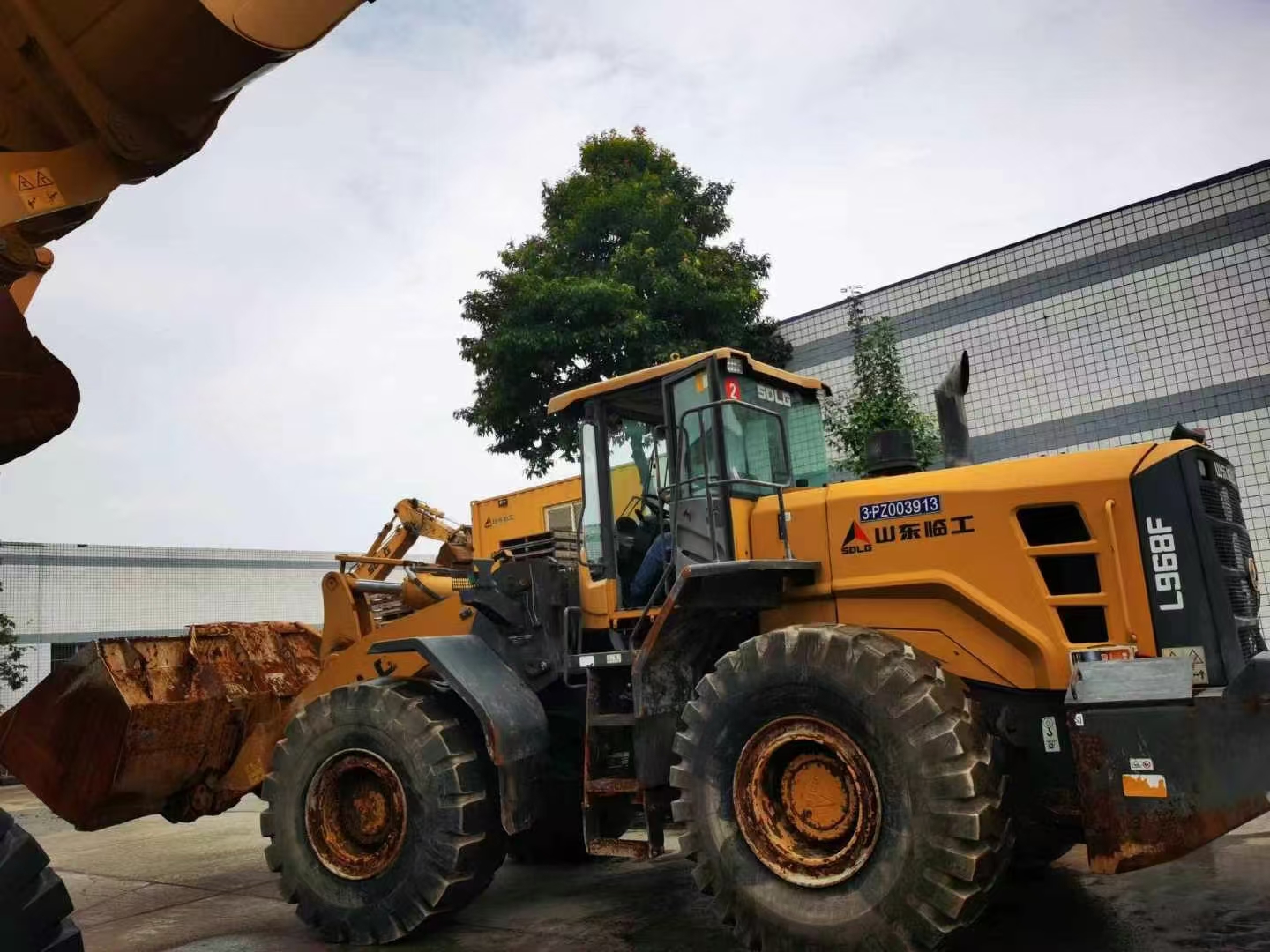

SDLG968
Basic performance Rated load (tons) 6 tons or more Rated load (kg) 6000 Operating weight of the whole machine (kg) 19800 Bucket capacity (m³) 3.5 (3.0-5.0) Maximum-unloading height (mm) 3250 Unloading distance (mm) 1090 Digging force (digging force) (kN) 210 Engine Engine model WP10G240E342 Rated power (kw/rpm) 178/2100 Maximum torque (N.m) 1100/1500 Displacement (L) 9.726 Cold Cooling mode: water cooling Working mode: in-line, water cooling, dry cylinder liner, direct injection Oil capacity: fuel tank (L) 350 Hydraulic oil tank (L) 220 Engine oil (L) 20 Gearbox: gear setting: front four and rear four Maximum speed (km/h) 38 Steering system: steering angle 38 Working device action time: sum of three items (s) 10.3 Technical parameters: maximum traction (kN) 180 Machine size: machine length (mm) 8680 Machine width (mm) 3200 Machine height (mm) 3470 Minimum ground clearance (mm) 530 Wheelbase (mm) 3400 Track (mm) 2250
