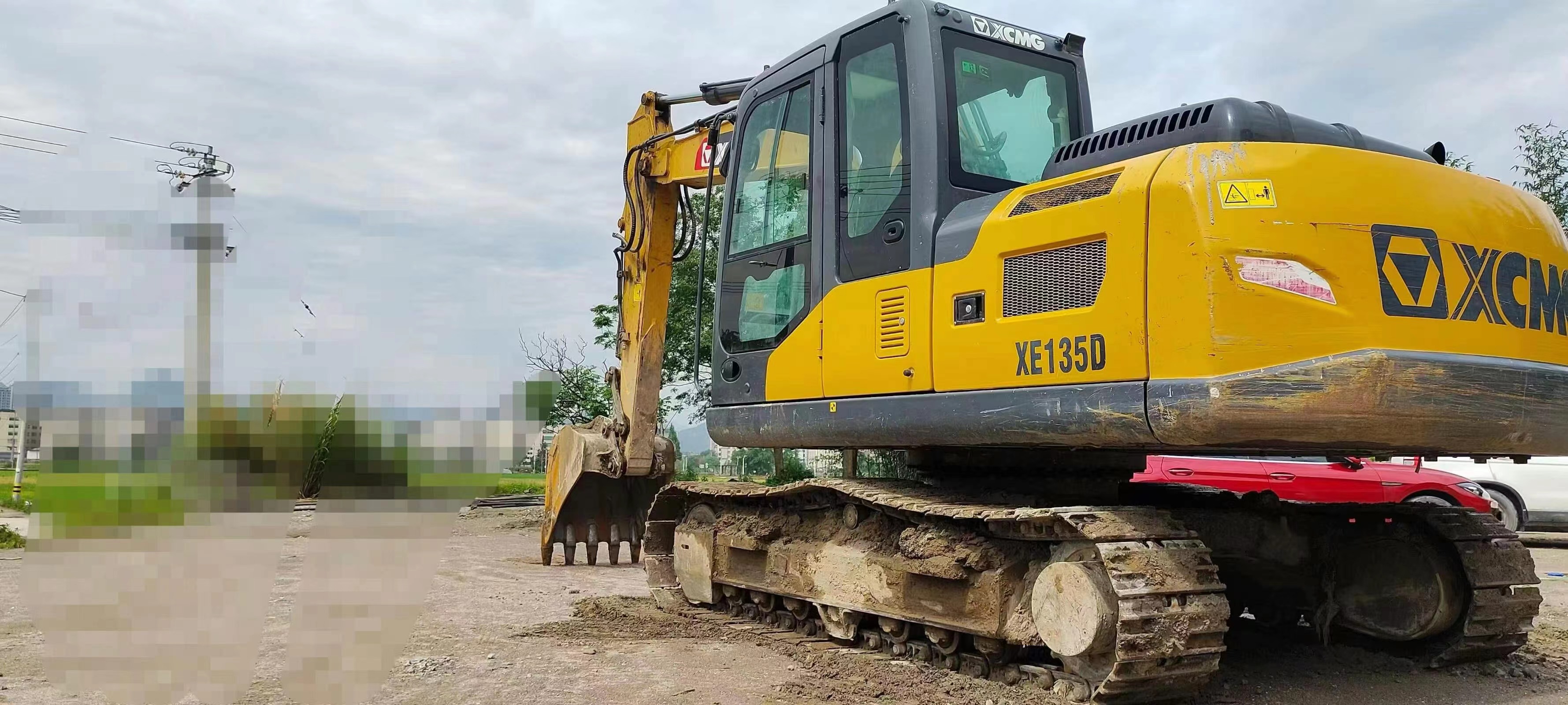

XCMG135
Tonnage (tons) 13 Machine operating weight (kg) 13200 Bucket capacity (m³) 0.32-0.61 (0.52) Boom length (mm) 4600 Arm length (mm) 2520 Performance Slewing speed (rpm) 11 Travel speed (km/h) 5.2/2.9 Gradability (%) 35 Ground pressure (Kpa) 40.4 Bucket digging force (kN) 99.1 Arm digging force (kN) 68 Maximum traction force (kN) 134 Power system Engine model QSF3.8 Rated power (kw/rpm) 86/2200 Maximum torque (N.m) 470/1300 Displacement (L) 3.8 Number of cylinders (pieces) 4 Cooling method Water cooling Working mode EFI, direct injection, 4-stroke, turbocharged Hydraulic system Maximum flow of main pump (l/min) 125.4*2 Working hydraulic oil circuit (Mpa) 31.4/34.3 Travel hydraulic circuit (Mpa) 34.4 Slewing hydraulic circuit (Mpa )25 Oil capacity Fuel tank (L)260 Hydraulic oil tank (L)105 Engine oil change amount (L)11 Main body size Total length for transportation (mm)7795 Total width for transportation (mm)2525 Total height for transportation (mm)2880 Total length of crawler tracks (mm)3648 Total width of crawler tracks (mm)500 Track gauge (mm)1990 Minimum ground clearance (mm)466 Counterweight ground clearance (mm)931 Minimum turning radius of front working device (mm)2445 Rear end turning radius (mm)2325 Operating range Maximum digging radius (mm)8304 Maximum digging depth (mm)5546 Maximum digging height (mm)8638 Maximum unloading height (mm)6174 Maximum vertical digging depth (mm)4698...
