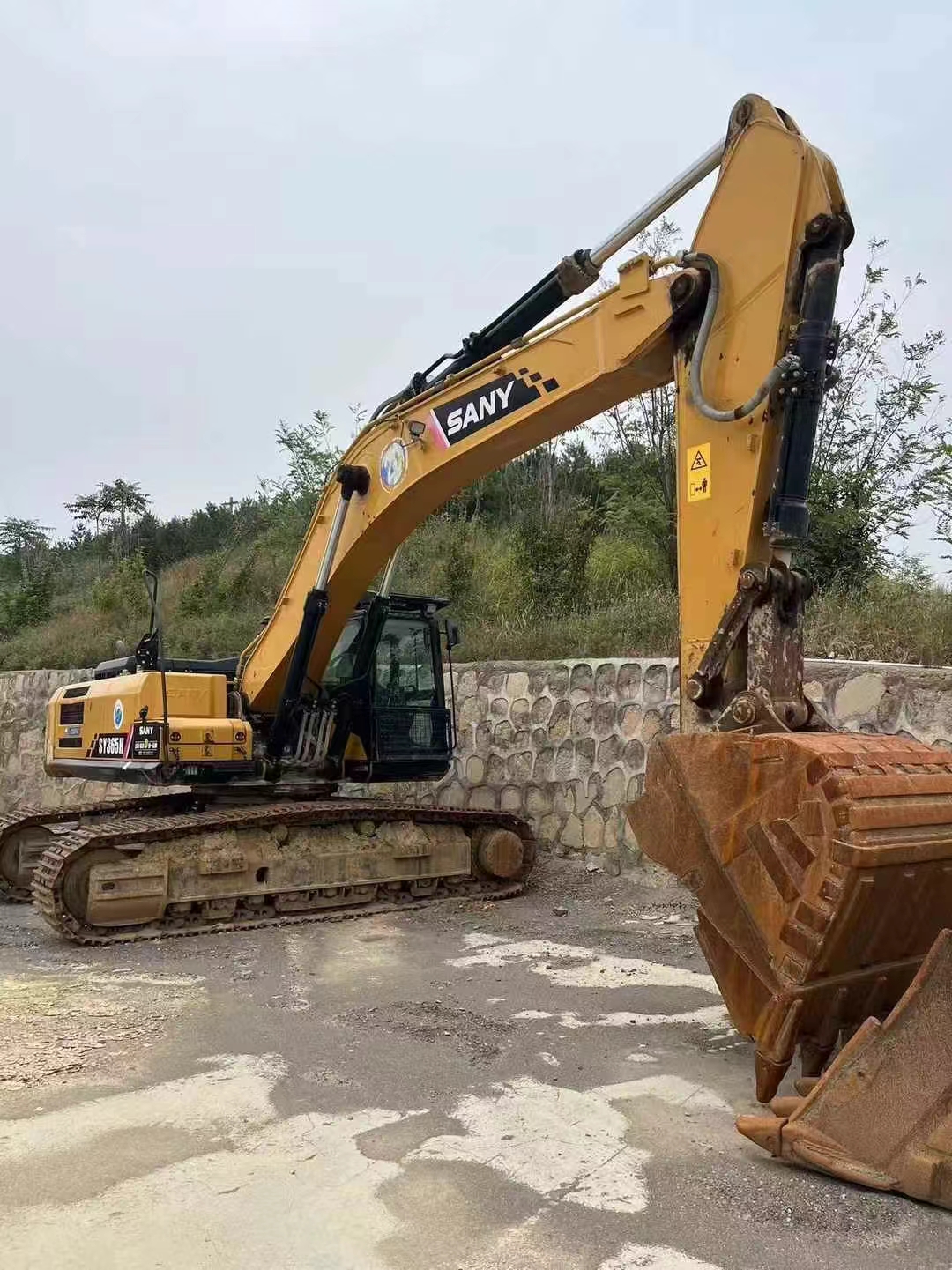

SANY375
Tonnage (tons) 37 Machine operating weight (kg) 37500 Bucket capacity (m³) 1.7-2.4 (1.9) Performance Slewing speed (rpm) 8.8 Travel speed (km/h) 5.5/3.5 Gradability (%) 70 Ground pressure (Kpa) 68.8 Bucket digging force (kN) 235 Arm digging force (kN) 210 Power system Engine model GH-6HK1XKSC Rated power (kw/rpm) 212/2000 Maximum torque (N.m) 1080/1500 Displacement (L) 7.79 Cylinder Number (units) 6 Cooling method Water cooling Working mode Direct injection, 6-cylinder 4-stroke, turbocharged intercooler, water cooling Oil capacity Fuel tank (L) 540 Engine oil change volume (L) 36 Main body dimensions Total length for transportation (mm) 11425 Total width for transportation (mm) 3190 Total height for transportation (mm) 3825 Total height of cab (mm) 3440 Onboard width (mm) 3230 Track ground length (mm) 4140 Total length of track (mm) 5100 Track shoe width (mm) 600 Track gauge (mm) 2590 Minimum ground clearance (mm )550 Minimum turning radius of front working device (mm)4390 Rear end turning radius (mm)3610 Maximum height at minimum turning radius (mm)8930 Number of chain rollers (single side) (pcs)2 Number of track shoes (single side) (pcs)49 Number of supporting rollers (single side) (pcs)9 Operating range Maximum digging radius (mm)10750 Maximum digging depth (mm)7155 Maximum digging height (mm)9920 Maximum unloading height (mm)7010...
