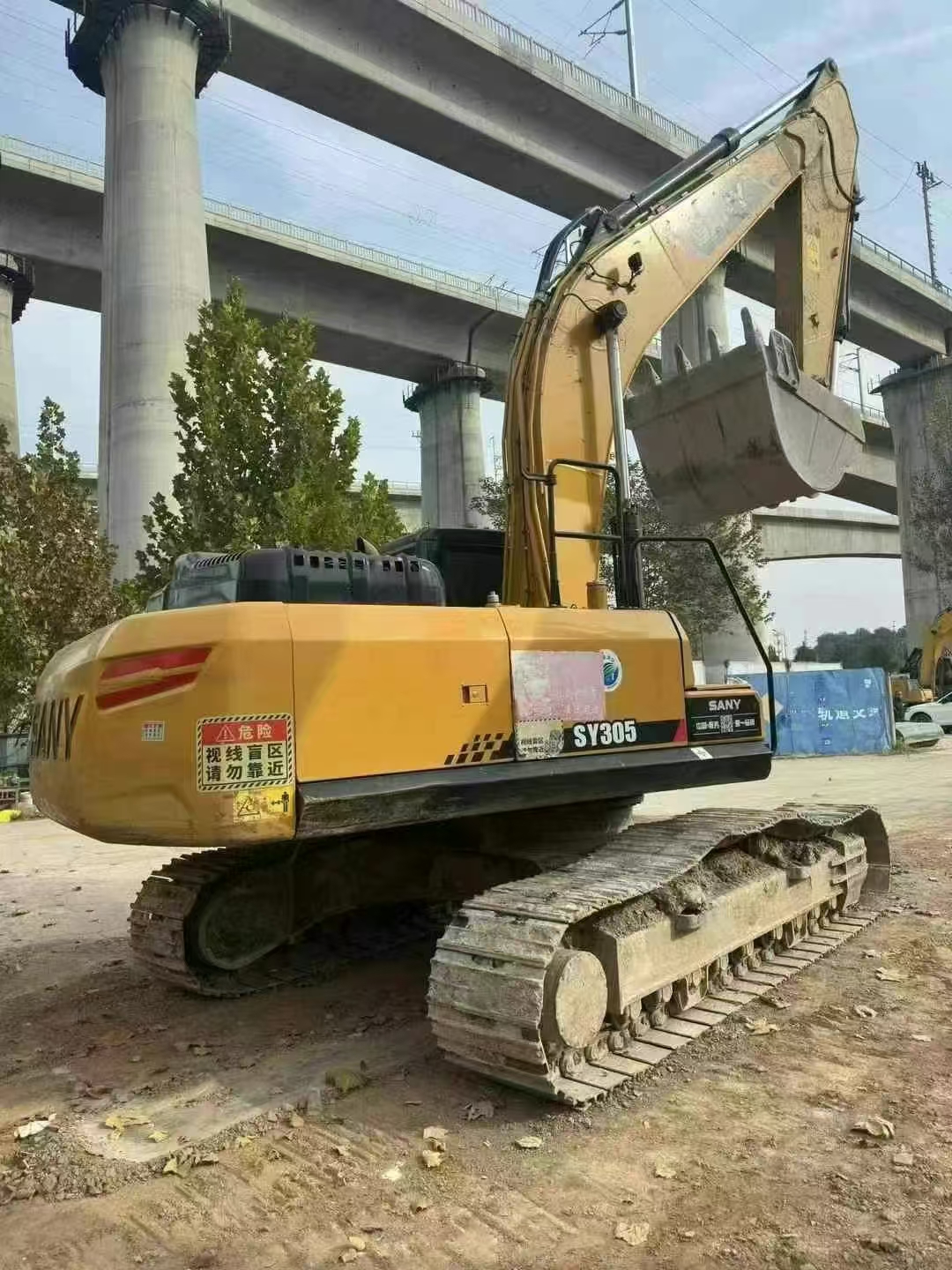

SANY305
Tonnage (tons) 30 Machine operating weight (kg) 31500 Bucket capacity (m³) 1.65~2.0 (1.65) Performance Slewing speed (rpm) 9.0 Travel speed (km/h) 5.4/3.2 Gradability (%) 70% (35°) Ground pressure (Kpa) 62.3 Bucket digging force (kN) 204 Arm digging force (kN) 153 Power system Engine model Isuzu GH-6HK1 Rated power (kw/rpm) 212/2000 Maximum torque (N.m) 1080/1500 Displacement (L) 7.79 Number of cylinders (pieces) 6 Cooling method Water cooling Oil capacity Fuel tank (L) 540 Hydraulic oil tank (L) 380 Engine oil replacement amount (L) 2*4.0 Coolant (L )35 Main dimensions Total length for transport (mm) 10667 Total width for transport (mm) 3190 Total height for transport (mm) 3470 Total height of cab (mm) 3280 Onboard width (mm) 3175 Track ground length (mm) 3916 Total length of crawler (mm) 4840 Track shoe width (mm) 600 Track gauge (mm) 2590 Minimum ground clearance (mm) 550 Minimum turning radius of front working device (mm) 4000 Maximum height at minimum turning radius (mm) 8405 Rear end turning radius (mm )3315 Number of supporting wheels (single side) (pcs)8 Number of chain rollers (single side) (pcs)2 Number of track shoes (single side) (pcs)47 Operating range Maximum digging radius (mm)10870 Maximum digging depth (mm)6815 Maximum digging height (mm)10497 Maximum...
