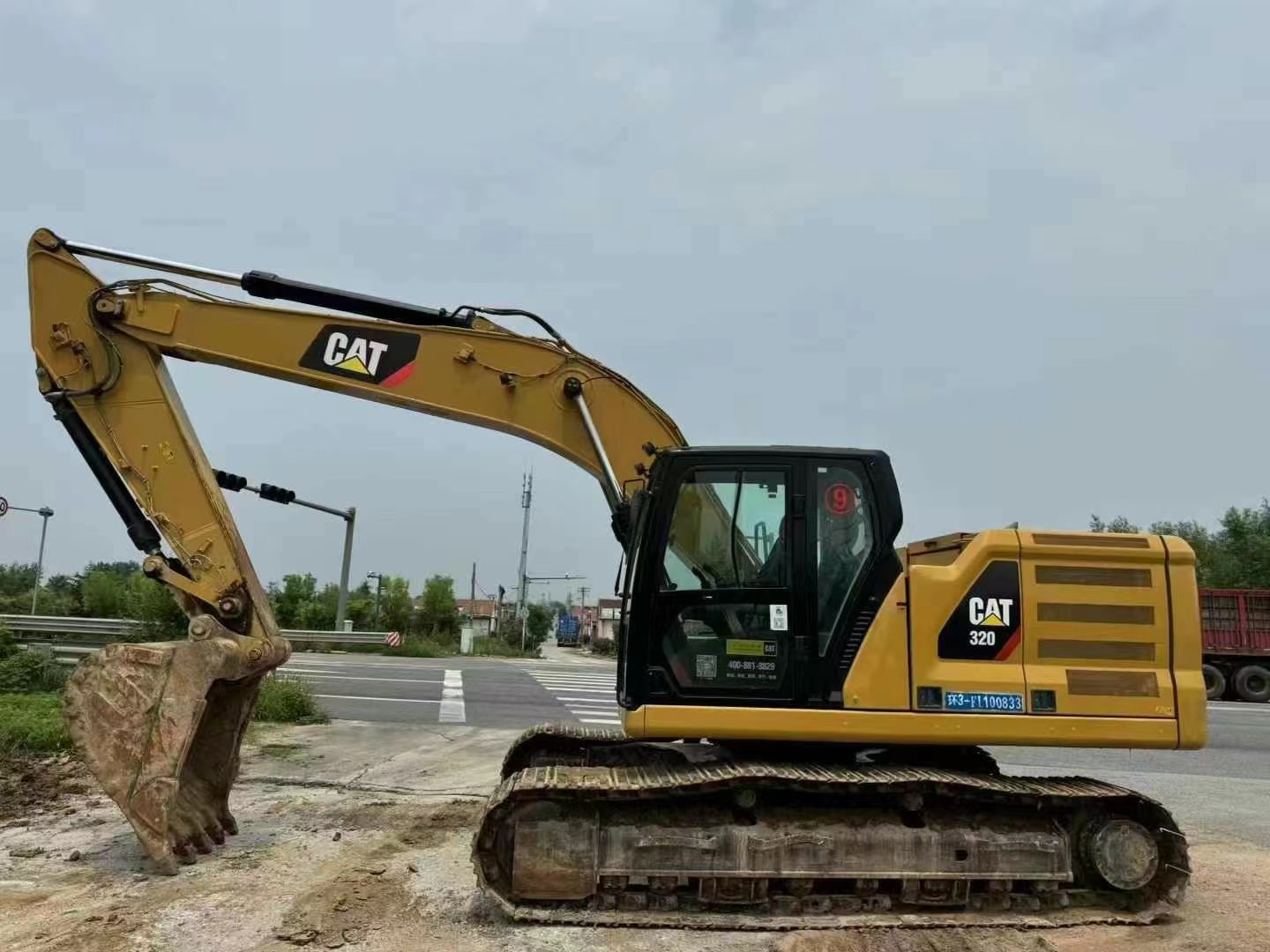

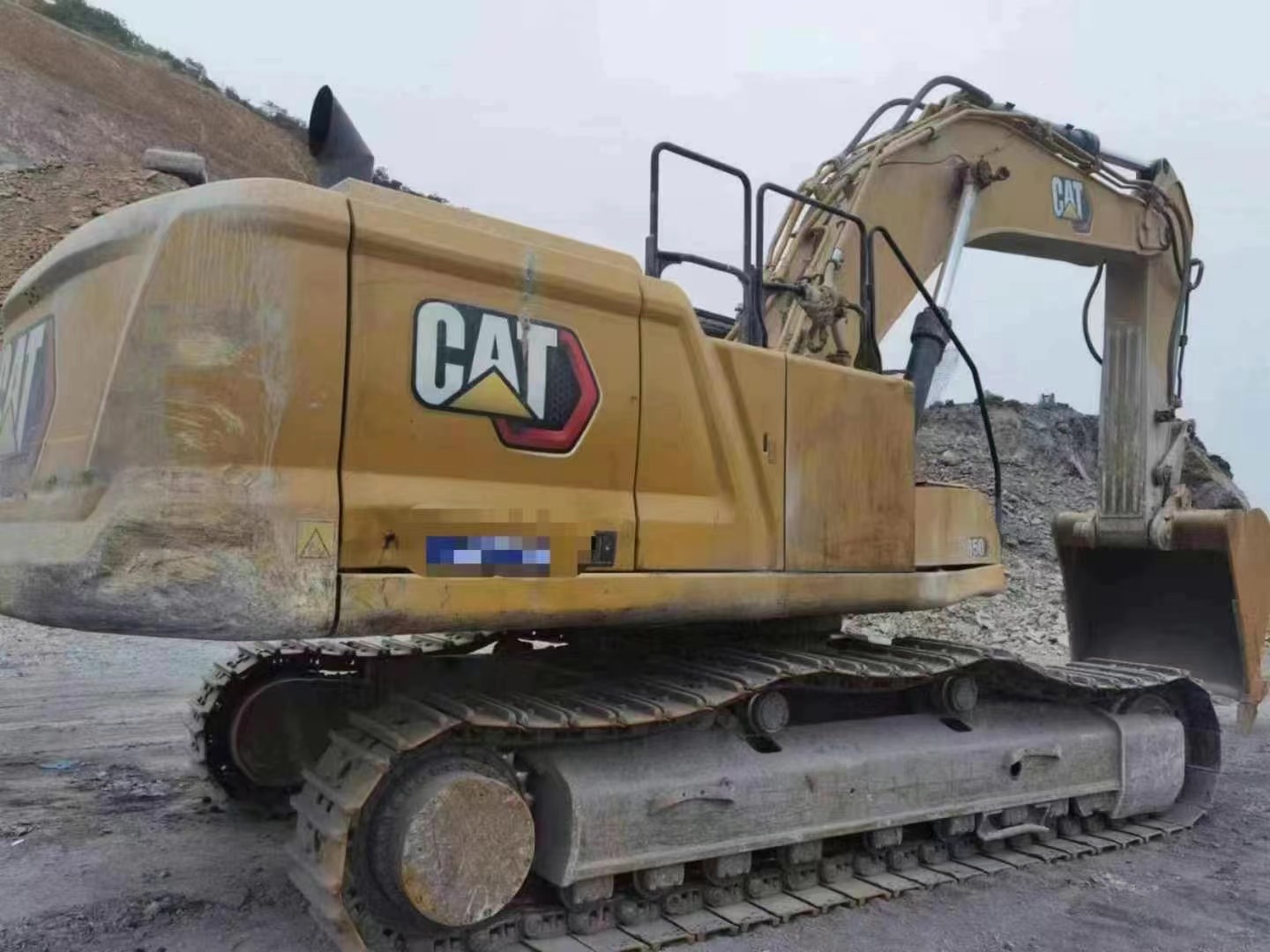

Caterpillar320
Machine working weight (kg) 20930 Bucket capacity (m³) 1 Boom length (mm) 5700 Arm length (mm) 2900 Place of origin Xuzhou Tonnage (tons) 20 Power Traditional power Bucket backhoe Manufacturer joint venture/imported Power Traditional power Performance Slewing speed (rpm) 11.5 Travel speed (km/h) 3.5/5.7 Gradability (%) 70/35° Ground pressure (Kpa) 6 Bucket digging force (kN) 140.1 Arm digging force (kN) 106.4 Power system Engine model Carter C6.4ACERT Rated power (kw/rpm) 103/2000 Displacement (L) 6.37 Number of cylinders (pieces) 6 Cylinder diameter × stroke (mm) 102 × 130 Cooling method Water cooling Hydraulic system Maximum flow of main pump (l/min) 205 Working hydraulic oil circuit (Mpa) 35 Travel hydraulic circuit (Mpa) 35 Slewing hydraulic circuit (Mpa) )25 Pilot oil circuit (MPa)3.9 Boom cylinder – number × cylinder diameter × stroke (mm)2-120×1260 Arm cylinder – number × cylinder diameter × stroke (mm)1-140×1504 Bucket cylinder – number × cylinder diameter × stroke (mm)1-120×1104 Is the hydraulic crushing pipeline standard? Oil capacity Fuel tank (L)410 Hydraulic oil tank (L)120 Hydraulic system (L)260 (including oil tank) Engine oil replacement amount (L)30 Coolant (L )25 Main dimensions Total length for transport (mm) 9460 Total width for transport (mm) 2800 Total height for transport (mm) 3050 Total...
