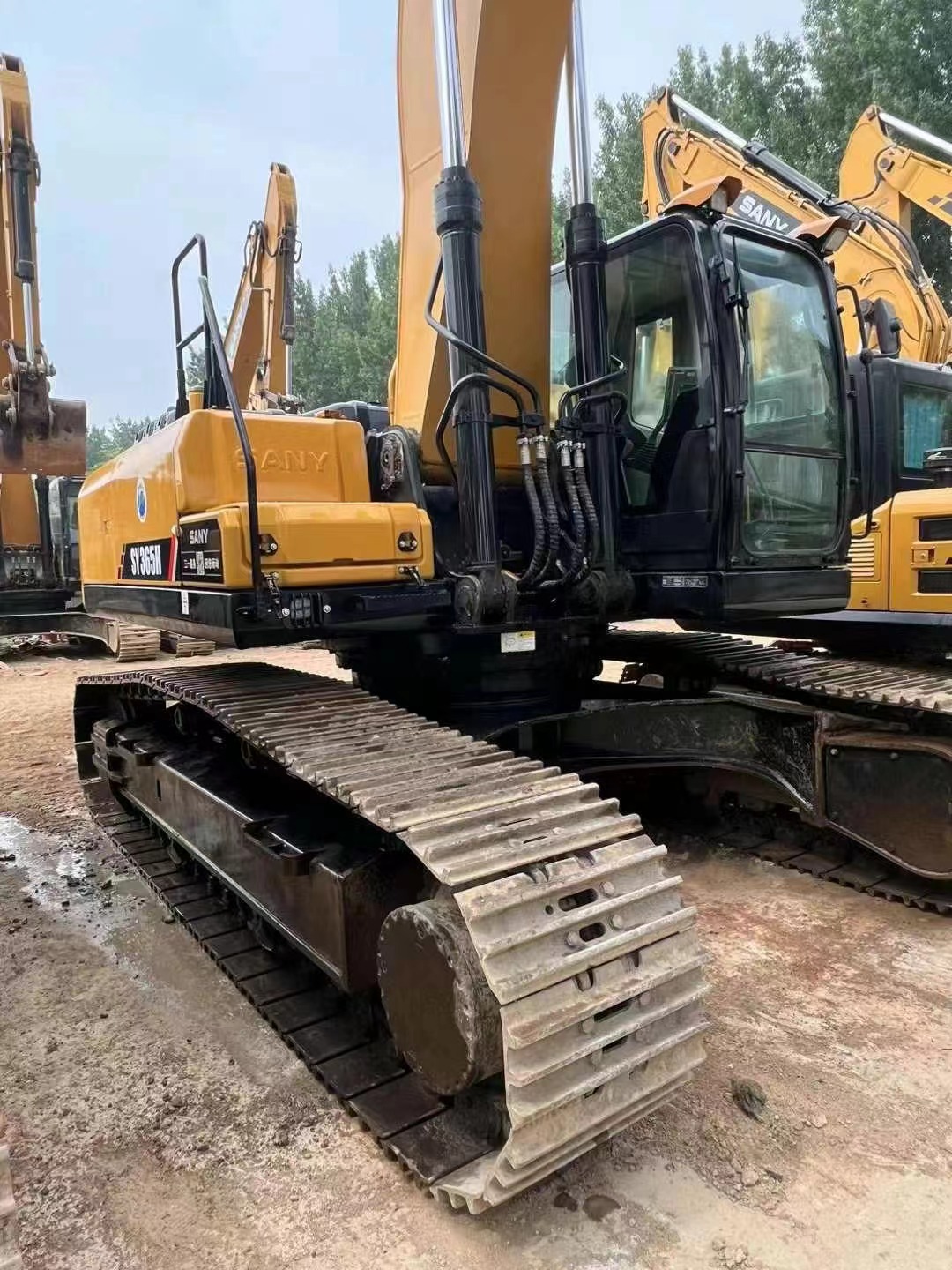

SANY245
Machine weight 25500kg Bucket capacity 1.4m³ Power 150/2000kW/rpm Total length (during transportation) 10290mm Total width 3190mm Total height (during transportation) 3255mm Upper width 3045mm Total height (top of cab) 3255mm Standard track shoe width 600mm Track gauge 2590mm Minimum ground clearance 470mm Tail turning radius 3105mm Track ground length 3640mm Track length 4445mm Machine weight 25500kg Bucket capacity 1.4m³ Rated power 150/2000kW/rpm Travel speed (high/low) 5.8/3.7km/h Slewing speed 10rpm Gradability 70% (35°) Ground pressure 52.5kPa Bucket digging force 175 (187) kN Arm digging force 120 (129) kN Maximum digging height 9745mm Maximum unloading height 6715mm Maximum digging depth 6705mm Maximum digging radius 10225mm Maximum vertical arm digging depth 5675mm Maximum height at minimum swing radius 8016mm Minimum swing radius 3800mm
