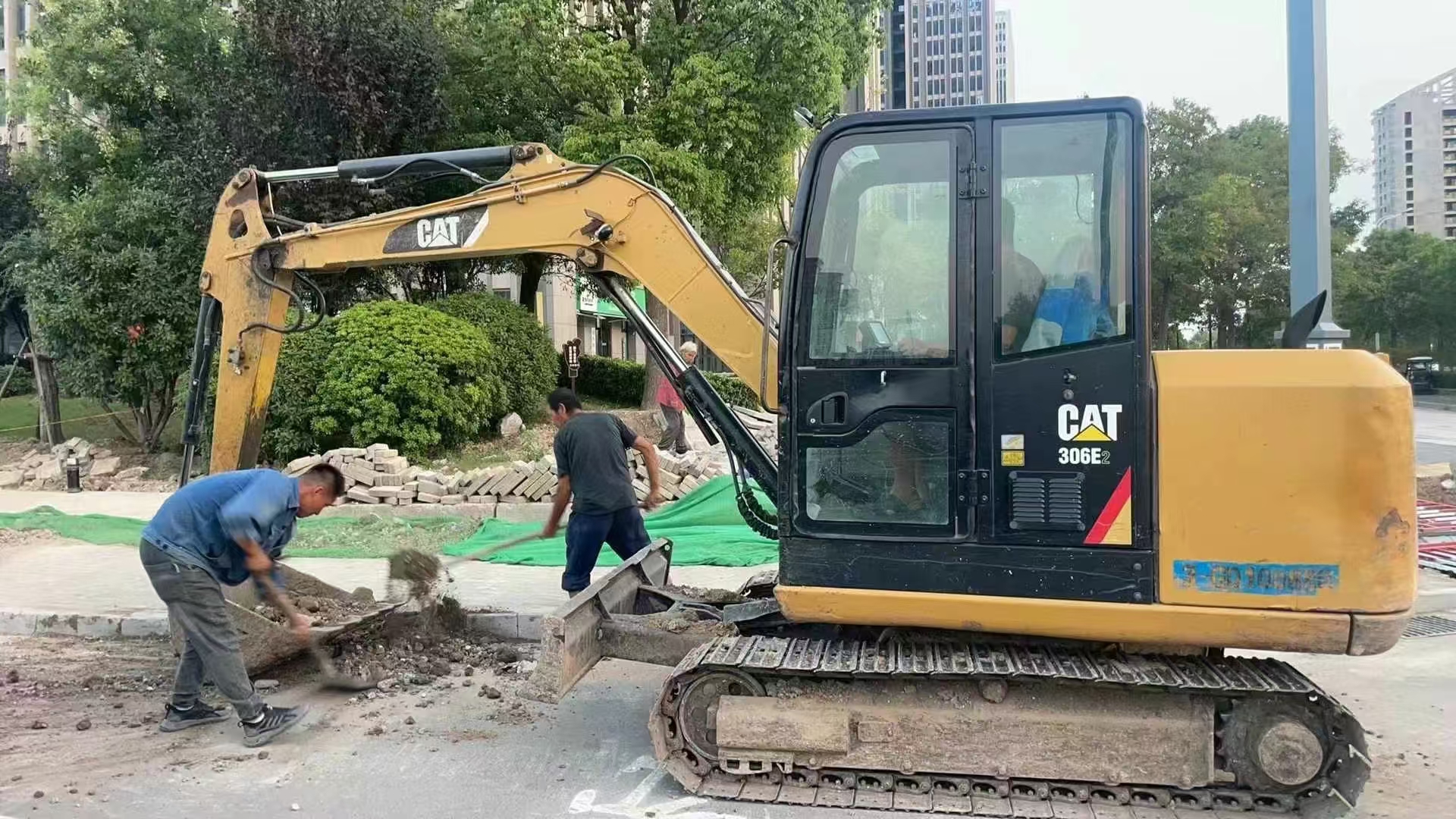

Caterpillar306E2
Tonnage (tons) 6 Machine operating weight (kg) 5800 Bucket width (mm) 834 Bucket capacity (m³) 0.25 Boom length (mm) 3200 Arm length (mm) 1650 Performance Slewing speed (rpm) 10.5 Slewing torque (Nm) 14.2 Travel speed (km/h) 4.3 Gradability (%) 25 Bucket digging force (kN) 39 Arm digging force (kN) 28 Power system Engine model Cat C2.4 (DI Turbo) Rated power (kw/rpm) 34.7 (47.2 hp) Displacement (L) 2.4 Bore × stroke (mm) 87 mmx102.4 mm Oil capacity Fuel tank (L) 78 Hydraulic oil tank (L) 58 Hydraulic system (L) 85 Engine oil change (L) 9.5 Coolant (L )8.3 Main dimensions Total transport width (mm) 1950 Total track length (mm) 2440 Track shoe width (mm) 400 Rear end turning radius (mm) 1580 Operating range Maximum digging radius (mm) 6090 Maximum digging depth (mm) 3870 Maximum digging height (mm) 5530 Maximum unloading height (mm) 3900
