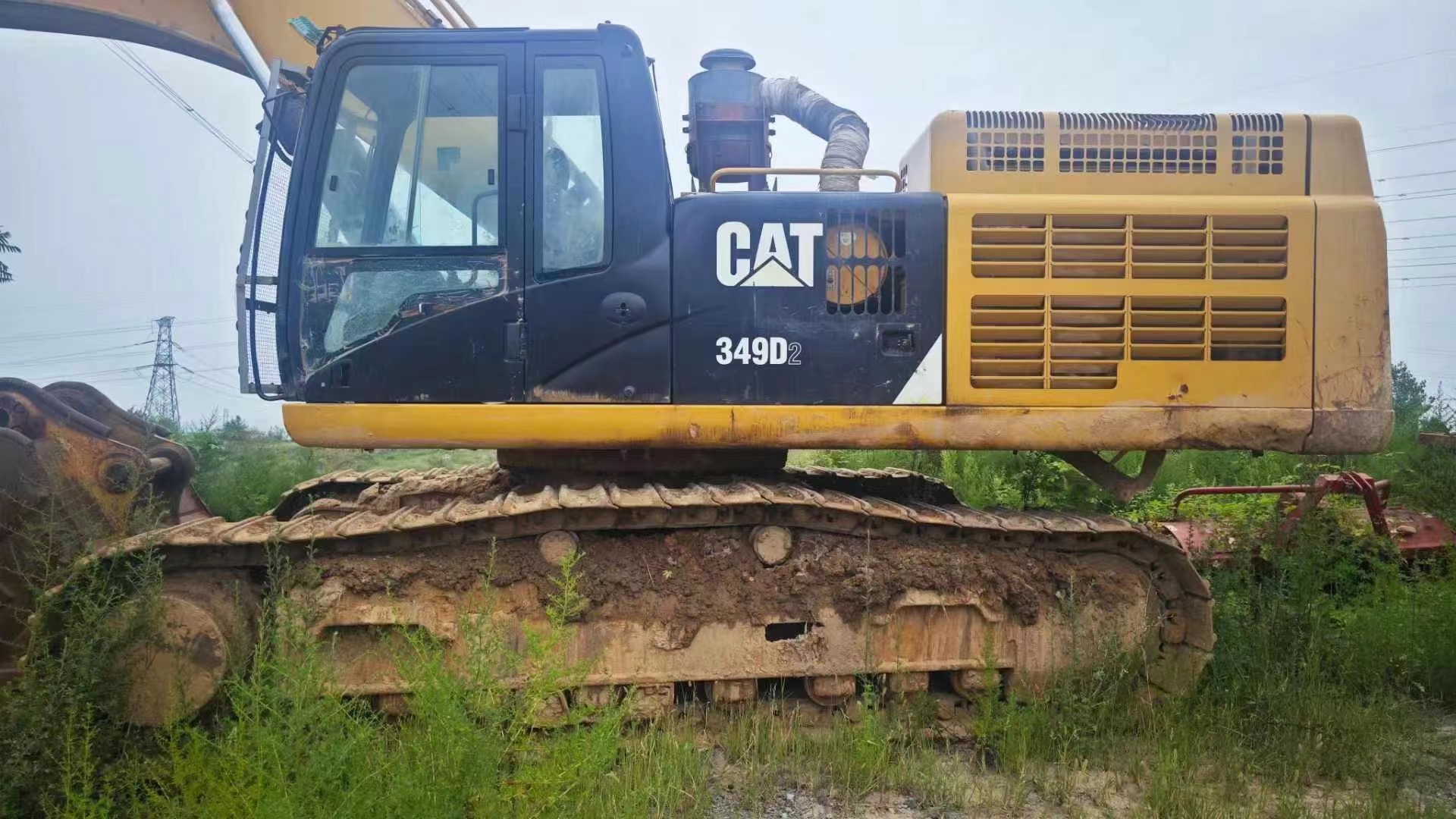

Caterpillar 349D2
Tonnage (tons) 49 Machine operating weight (kg) 45260 Bucket capacity (m³) 3.2 Boom length (mm) 6900 Arm length (mm) 3350 Performance Slewing speed (rpm) 8.7 Slewing torque (Nm) 149 Travel speed (km/h) 4.5 Gradability (%) 70 Bucket digging force (kN) 267 Arm digging force (kN) 201 Maximum traction force (kN) 338 Power system Engine model Cat C13 ACERT Rated power (kw/rpm) 289 Displacement (L) 12.5 Bore × stroke (mm) 130 × 157 Hydraulic system Main pump maximum flow (l/min) 734 Pilot pump flow (L/min) 43 Pilot oil circuit (MPa) 4.11 Travel hydraulic circuit (Mpa) 35 Slewing hydraulic circuit (Mpa )31.4 Main overflow setting pressure (Mpa) 35 Boom cylinder – number × cylinder diameter × stroke (mm) 160 × 1575 Arm cylinder – number × cylinder diameter × stroke (mm) 190 × 1778 Bucket cylinder – number × cylinder diameter × stroke (mm) 160 × 1356 Oil capacity Fuel tank (L) 705 Hydraulic oil tank (L) 243 Hydraulic system (L) 570 Engine oil replacement amount (L) 42 Coolant (L )35.5 Main dimensions Total transport length (mm) 11940 Total transport width (mm) 3340 Total transport height (mm) 3690 Total cab height (mm) 3640 Total track length (mm) 5070 Track shoe width (mm)...
Learn More
Caterpillar305.5
Tonnage (tons) 5 Machine operating weight (kg) 5400 Bucket width (mm) 766.0 Bucket capacity (m³) 0.22 Boom length (mm) 3200.0 Arm length (mm) 1500.0 Performance Slewing speed (rpm) 10.5 min-1 Slewing torque (Nm) 13.9 N·m Travel speed (km/h) 4.3/2.8 Gradability (%) 50 Bucket digging force (kN) 35.0 Arm digging force (kN) 27.2 Maximum traction force (kN) 40.2 Power system Engine model Cat C2.4 DI Rated power (kw/rpm) 34.1 Displacement (L) 2.4 Bore × stroke (mm) 87.0*102.4 Hydraulic system Main pump type Load-sensing hydraulic system equipped with variable displacement piston pump Main pump maximum flow (l/min) 140.0 Oil capacity Fuel tank (L) 78 Hydraulic oil tank (L) 58 Hydraulic system (L) 85 Engine oil change volume (L) 9.5 Coolant (L ) 9.8 Main body dimensions Total transport length (mm) 5765.0 Total transport width (mm) 1950.0 Total transport height (mm) 2540.0 Total track length (mm) 2440.0 Track shoe width (mm) 400.0 Track gauge (mm) 1550.0 Minimum ground clearance (mm ) 628.0 Center distance between supporting wheels (mm) 1920.0 Rear end turning radius (mm )1580.0 Operating range Maximum digging radius (mm)5955.0 Maximum digging radius of parking surface (mm)5830.0 Maximum digging depth (mm)3720.0 Maximum digging height (mm)5460.0 Maximum unloading height (mm)3835.0 Maximum vertical digging...
Learn More
Caterpillar323
Bucket backhoe Tonnage (tons) 23 Machine operating weight (kg) 24500 Bucket capacity (m³) 1.4 Boom length (mm) 5700 Arm length (mm) 2900 Performance Swing speed (rpm) 11.25 Swing torque (Nm) 82k Bucket digging force (kN) 140 Arm digging force (kN) 107 Power system Engine model Cat® C7.1 Rated power (kw/rpm) 151/2000 Displacement (L) 7 Cylinder diameter × stroke (mm) 105 × 135 Emission standard National IV Hydraulic system Main pump maximum flow (l/min) 429 Working hydraulic oil circuit (Mpa) 35 Travel hydraulic circuit (Mpa) 34.3 Swing hydraulic circuit (Mpa) )27.5 Oil capacity Fuel tank (L)345 Hydraulic oil tank (L)115 Hydraulic system (L)234 Engine oil change volume (L)25 Coolant (L)25 Main body dimensions Total length for transportation (mm)9530 Total width for transportation (mm)2980 Total height for transportation (mm)2960 Track shoe width (mm)600 Track gauge (mm)2380 Minimum ground clearance (mm)470 Counterweight ground clearance (mm)1050 Spacing between center of supporting wheels (mm)3650 Rear end turning radius (mm)2830 Operating range Maximum digging radius (mm)9870 Maximum digging depth (mm)6730 Maximum digging height (mm)9450 Maximum unloading height (mm)6480 Maximum vertical digging depth (mm)5620
Learn More
Caterpillar305.5
Tonnage (tons) 5 Machine operating weight (kg) 5400 Bucket width (mm) 766.0 Bucket capacity (m³) 0.22 Boom length (mm) 3200.0 Arm length (mm) 1500.0 Performance Slewing speed (rpm) 10.5 min-1 Slewing torque (Nm) 13.9 N·m Travel speed (km/h) 4.3/2.8 Gradability (%) 50 Bucket digging force (kN) 35.0 Arm digging force (kN) 27.2 Maximum traction force (kN) 40.2 Power system Engine model Cat C2.4 DI Rated power (kw/rpm) 34.1 Displacement (L) 2.4 Bore × stroke (mm) 87.0*102.4 Hydraulic system Main pump type Load-sensing hydraulic system equipped with variable displacement piston pump Main pump maximum flow (l/min) 140.0 Oil capacity Fuel tank (L) 78 Hydraulic oil tank (L) 58 Hydraulic system (L) 85 Engine oil change volume (L) 9.5 Coolant (L ) 9.8 Main body dimensions Total transport length (mm) 5765.0 Total transport width (mm) 1950.0 Total transport height (mm) 2540.0 Total track length (mm) 2440.0 Track shoe width (mm) 400.0 Track gauge (mm) 1550.0 Minimum ground clearance (mm ) 628.0 Center distance between supporting wheels (mm) 1920.0 Rear end turning radius (mm )1580.0 Operating range Maximum digging radius (mm)5955.0 Maximum digging radius of parking surface (mm)5830.0 Maximum digging depth (mm)3720.0 Maximum digging height (mm)5460.0 Maximum unloading height (mm)3835.0 Maximum vertical digging...
Learn More
Caterpillar305.5
Tonnage (tons) 5 Machine operating weight (kg) 5400 Bucket width (mm) 766.0 Bucket capacity (m³) 0.22 Boom length (mm) 3200.0 Arm length (mm) 1500.0 Performance Slewing speed (rpm) 10.5 min-1 Slewing torque (Nm) 13.9 N·m Travel speed (km/h) 4.3/2.8 Gradability (%) 50 Bucket digging force (kN) 35.0 Arm digging force (kN) 27.2 Maximum traction force (kN) 40.2 Power system Engine model Cat C2.4 DI Rated power (kw/rpm) 34.1 Displacement (L) 2.4 Bore × stroke (mm) 87.0*102.4 Hydraulic system Main pump type Load-sensing hydraulic system equipped with variable displacement piston pump Main pump maximum flow (l/min) 140.0 Oil capacity Fuel tank (L) 78 Hydraulic oil tank (L) 58 Hydraulic system (L) 85 Engine oil change volume (L) 9.5 Coolant (L ) 9.8 Main body dimensions Total transport length (mm) 5765.0 Total transport width (mm) 1950.0 Total transport height (mm) 2540.0 Total track length (mm) 2440.0 Track shoe width (mm) 400.0 Track gauge (mm) 1550.0 Minimum ground clearance (mm ) 628.0 Center distance between supporting wheels (mm) 1920.0 Rear end turning radius (mm )1580.0 Operating range Maximum digging radius (mm)5955.0 Maximum digging radius of parking surface (mm)5830.0 Maximum digging depth (mm)3720.0 Maximum digging height (mm)5460.0 Maximum unloading height (mm)3835.0 Maximum vertical digging...
Learn More

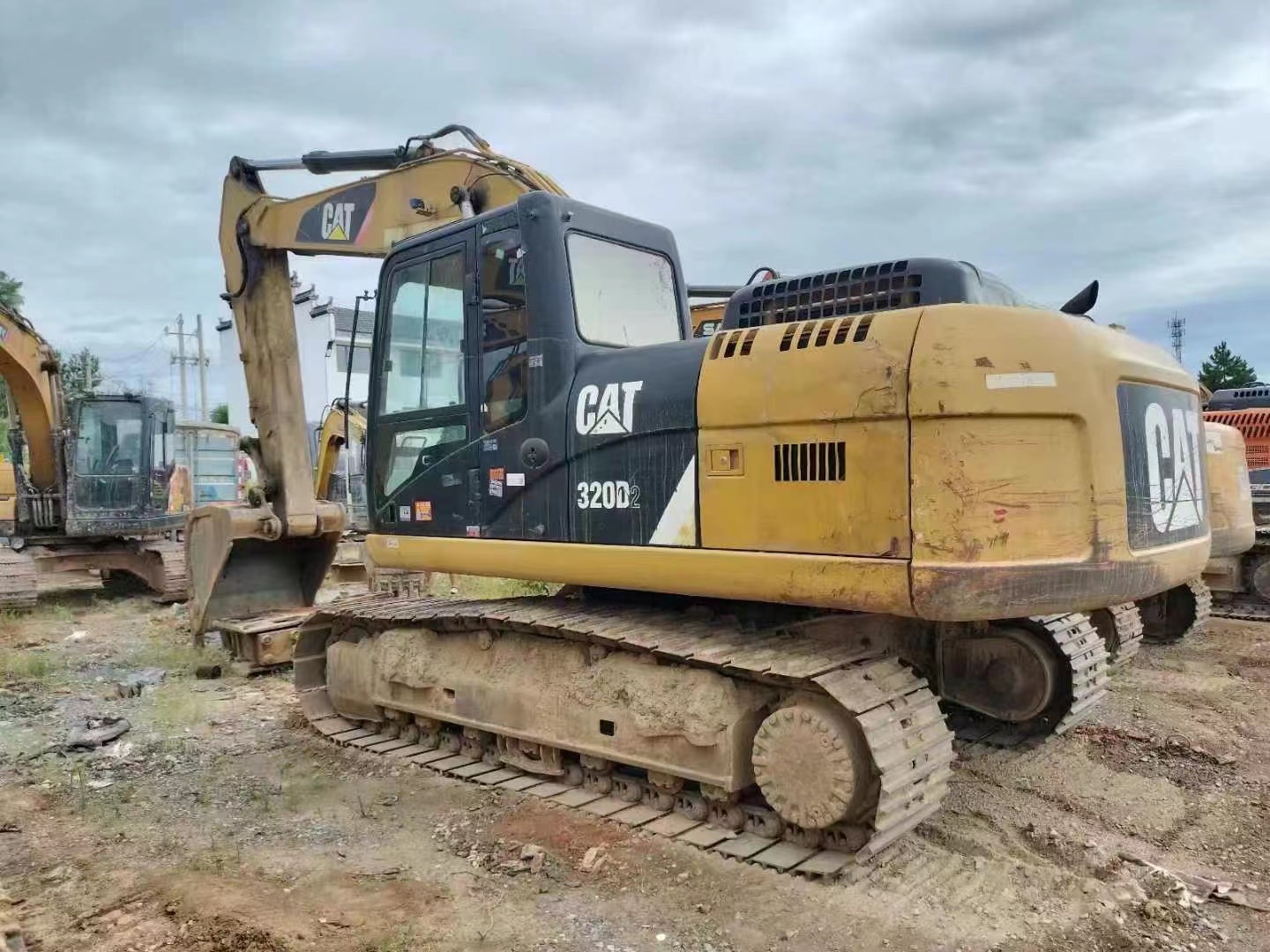

Caterpillar320D2
Tonnage (tons) 20 Machine operating weight (kg) 21100 Bucket capacity (m³) 1 Boom length (mm) 5700 Arm length (mm) 2500/2900 (HD type) Performance Slewing speed (rpm) 10.9 Slewing torque (Nm) 61.8 Travel speed (km/h) 5.4 Gradability (%) 70/35° Bucket digging force (kN) 125 Arm digging force (kN) 104 Maximum traction force (kN) 205 Power system Engine model Cat C7.1 Rated power (kw/rpm) 112/1800 Displacement (L) 7.01 Number of cylinders (pcs) 6 Bore × stroke (mm) 105 × 135 Working mode National 2 emission Hydraulic system Main pump type Caterpillar Axial piston pump + pilot pump Main pump maximum flow (l/min) 404 Pilot pump flow (L/min) 32.4 Pilot oil circuit (MPa) 39 Working hydraulic oil circuit (Mpa) 34.3 Travel hydraulic circuit (Mpa) 35 Slewing hydraulic circuit (Mpa) 25 Main overflow setting pressure (Mpa) 35 Boom cylinder-number × cylinder diameter × stroke (mm) 120 × 1260 Arm cylinder-number × cylinder diameter × stroke (mm) 140 × 1504 Bucket cylinder-number × cylinder diameter × stroke (mm) 120 × 1104 Is the hydraulic crushing pipeline standard? Oil capacity Fuel tank (L) 410 Hydraulic oil tank (L) 138 Hydraulic system (L) 260 Engine oil replacement amount (L) 22 Coolant (L )25 Main dimensions Total length...
Learn More
