VOLVO60

Tonnage (tons) 6
Machine operating weight (kg) 5730
Bucket capacity (m³) 0.18-0.2
Boom length (mm) 3100
Arm length (mm) 1500
Place of origin Qingdao, Shandong
Performance
Slewing speed (rpm) 10.2
Travel speed (km/h) 4.5/3.0
Gradability (%) 30
Ground pressure (Kpa) 32
Bucket digging force (kN) 42
Arm digging force (kN) 31
Power system

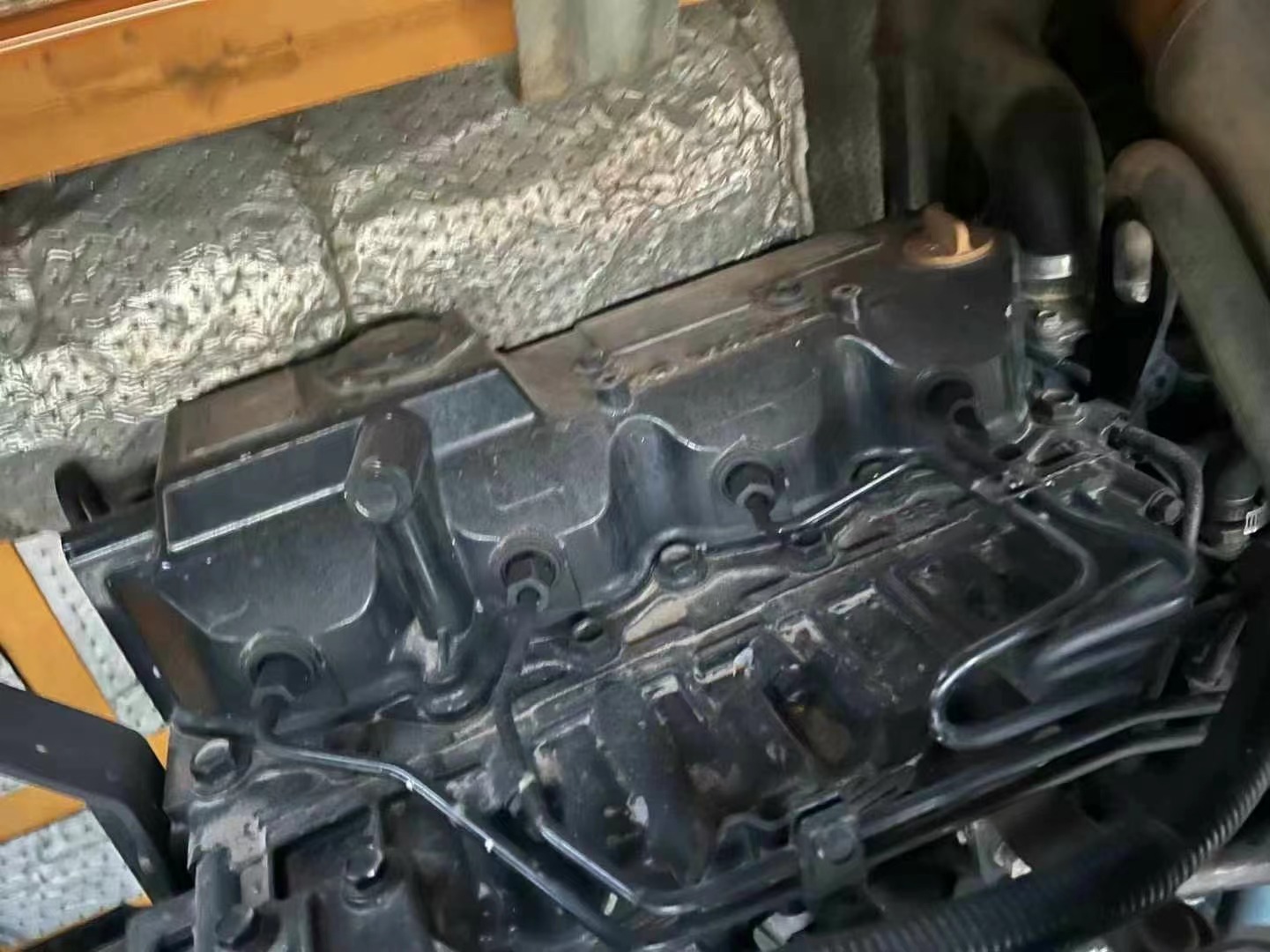

Engine model Yanmar 4TNV94L-SFN
Rated power (kw/rpm) 39/2200
Maximum torque (N.m) 200～218/1000±100
Displacement (L) 3.054
Number of cylinders (pcs) 4
Cooling method Water cooling
Working mode Natural aspiration, direct injection
Hydraulic system
Main pump type Swash plate piston pump
Main pump maximum flow (l/min) 135
Is hydraulic crushing pipeline standard?
Main body size
Track shoe width (mm) 400
Operating range
Maximum digging radius (mm) 6100
Maximum digging depth (mm) 3935
Maximum digging height (mm) 5330
Maximum unloading height (mm) 3640
Bulldozer blade width × height (mm) 1880 × 360
