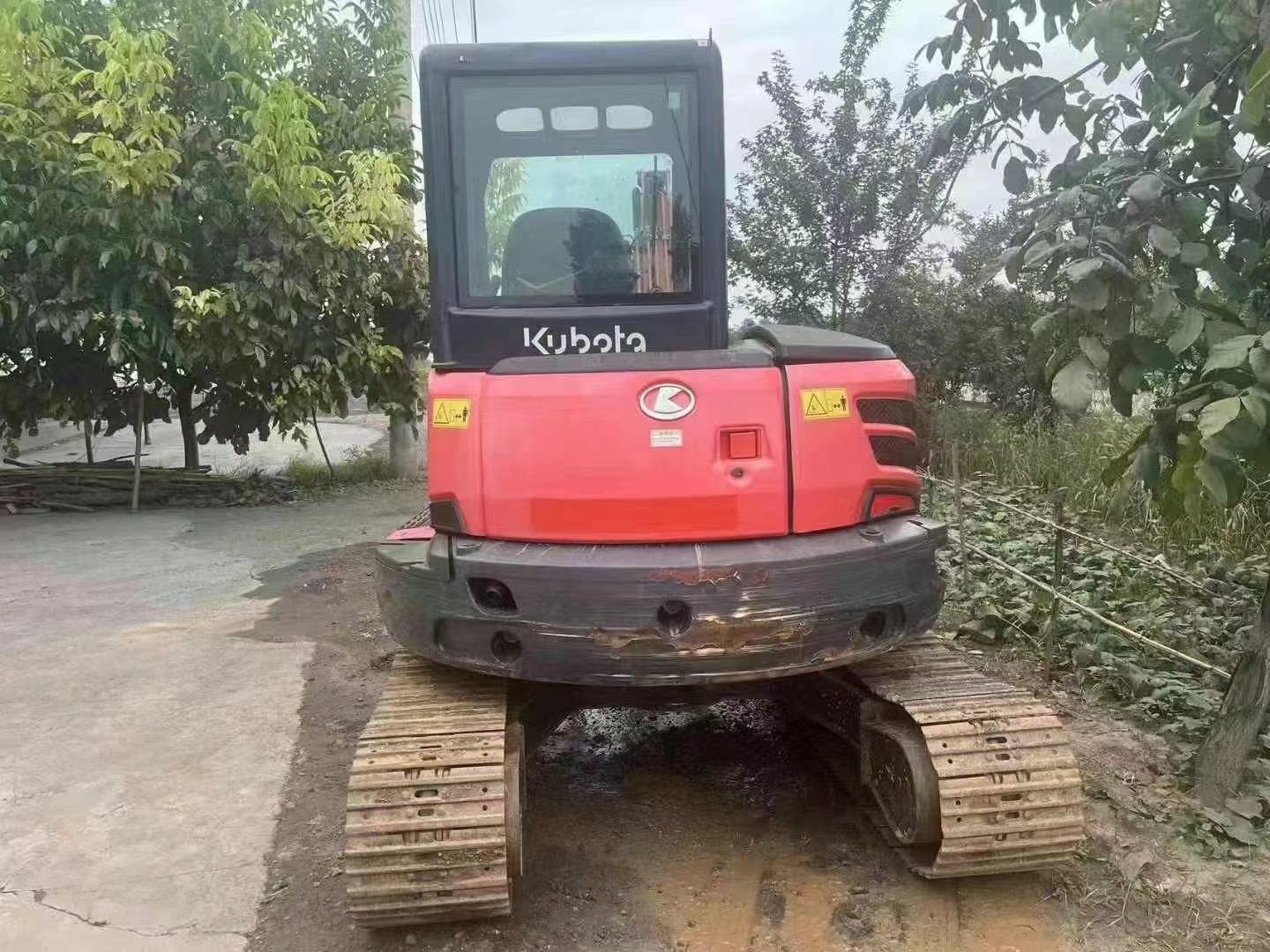

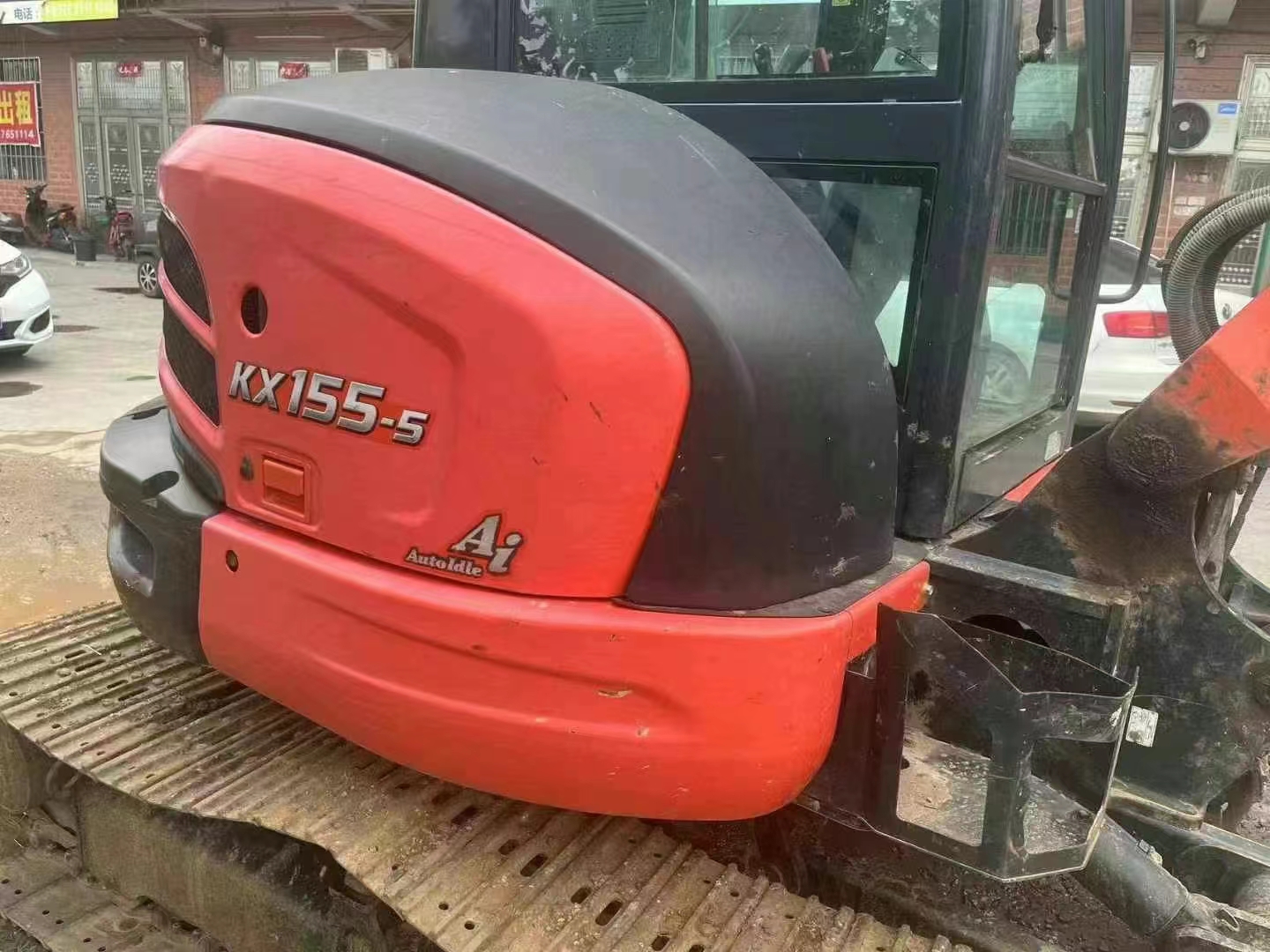

Kuboto155

Tonnage (tons) 5
Working weight of the whole machine (kg) 5190
Bucket width (mm) 730/680
Bucket capacity (m³) 0.19
Performance
Slewing speed (rpm) 9.3
Travel speed (km/h) 2.7/4.7
Bucket digging force (kN) 36.5

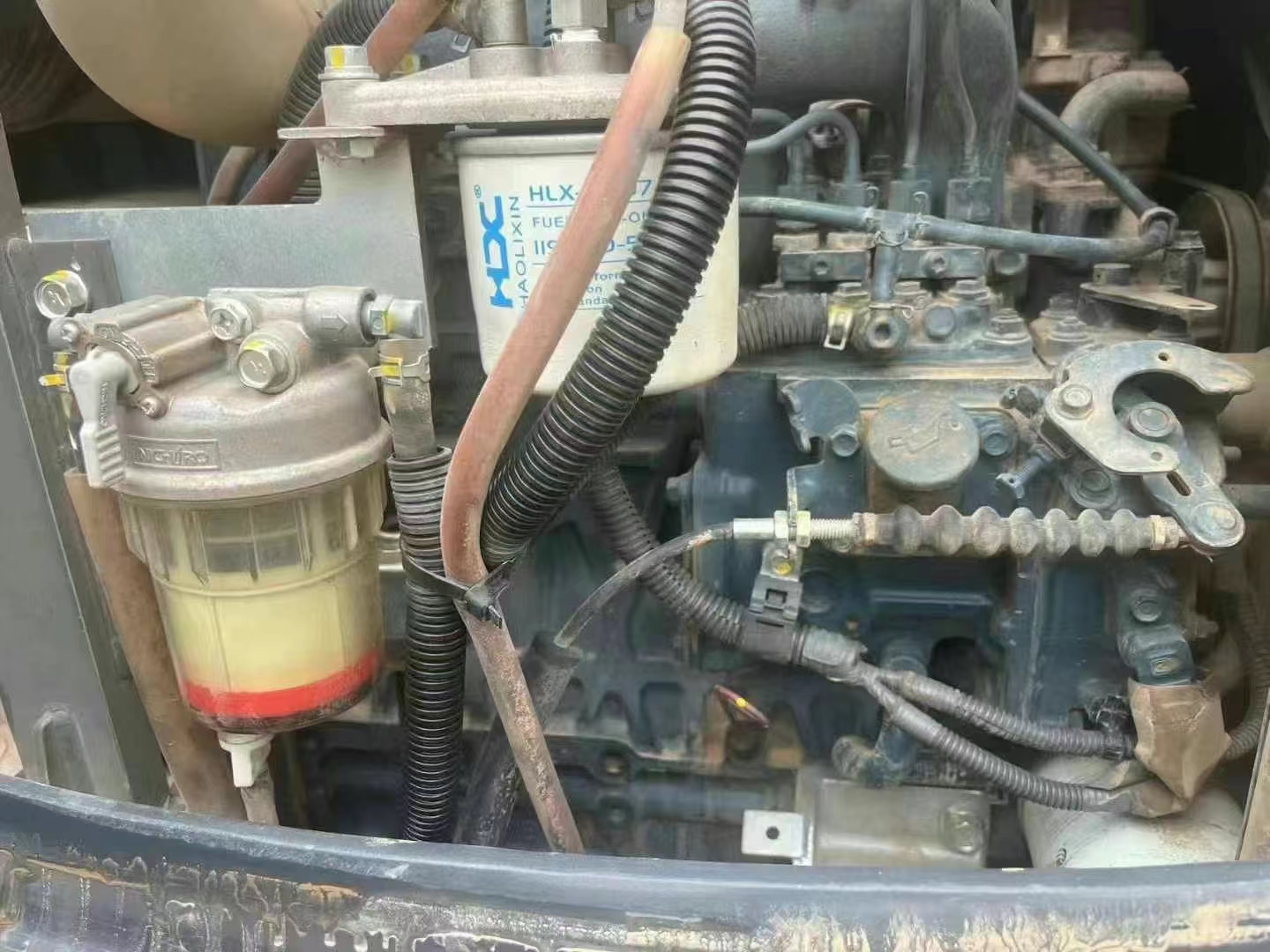

Power system
Engine model V2403-E3
Rated power (kw/rpm) 29.2/2200
Displacement (L) 2.434

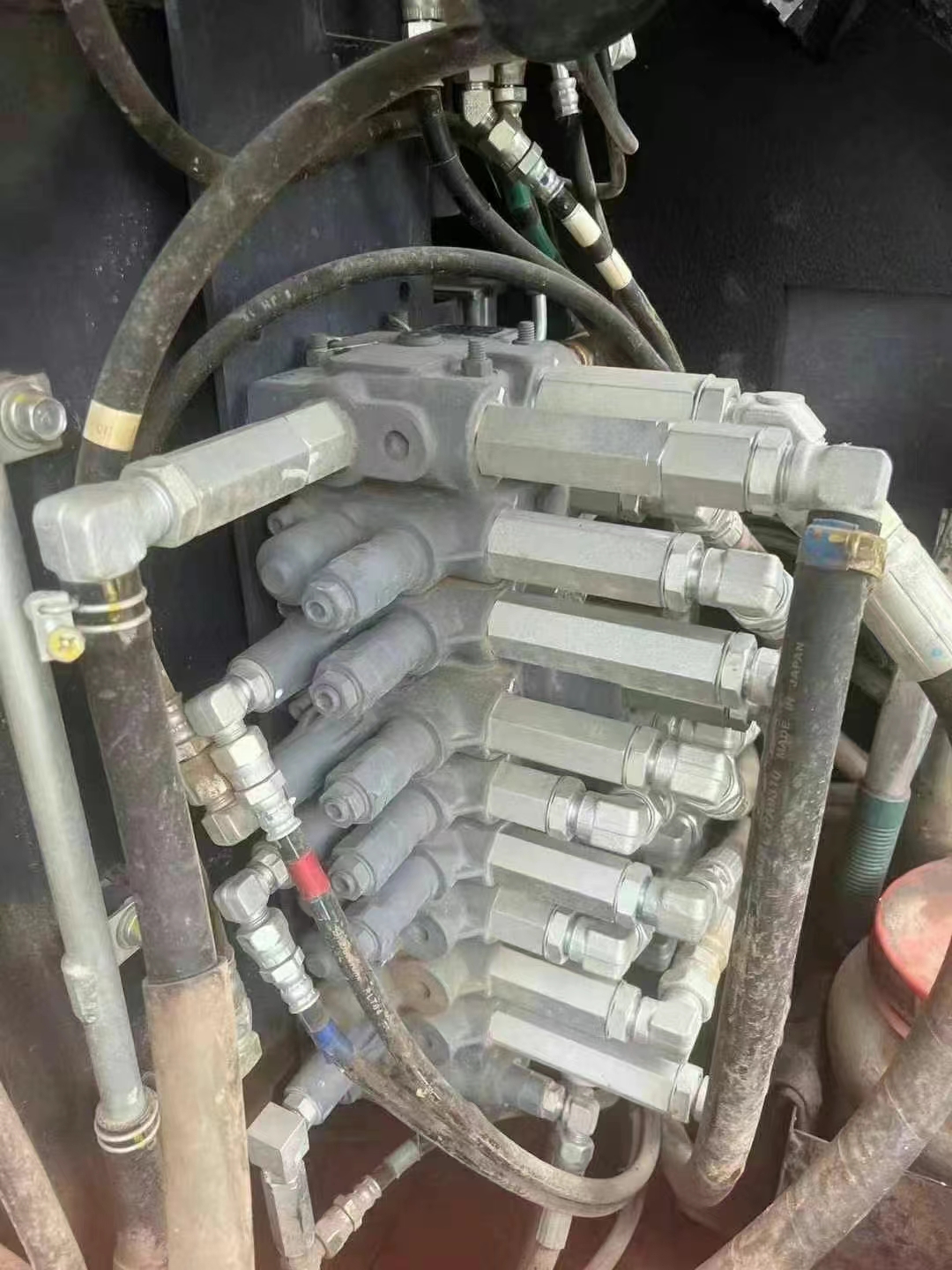

Hydraulic system
Main pump type variable pump x1 + gear pump x1
Slewing hydraulic motor type plunger hydraulic motor
Oil capacity
Fuel tank (L) 100
Main body size
Total transport length (mm) 5510
Total transport width (mm) 1960
Total transport height (mm) 2540
Total track length (mm) 2500
Track shoe width (mm) 400
Track gauge (mm) 1560
Minimum ground clearance (mm )320
Rear end turning radius (mm) 1060
Operating range
Maximum digging radius (mm) 5995
Maximum digging depth (mm) 3560
Maximum digging height (mm) 5630
Maximum unloading height (mm) 4000
Maximum vertical digging depth (mm) 2890

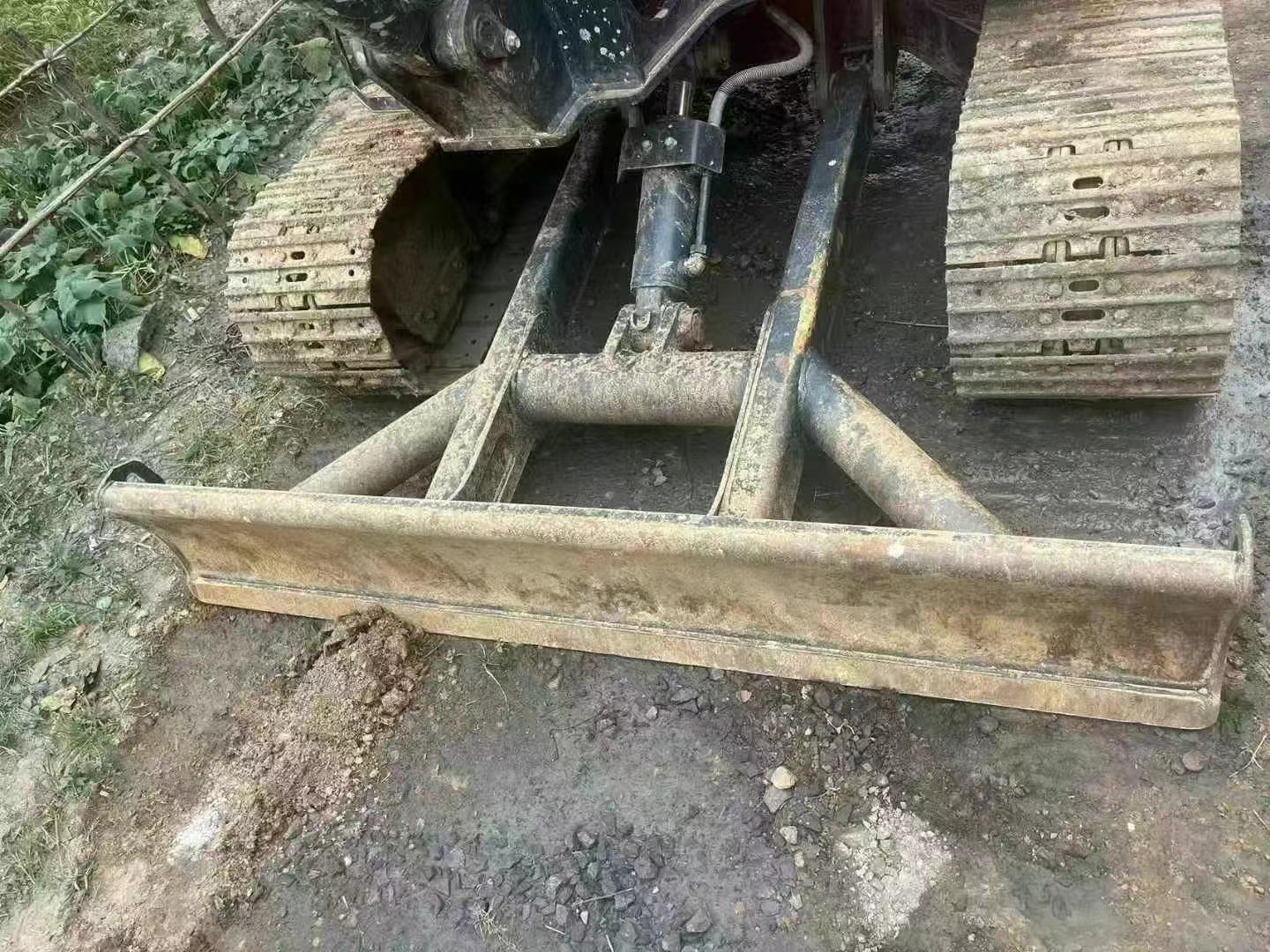

Bulldozer blade width × height (mm) 1960×360
Bulldozer blade lifting or pushing depth (mm) 445/375
