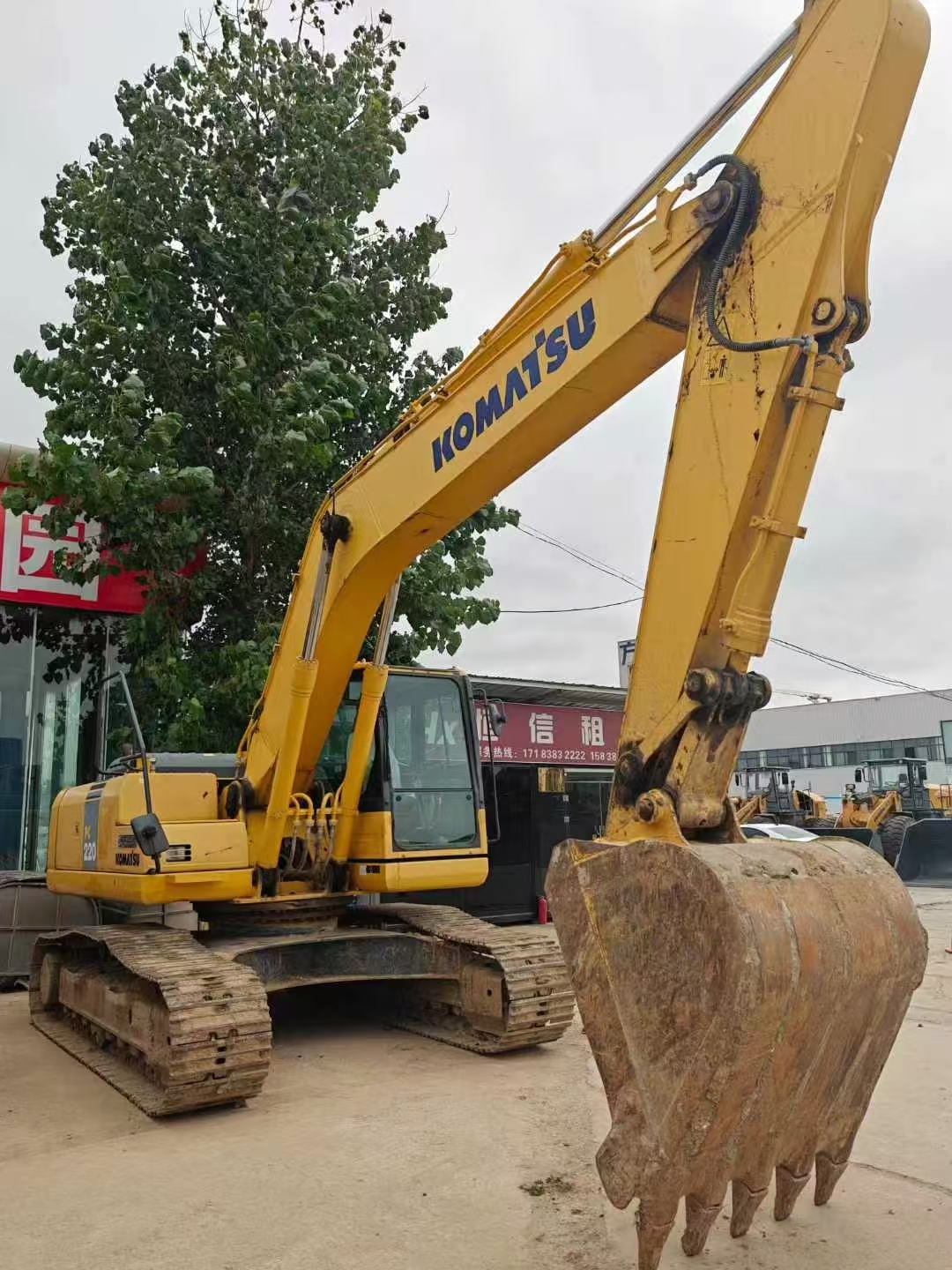

Komatsu200

Machine working weight (kg) 19900
Bucket capacity (m³) 0.8
Boom length (mm) 5700
Arm length (mm) 2925
Tonnage (tons) 20
Performance
Slewing speed (rpm) 12.4
Travel speed (km/h) 3.0/4.1/5.5
Gradability (%) 70/35°
Ground pressure (Kpa) 44.1
Bucket digging force (kN) 149
Arm digging force (kN) 108
Power system

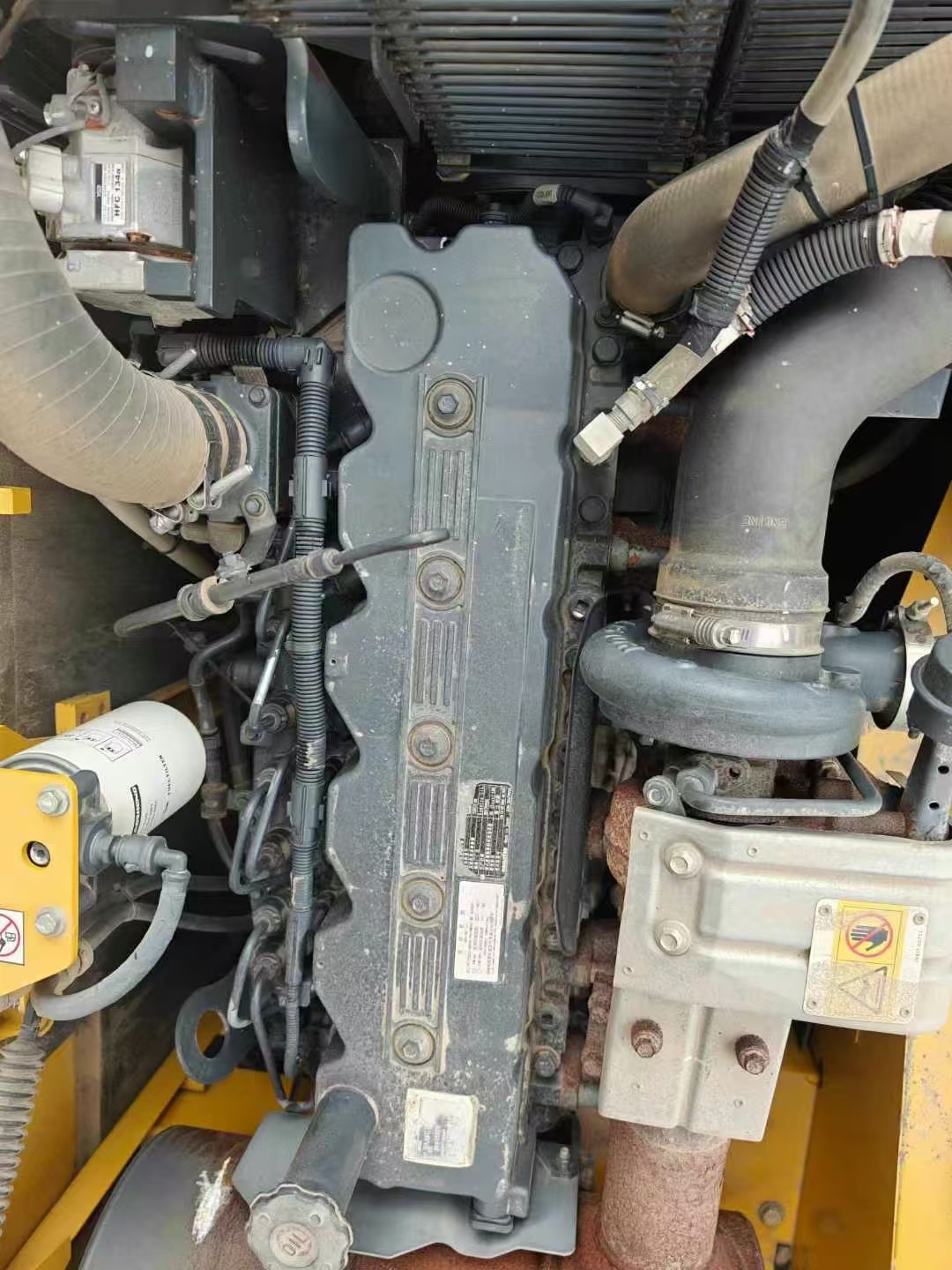

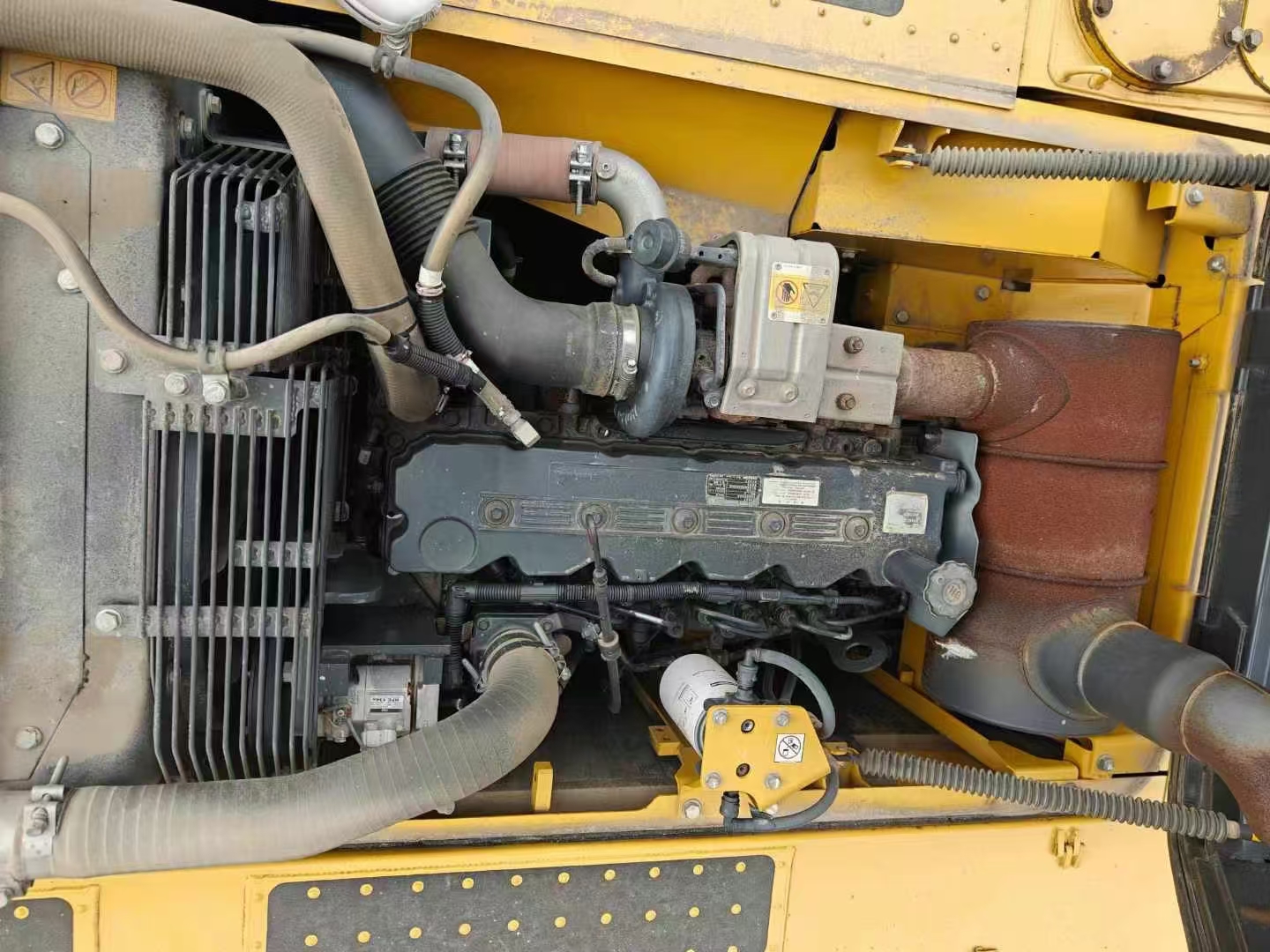

Engine model Komatsu SAA6D107E-1
Rated power (kw/rpm) 110/2000
Displacement (L) 6.69
Working mode 6-cylinder, direct injection, turbocharged, aftercooling engine; meets 2006EPA/Tier3 and EUIIIA standards.

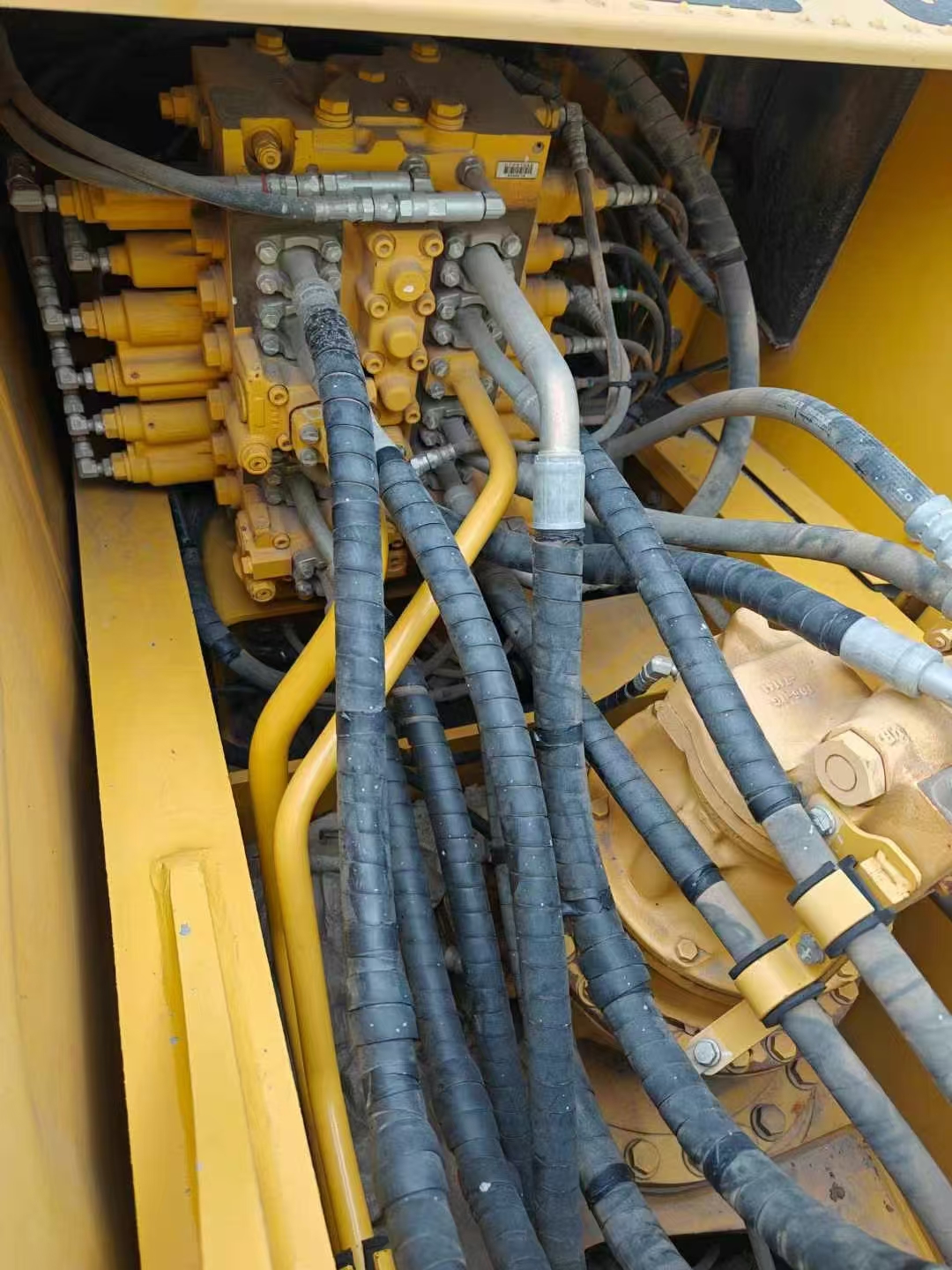

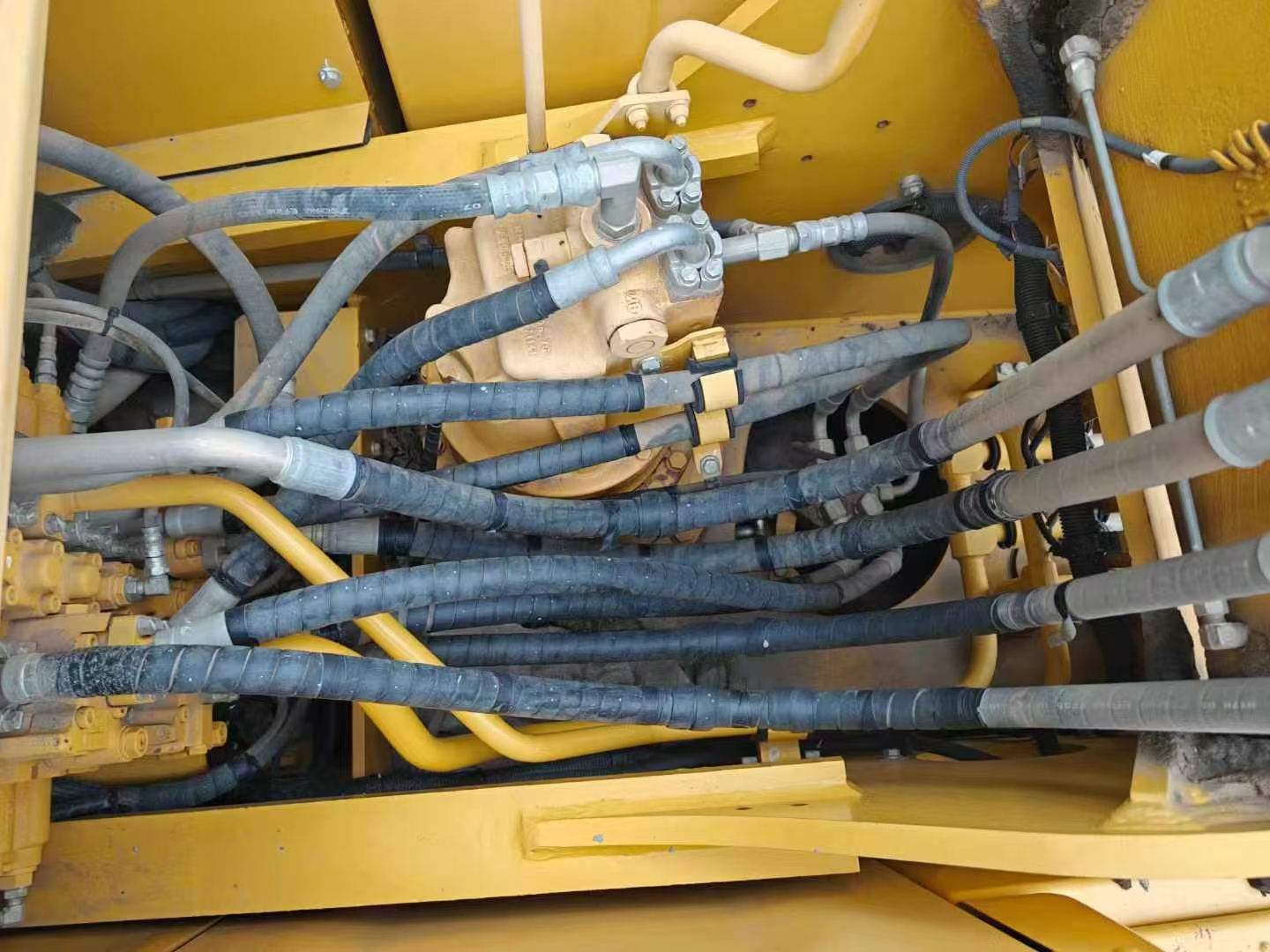

Hydraulic system
Travel hydraulic motor type Axial piston motor × 2 (with parking brake)
Swing hydraulic motor type Axial piston motor × 1 (with swing holding valve)
Main pump maximum flow (l/min) 439
Travel hydraulic circuit (Mpa) 37.3
Swing hydraulic circuit (Mpa) 28.9
Control hydraulic circuit (Mpa) 3.2 Pilot oil circuit

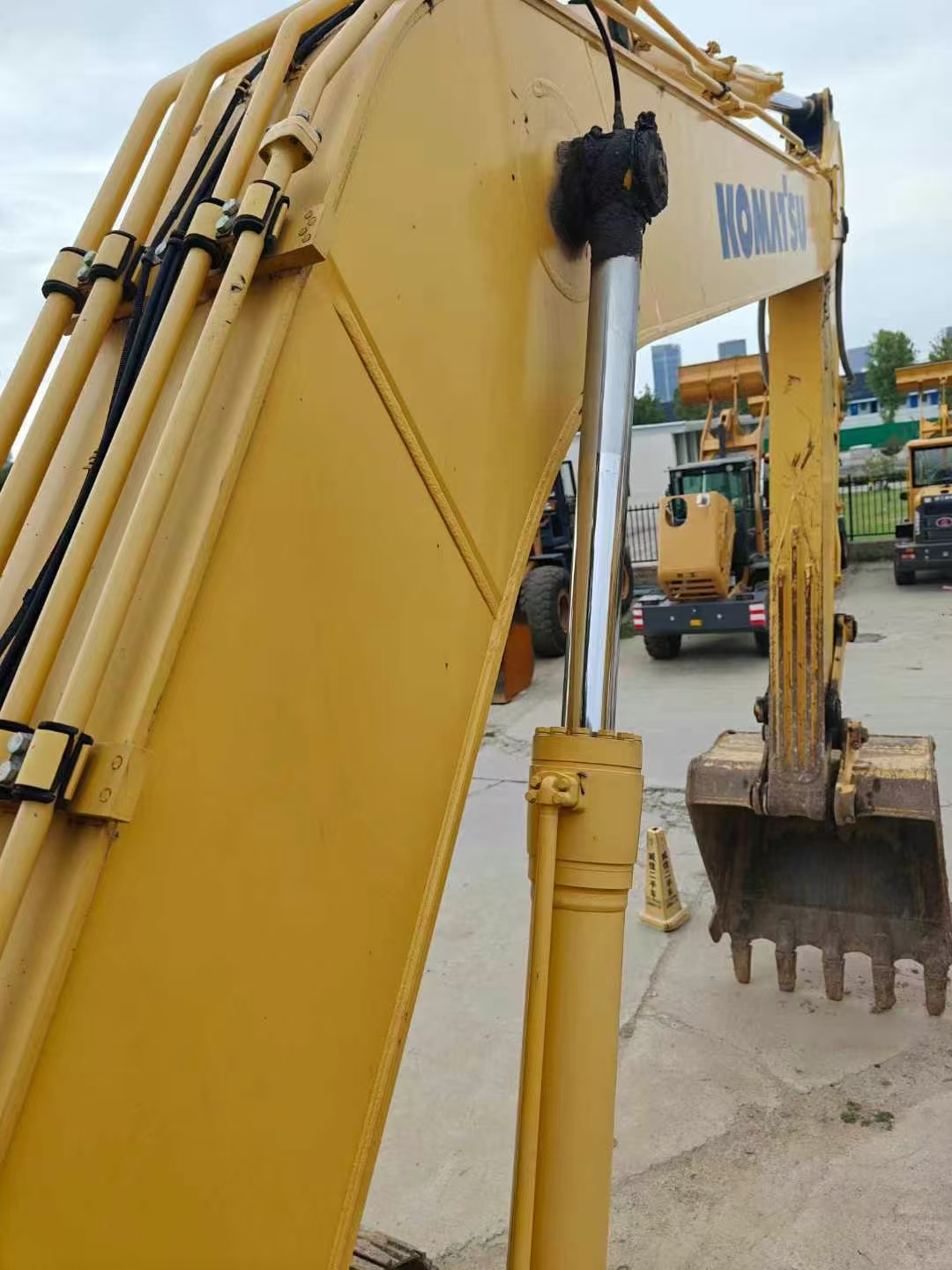

Boom cylinder – number × cylinder diameter × stroke (mm) 120 × 1334 × 85
Arm cylinder – number × cylinder diameter × stroke (mm) 135 × 1490 × 95
Bucket cylinder – number × cylinder diameter × stroke (mm) 115 × 1120 × 80
Is the hydraulic crushing pipeline standard?
Oil capacity
Fuel tank (L) 400
Hydraulic oil tank (L) 135
Engine oil replacement amount (L) 23.1
Coolant (L )20.4
Main dimensions
Total length for transport (mm) 9480
Total width for transport (mm) 2800
Total height for transport (mm) 3040
Total height of cab (mm) 3040
Track ground length (mm) 3275
Total length of track (mm) 4070
Track shoe width (mm) 600
Total track width (mm) 2800
Track gauge (mm) 2200
Counterweight ground clearance (mm) 1085
Minimum ground clearance (mm )440
Rear end turning radius (mm )2710
Operating range
Maximum digging radius (mm) 9875
Maximum digging radius of parking surface (mm) 9700
Maximum digging depth (mm) 6620
Maximum digging height (mm) 10000
Maximum unloading height (mm) 7110
Maximum vertical digging depth (mm) 5980
Maximum effective digging depth (mm) 6370
Bulldozer lifting or pushing depth (mm) No bulldozer
