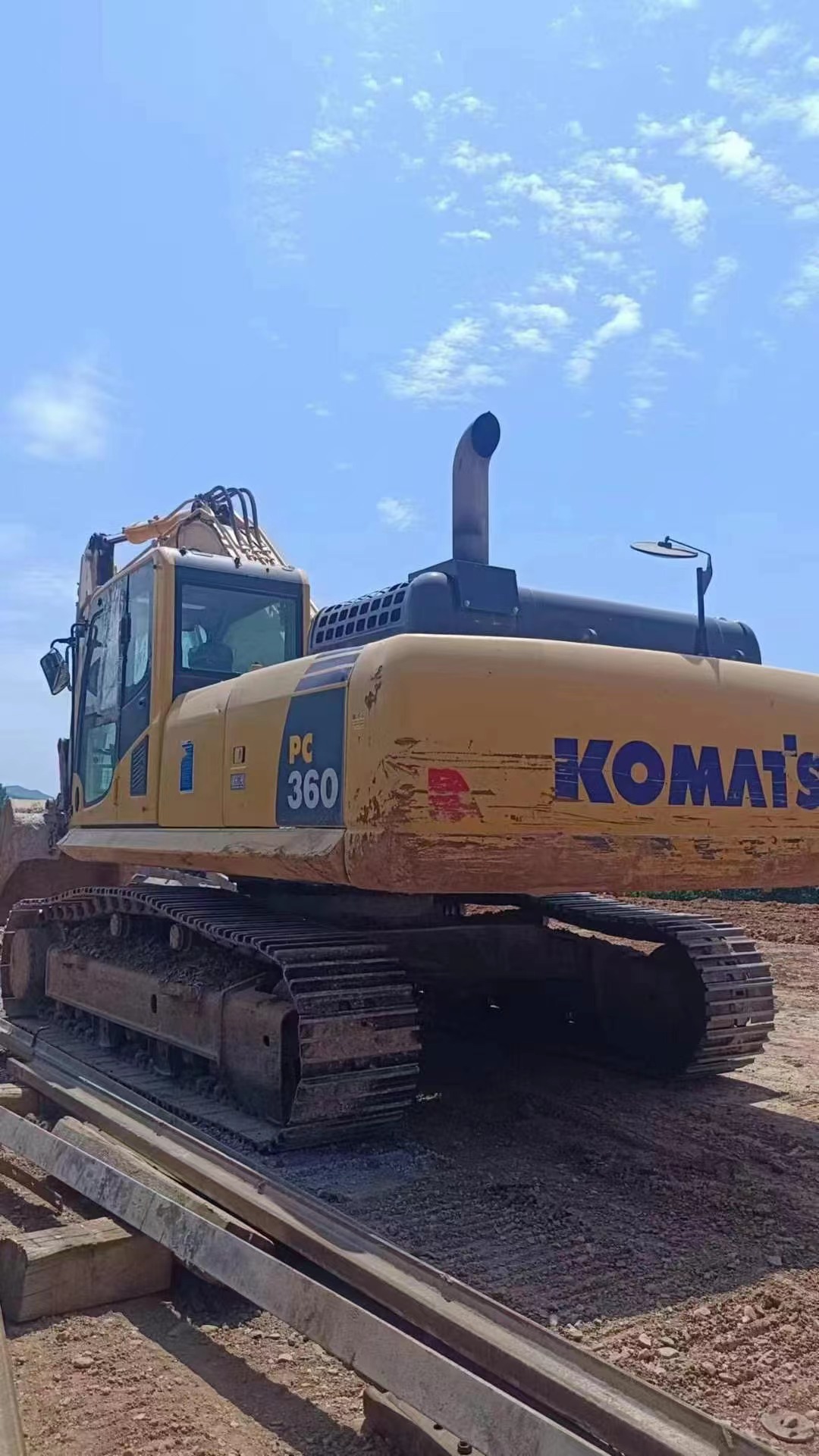

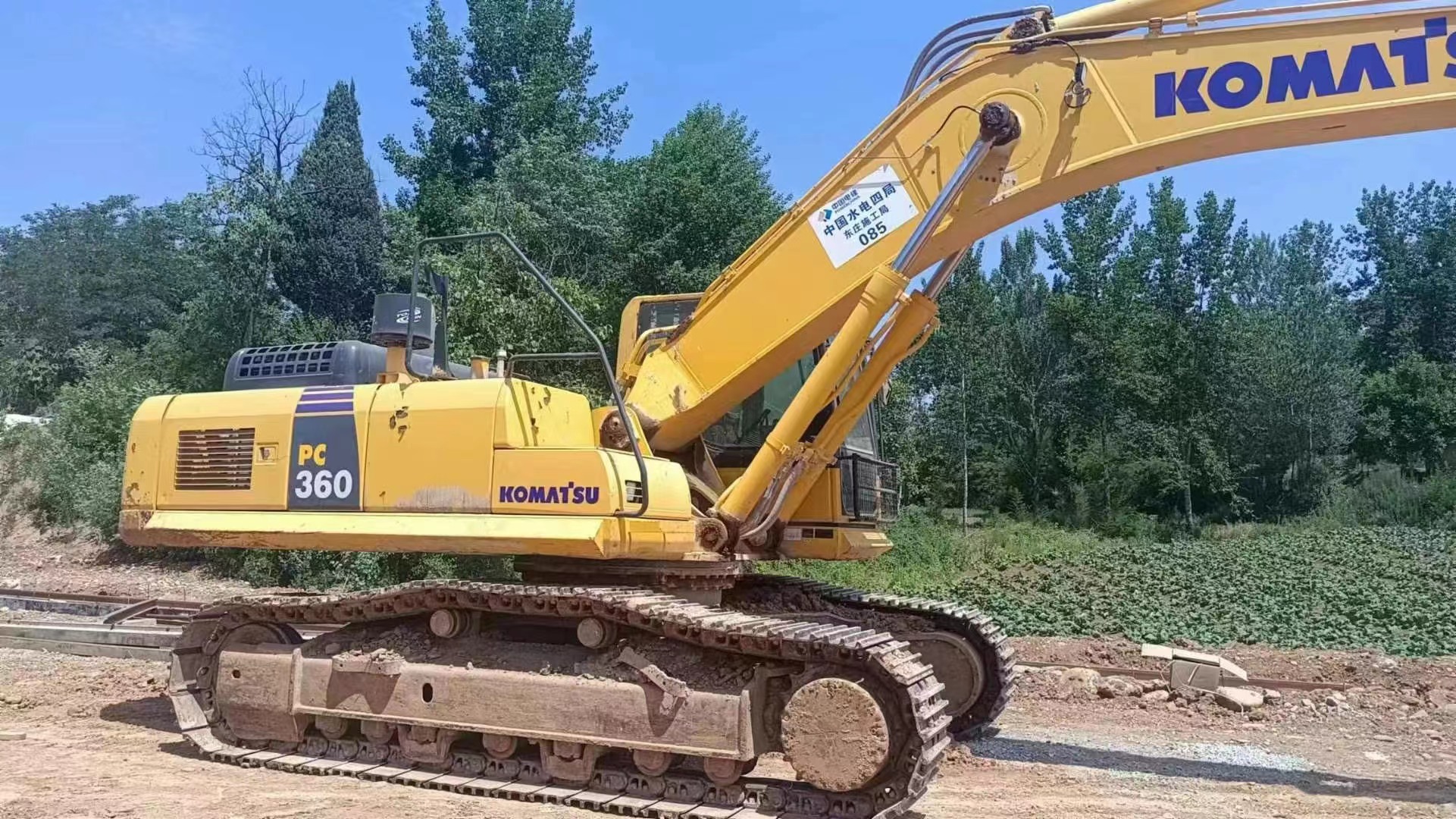

KOMATSU 360

Tonnage (tons) 36
Machine operating weight (kg) 33550
Bucket capacity (m³) 1.6-1.9
Boom length (mm) 6470
Arm length (mm) 3185
Performance
Slewing speed (rpm) 9.5
Travel speed (km/h) 5.5/4.5/3.2
Gradability (%) 70
Ground pressure (Kpa) 68.5
Bucket digging force (kN) 232
Arm digging force (kN) 174
Maximum traction force (kN) 264

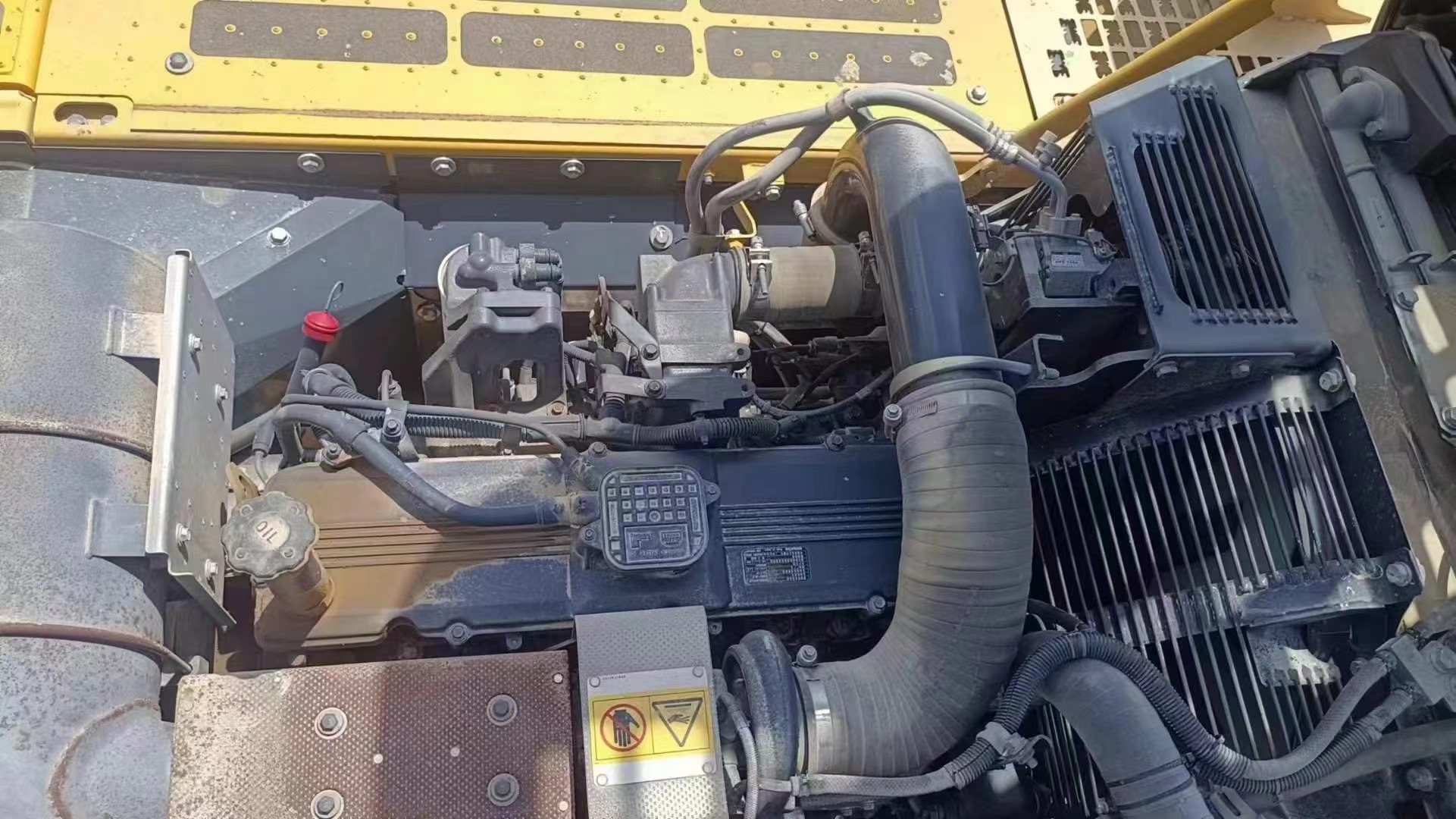

Power system
Engine model Komatsu SA A6D114E-3
Rated power (kw/rpm) 187/1950
Displacement (L) 8.27
Number of cylinders (pieces) 6
Cylinder diameter × stroke (mm) 114 × 135
Cooling method Water cooling
Working mode Six-cylinder four-stroke turbocharged intercooled direct injection engine

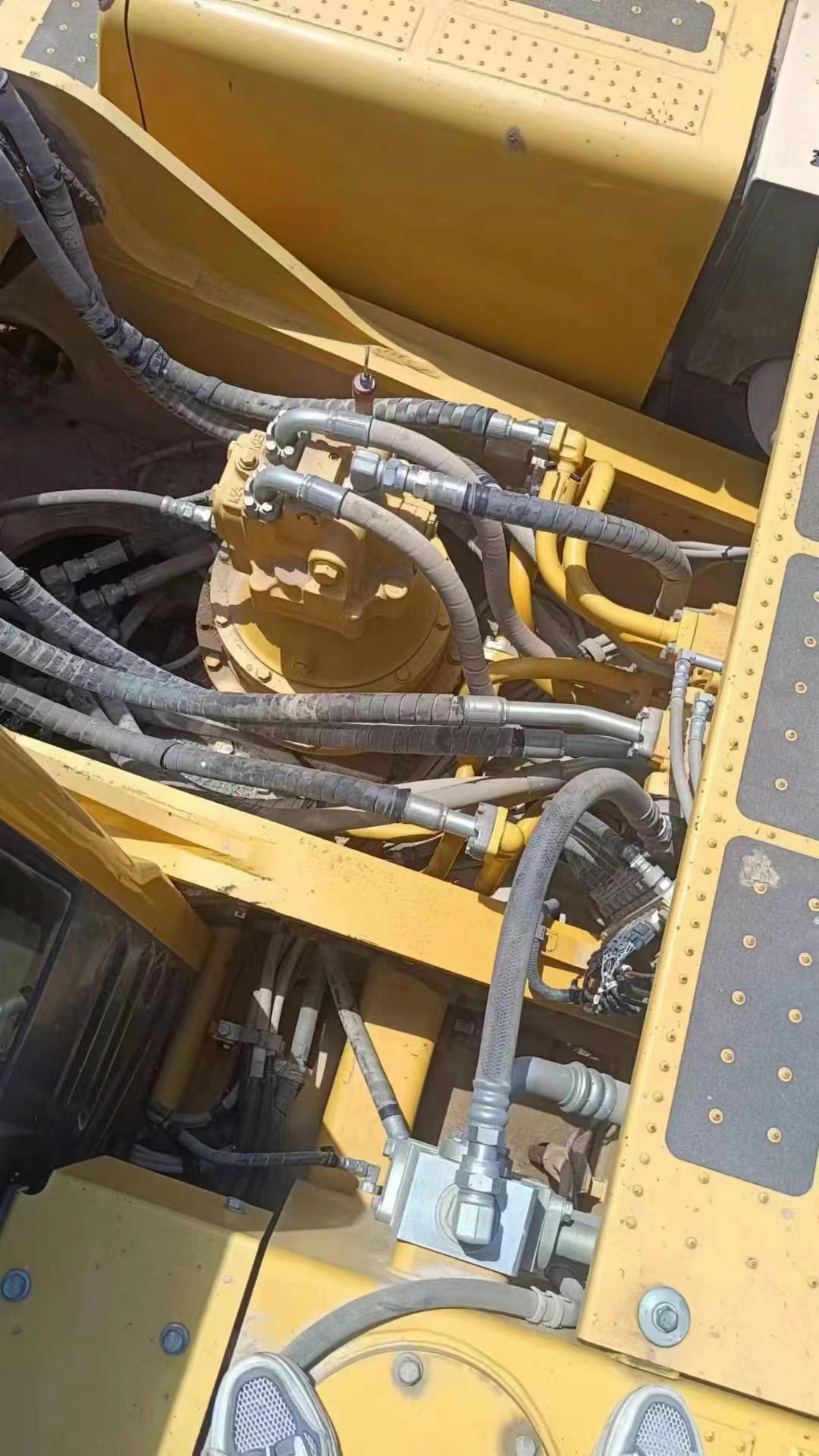

Hydraulic system
Main pump type variable piston pump
Main pump maximum flow (l/min) 535
Pilot oil circuit (MPa) 3.2
Working hydraulic oil circuit (Mpa) 38.2
Travel hydraulic circuit (Mpa) 38.2
Slewing hydraulic circuit (Mpa )28
Boom cylinder – number × cylinder diameter × stroke (mm) 2-140 × 1480
Arm cylinder – number × cylinder diameter × stroke (mm) 1-160 × 1825
Bucket cylinder – number × cylinder diameter × stroke (mm) 1-140 × 1285
Oil capacity
Fuel tank (L) 605
Hydraulic oil tank (L) 188
Engine oil change amount (L) 37
Coolant (L) 31
Main body dimensions
Total transport length (mm) 11150
Total transport width (mm) 3190
Total transport height (mm) 3145
Track ground length (mm) 5755
Total track length (mm) 4625
Track shoe width (mm) 600
Total track width (mm) 3190
Track gauge (mm) 2590
Minimum ground clearance (mm )500
Counterweight ground clearance (mm)1185
Minimum turning radius of front working device (mm)4450
Rear end turning radius (mm)3450
Number of supporting wheels (single side) (pcs)7
Number of chain wheels (single side) (pcs)2
Number of track shoes (single side) (pcs)45
Operating range
Maximum digging radius (mm)11080
Maximum digging radius of parking surface (mm)10890
Maximum digging depth (mm)7380
Maximum digging height (mm)9925
Maximum unloading height (mm)7040
Maximum vertical digging depth (mm)6040
