Caterpillar650

Max Cutting Height:40 ft (12 m)

Max Dig Depth:29 ft (9 m)

Max Dump Height:28 ft (8 m)

Max Reach on Ground:44 ft (13 m)

Max Vertical Wall Dig Depth:24 ft (7 m)

Dimensions:

Height – Top of Cab:12 ft (4 m)

Length of Tracks:18 ft (5 m)

Upper Structure Ground Clearance:4 ft (1 m)

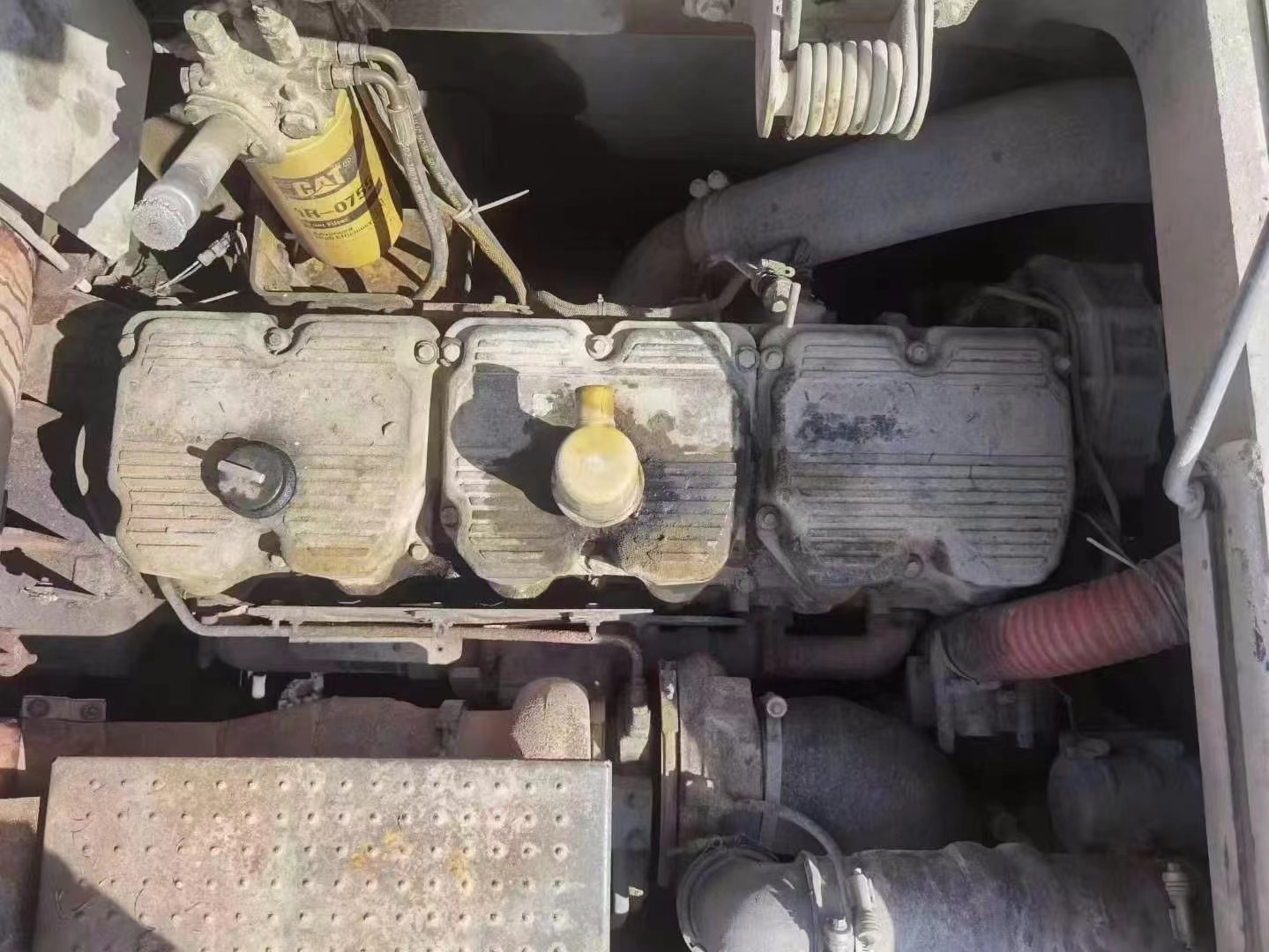

Engine:

Displacement:786 cu in (12,880 cu cm)

Engine Model:C S6B-TA

Net Power:376 hp (280 kw)

Loading Shovel:

Max Cutting Height:35 ft (11 m)

Max Dig Reach:32 ft (10 m)

Max Dump Height:24 ft (7 m)

Operating Specifications:

Fuel Capacity:165 gal (625 l)

Undercarriage:

Backhoe Ground Pressure – Shoe 1:15.7 psi

Backhoe Ground Pressure – Shoe 2:12.8 psi

Backhoe Ground Pressure – Shoe 3:10.8 psi

Backhoe Operating Weight – Shoe 2:138,009 lbs (62,600 kg)

Backhoe Shoe Width 1:24 in (61 cm)

Backhoe Shoe Width 2:30 in (76 cm)

Backhoe Shoe Width 3:36 in (91 cm)

Loading Shovel Ground Pressure:16.5 psi

Loading Shovel Operating Weight:145,505 lbs (66,000 kg)

Loading Shovel Shoe Width:24 in (61 cm)

Max Travel Speed:3 mph (5 kph)
