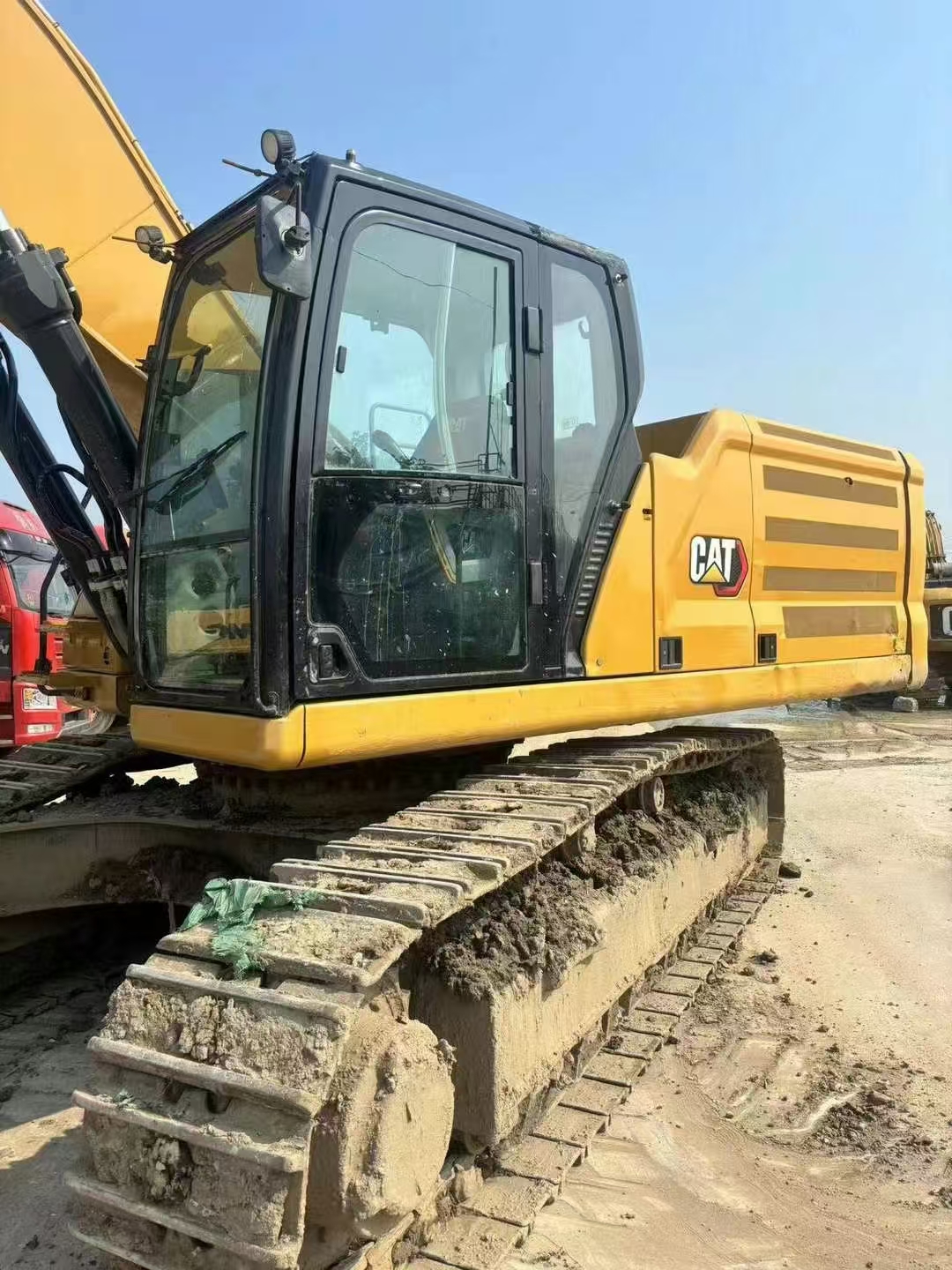

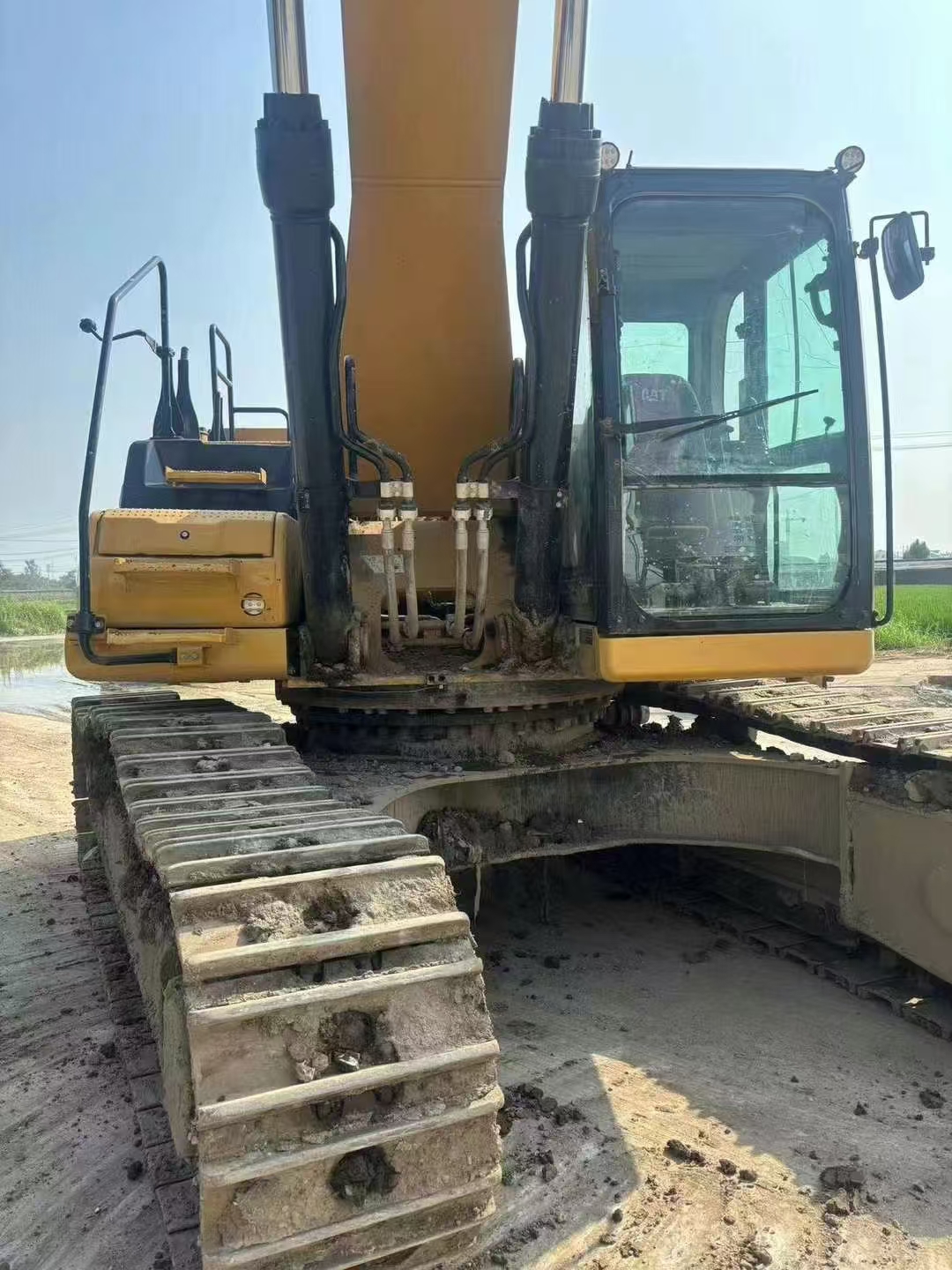

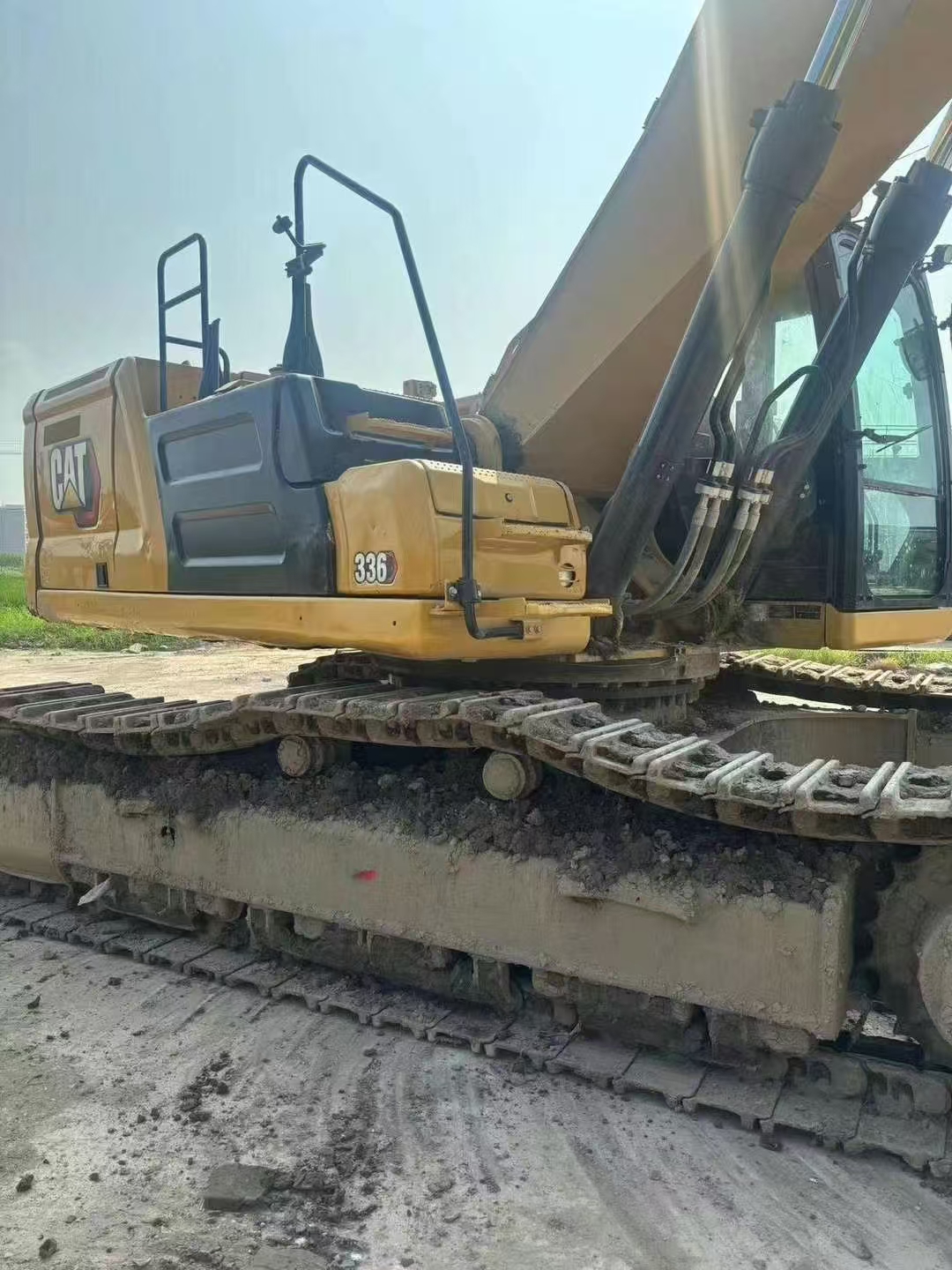

Caterpillar336

Tonnage (tons) 36
Machine operating weight (kg) 37100
Bucket capacity (m³) 2.12 (rock bucket)
Boom length (mm) 6500
Arm length (mm) 3200
Performance
Slewing speed (rpm) 8.84
Slewing torque (Nm) 143k
Travel speed (km/h) 4.7
Bucket digging force (kN) 209
Arm digging force (kN) 166
Maximum traction force (kN) 302.5

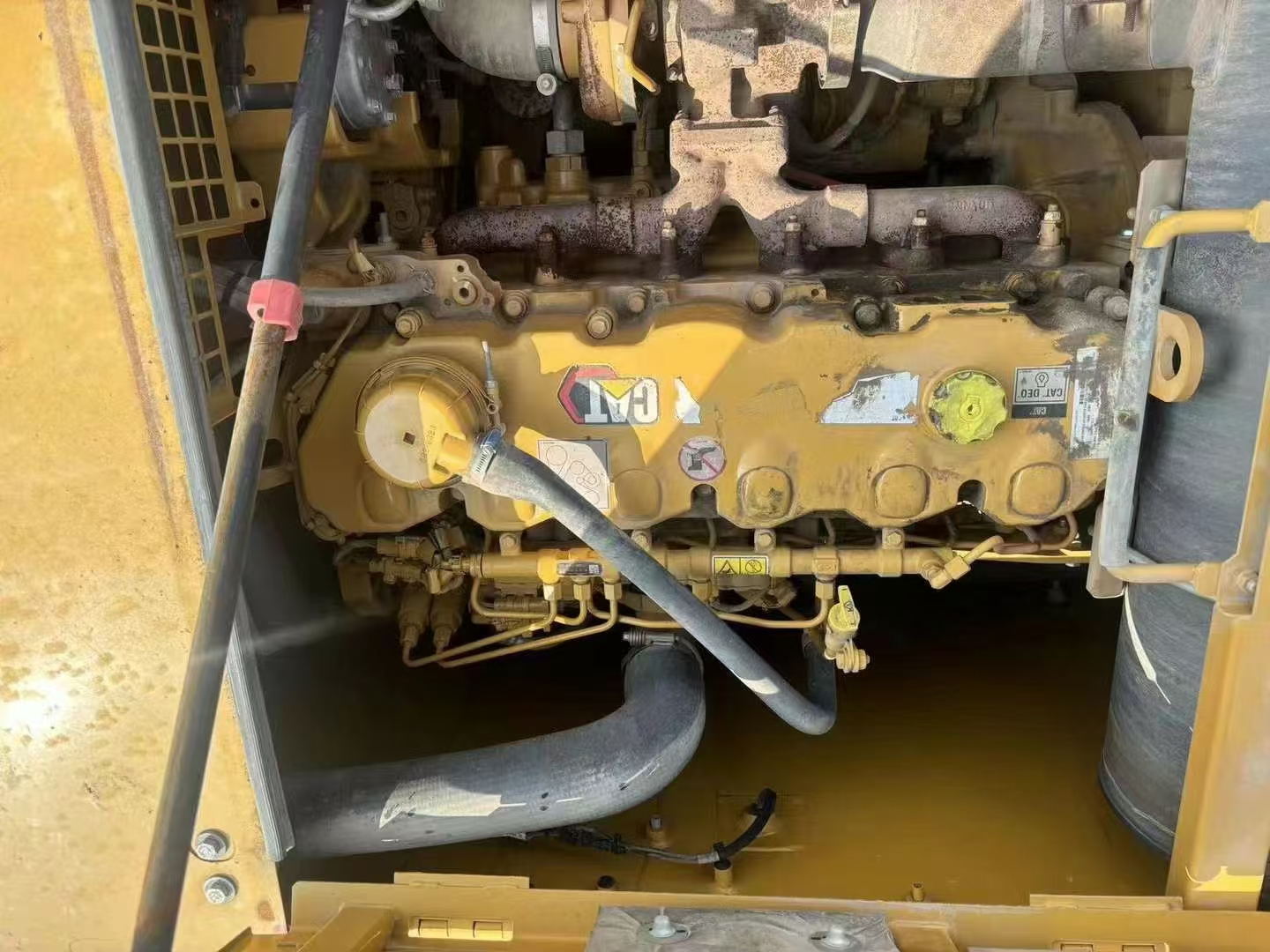

Power system
Engine model C7.1 TTA
Rated power (kw/rpm) 225/2000
Displacement (L) 7.01
Cylinder diameter × stroke (mm) 105*135
Emission standard National IV

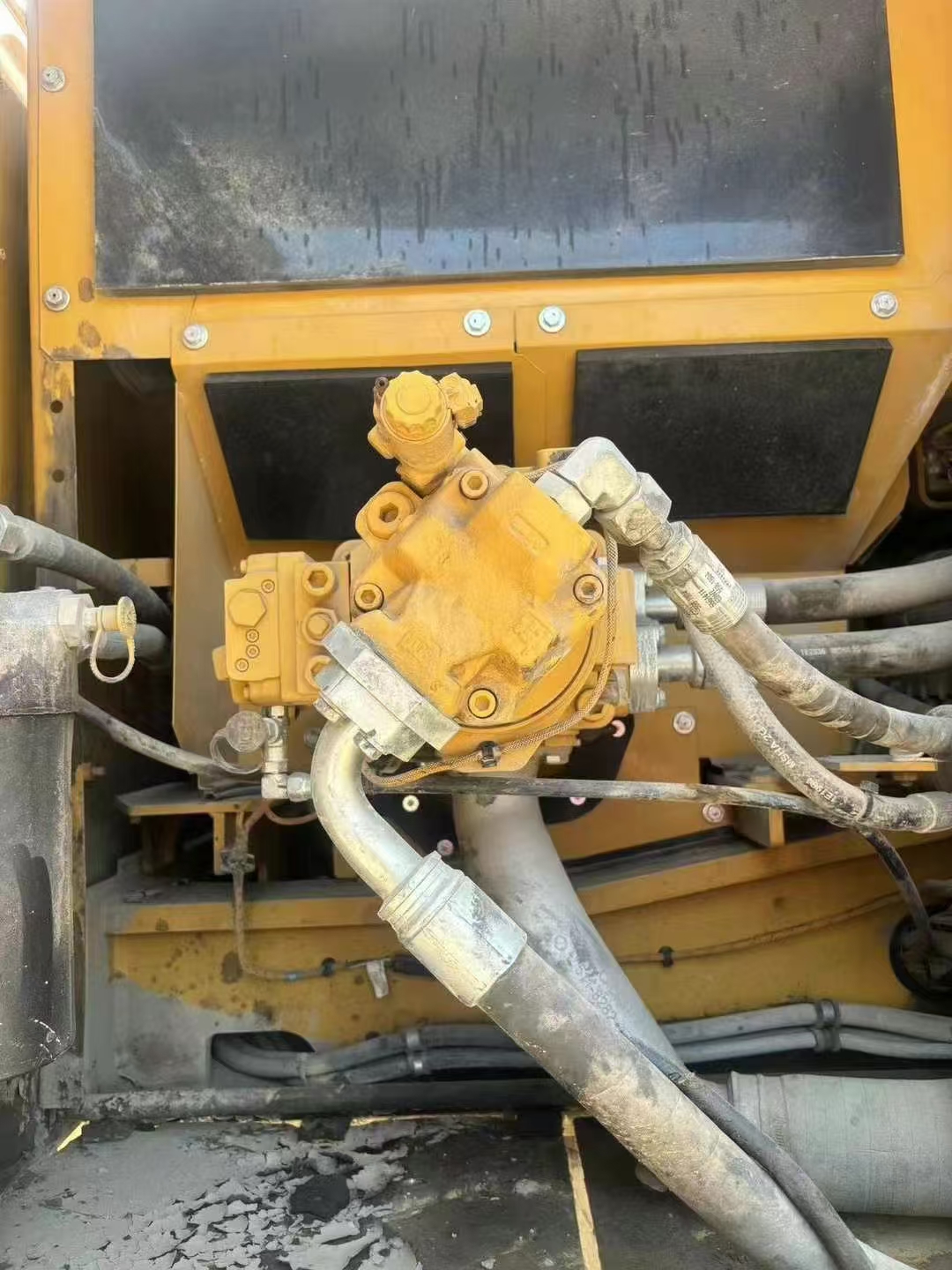

Hydraulic system
Main pump maximum flow (l/min) 560
Working hydraulic oil circuit (Mpa) 35
Travel hydraulic circuit (Mpa) 35

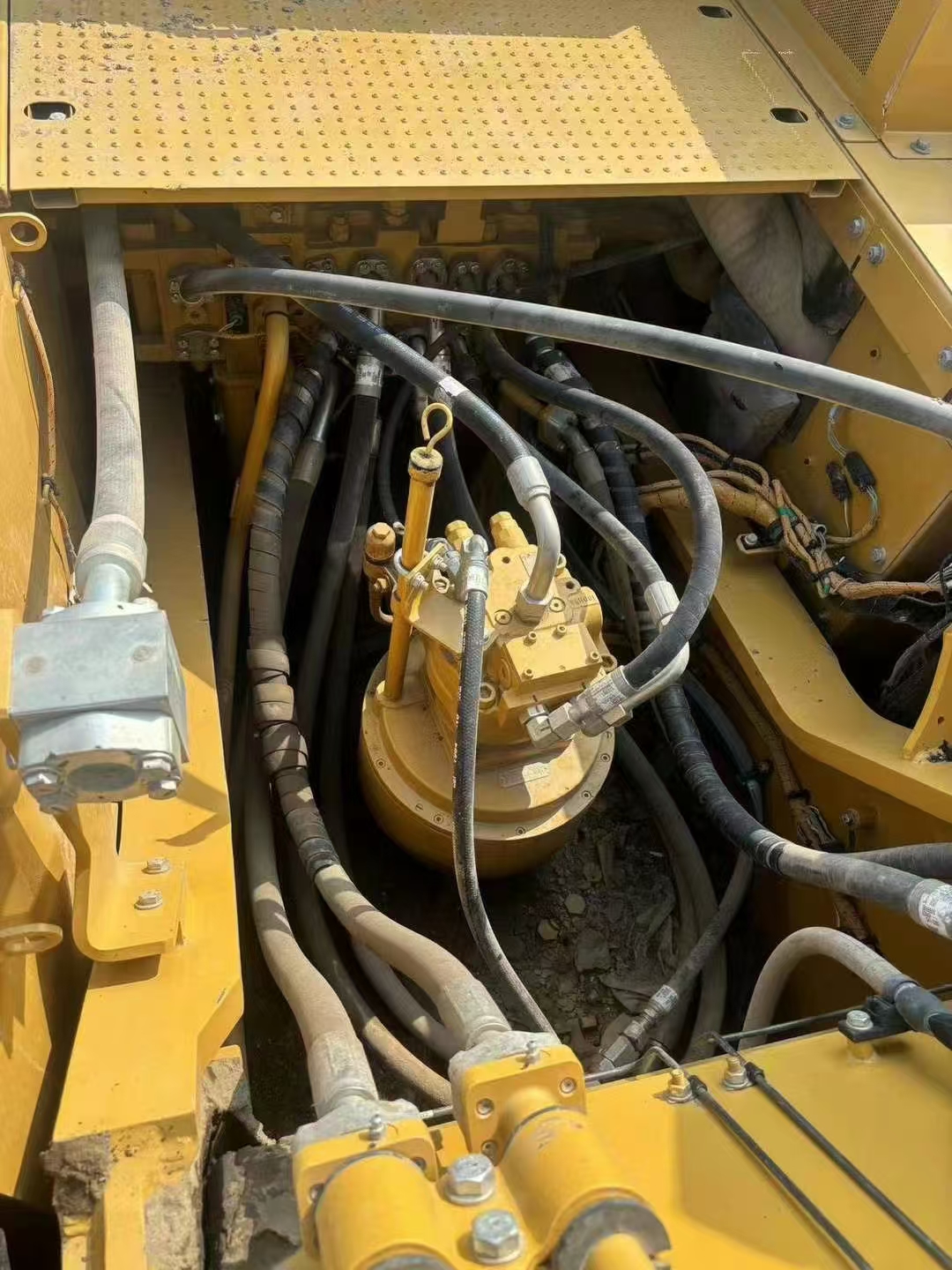

Slewing hydraulic circuit (Mpa) )29.4
Oil capacity
Fuel tank (L) 600
Hydraulic oil tank (L) 161
Hydraulic system (L) 373
Engine oil change volume (L) 25
Coolant (L) 39
Main body dimensions
Total length for transport (mm) 11170
Total width for transport (mm) 3340
Total height for transport (mm) 3180

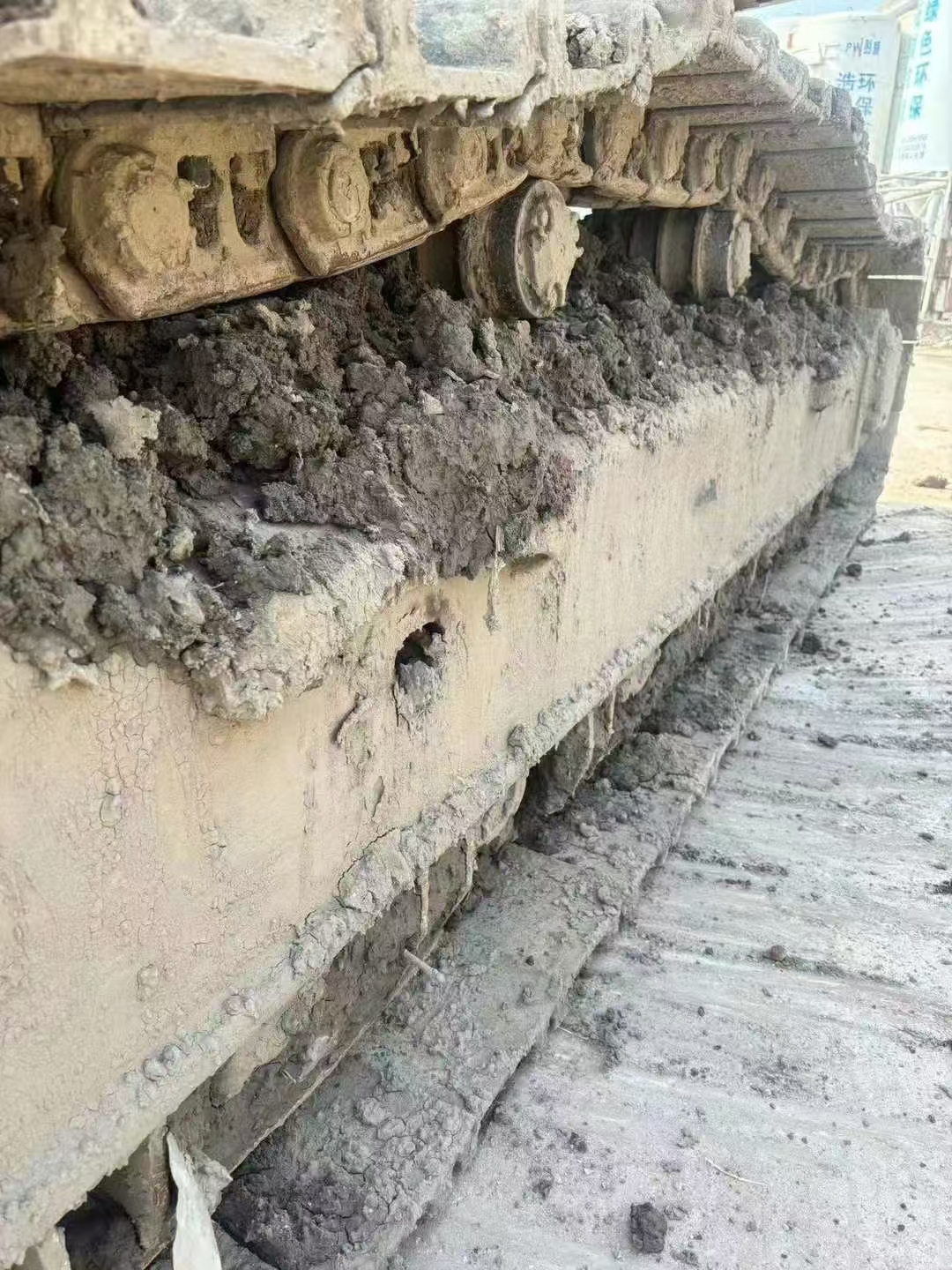

Total length of crawler tracks (mm) 5030
Shoe width (mm) 600
Track gauge (mm) 2740
Counterweight ground clearance (mm) 1260
Minimum ground clearance (mm) 510
Rear end swing radius (mm) 3530
Operating range
Maximum digging radius (mm) 11110
Maximum digging depth (mm) 7560
Maximum digging height (mm) 10340
Maximum unloading height (mm) 7040
Maximum vertical digging depth (mm) 5860
