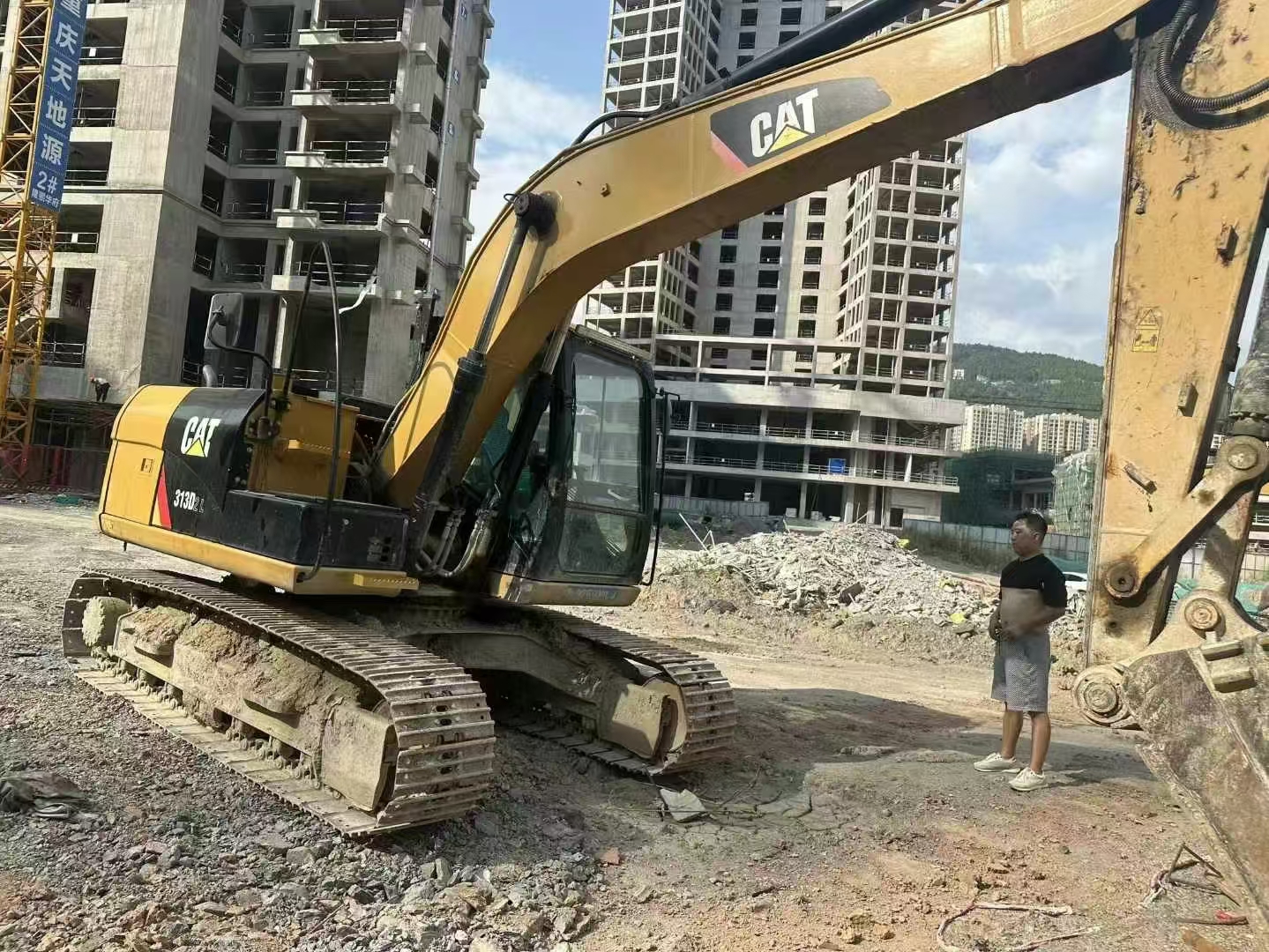

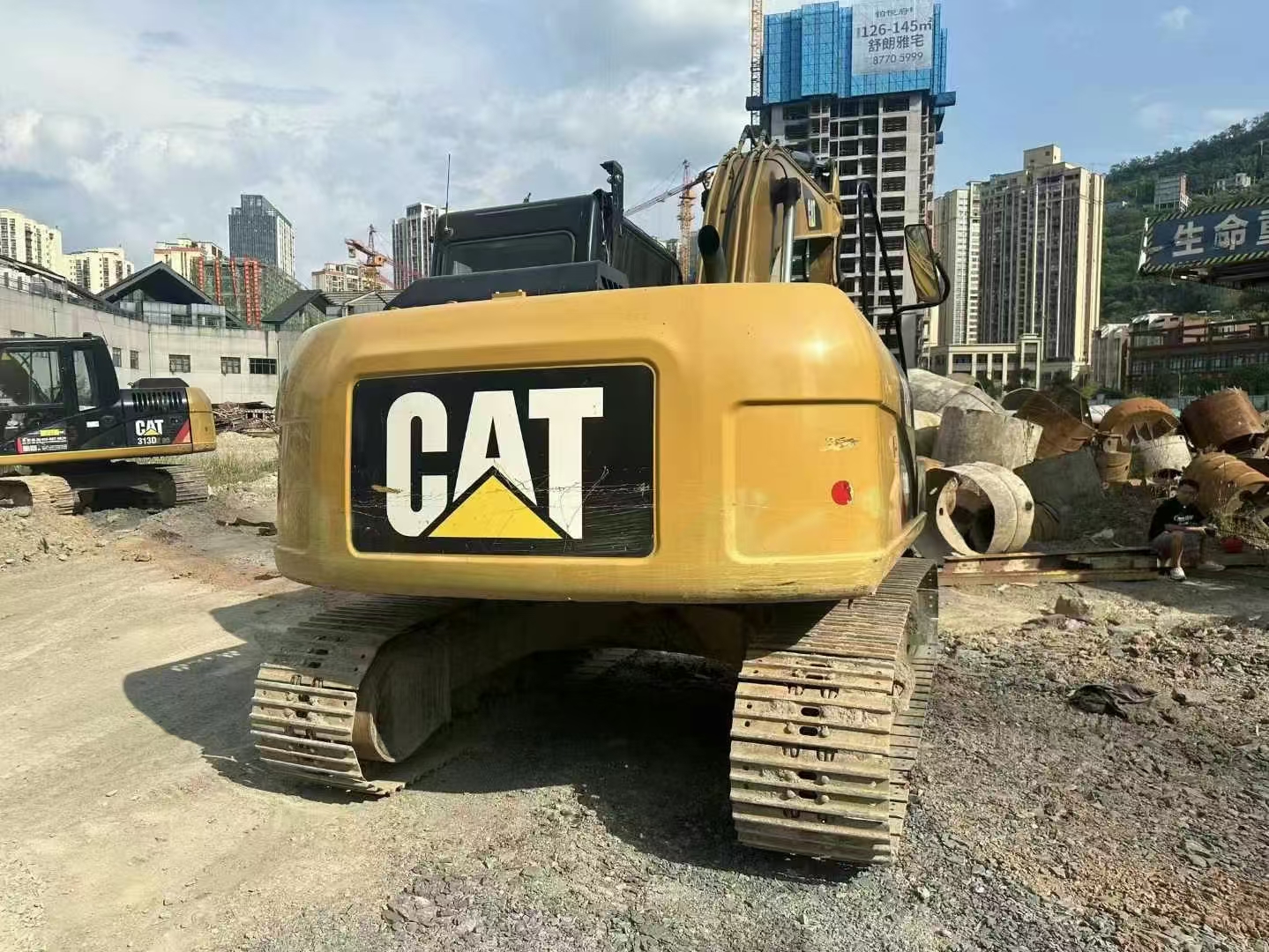

Caterpillar313

Machine working weight (kg) 13430
Bucket capacity (m³) 0.52
Boom length (mm) 4650
Arm length (mm) 2500
Tonnage (tons) 13
Bucket backhoe
Power Traditional power
Performance
Slewing speed (rpm) 12.4
Travel speed (km/h) 5.5
Ground pressure (Kpa) 41.8 (equipped with 500mm crawler shoes)
Bucket digging force (kN) 82
Arm digging force (kN) 63
Maximum traction force (kN) 114
Power system

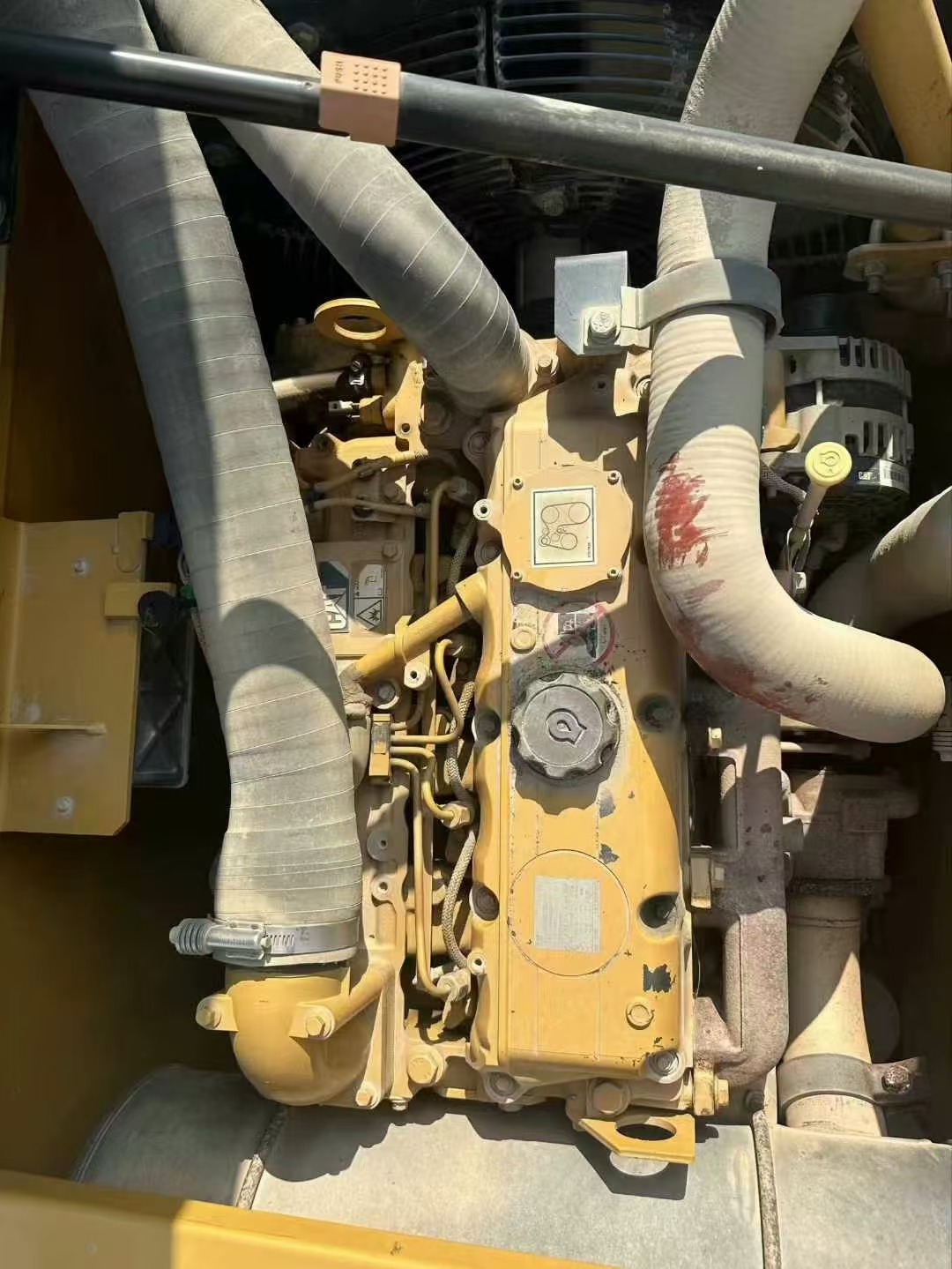

Engine model Caterpillar Cat C4.2 ACERT
Rated power (kw/rpm) 67 (net power)
Displacement (L) 4.25
Number of cylinders (pieces) 4
Cylinder bore × stroke (mm) 102 × 130
Cooling method Water cooling
The working mode meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC.

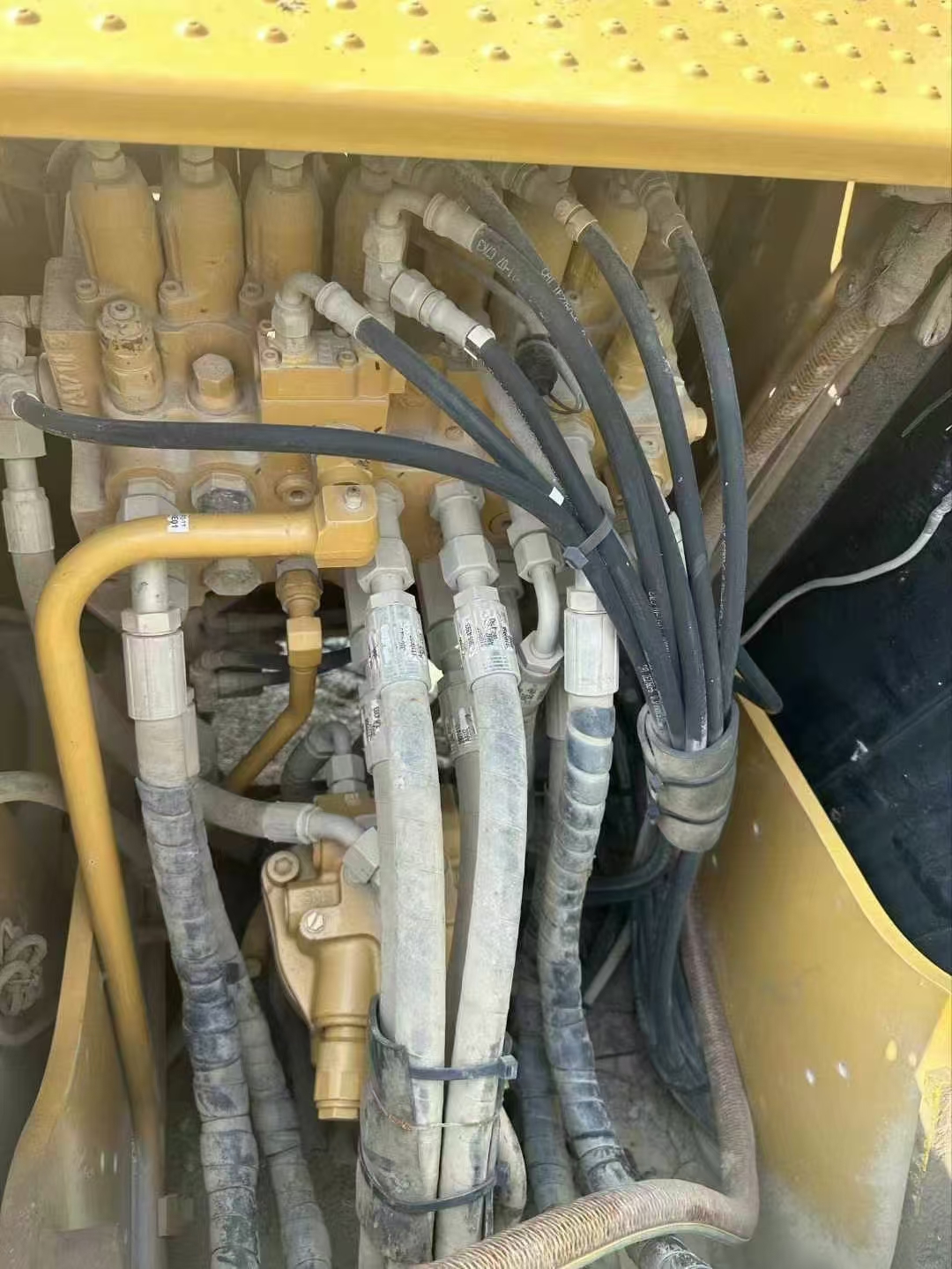

Hydraulic system
Main overflow set pressure (Mpa) 30.5

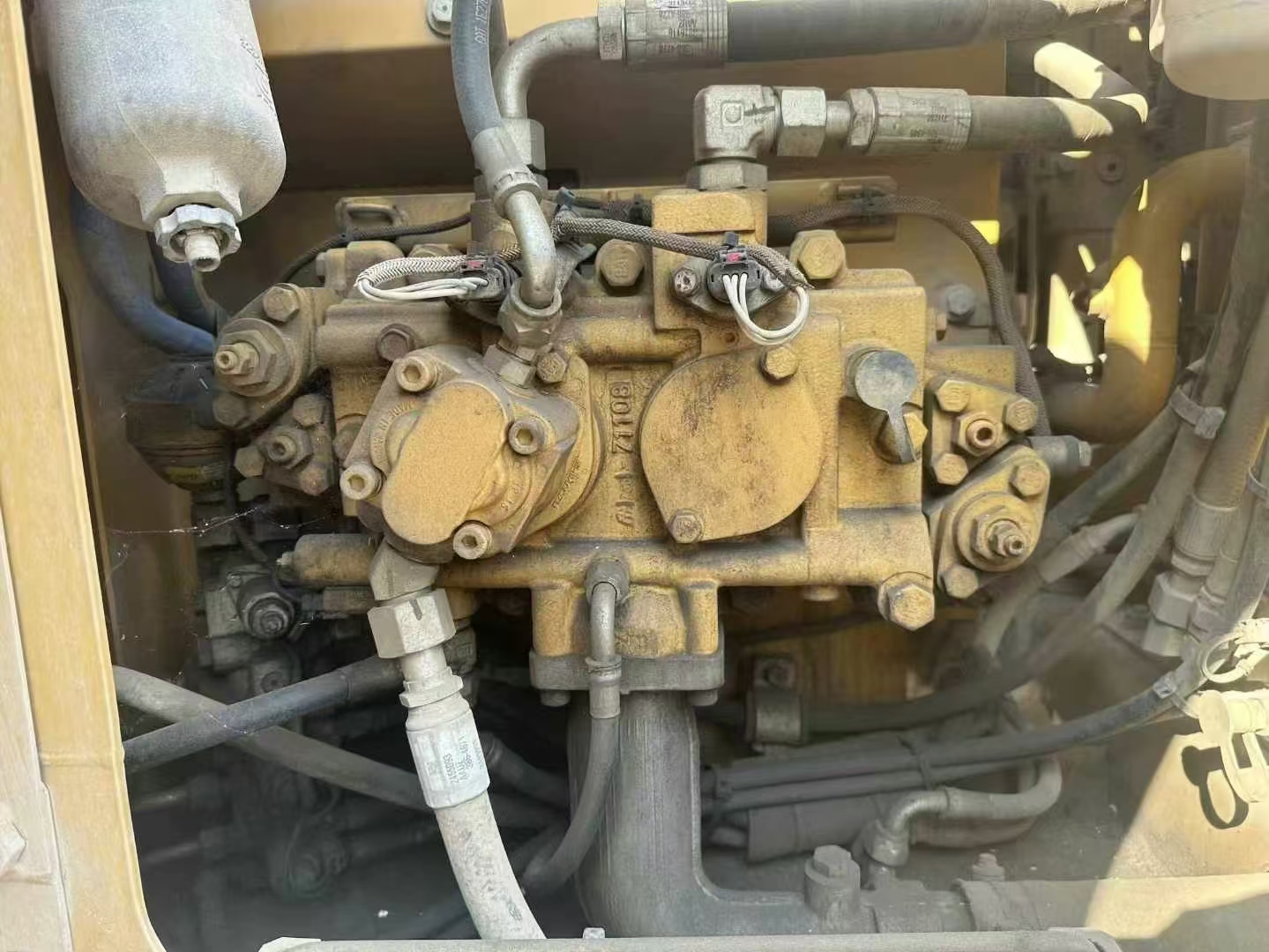

Main pump maximum flow (l/min) 127
Travel hydraulic circuit (Mpa) 35
Swing hydraulic circuit (Mpa) 23
Pilot oil circuit (MPa) 41.2
Pilot pump flow (L/min) 21.9
Boom cylinder – number × cylinder diameter × stroke (mm) 2 × 110 × 1015
Arm cylinder – number × cylinder diameter × stroke (mm) 1 × 120 × 1197
Bucket cylinder – number × cylinder diameter × stroke (mm) 1 × 100 × 939
Oil capacity
Fuel tank (L) 250
Hydraulic oil tank (L) 150
Hydraulic system (L) 162 (including oil tank)
Engine oil replacement amount (L) 19.5
Coolant (L )17.9
Main dimensions
Total length for transport (mm)7610
Total width for transport (mm)2490
Total height for transport (mm)2830 (to the top of the boom)
Total height of the cab (mm)2760
Counterweight ground clearance (mm)915

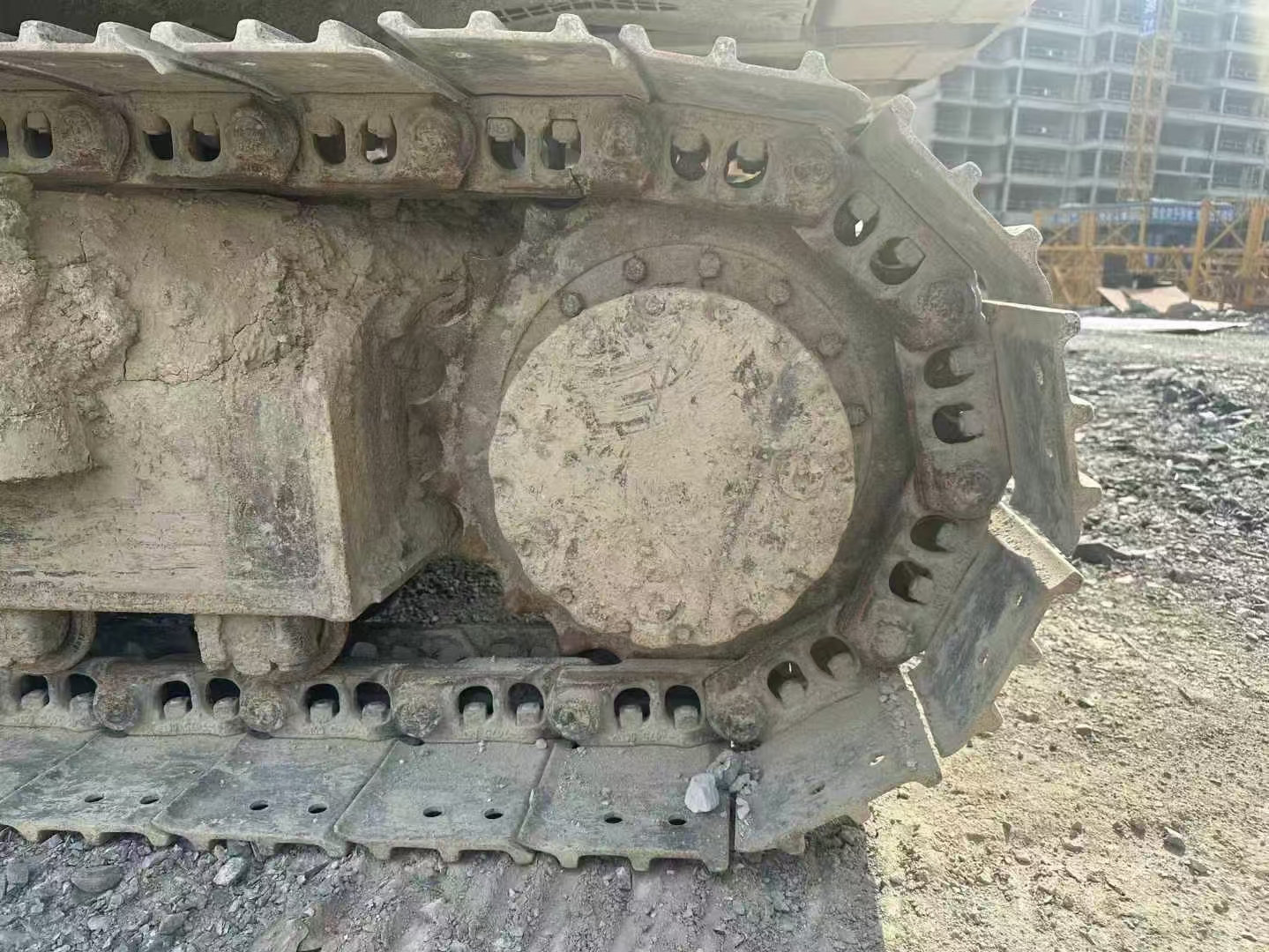

Total length of crawler tracks (mm)3490
Wide track shoe (mm)500 (standard)
Total width of crawler tracks (mm)2490
Track gauge (mm)1990
Minimum ground clearance (mm)430
Rear end swing radius (mm)2140
Operating range
Maximum digging radius of parking surface (mm)8220
Maximum digging depth (mm)5580
Maximum unloading height (mm)6060
Maximum vertical digging depth (mm)5040
Maximum effective digging depth (mm)5380
