Caterpillar307.5

Tonnage (tons) 8
Machine operating weight (kg) 7504-8113
Bucket capacity (m³) UD 0.33
Arm length (mm) 1665
Performance
Slewing speed (rpm) 10
Travel speed (km/h) 3.1~5.0
Gradability (%) 70
Ground pressure (Kpa) 35.2
Bucket digging force (kN) 54.6
Arm digging force (kN) 37.8
Maximum traction force (kN) 62.4
Power system

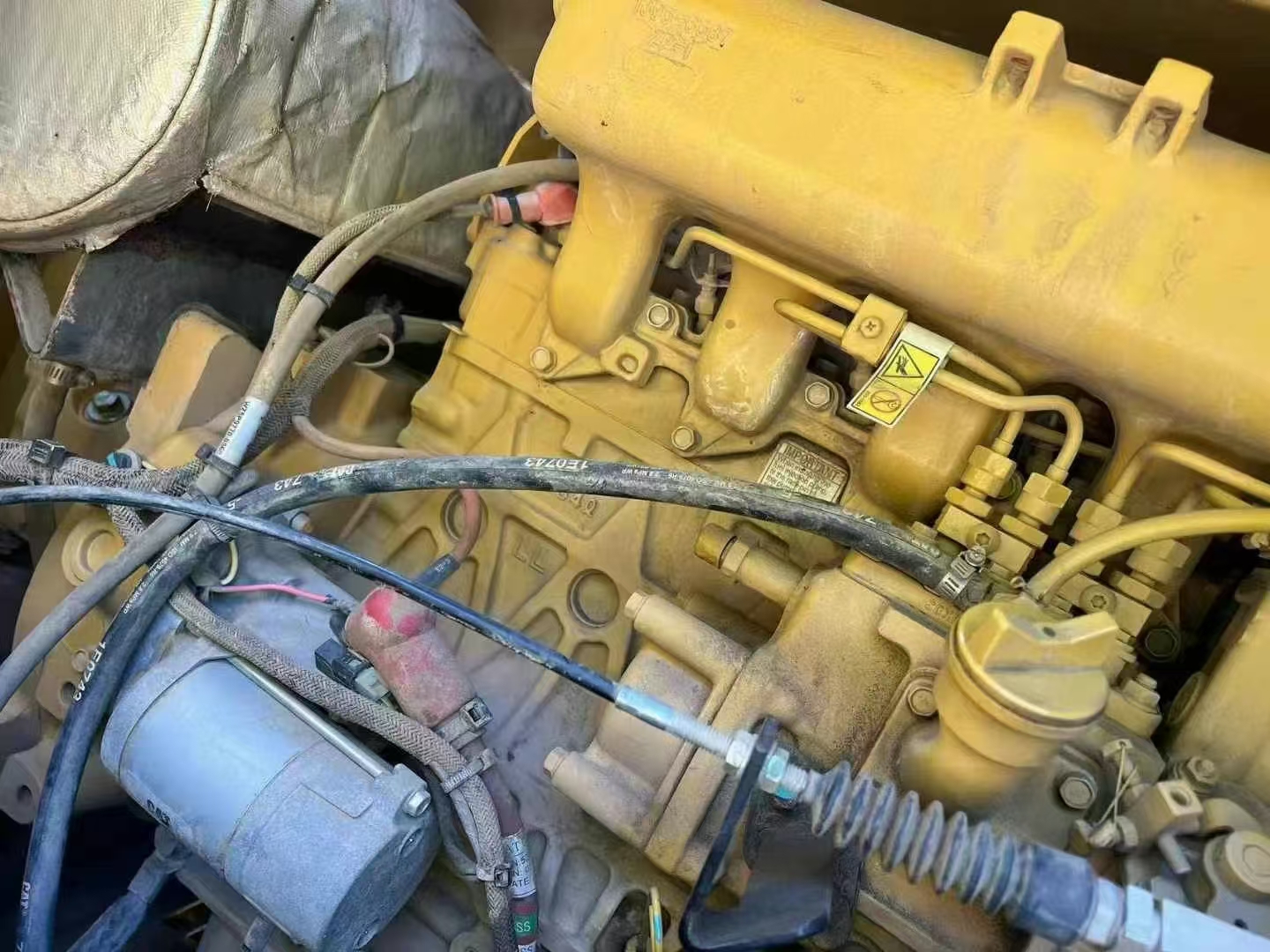

Engine model Cat® C2.4T
Rated power (kw/rpm) 36.5/2400
Displacement (L) 2.43
Bore × stroke (mm) 87*102
Hydraulic system

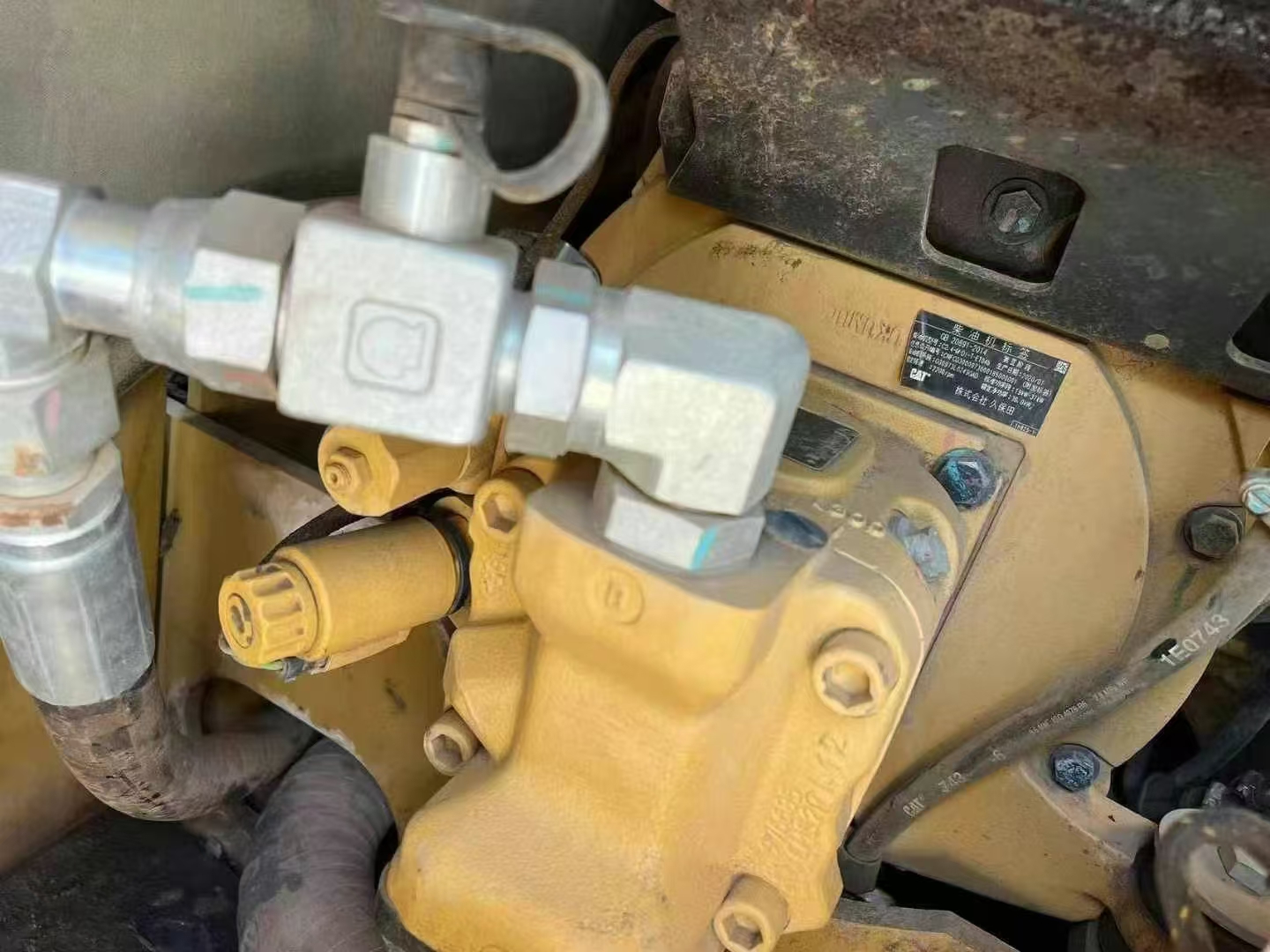

Main pump maximum flow (l/min) 167
Working hydraulic circuit (Mpa) 28.5
Travel hydraulic circuit (Mpa) 28.5
Slewing hydraulic circuit (Mpa) )25
Oil capacity
Fuel tank (L)145
Hydraulic oil tank (L)53
Hydraulic system (L)104
Engine oil change volume (L)9.5
Coolant (L)10
Main body dimensions
Total length for transportation (mm)6130
Total height for transportation (mm)2569
Onboard width (mm)2250
Track shoe width (mm)450
Total track width (mm)2200
Minimum ground clearance (mm)370
Rear end swing radius (mm)1800/1995
Operating range
Maximum digging radius (mm)6297
Maximum digging depth (mm)4047
Maximum digging height (mm)7401
Maximum unloading height (mm)5353
Maximum vertical digging depth (mm)3544
Bulldozer blade width×height (mm)2280*431
Bulldozer blade lifting or pushing depth (mm)363/414
