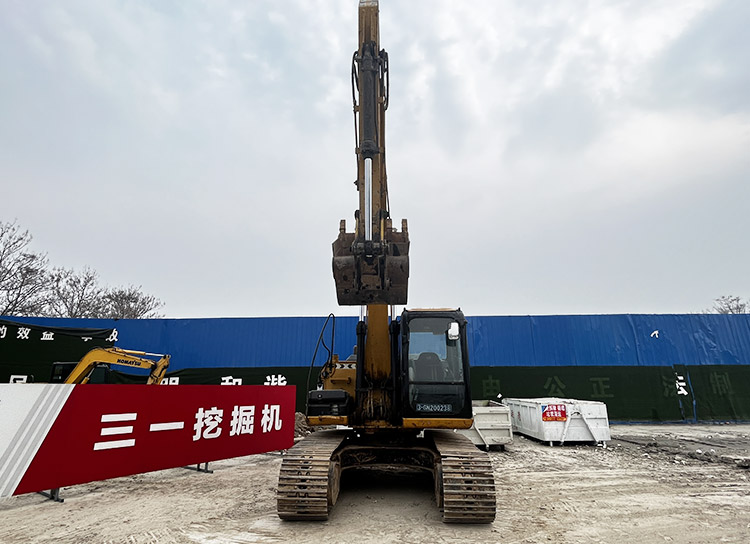

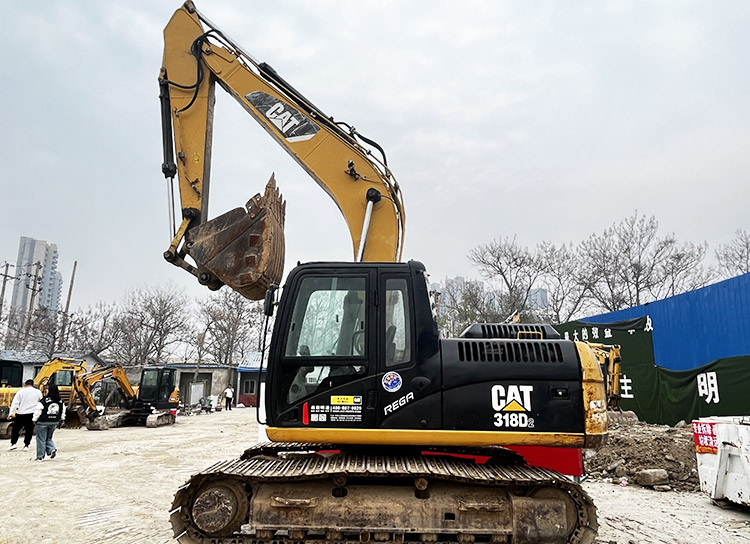

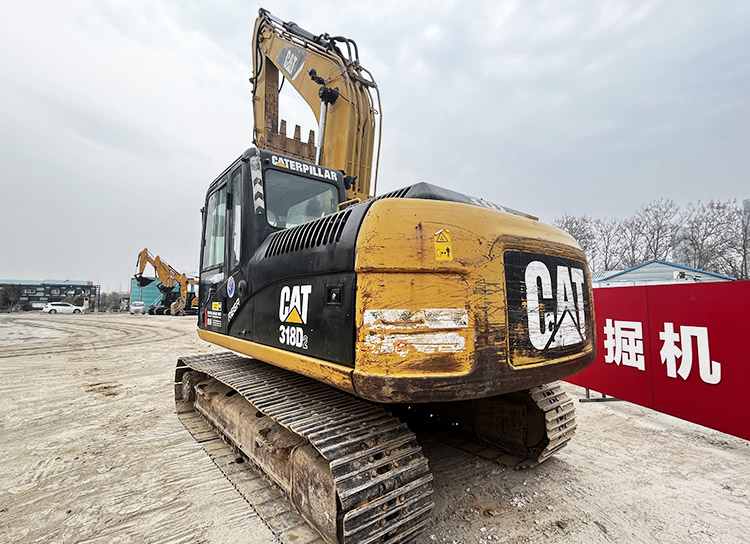

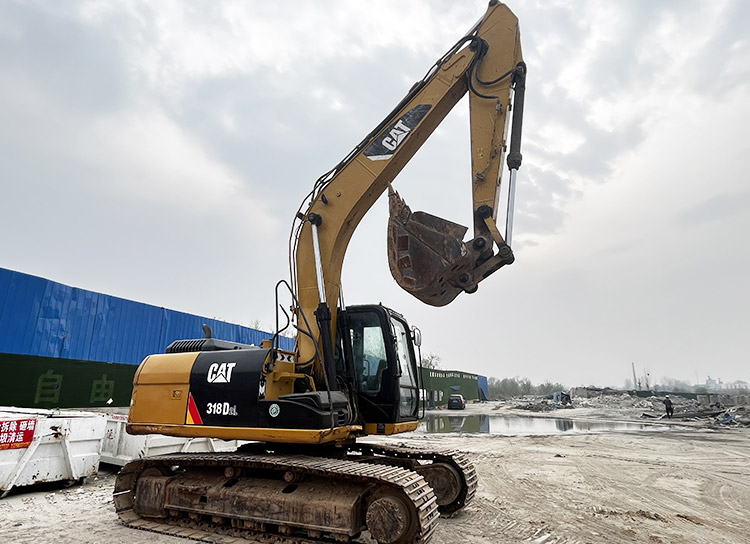

The CAT 318D2L excavator is equipped with a robust C 4.4 ACERT electronic controlled engine, meeting Brazil’s MAR-1 emission standards, equivalent to U.S. EPA Tier 3/EU Stage III. Its dual-pump hydraulic system ensures exceptional excavation performance and productivity, while the hydraulic cross-sensing system enhances speed and pivot rotation strength for increased efficiency. The economy mode balances performance and fuel economy, maintaining digging force and lifting capacity. Convenient maintenance is facilitated by accessible service points and maintenance doors. Comfort features include adjustable seats and ergonomic joystick controls. The cabin’s full-color LCD display is programmable in 42 languages. Enhanced durability is ensured by the improved X-frame structure and heavy-duty welded robot arms and booms. Safety measures include slip-resistant plates and recessed bolts, while engine radiator fan enclosures reduce the risk of accidents.
| Small Excavators 318D2L (2017) | ||
| Specification | Total weight： | 17800kg |
| Bucket size： | GD .76 m³ (1 yd³) | |
| Net power： | 84 kw | |
| Digging depth： | 6090mm | |
| Dimension（L*W*H）： | 3970*2590*3030mm | |
| Engine | Engine model： | C4.4 |
| Engine power： | 93KW | |
| Displacement： | 4.4L | |
| Performance | Gradeability： | 35°/70% |
| Swing speed： | 8.9 r/min | |
| Ground pressure： | — | |
| Breakout force： | — | |
| Arm crowd force： | — | |
| Speed： | 4.8 km/h | |
| Maintenance filling capacity | Cooling system： | 19.53L |
| Engine oil： | 16L | |
| Hydraulic tank： | 100L | |
| Fuel tank： | 300L | |
| Hydraulic system： | 100L | |
